DtAggregateExtentVisualizer visualize bounding boxes for aggregates. More...

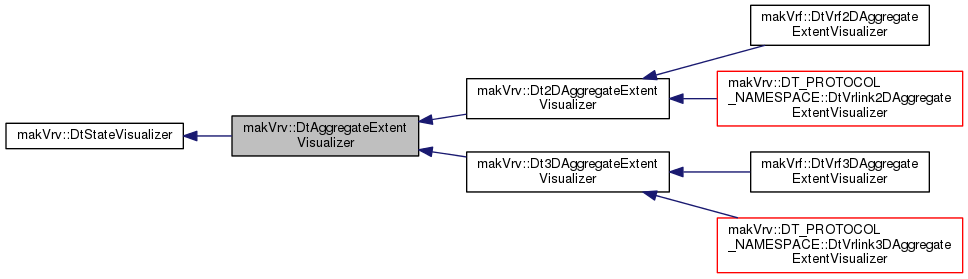

Inheritance diagram for makVrv::DtAggregateExtentVisualizer:

Public Member Functions
	DtAggregateExtentVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)
	Constructor. More...

virtual	~DtAggregateExtentVisualizer ()
	Destructor. More...

virtual void	setDimensions (const DtVector &dim)
	Sets the dimensions of the cuboid (length is X, width is Y, height is Z) More...

virtual void	setColor (float r, float g, float b, float a)
	Sets the color of the cuboid. More...

virtual void	setShowExtents (bool)
	Different in setVisible in that it will do a show/hide with the show/hide context of HiddenBySetting. More...

virtual void	setShowOnlyIfSelected (bool)
	Will show only if the item is also selected. More...

bool	showOnlyIfSelected () const

virtual void	setVisible (bool yesNo)

virtual void	setSelected (bool)
	Override to show/hide if show only if selected mode is on. More...

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)
	CTOR. More...

virtual	~DtStateVisualizer ()
	DTOR. More...

virtual const TypeInfo &	typeInfo () const =0
	Get the type info. More...

virtual void	setParent (DtStateVisualizer *)
	Override to set the parent of this visualizer. More...

void	setModelDefinition (const std::string &definition)
	Sets the model definition and creates agent(s) based on that definition. More...

const std::string &	modelDefinition () const
	Gets the current model definition. More...

virtual void	implementVisibility (bool visible)
	Wrap some of the show/hide functionality so that it can be overloaded (ex. More...

virtual bool	setVisible (bool visible, int context)
	Returns true if this context wants to show or hide the item. More...

virtual void	initialize ()
	Initialize the visualizer. More...

virtual bool	isVisible () const
	Returns true if visible. More...

virtual bool	selected () const

void	setName (const std::string &)
	Internal name of state visualizer. More...

const std::string &	name () const

virtual void	setPickable (bool)
	Sets pickable state. More...

virtual bool	pickable () const

virtual void	setUniqueID (DtUniqueID id)

DtUniqueID	uniqueID () const

int	visualizerType () const

void	setShowHideContext (const std::vector< int > &s)
	Set show/hide context without changing visibility of item. More...

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)
	Set any other additional visualizer information from the visual record. More...

DtStateListener &	listener ()

DtBaseConnection &	simulation ()
	Get the connection for this visualizer. More...

void	setDistribute (bool b)
	Whether or not to distribute over the network. More...

bool	distribute () const

Protected Member Functions
virtual void	createModelAgents ()
	Override to create model agents that will be used to display data from the listener. More...

virtual void	destroyModelAgents ()
	Destroys all currently created definitions. More...

virtual void	setModelDefinitionForAgents ()
	Sets model definition for all the agents that this visualizer might be using. More...

virtual DtModelAgent *	createExtentModelAgent ()=0
	Creates and returns the extent model agent. More...

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	slot_mouseDown (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Called when the mouse is clicked in this visualizer. More...

virtual void	slot_mouseUp (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)

virtual void	slot_mouseDblClick (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)

virtual bool	hide (int context)
	Will call destroyModelAgents(), if, when the context is added, it is the first context in the list. More...

virtual bool	show (int context)
	Will call createModelAgents(), if, when context is removed from myShowHideContexts, the list size is zero. More...

virtual bool	supportsShowHideContext (int) const
	Default returns true. More...

template<typename T , typename C >
void	connectAndUpdate (boost::signal< void(T)> &sig, void(C::*fp)(T), T val)
	Connect a signal and update the entity. More...

Protected Attributes
DtModelAgent *	myAggregateExtentModelAgent

float	myColor [4]

DtVector	myDimensions

bool	myShowOnlyIfSelected

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	myUniqueID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

int	myModelSet

int	myVisualizerType

std::vector< int >	myShowHideContexts

bool	mySelected

bool	myPickable

bool	myVisible

DtStateVisualizer *	myParent

DtSceneObjectAgent *	mySceneObjectAgent

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }
	Visualizer class types that are supportable via visualizers. More...

Public Attributes inherited from makVrv::DtStateVisualizer
boost::signal< void(DtStateVisualizer , DtStateVisualizer , DtStateVisualizer *)>	signal_reparented
	Signaled when the parent of this item changes, called before destroying any model agents. More...

boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDown
	Emitted when the entity's indicator is clicked. More...

boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseUp

boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDblClick

Detailed Description

DtAggregateExtentVisualizer visualize bounding boxes for aggregates.

Constructor & Destructor Documentation

makVrv::DtAggregateExtentVisualizer::DtAggregateExtentVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		int	modelSet
	)

Constructor.

virtual makVrv::DtAggregateExtentVisualizer::~DtAggregateExtentVisualizer ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtAggregateExtentVisualizer::setDimensions ( const DtVector & dim )

virtual

Sets the dimensions of the cuboid (length is X, width is Y, height is Z)

Reimplemented in makVrv::Dt2DAggregateExtentVisualizer, and makVrv::Dt3DAggregateExtentVisualizer.

virtual void makVrv::DtAggregateExtentVisualizer::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Sets the color of the cuboid.

Reimplemented in makVrv::Dt2DAggregateExtentVisualizer, and makVrv::Dt3DAggregateExtentVisualizer.

virtual void makVrv::DtAggregateExtentVisualizer::setShowExtents ( bool )

virtual

Different in setVisible in that it will do a show/hide with the show/hide context of HiddenBySetting.

virtual void makVrv::DtAggregateExtentVisualizer::setShowOnlyIfSelected ( bool )

virtual

Will show only if the item is also selected.

bool makVrv::DtAggregateExtentVisualizer::showOnlyIfSelected ( ) const

inline

virtual void makVrv::DtAggregateExtentVisualizer::setVisible ( bool yesNo )

virtual

virtual void makVrv::DtAggregateExtentVisualizer::setSelected ( bool )

virtual

Override to show/hide if show only if selected mode is on.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtAggregateExtentVisualizer::createModelAgents ( )

protectedvirtual

Override to create model agents that will be used to display data from the listener.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DAggregateExtentVisualizer, makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink3DAggregateExtentVisualizer, makVrf::DtVrf3DAggregateExtentVisualizer, makVrf::DtVrf2DAggregateExtentVisualizer, makVrv::Dt2DAggregateExtentVisualizer, and makVrv::Dt3DAggregateExtentVisualizer.

virtual void makVrv::DtAggregateExtentVisualizer::destroyModelAgents ( )

protectedvirtual

Destroys all currently created definitions.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::Dt2DAggregateExtentVisualizer, and makVrv::Dt3DAggregateExtentVisualizer.

virtual void makVrv::DtAggregateExtentVisualizer::setModelDefinitionForAgents ( )

protectedvirtual

Sets model definition for all the agents that this visualizer might be using.

If model agents are not created, should create them. Should not call this directly, but rather call setModelDefinition

Implements makVrv::DtStateVisualizer.

virtual DtModelAgent* makVrv::DtAggregateExtentVisualizer::createExtentModelAgent ( )

protectedpure virtual

Creates and returns the extent model agent.

Implemented in makVrv::Dt2DAggregateExtentVisualizer, and makVrv::Dt3DAggregateExtentVisualizer.

Member Data Documentation

DtModelAgent* makVrv::DtAggregateExtentVisualizer::myAggregateExtentModelAgent

protected

float makVrv::DtAggregateExtentVisualizer::myColor[4]

protected

DtVector makVrv::DtAggregateExtentVisualizer::myDimensions

protected

bool makVrv::DtAggregateExtentVisualizer::myShowOnlyIfSelected

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvCore/DtAggregateExtentVisualizer.h
