Abstract interface class for all coordinate system displays. More...

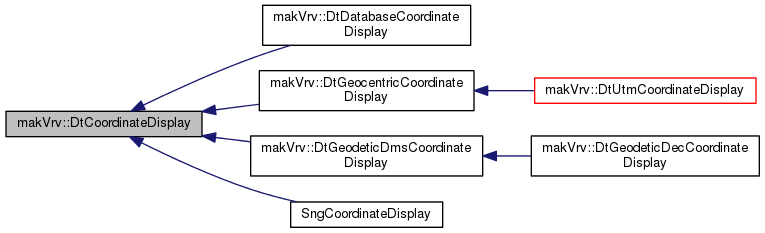

Inheritance diagram for makVrv::DtCoordinateDisplay:

Public Types
typedef makArchives::DtDisplayUnitsSettingsRecord::CoordSys	CoordSys

typedef makArchives::DtDisplayUnitsSettingsRecord::DistanceUnits	DistanceUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::VelocityUnits	VelocityUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::AccelerationUnits	AccelerationUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::OrientationUnits	OrientationUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::RotVelocityUnits	RotVelocityUnits

typedef std::list< DistanceUnits >	SupportedPositionDistanceUnits

typedef std::list < OrientationUnits >	SupportedPositionAngularUnits

typedef std::list< std::string >	SupportedCSForGridLines

Public Member Functions
	DtCoordinateDisplay (const DtCoordinateSystem &coordSys)
	CTOR DtUnitConverterCollection is a collection of classes used to convert between different units (meters, feet, miles, etc.) DtCoordinateSystem is used to do coordinate system conversions, when possible. More...

virtual	~DtCoordinateDisplay ()
	DTOR. More...

virtual DtCoordinateDisplay *	clone () const =0
	Virtual clone function. More...

virtual DtUnicode	name ()=0

virtual DtUnicode	gridBoxLabel (const DtVector &lowerLeftGeocPos, const DtVector &upperRightGeocPos)
	Some systems (such as MGRS) are not just positions but boxes with grid designators. More...

virtual DtUnicode	northSouthGridLabel (DistanceUnits unit, const DtVector &geocPos, int decimals, double gridSpacing)
	Get a north / south label with linear units. More...

virtual DtUnicode	northSouthGridLabel (OrientationUnits unit, const DtVector &geocPos, int decimals, double gridSpacing)
	Get a north / south label with angular units. More...

virtual DtUnicode	eastWestGridLabel (DistanceUnits unit, const DtVector &geocPos, int decimals, double gridSpacing)
	Get an east / west label with linear units. More...

virtual DtUnicode	eastWestGridLabel (OrientationUnits unit, const DtVector &geocPos, int decimals, double gridSpacing)
	Get an east / west label with angular units. More...

virtual bool	clipXToGrid (double inStartX, double inEndX, double constantY, double &clippedStartX, double &clippedEndX)
	Clip a line segment in LOCAL coordinates to an existing grid defined by this coord system, if any. More...

virtual bool	clipYToGrid (double inStartY, double inEndY, double constantX, double &clippedStartY, double &clippedEndY)
	Returns false if entire segment is outside grid. More...

virtual void	shiftGridLineAnchors (double xSpacing, double ySpacing, double &shiftX, double &shifY)
	Normally, grid lines are started at database 0,0. More...

virtual bool	usesDecimalsOnGridLines () const
	Enable/disable the decimals spinbox on grid settings dialog. More...

virtual double	maxGridSpacing () const
	Maximum grid spacing allowed. 0. returned if unlimited. More...

virtual double	minGridSpacing () const
	Minimum grid spacing allowed. 0. returned if unlimited. More...

virtual DistanceUnits	xUnitsFor (DistanceUnits unit)=0

virtual DistanceUnits	yUnitsFor (DistanceUnits unit)=0

virtual DistanceUnits	zUnitsFor (DistanceUnits unit)=0

virtual DtUnicode	xAxisLabel ()=0

virtual DtUnicode	yAxisLabel ()=0

virtual DtUnicode	zAxisLabel ()=0

virtual std::vector< std::string >	convertPositionToStringList (DistanceUnits unit, const DtVector &geocPos, int decimals)=0
	Takes the x, y, z values that comes in and creates a string array of three strings that represent the values. More...

virtual void	convertToGeocentric (const std::string &x, const std::string &y, const std::string &z, DistanceUnits distUnits, DistanceUnits altUnits, DtVector &vector)=0
	Converts the given coordinates (in string rep) from the base units to geocentric. More...

virtual DtVector	convertFromGeocentric (const DtVector &vector) const =0
	Converts the vector from geocentric to local. More...

virtual DtTaitBryan	headingPitchRollFor (const DtVector &geocPos, const DtTaitBryan &geocOri) const =0
	Return heading, pitch, roll in radians given local orientation. More...

virtual DtTaitBryan	localOrientationFor (const DtVector &location, const DtTaitBryan &geocOri) const =0
	Return local orientation given geocentric orientation. More...

virtual void	regularExpressionValidator (std::string &x, std::string &y, std::string &z)=0
	Returns a the regexes for validating the XYZ values for this coordsys. More...

virtual DtTaitBryan	topoOrientationFor (const DtVector &geocPos, const DtTaitBryan &geocOri) const

virtual DtVector	geocToLocalVector (const DtVector &geocLoc, const DtVector &geocVec) const

const SupportedPositionDistanceUnits &	supportedPositionDistanceUnits () const
	Retrieve the the list of DistanceUnits supported by this cs display for displaying positions (coordnates).Different coordinate displays can support different distance units for position display (or, in some cases, none). More...

bool	isSupportedPositionUnit (DistanceUnits unit) const
	Determine if the specified distance unit is supported. More...

void	addSupportedPositionUnit (DistanceUnits unitToSupport)
	Add support for a new distance unit type. More...

void	removeSupportedPositionUnit (DistanceUnits unitToRemove)
	Remove support for a distance unit type. More...

const SupportedPositionAngularUnits &	supportedPositionAngularUnits () const
	Retrieve the the list of OrientationUnits supported by this cs display. More...

bool	isSupportedPositionUnit (OrientationUnits unit) const
	Determine if the specified distance unit is supported. More...

void	addSupportedPositionUnit (OrientationUnits unitToSupport)
	Add support for a new distance unit type. More...

void	removeSupportedPositionUnit (OrientationUnits unitToRemove)
	Remove support for a distance unit type. More...

const SupportedCSForGridLines &	supportedCSForGridLines () const
	Retrieve the the list of coordinate systems that can have grid lines drawn using this display type. More...

bool	isSupportedCSForGridLines (const std::string &cs) const
	Determine if this display supports grid lines for the specified coordinate system. More...

void	addSupportedCSForGridLines (const std::string &cs)
	Add grid line support for a coordinate system. More...

void	removeSupportedCSForGridLines (const std::string &cs)
	Remove grid line support for a coordinate system. More...

Protected Attributes
const DtCoordinateSystem &	myCoordinateSystem

SupportedPositionDistanceUnits	mySupportedPositionDistanceUnits

SupportedPositionAngularUnits	mySupportedPositionAngularUnits

SupportedCSForGridLines	mySupportedCSForGridLines

Detailed Description

Abstract interface class for all coordinate system displays.

Member Typedef Documentation

typedef makArchives::DtDisplayUnitsSettingsRecord::CoordSys makVrv::DtCoordinateDisplay::CoordSys

typedef makArchives::DtDisplayUnitsSettingsRecord::DistanceUnits makVrv::DtCoordinateDisplay::DistanceUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::VelocityUnits makVrv::DtCoordinateDisplay::VelocityUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::AccelerationUnits makVrv::DtCoordinateDisplay::AccelerationUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::OrientationUnits makVrv::DtCoordinateDisplay::OrientationUnits

typedef makArchives::DtDisplayUnitsSettingsRecord::RotVelocityUnits makVrv::DtCoordinateDisplay::RotVelocityUnits

typedef std::list<DistanceUnits> makVrv::DtCoordinateDisplay::SupportedPositionDistanceUnits

typedef std::list<OrientationUnits> makVrv::DtCoordinateDisplay::SupportedPositionAngularUnits

typedef std::list<std::string> makVrv::DtCoordinateDisplay::SupportedCSForGridLines

Constructor & Destructor Documentation

makVrv::DtCoordinateDisplay::DtCoordinateDisplay ( const DtCoordinateSystem & coordSys )

CTOR DtUnitConverterCollection is a collection of classes used to convert between different units (meters, feet, miles, etc.) DtCoordinateSystem is used to do coordinate system conversions, when possible.

virtual makVrv::DtCoordinateDisplay::~DtCoordinateDisplay ( )

virtual

DTOR.

Member Function Documentation

virtual DtCoordinateDisplay* makVrv::DtCoordinateDisplay::clone ( ) const

pure virtual

Virtual clone function.

Implemented in SngCoordinateDisplay, makVrv::DtGeodeticDecCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, and makVrv::DtMgrsCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::name ( )

pure virtual

Implemented in SngCoordinateDisplay, makVrv::DtGeodeticDecCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, and makVrv::DtMgrsCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::gridBoxLabel	(	const DtVector &	lowerLeftGeocPos,
		const DtVector &	upperRightGeocPos
	)

virtual

Some systems (such as MGRS) are not just positions but boxes with grid designators.

This function should return "" if a system has no grid boxes, otherwise return a label suitable for the lower left-hand corner of that box

Reimplemented in makVrv::DtUtmCoordinateDisplay, and makVrv::DtMgrsCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::northSouthGridLabel	(	DistanceUnits	unit,
		const DtVector &	geocPos,
		int	decimals,
		double	gridSpacing
	)

virtual

Get a north / south label with linear units.

Reimplemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and SngCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::northSouthGridLabel	(	OrientationUnits	unit,
		const DtVector &	geocPos,
		int	decimals,
		double	gridSpacing
	)

virtual

Get a north / south label with angular units.

Reimplemented in makVrv::DtGeodeticDmsCoordinateDisplay, and makVrv::DtGeodeticDecCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::eastWestGridLabel	(	DistanceUnits	unit,
		const DtVector &	geocPos,
		int	decimals,
		double	gridSpacing
	)

virtual

Get an east / west label with linear units.

Reimplemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and SngCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::eastWestGridLabel	(	OrientationUnits	unit,
		const DtVector &	geocPos,
		int	decimals,
		double	gridSpacing
	)

virtual

Get an east / west label with angular units.

Reimplemented in makVrv::DtGeodeticDmsCoordinateDisplay, and makVrv::DtGeodeticDecCoordinateDisplay.

virtual bool makVrv::DtCoordinateDisplay::clipXToGrid	(	double	inStartX,
		double	inEndX,
		double	constantY,
		double &	clippedStartX,
		double &	clippedEndX
	)

virtual

Clip a line segment in LOCAL coordinates to an existing grid defined by this coord system, if any.

Returns false if entire segment is outside grid

Reimplemented in makVrv::DtMgrsCoordinateDisplay.

virtual bool makVrv::DtCoordinateDisplay::clipYToGrid	(	double	inStartY,
		double	inEndY,
		double	constantX,
		double &	clippedStartY,
		double &	clippedEndY
	)

virtual

Returns false if entire segment is outside grid.

Reimplemented in makVrv::DtMgrsCoordinateDisplay.

virtual void makVrv::DtCoordinateDisplay::shiftGridLineAnchors	(	double	xSpacing,
		double	ySpacing,
		double &	shiftX,
		double &	shifY
	)

virtual

Normally, grid lines are started at database 0,0.

This allows a shift to start them somewhere else (like a UTM zone origin)

Reimplemented in makVrv::DtUtmCoordinateDisplay, and makVrv::DtGeodeticDmsCoordinateDisplay.

virtual bool makVrv::DtCoordinateDisplay::usesDecimalsOnGridLines ( ) const

virtual

Enable/disable the decimals spinbox on grid settings dialog.

Reimplemented in makVrv::DtUtmCoordinateDisplay.

virtual double makVrv::DtCoordinateDisplay::maxGridSpacing ( ) const

virtual

Maximum grid spacing allowed. 0. returned if unlimited.

Reimplemented in makVrv::DtMgrsCoordinateDisplay.

virtual double makVrv::DtCoordinateDisplay::minGridSpacing ( ) const

virtual

Minimum grid spacing allowed. 0. returned if unlimited.

Reimplemented in makVrv::DtMgrsCoordinateDisplay.

virtual DistanceUnits makVrv::DtCoordinateDisplay::xUnitsFor ( DistanceUnits unit )

pure virtual

Implemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, and SngCoordinateDisplay.

virtual DistanceUnits makVrv::DtCoordinateDisplay::yUnitsFor ( DistanceUnits unit )

pure virtual

Implemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and SngCoordinateDisplay.

virtual DistanceUnits makVrv::DtCoordinateDisplay::zUnitsFor ( DistanceUnits unit )

pure virtual

Implemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and SngCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::xAxisLabel ( )

pure virtual

Implemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and SngCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::yAxisLabel ( )

pure virtual

Implemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and SngCoordinateDisplay.

virtual DtUnicode makVrv::DtCoordinateDisplay::zAxisLabel ( )

pure virtual

Implemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and SngCoordinateDisplay.

virtual std::vector<std::string> makVrv::DtCoordinateDisplay::convertPositionToStringList	(	DistanceUnits	unit,
		const DtVector &	geocPos,
		int	decimals
	)

pure virtual

Takes the x, y, z values that comes in and creates a string array of three strings that represent the values.

This call assumes the values being passed in are in geocentric values

Implemented in makVrv::DtMgrsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, SngCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and makVrv::DtGeodeticDecCoordinateDisplay.

virtual void makVrv::DtCoordinateDisplay::convertToGeocentric	(	const std::string &	x,
		const std::string &	y,
		const std::string &	z,
		DistanceUnits	distUnits,
		DistanceUnits	altUnits,
		DtVector &	vector
	)

pure virtual

Converts the given coordinates (in string rep) from the base units to geocentric.

Note that the coordinates must be in the units of this collection

Implemented in makVrv::DtMgrsCoordinateDisplay, makVrv::DtUtmCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, SngCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and makVrv::DtGeodeticDecCoordinateDisplay.

virtual DtVector makVrv::DtCoordinateDisplay::convertFromGeocentric ( const DtVector & vector ) const

pure virtual

Converts the vector from geocentric to local.

Assumes the vector is in geocentric coordinates.

Implemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, SngCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, and makVrv::DtDatabaseCoordinateDisplay.

virtual DtTaitBryan makVrv::DtCoordinateDisplay::headingPitchRollFor	(	const DtVector &	geocPos,
		const DtTaitBryan &	geocOri
	)		const

pure virtual

Return heading, pitch, roll in radians given local orientation.

Implemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, SngCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, and makVrv::DtDatabaseCoordinateDisplay.

virtual DtTaitBryan makVrv::DtCoordinateDisplay::localOrientationFor	(	const DtVector &	location,
		const DtTaitBryan &	geocOri
	)		const

pure virtual

Return local orientation given geocentric orientation.

Implemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, SngCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, and makVrv::DtDatabaseCoordinateDisplay.

virtual void makVrv::DtCoordinateDisplay::regularExpressionValidator	(	std::string &	x,
		std::string &	y,
		std::string &	z
	)

pure virtual

Returns a the regexes for validating the XYZ values for this coordsys.

Need X, Y and Z because they may be different for a given coordinate system.

Implemented in makVrv::DtUtmCoordinateDisplay, makVrv::DtGeodeticDmsCoordinateDisplay, makVrv::DtMgrsCoordinateDisplay, SngCoordinateDisplay, makVrv::DtGeocentricCoordinateDisplay, makVrv::DtDatabaseCoordinateDisplay, and makVrv::DtGeodeticDecCoordinateDisplay.

virtual DtTaitBryan makVrv::DtCoordinateDisplay::topoOrientationFor	(	const DtVector &	geocPos,
		const DtTaitBryan &	geocOri
	)		const

virtual

virtual DtVector makVrv::DtCoordinateDisplay::geocToLocalVector	(	const DtVector &	geocLoc,
		const DtVector &	geocVec
	)		const

virtual

Reimplemented in makVrv::DtGeocentricCoordinateDisplay.

const SupportedPositionDistanceUnits& makVrv::DtCoordinateDisplay::supportedPositionDistanceUnits ( ) const

Retrieve the the list of DistanceUnits supported by this cs display for displaying positions (coordnates).Different coordinate displays can support different distance units for position display (or, in some cases, none).

For example, UTM only xupports meters. On the other hand, Local Cartesian Coordinates can be displayed in any DistanceUnit.

bool makVrv::DtCoordinateDisplay::isSupportedPositionUnit ( DistanceUnits unit ) const

Determine if the specified distance unit is supported.

void makVrv::DtCoordinateDisplay::addSupportedPositionUnit ( DistanceUnits unitToSupport )

Add support for a new distance unit type.

void makVrv::DtCoordinateDisplay::removeSupportedPositionUnit ( DistanceUnits unitToRemove )

Remove support for a distance unit type.

const SupportedPositionAngularUnits& makVrv::DtCoordinateDisplay::supportedPositionAngularUnits ( ) const

Retrieve the the list of OrientationUnits supported by this cs display.

for displaying positions (coordnates). Different coordinate displays can support different angular units for position display (or, in some cases, none). For example, Geodetic currently supports degrees.

bool makVrv::DtCoordinateDisplay::isSupportedPositionUnit ( OrientationUnits unit ) const

Determine if the specified distance unit is supported.

void makVrv::DtCoordinateDisplay::addSupportedPositionUnit ( OrientationUnits unitToSupport )

Add support for a new distance unit type.

void makVrv::DtCoordinateDisplay::removeSupportedPositionUnit ( OrientationUnits unitToRemove )

Remove support for a distance unit type.

const SupportedCSForGridLines& makVrv::DtCoordinateDisplay::supportedCSForGridLines ( ) const

Retrieve the the list of coordinate systems that can have grid lines drawn using this display type.

bool makVrv::DtCoordinateDisplay::isSupportedCSForGridLines ( const std::string & cs ) const

Determine if this display supports grid lines for the specified coordinate system.

void makVrv::DtCoordinateDisplay::addSupportedCSForGridLines ( const std::string & cs )

Add grid line support for a coordinate system.

void makVrv::DtCoordinateDisplay::removeSupportedCSForGridLines ( const std::string & cs )

Remove grid line support for a coordinate system.

Member Data Documentation

const DtCoordinateSystem& makVrv::DtCoordinateDisplay::myCoordinateSystem

protected

SupportedPositionDistanceUnits makVrv::DtCoordinateDisplay::mySupportedPositionDistanceUnits

protected

SupportedPositionAngularUnits makVrv::DtCoordinateDisplay::mySupportedPositionAngularUnits

protected

SupportedCSForGridLines makVrv::DtCoordinateDisplay::mySupportedCSForGridLines

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvUtil/DtCoordinateDisplay.h

Public Types

Public Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
