This will visualize points on a multi-point line by creating a DtEnvironmentalVisualizerSet for each point that maps to a way point element definition. More...

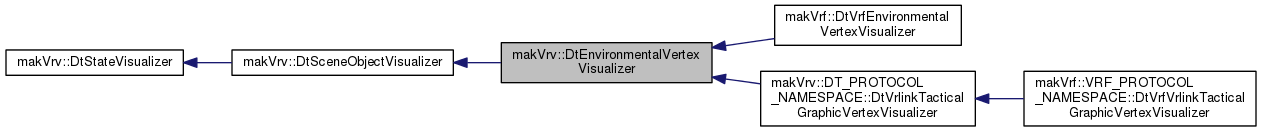

Inheritance diagram for makVrv::DtEnvironmentalVertexVisualizer:

[legend]

Public Types
enum	SelectionState { NotSelected, Selected, MultiSelected }

typedef std::vector< DtElementID >	ElementIDList

typedef std::vector< DtVector >	PointList

Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }
	Visualizer class types that are supportable via visualizers. More...

Public Member Functions
	DtEnvironmentalVertexVisualizer (DtBaseConnection &conn, DtStateListener &listener, int modelSet)
	Constructor. More...

virtual	~DtEnvironmentalVertexVisualizer ()
	DTOR. More...

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &visDef)
	Override to get the vertexVisualizerSet attribute. More...

virtual void	setOrigin (const DtVector &position)
	Call to scene object to set location. More...

virtual void	addControlPoint (const DtVector &position, const DtUniqueID &elementID)

virtual void	insertControlPoint (int index, const DtVector &position)

virtual void	removeControlPoint (int index)

virtual void	moveControlPoint (int index, const DtVector &position)

virtual void	setControlPoints (const DtEnvironmentalStateListener::ControlPointsList &, const std::vector< DtUniqueID > &vertexElementIDs)

virtual void	setControlPoints (const DtEnvironmentalStateListener::ControlPointsList &)
	Will only use this to move points that have currently been created. More...

virtual void	setColor (float r, float g, float b, float a)

virtual void	setInfoText (DtUniqueID id, const DtUnicode &)
	Sets information text for specified id or index. More...

virtual void	setInfoText (int, const DtUnicode &)

virtual void	setSelected (DtUniqueID id, bool)
	Sets selected either by unique id of child or index of child. More...

virtual void	setSelected (int, bool)

virtual bool	selected (DtUniqueID id) const
	Returns selected either by unique id of child or index of child. More...

virtual bool	selected (int index) const

virtual void	setHeightAboveTerrainLineVisible (bool)
	Sets HAT line visible either by id, index or for all points. More...

virtual void	setHeightAboveTerrainLineVisible (DtUniqueID, bool)

virtual void	setHeightAboveTerrainLineVisible (int, bool)

virtual void	setShowInfoOnSelect (bool)
	Sets info visible by select either by id, index or for all points. More...

virtual void	setShowInfoOnSelect (DtUniqueID, bool)

virtual void	setShowInfoOnSelect (int, bool)

virtual void	setVertexHidden (DtUniqueID, bool)
	Hides/shows child. More...

virtual void	setVertexHidden (int, bool)

virtual SelectionState	pointSelected (DtUniqueID id) const
	Returns true if point is selected by id or index. More...

virtual SelectionState	pointSelected (int) const

virtual void	setIndicatorsEnabled (bool)
	Sets indicators enabled/disabled for all points. More...

virtual void	setWidgetEventsEnabled (bool)
	Sets widget events enabled/disabled for all points. More...

virtual void	setEnabled (bool enabled)
	respond to change in tactical graphics display settings More...

virtual void	setIndicatorModelDefinitions (const std::string &normalTheme, const std::string &activeTheme, const std::string &selectedTheme, const std::string &multiSelectedTheme)
	Sets model definitions for all current and future points. More...

virtual void	setUseHighestTerrainLod (DtEnvironmentalVisualizerSet *v, bool useHighest)
	Set whether the line is to currently visible terrain LOD or to highest available terrain LOD. More...

virtual void	setUseHighestTerrainLod (bool useHighest)
	Apply to all visualizer sets in visualizer. More...

virtual bool	useHighestTerrainLod () const
	Get whether line is to currently visible terrain LOD or to highest available terrain LOD. More...

int	numVertices () const

DtUniqueID	uniqueIdOf (int iIndex) const

int	indexOf (DtUniqueID sceneID) const

int	indexOfElementID (DtUniqueID elementID) const

virtual void	setHatLinesEnabled (bool)
	Tells the visualizer if HAT lines are enabled. More...

virtual void	setHatLinesOnSelectionOnly (bool)
	Tells the visualizer if HAT lines are visible on selected vertices only. More...

virtual DtUniqueID	uniqueID () const
	Return unique id of mySceneObjectAgent, if it exists, else returns 0;. More...

virtual void	setSelected (bool)
	Sets selected state. More...

virtual void	setPickable (bool)
	Sets pickable state. More...

DtEnvironmentalStateListener &	environmentalStateListener ()

const PointList &	controlPoints () const

const ElementIDList &	vertexElementIDs () const

virtual const DtStateVisualizer::TypeInfo &	typeInfo () const
	The instance's type info. More...

virtual void	setOwner (DtSceneObjectAgent *)
	The owner agent of this vertex visualizer set. More...

virtual void	setAttached (DtUniqueID)
	Sets this object to be attached to the specified object. More...

Public Member Functions inherited from makVrv::DtSceneObjectVisualizer
	DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

virtual	~DtSceneObjectVisualizer ()

virtual DtSceneObjectAgent *	sceneObjectAgent ()

virtual void	setParent (DtStateVisualizer *p)
	Override of base class setParent to simply set the parent without destroying/recreating model agents. More...

virtual void	setModelDefinitionForAgents ()
	Sets model definition for all the agents that this visualizer might be using. More...

virtual void	setSceneObjectAgent (DtSceneObjectAgent *)

virtual void	setElementID (const DtElementID &elementID)

DtElementID	elementID () const

virtual bool	show (int)
	Override to show/hide scene object agent (if it exists) More...

virtual bool	hide (int)
	Will call destroyModelAgents(), if, when the context is added, it is the first context in the list. More...

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)
	CTOR. More...

virtual	~DtStateVisualizer ()
	DTOR. More...

void	setModelDefinition (const std::string &definition)
	Sets the model definition and creates agent(s) based on that definition. More...

const std::string &	modelDefinition () const
	Gets the current model definition. More...

virtual void	implementVisibility (bool visible)
	Wrap some of the show/hide functionality so that it can be overloaded (ex. More...

virtual bool	setVisible (bool visible, int context)
	Returns true if this context wants to show or hide the item. More...

virtual void	initialize ()
	Initialize the visualizer. More...

virtual bool	isVisible () const
	Returns true if visible. More...

virtual bool	selected () const

void	setName (const std::string &)
	Internal name of state visualizer. More...

const std::string &	name () const

virtual bool	pickable () const

virtual void	setUniqueID (DtUniqueID id)

DtUniqueID	uniqueID () const

int	visualizerType () const

void	setShowHideContext (const std::vector< int > &s)
	Set show/hide context without changing visibility of item. More...

DtStateListener &	listener ()

DtBaseConnection &	simulation ()
	Get the connection for this visualizer. More...

void	setDistribute (bool b)
	Whether or not to distribute over the network. More...

bool	distribute () const

Static Public Member Functions
static const DtStateVisualizer::TypeInfo &	theTypeInfo ()
	This class's type info. More...

Protected Types
typedef std::vector < DtEnvironmentalVisualizerSet * >	VertexList

typedef std::map< DtUniqueID, int >	DtIndexMap

typedef std::vector < SelectionState >	SelectedList

Protected Member Functions
virtual void	slot_listenerLocationSet (const DtVector &)

virtual void	slot_listenerControlPointLocationSet (int index, const DtVector &)

virtual void	setControlPoints ()

virtual void	resetSpatial ()

virtual void	createModelAgents ()
	Creates the model agent. If already created, makes it visible. More...

virtual void	destroyModelAgents ()
	Model agent is only destroyed in destructor. More...

virtual bool	setVertexVisible (bool, DtShowHideContext::ShowHideContext)

virtual void	setOriginAndOffset (DtEnvironmentalVisualizerSet *, const DtVector &, const DtVector &)

virtual void	setColor (DtEnvironmentalVisualizerSet *, float r, float g, float b, float a)

virtual void	setIndicatorsEnabled (DtEnvironmentalVisualizerSet *, bool)

virtual void	setInfoText (DtEnvironmentalVisualizerSet *, const DtUnicode &)

virtual void	setMultiSelected (DtEnvironmentalVisualizerSet *, bool)

virtual void	setHatLineVisible (DtEnvironmentalVisualizerSet *, bool)

virtual void	setShowInfoPopupOnSelect (DtEnvironmentalVisualizerSet *, bool)

virtual void	setWidgetEventsEnabled (DtEnvironmentalVisualizerSet *, bool)

virtual void	setGroundClamp (DtEnvironmentalVisualizerSet *, bool)

virtual void	setIndicatorModelDefinitions (DtEnvironmentalVisualizerSet *, const std::string &normalTheme, const std::string &activeTheme, const std::string &selectedTheme, const std::string &multiSelectedTheme)

virtual void	updateHatLines ()

virtual void	updateHatLine (int index)

virtual void	updateHatLine (DtUniqueID id)

virtual DtEnvironmentalVisualizerSet *	createAndInitializePointVisualizer (const DtUniqueID &vertexElementId, int index)

virtual void	slot_mouseDown (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName, DtStateVisualizer *v)

virtual bool	pointIsDifferent (const DtVector &newPos, const DtVector &lastPos) const

virtual void	slot_mouseUp (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName, DtStateVisualizer *v)

virtual void	slot_mouseDblClick (DtMouseState &mouseState, const DtUniqueID &id, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName, DtStateVisualizer *v)

virtual void	startAttached ()
	Starts the process of attachment by creating updater for attachment. More...

virtual void	endAttached ()
	Ends the attachment process. More...

virtual DtVector	offsetAtPosition (const DtVector &origin) const
	Given the origin and the point offset, return an offset that is valid at the given position. More...

virtual void	setGroundClamp (bool)
	Sets whether or not to ground clamp points (default is false) More...

Protected Member Functions inherited from makVrv::DtSceneObjectVisualizer
virtual DtSceneObjectAgent *	createObjectAgent ()

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	slot_mouseDown (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)
	Called when the mouse is clicked in this visualizer. More...

virtual void	slot_mouseUp (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)

virtual void	slot_mouseDblClick (DtMouseState &mouseState, const std::string &displayEngineName, const std::string &windowName, const std::string &channelName)

virtual bool	supportsShowHideContext (int) const
	Default returns true. More...

template<typename T , typename C >
void	connectAndUpdate (boost::signal< void(T)> &sig, void(C::*fp)(T), T val)
	Connect a signal and update the entity. More...

Protected Attributes
VertexList	myVertexList

std::vector< DtVector >	myOffsets

SelectedList	myVertexSelectedList

DtIndexMap	myIndexMap

DtIndexMap	myElementIDIndexMap

PointList	myControlPoints

ElementIDList	myVertexElementIDs

DtVector	myOrigin

float	myColor [4]

bool	myHatLinesEnabled

bool	myHatLinesOnSelectionOnly

bool	myShowInfoOnSelect

bool	myIndicatorsEnabled

bool	myWidgetEventsEnabled

DtUnicode	myVertexVisualizerDefinitionName

std::string	myNormalWidgetTheme

std::string	myActiveWidgetTheme

std::string	mySelectedWidgetTheme

std::string	myMultiSelectedWidgetTheme

DtVector	myPointOffset

bool	myOriginIsSet

DtEnvironmentalStateListener *	myEnvironmentalListener

bool	myGroundClamp

DtSceneObjectAgent *	myOwnerAgent

bool	myAttachedFlag

DtUniqueID	myAttachedToId

DtVertexUpdaterAgent *	myVertexUpdaterAgent

bool	myUseHighestTerrainLod

Protected Attributes inherited from makVrv::DtSceneObjectVisualizer
DtElementID	myElementID

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	myUniqueID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

int	myModelSet

int	myVisualizerType

std::vector< int >	myShowHideContexts

bool	mySelected

bool	myPickable

bool	myVisible

DtStateVisualizer *	myParent

DtSceneObjectAgent *	mySceneObjectAgent

Additional Inherited Members
Public Attributes inherited from makVrv::DtStateVisualizer
boost::signal< void(DtStateVisualizer , DtStateVisualizer , DtStateVisualizer *)>	signal_reparented
	Signaled when the parent of this item changes, called before destroying any model agents. More...

boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDown
	Emitted when the entity's indicator is clicked. More...

boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseUp

boost::signal< void(DtMouseState &, const DtUniqueID &, const std::string &, const std::string &, const std::string &, DtStateVisualizer *)>	signal_mouseDblClick

Detailed Description

This will visualize points on a multi-point line by creating a DtEnvironmentalVisualizerSet for each point that maps to a way point element definition.

If that element definition does not exist, or you wish to create your own point visualizer, override the createPointVisualizer method in a subclass of this object and return a visualizer to visualize these points

Member Typedef Documentation

typedef std::vector<DtElementID> makVrv::DtEnvironmentalVertexVisualizer::ElementIDList

typedef std::vector<DtVector> makVrv::DtEnvironmentalVertexVisualizer::PointList

typedef std::vector<DtEnvironmentalVisualizerSet*> makVrv::DtEnvironmentalVertexVisualizer::VertexList

protected

typedef std::map<DtUniqueID, int> makVrv::DtEnvironmentalVertexVisualizer::DtIndexMap

protected

typedef std::vector<SelectionState> makVrv::DtEnvironmentalVertexVisualizer::SelectedList

protected

Member Enumeration Documentation

enum makVrv::DtEnvironmentalVertexVisualizer::SelectionState

Enumerator
NotSelected
Selected
MultiSelected

Constructor & Destructor Documentation

makVrv::DtEnvironmentalVertexVisualizer::DtEnvironmentalVertexVisualizer	(	DtBaseConnection &	conn,
		DtStateListener &	listener,
		int	modelSet
	)

Constructor.

virtual makVrv::DtEnvironmentalVertexVisualizer::~DtEnvironmentalVertexVisualizer ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtEnvironmentalVertexVisualizer::setVisualizerDefinition ( const DtVisualizerDefinition & visDef )

virtual

Override to get the vertexVisualizerSet attribute.

Calls down to DtSceneObjectVisualizer::setVisualDefinition()

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setOrigin ( const DtVector & position )

virtual

Call to scene object to set location.

virtual void makVrv::DtEnvironmentalVertexVisualizer::addControlPoint	(	const DtVector &	position,
		const DtUniqueID &	elementID
	)

virtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::insertControlPoint	(	int	index,
		const DtVector &	position
	)

virtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::removeControlPoint ( int index )

virtual

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkTacticalGraphicVertexVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::moveControlPoint	(	int	index,
		const DtVector &	position
	)

virtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setControlPoints	(	const DtEnvironmentalStateListener::ControlPointsList &	,
		const std::vector< DtUniqueID > &	vertexElementIDs
	)

virtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setControlPoints ( const DtEnvironmentalStateListener::ControlPointsList & )

virtual

Will only use this to move points that have currently been created.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkTacticalGraphicVertexVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkTacticalGraphicVertexVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setInfoText	(	DtUniqueID	id,
		const DtUnicode &
	)

virtual

Sets information text for specified id or index.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setInfoText	(	int	,
		const DtUnicode &
	)

virtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setSelected	(	DtUniqueID	id,
		bool
	)

virtual

Sets selected either by unique id of child or index of child.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setSelected	(	int	,
		bool
	)

virtual

virtual bool makVrv::DtEnvironmentalVertexVisualizer::selected ( DtUniqueID id ) const

virtual

Returns selected either by unique id of child or index of child.

virtual bool makVrv::DtEnvironmentalVertexVisualizer::selected ( int index ) const

virtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setHeightAboveTerrainLineVisible ( bool )

virtual

Sets HAT line visible either by id, index or for all points.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setHeightAboveTerrainLineVisible	(	DtUniqueID	,
		bool
	)

virtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setHeightAboveTerrainLineVisible	(	int	,
		bool
	)

virtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setShowInfoOnSelect ( bool )

virtual

Sets info visible by select either by id, index or for all points.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setShowInfoOnSelect	(	DtUniqueID	,
		bool
	)

virtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setShowInfoOnSelect	(	int	,
		bool
	)

virtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setVertexHidden	(	DtUniqueID	,
		bool
	)

virtual

Hides/shows child.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setVertexHidden	(	int	,
		bool
	)

virtual

virtual SelectionState makVrv::DtEnvironmentalVertexVisualizer::pointSelected ( DtUniqueID id ) const

virtual

Returns true if point is selected by id or index.

virtual SelectionState makVrv::DtEnvironmentalVertexVisualizer::pointSelected ( int ) const

virtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setIndicatorsEnabled ( bool )

virtual

Sets indicators enabled/disabled for all points.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setWidgetEventsEnabled ( bool )

virtual

Sets widget events enabled/disabled for all points.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setEnabled ( bool enabled )

virtual

respond to change in tactical graphics display settings

virtual void makVrv::DtEnvironmentalVertexVisualizer::setIndicatorModelDefinitions	(	const std::string &	normalTheme,
		const std::string &	activeTheme,
		const std::string &	selectedTheme,
		const std::string &	multiSelectedTheme
	)

virtual

Sets model definitions for all current and future points.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setUseHighestTerrainLod	(	DtEnvironmentalVisualizerSet *	v,
		bool	useHighest
	)

virtual

Set whether the line is to currently visible terrain LOD or to highest available terrain LOD.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setUseHighestTerrainLod ( bool useHighest )

virtual

Apply to all visualizer sets in visualizer.

virtual bool makVrv::DtEnvironmentalVertexVisualizer::useHighestTerrainLod ( ) const

virtual

Get whether line is to currently visible terrain LOD or to highest available terrain LOD.

int makVrv::DtEnvironmentalVertexVisualizer::numVertices ( ) const

DtUniqueID makVrv::DtEnvironmentalVertexVisualizer::uniqueIdOf ( int iIndex ) const

int makVrv::DtEnvironmentalVertexVisualizer::indexOf ( DtUniqueID sceneID ) const

int makVrv::DtEnvironmentalVertexVisualizer::indexOfElementID ( DtUniqueID elementID ) const

virtual void makVrv::DtEnvironmentalVertexVisualizer::setHatLinesEnabled ( bool )

virtual

Tells the visualizer if HAT lines are enabled.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setHatLinesOnSelectionOnly ( bool )

virtual

Tells the visualizer if HAT lines are visible on selected vertices only.

virtual DtUniqueID makVrv::DtEnvironmentalVertexVisualizer::uniqueID ( ) const

virtual

Return unique id of mySceneObjectAgent, if it exists, else returns 0;.

Reimplemented from makVrv::DtSceneObjectVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setSelected ( bool )

virtual

Sets selected state.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setPickable ( bool )

virtual

Sets pickable state.

Reimplemented from makVrv::DtStateVisualizer.

DtEnvironmentalStateListener& makVrv::DtEnvironmentalVertexVisualizer::environmentalStateListener ( )

inline

const PointList& makVrv::DtEnvironmentalVertexVisualizer::controlPoints ( ) const

inline

const ElementIDList& makVrv::DtEnvironmentalVertexVisualizer::vertexElementIDs ( ) const

inline

virtual const DtStateVisualizer::TypeInfo& makVrv::DtEnvironmentalVertexVisualizer::typeInfo ( ) const

virtual

The instance's type info.

Implements makVrv::DtStateVisualizer.

static const DtStateVisualizer::TypeInfo& makVrv::DtEnvironmentalVertexVisualizer::theTypeInfo ( )

static

This class's type info.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setOwner ( DtSceneObjectAgent * )

virtual

The owner agent of this vertex visualizer set.

Will be used in case of object attachment to move points as object updates

virtual void makVrv::DtEnvironmentalVertexVisualizer::setAttached ( DtUniqueID )

virtual

Sets this object to be attached to the specified object.

Once attached this object will move its origin offset from the relative location

virtual void makVrv::DtEnvironmentalVertexVisualizer::slot_listenerLocationSet ( const DtVector & )

protectedvirtual

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkTacticalGraphicVertexVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::slot_listenerControlPointLocationSet	(	int	index,
		const DtVector &
	)

protectedvirtual

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkTacticalGraphicVertexVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setControlPoints ( )

protectedvirtual

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkTacticalGraphicVertexVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::resetSpatial ( )

protectedvirtual

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkTacticalGraphicVertexVisualizer, and makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkTacticalGraphicVertexVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::createModelAgents ( )

protectedvirtual

Creates the model agent. If already created, makes it visible.

Reimplemented from makVrv::DtSceneObjectVisualizer.

Reimplemented in makVrf::DtVrfEnvironmentalVertexVisualizer, and makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkTacticalGraphicVertexVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::destroyModelAgents ( )

protectedvirtual

Model agent is only destroyed in destructor.

Here, it will be hidden (if it has been created)

Reimplemented from makVrv::DtSceneObjectVisualizer.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkTacticalGraphicVertexVisualizer.

virtual bool makVrv::DtEnvironmentalVertexVisualizer::setVertexVisible	(	bool	,
		DtShowHideContext::ShowHideContext
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setOriginAndOffset	(	DtEnvironmentalVisualizerSet *	,
		const DtVector &	,
		const DtVector &
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setColor	(	DtEnvironmentalVisualizerSet *	,
		float	r,
		float	g,
		float	b,
		float	a
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setIndicatorsEnabled	(	DtEnvironmentalVisualizerSet *	,
		bool
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setInfoText	(	DtEnvironmentalVisualizerSet *	,
		const DtUnicode &
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setMultiSelected	(	DtEnvironmentalVisualizerSet *	,
		bool
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setHatLineVisible	(	DtEnvironmentalVisualizerSet *	,
		bool
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setShowInfoPopupOnSelect	(	DtEnvironmentalVisualizerSet *	,
		bool
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setWidgetEventsEnabled	(	DtEnvironmentalVisualizerSet *	,
		bool
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setGroundClamp	(	DtEnvironmentalVisualizerSet *	,
		bool
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::setIndicatorModelDefinitions	(	DtEnvironmentalVisualizerSet *	,
		const std::string &	normalTheme,
		const std::string &	activeTheme,
		const std::string &	selectedTheme,
		const std::string &	multiSelectedTheme
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::updateHatLines ( )

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::updateHatLine ( int index )

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::updateHatLine ( DtUniqueID id )

protectedvirtual

virtual DtEnvironmentalVisualizerSet* makVrv::DtEnvironmentalVertexVisualizer::createAndInitializePointVisualizer	(	const DtUniqueID &	vertexElementId,
		int	index
	)

protectedvirtual

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlinkTacticalGraphicVertexVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::slot_mouseDown	(	DtMouseState &	mouseState,
		const DtUniqueID &	id,
		const std::string &	displayEngineName,
		const std::string &	windowName,
		const std::string &	channelName,
		DtStateVisualizer *	v
	)

protectedvirtual

virtual bool makVrv::DtEnvironmentalVertexVisualizer::pointIsDifferent	(	const DtVector &	newPos,
		const DtVector &	lastPos
	)		const

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::slot_mouseUp	(	DtMouseState &	mouseState,
		const DtUniqueID &	id,
		const std::string &	displayEngineName,
		const std::string &	windowName,
		const std::string &	channelName,
		DtStateVisualizer *	v
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::slot_mouseDblClick	(	DtMouseState &	mouseState,
		const DtUniqueID &	id,
		const std::string &	displayEngineName,
		const std::string &	windowName,
		const std::string &	channelName,
		DtStateVisualizer *	v
	)

protectedvirtual

virtual void makVrv::DtEnvironmentalVertexVisualizer::startAttached ( )

protectedvirtual

Starts the process of attachment by creating updater for attachment.

virtual void makVrv::DtEnvironmentalVertexVisualizer::endAttached ( )

protectedvirtual

Ends the attachment process.

virtual DtVector makVrv::DtEnvironmentalVertexVisualizer::offsetAtPosition ( const DtVector & origin ) const

protectedvirtual

Given the origin and the point offset, return an offset that is valid at the given position.

Default simply returns offset

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkTacticalGraphicVertexVisualizer.

virtual void makVrv::DtEnvironmentalVertexVisualizer::setGroundClamp ( bool )

protectedvirtual

Sets whether or not to ground clamp points (default is false)

Member Data Documentation

VertexList makVrv::DtEnvironmentalVertexVisualizer::myVertexList

protected

std::vector<DtVector> makVrv::DtEnvironmentalVertexVisualizer::myOffsets

protected

SelectedList makVrv::DtEnvironmentalVertexVisualizer::myVertexSelectedList

protected

DtIndexMap makVrv::DtEnvironmentalVertexVisualizer::myIndexMap

protected

DtIndexMap makVrv::DtEnvironmentalVertexVisualizer::myElementIDIndexMap

protected

PointList makVrv::DtEnvironmentalVertexVisualizer::myControlPoints

protected

ElementIDList makVrv::DtEnvironmentalVertexVisualizer::myVertexElementIDs

protected

DtVector makVrv::DtEnvironmentalVertexVisualizer::myOrigin

protected

float makVrv::DtEnvironmentalVertexVisualizer::myColor[4]

protected

bool makVrv::DtEnvironmentalVertexVisualizer::myHatLinesEnabled

protected

bool makVrv::DtEnvironmentalVertexVisualizer::myHatLinesOnSelectionOnly

protected

bool makVrv::DtEnvironmentalVertexVisualizer::myShowInfoOnSelect

protected

bool makVrv::DtEnvironmentalVertexVisualizer::myIndicatorsEnabled

protected

bool makVrv::DtEnvironmentalVertexVisualizer::myWidgetEventsEnabled

protected

DtUnicode makVrv::DtEnvironmentalVertexVisualizer::myVertexVisualizerDefinitionName

protected

std::string makVrv::DtEnvironmentalVertexVisualizer::myNormalWidgetTheme

protected

std::string makVrv::DtEnvironmentalVertexVisualizer::myActiveWidgetTheme

protected

std::string makVrv::DtEnvironmentalVertexVisualizer::mySelectedWidgetTheme

protected

std::string makVrv::DtEnvironmentalVertexVisualizer::myMultiSelectedWidgetTheme

protected

DtVector makVrv::DtEnvironmentalVertexVisualizer::myPointOffset

protected

bool makVrv::DtEnvironmentalVertexVisualizer::myOriginIsSet

protected

DtEnvironmentalStateListener* makVrv::DtEnvironmentalVertexVisualizer::myEnvironmentalListener

protected

bool makVrv::DtEnvironmentalVertexVisualizer::myGroundClamp

protected

DtSceneObjectAgent* makVrv::DtEnvironmentalVertexVisualizer::myOwnerAgent

protected

bool makVrv::DtEnvironmentalVertexVisualizer::myAttachedFlag

protected

DtUniqueID makVrv::DtEnvironmentalVertexVisualizer::myAttachedToId

protected

DtVertexUpdaterAgent* makVrv::DtEnvironmentalVertexVisualizer::myVertexUpdaterAgent

protected

bool makVrv::DtEnvironmentalVertexVisualizer::myUseHighestTerrainLod

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvCore/DtEnvironmentalVertexVisualizer.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
