makVrv::DtGlStudioObjectAttributeUpdater Class Reference

A HUD object side updater abstract base class. More...

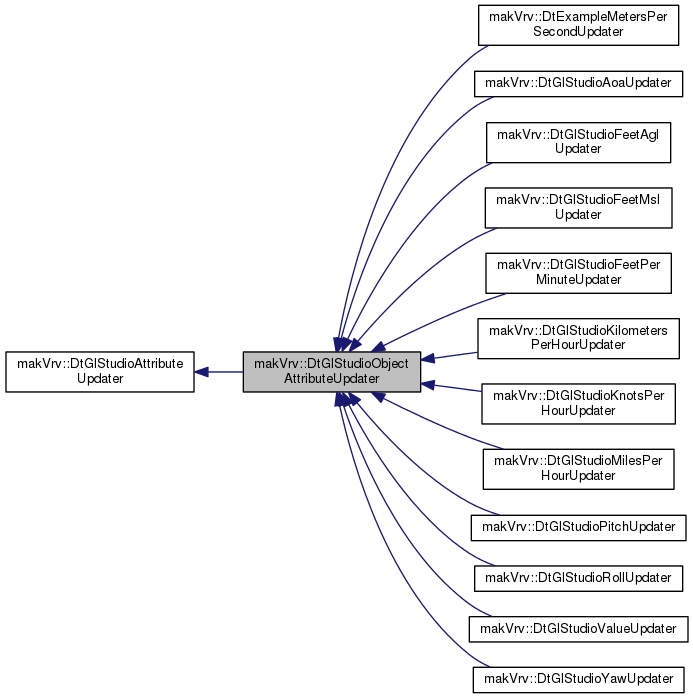

Inheritance diagram for makVrv::DtGlStudioObjectAttributeUpdater:

Public Member Functions
	DtGlStudioObjectAttributeUpdater ()
virtual	~DtGlStudioObjectAttributeUpdater ()
virtual void	init (DtSmoother *smoother, DtDe *de)
	initialize with a HUD object's smoother More...
virtual std::string	value (double time)=0
	returns the updater value as a string for sending to GL Studio More...
virtual std::string	value ()
	just to make the base class happy since this particular type of updater needs a time to function properly More...
virtual void	setElementId (DtElementID id)
	Set the element ID of the entity that this HUD updater is associated with. More...
virtual DtElementID	elementId () const
	Get the element ID of the entity that this HUD updater is associated with. More...
Public Member Functions inherited from makVrv::DtGlStudioAttributeUpdater
	DtGlStudioAttributeUpdater ()
virtual	~DtGlStudioAttributeUpdater ()
virtual bool	isDirty ()

Protected Attributes
DtSmoother *	mySmoother
DtDe *	myDe
DtElementID	myElementId
Protected Attributes inherited from makVrv::DtGlStudioAttributeUpdater
DtSignalConnectionManager	myEntityConnections
bool	myIsDirty

Detailed Description

A HUD object side updater abstract base class.

It has the HUD objects smoother available to compute values

Constructor & Destructor Documentation

makVrv::DtGlStudioObjectAttributeUpdater::DtGlStudioObjectAttributeUpdater

(

)

virtual makVrv::DtGlStudioObjectAttributeUpdater::~DtGlStudioObjectAttributeUpdater ( )

virtual

Member Function Documentation

virtual void makVrv::DtGlStudioObjectAttributeUpdater::init ( DtSmoother *  smoother, DtDe *  de  )

virtual

initialize with a HUD object's smoother

virtual std::string makVrv::DtGlStudioObjectAttributeUpdater::value ( double  time )

pure virtual

returns the updater value as a string for sending to GL Studio

Implemented in makVrv::DtGlStudioValueUpdater, makVrv::DtGlStudioAoaUpdater, makVrv::DtGlStudioFeetMslUpdater, makVrv::DtGlStudioPitchUpdater, makVrv::DtGlStudioFeetAglUpdater, makVrv::DtGlStudioKnotsPerHourUpdater, makVrv::DtGlStudioRollUpdater, makVrv::DtGlStudioYawUpdater, makVrv::DtGlStudioFeetPerMinuteUpdater, makVrv::DtGlStudioKilometersPerHourUpdater, makVrv::DtGlStudioMilesPerHourUpdater, and makVrv::DtExampleMetersPerSecondUpdater.

virtual std::string makVrv::DtGlStudioObjectAttributeUpdater::value ( )

inlinevirtual

just to make the base class happy since this particular type of updater needs a time to function properly

Implements makVrv::DtGlStudioAttributeUpdater.

virtual void makVrv::DtGlStudioObjectAttributeUpdater::setElementId ( DtElementID  id )

virtual

Set the element ID of the entity that this HUD updater is associated with.

virtual DtElementID makVrv::DtGlStudioObjectAttributeUpdater::elementId ( ) const

virtual

Get the element ID of the entity that this HUD updater is associated with.

Member Data Documentation

DtSmoother* makVrv::DtGlStudioObjectAttributeUpdater::mySmoother

protected

DtDe* makVrv::DtGlStudioObjectAttributeUpdater::myDe

protected

DtElementID makVrv::DtGlStudioObjectAttributeUpdater::myElementId

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvGlStudioShared/DtGlStudioObjectAttributeUpdater.h
