DtObserverModeManager is responsible for loading and saving observer modes, and providing a mechanism to look up observer mode information by observer mode ID. More...

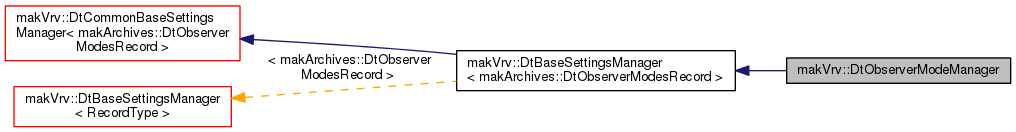

Inheritance diagram for makVrv::DtObserverModeManager:

[legend]

Public Types
typedef std::map< int, DtObserverMode >	ObserverModes
	Type returned when retrieving all observer modes. More...

Public Member Functions
virtual	~DtObserverModeManager ()
	DTOR. More...

const ObserverModes &	observerModes () const
	Accessor for the map of observer modes. More...

int	numberOfObserverModes () const
	get the number of Observer Modes More...

virtual int	createObserverMode (const std::string &stringKey, const std::string &displayName)
	Add a observer mode. More...

virtual int	cloneObserverMode (int modeKeyOrig, const std::string &newStringKey, const std::string &newDisplayName)
	Create a new observer mode based on an existing one. More...

virtual int	createModeKey (const std::string &stringKey)
	Get a key without adding the observer to the manager. More...

virtual void	removeObserverMode (int mode)
	Remove a observer mode. More...

int	lookupObserverModeKey (const std::string &stringKey) const
	Looks up the int key for the observer mode with the given name. More...

const std::string *	findObserverModeStringKey (int modeKey) const
	Find the observer mode string for a int key. More...

bool	getObserverModeById (int modeKey, DtObserverMode &result) const
	Get a observer mode. More...

bool	getObserverModeByName (const std::string &observerModeName, DtObserverMode &result)
	Gets a reference to the observer mode with the given name. More...

std::string	name (int modeKey) const
	Get the observer mode's display name. More...

void	setName (int modeKey, const std::string &name)
	Set the observer mode's display name. More...

int	modelSet (int modeKey) const
	get the model set for the specified mode More...

void	setModelSet (int modeKey, int modelSet)
	This specifies the model set for the indicated observer mode. More...

std::string	keyMap (int modeKey) const
	get the key map for the specified mode More...

void	setKeyMap (int modeKey, const std::string &keyMap)
	This specifies the key map for the indicated observer mode. More...

void	setIs2D (int modeKey, bool trueOrFalse)
	Set if the observer mode is 2D or not (3D) More...

bool	is2D (int modeKey) const
	Get if the observer mode is 2D. More...

void	setSensor (int modeKey, const std::string &sensorName)
	Set the sensor used for the observer mode. More...

std::string	sensor (int modeKey) const
	Get the sensor used for the observer mode. More...

void	setGainPrecision (int modeKey, int precision)
	Set the observer mode's gain precision. More...

int	gainPrecision (int modeKey) const
	Get the observer mode's gain precision. More...

void	setModelScaleFactor (int modeKey, double modelScaleFactor)
	Set the observer mode's model scale factor. More...

double	modelScaleFactor (int modeKey) const
	Get the observer mode's model scale factor. More...

void	setModelScaleType (int modeKey, const std::string &modelScaleType)
	Set the observer mode's model scale type. More...

const std::string &	modelScaleType (int modeKey) const
	Get the observer mode's model scale type. More...

void	setMaxModelScaleFactor (int modeKey, double maxModelScaleFactor)
	Set the observer mode's max model scale factor. More...

double	maxModelScaleFactor (int modeKey) const
	Get the observer mode's max model scale factor. More...

void	setMaxLinearModelScaleFactor (int modeKey, double maxLinearModelScaleFactor)
	Set the observer mode's max Linear model scale factor. More...

double	maxLinearModelScaleFactor (int modeKey) const
	Get the observer mode's max model scale factor. More...

void	setOrbitSpeedGain (int modeKey, int gain)
	Set the default orbit speed gain. More...

int	orbitSpeedGain (int modeKey) const
	Get the default orbit speed gain. More...

void	setLinearScaledSpeedGain (int modeKey, int gain)
	Set the default linear scaled speed gain. More...

int	linearScaledSpeedGain (int modeKey) const
	Get the default linear scaled speed gain. More...

void	setLinearUnscaledSpeedGain (int modeKey, int gain)
	Set the default linear unscaled speed gain. More...

int	linearUnscaledSpeedGain (int modeKey) const
	Get the default linear unscaled speed gain. More...

void	setRotationSpeedGain (int modeKey, int gain)
	Get and set the default rotation speed gain. More...

int	rotationSpeedGain (int modeKey) const
	Get and set the default rotation speed gain. More...

void	setObserverSetting (int modeKey, int settingKey, bool val)
	Set whether the given observer setting is enabled or not. More...

bool	observerSetting (int modeKey, int settingKey) const
	Get whether the given observer setting is enabled for not. More...


void	setSpeedScalingMode (int modeKey, DtObserverObject::SpeedScalingMode mode)
	Get and set the speed scaling mode. More...

DtObserverObject::SpeedScalingMode	speedScalingMode (int modeKey) const


void	setSpeedScalingMslModeOffset (int modeKey, double offset)
	Get and set the speed scaling MSL mode offset. More...

double	speedScalingMslModeOffset (int modeKey) const


void	setCameraShakeEnabled (int modeKey, bool enabled)
	Enable or disable camera shake. More...

bool	cameraShakeEnabled (int modeKey) const


void	setCameraShakeIntensity (int modeKey, double intensity)
	Get and set the camera shake intensity. More...

double	cameraShakeIntensity (int modeKey) const


void	setLodScaleCenterEnabled (int modeKey, bool enabled)
	Enable or disable the use of an lod scale center. More...

bool	lodScaleCenterEnabled (int modeKey) const


void	setLodScaleCenterMagMinLimit (int modeKey, double limit)
	Get and set the minimum view magnification that the lod scale will start being used. More...

double	lodScaleCenterMagMinLimit (int modeKey) const

Setting Persistence Methods
virtual void	loadDefaultSettings (bool loadOnlyDefaultSettings)
	Load the default settings. More...

virtual void	loadDefaultSettings (bool loadOnlyDefaultSettings, bool merge)
	Load the default settings and merge if necessary. More...

virtual void	importSettings (const std::string &filepath, bool merge)
	Import settings from the file and merge if necessary. More...

virtual void	exportObserverMode (int modeKey, const std::string &filepath) const
	Export the specified observer mode to the named file. More...

virtual void	setFromRecord (const makArchives::DtObserverModesRecord &record)
	Use the settings from the given settings record. More...

virtual void	setFromRecord (const makArchives::DtObserverModesRecord &record, bool merge)
	Sets or merges the current settings with the given settings record. More...

virtual void	setObserverModeFromRecord (const makArchives::DtObserverModesRecord &record, int modeKey)
	Use the observer mode settings from the given record. More...

virtual void	getRecord (makArchives::DtObserverModesRecord &record) const
	Populate the given record with the current settings. More...

virtual DtObserverModesSettingsBackup *	observerModeSettingsBackup ()
	Return our settings backup object, properly cast to the derived version we are using. More...

Public Member Functions inherited from makVrv::DtBaseSettingsManager< makArchives::DtObserverModesRecord >
	DtBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)
	CTOR. More...

virtual	~DtBaseSettingsManager ()
	Virtual DTOR. More...

Public Member Functions inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtObserverModesRecord >
	DtCommonBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)
	CTOR The name, displayName, and extension parameters are used for creating the settings object (DtDeSettings) and backup, and for constructing the filename when readin/writing the records to disk. More...

virtual	~DtCommonBaseSettingsManager ()
	Virtual DTOR. More...

virtual void	autoSaveIfNecessary ()
	Saves the current settings as defaults if autosave is enabled. More...

virtual void	setAutoSave (bool doit)
	Sets whether autosave is enabled for the settings manager. More...

virtual bool	autoSave () const
	Gets whether autosave is enabled for the settings manager. More...

virtual void	setUseDefaultSettingsRecord (bool useit)
	Sets whether setting initialization should check for a default record. More...

virtual bool	useDefaultSettingsRecord () const
	Gets whether setting initialization should check for a default record. More...

virtual DtDeSettings *	settings ()
	Accessor for the manager's DtDeSettings object. More...

virtual const DtDeSettings *	settings () const
	Accessor for the manager's DtDeSettings object (const). More...

virtual DtSettingsBackup *	settingsBackup ()
	Accessor for the manager's settings backup. More...

virtual const DtSettingsBackup *	settingsBackup () const
	Accessor for the manager's settings backup (const). More...

virtual void	loadDefaults ()
	Initializes the settings and creates a backup. More...

virtual void	saveDefaultSettings ()
	Saves the current settings' state as the default (on disk). More...

virtual void	importSettings (const std::string &filePath)
	Load the settings' state from the given file. More...

virtual void	exportSettings (const std::string &filePath) const
	Save the current settings' state to the given file. More...

virtual void	getSplitRecord (std::vector< makArchives::DtObserverModesRecord > &rec, std::vector< std::string > &fileNames)
	For directory support, split the main record into different sub-records and give them each a file name. More...

virtual void	addRecords (makArchives::DtObserverModesRecord &rec, makArchives::DtObserverModesRecord &combinedRec)
	For directory support, when reading in a directory, add the records from each file to the combined record. More...

Public Member Functions inherited from makVrv::DtVirtualBaseClass
	DtVirtualBaseClass ()
	Do nothing constructor. More...

virtual	~DtVirtualBaseClass ()
	Virtual do nothing destructor. More...

Static Public Member Functions
static DtObserverModeManager &	instance (DtDe &de)
	Get an instance used to emit, or to connect. More...

Public Attributes
boost::signal< void(int)>	observerModeKeyMapChanged
	signal that the indicated observer mode's key map changed More...

boost::signal< void(int)>	observerModeModelSetChanged
	signal that the indicated observer mode's model set changed More...

boost::signal< void(int)>	observerModeIs2DChanged

boost::signal< void(int)>	observerModeNameChanged
	signal that the indicated observer mode's name changed More...

boost::signal< void(int)>	observerModeSensorChanged
	signal that the indicated observer mode's sensor changed More...

boost::signal< void(int, int, bool)>	observerModeSettingChanged
	signal that the indicated observer mode's setting changed More...

boost::signal< void(int)>	observerModeGainPrecisionChanged
	signal that the indicated observer mode's gain precision changed More...

boost::signal< void(int)>	observerModeOrbitSpeedGainChanged
	signal that the indicated observer mode's orbit speed changed More...

boost::signal< void(int)>	observerModeRotationSpeedGainChanged
	signal that the indicated observer mode's rotation speed changed More...

boost::signal< void(int)>	observerModeLinearScaledSpeedGainChanged
	signal that the indicated observer mode's scaled linear speed changed More...

boost::signal< void(int)>	observerModeLinearUnscaledSpeedGainChanged
	signal that the indicated observer mode's scaled linear speed changed More...

boost::signal< void(int)>	observerModeModelScaleFactorChanged
	signal that the indicated observer mode's model scale factor changed More...

boost::signal< void(int)>	observerModeModelScaleTypeChanged
	signal that the indicated observer mode's model scale type changed More...

boost::signal< void(int)>	observerModeMaxModelScaleFactorChanged
	signal that the indicated observer mode's max model scale factor changed More...

boost::signal< void(int)>	observerModeMaxLinearModelScaleFactorChanged
	signal that the indicated observer mode's max linear model scale factor changed More...

boost::signal< void(int)>	observerModeSpeedScalingModeChanged
	signal that the indicated observer mode's speed scaling mode has changed More...

boost::signal< void(int)>	observerModeSpeedScalingMslModeOffsetChanged
	signal that the indicated observer mode's speed scaling MSL mode offset has changed More...

boost::signal< void(int)>	observerModeCameraShakeEnabledChanged
	signal that the camera shake has been enabled or disabled More...

boost::signal< void(int)>	observerModeCameraShakeIntensityChanged
	signal that the camera shake intensity has changed More...

boost::signal< void(int)>	observerModeLodScaleCenterEnabledChanged
	signal that the lod scale center has been enabled or disabled More...

boost::signal< void(int)>	observerModeLodScaleCenterMagMinLimitChanged
	signal that the lod scale center view magnification min limit has changed More...

boost::signal< void(int)>	observerModeAdded
	signal that the indicated observer mode was added More...

boost::signal< void(int)>	observerModeToBeRemoved
	signal that the indicated observer mode is about to be removed More...

Protected Types
typedef std::map< std::string, int >	ObserverModesMap
	Map type for mapping observer mode names to integer keys. More...

Protected Types inherited from makVrv::DtBaseSettingsManager< makArchives::DtObserverModesRecord >
typedef DtRecordSettingsBackup < DtBaseSettingsManager < makArchives::DtObserverModesRecord > , makArchives::DtObserverModesRecord >	RecordBackupType

Protected Member Functions
	DtObserverModeManager (DtDe &)
	CTOR. More...

DtObserverMode *	getObserverModePtr (int modeKey)
	Accessor for a pointer to the observer mode with the given key. More...

const DtObserverMode *	getObserverModeConstPtr (int modeKey) const
	Accessor for a pointer to the observer mode with the given key. More...

virtual void	addObserverMode (const DtObserverMode &mode)
	Add an already filled out mode (such as one read from a file) More...

virtual void	clear ()
	delete all the current visual modes More...

virtual void	initializeBackup ()
	Creates a backup of the settings' current state. More...

virtual void	slot_wireframeModeChanged (bool onOrOff)

Protected Attributes
DtStringKeyConverter *	myStringKeyConverter

ObserverModes	myObserverModes

ObserverModesMap	myObserverModesMap

DtSignalConnectionManager	mySignalConnections

Protected Attributes inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtObserverModesRecord >
DtSignalConnectionManager	myConnections

std::string	myName

std::string	myExtension

std::string	myDisplayName

bool	myUseDefaultSettingsRecordFlag

bool	myAutoSaveFlag

DtSettingsBackup *	mySettingsBackup

DtDe &	myDe

Friends
class	DtObserverModeManagerCreator
	Befriend the creator class so the manager can be instantiated properly. More...

template<typename ManagerClass >
ManagerClass &	defaultManagerInstanceFunction (DtDe &, bool)
	Befriend the manager instance functions for instance retreival/creation. More...

template<typename ManagerClass >
void	defaultManagerRegisterInstanceFunction (DtDe &, ManagerClass *)
	Befriend the manager instance functions for instance retreival/creation. More...

Detailed Description

DtObserverModeManager is responsible for loading and saving observer modes, and providing a mechanism to look up observer mode information by observer mode ID.

Member Typedef Documentation

typedef std::map<int, DtObserverMode> makVrv::DtObserverModeManager::ObserverModes

Type returned when retrieving all observer modes.

typedef std::map<std::string,int> makVrv::DtObserverModeManager::ObserverModesMap

protected

Map type for mapping observer mode names to integer keys.

Constructor & Destructor Documentation

virtual makVrv::DtObserverModeManager::~DtObserverModeManager ( )

virtual

DTOR.

makVrv::DtObserverModeManager::DtObserverModeManager ( DtDe & )

protected

CTOR.

Member Function Documentation

static DtObserverModeManager& makVrv::DtObserverModeManager::instance ( DtDe & de )

static

Get an instance used to emit, or to connect.

const ObserverModes& makVrv::DtObserverModeManager::observerModes ( ) const

Accessor for the map of observer modes.

See Also: DtObserverModeManager::ObserverModes

int makVrv::DtObserverModeManager::numberOfObserverModes ( ) const

get the number of Observer Modes

virtual int makVrv::DtObserverModeManager::createObserverMode	(	const std::string &	stringKey,
		const std::string &	displayName
	)

virtual

Add a observer mode.

An modeKey will be assigned. The user can then set the key map and model set to use. Returns the modeKey assigned

virtual int makVrv::DtObserverModeManager::cloneObserverMode	(	int	modeKeyOrig,
		const std::string &	newStringKey,
		const std::string &	newDisplayName
	)

virtual

Create a new observer mode based on an existing one.

An modeKey will be assigned; returns the modeKey assigned. Returns -1 if the clone fails.

virtual int makVrv::DtObserverModeManager::createModeKey ( const std::string & stringKey )

virtual

Get a key without adding the observer to the manager.

This is used by DtObserverMode::setFromRecord, and not recommended for general use.

virtual void makVrv::DtObserverModeManager::removeObserverMode ( int mode )

virtual

Remove a observer mode.

int makVrv::DtObserverModeManager::lookupObserverModeKey ( const std::string & stringKey ) const

Looks up the int key for the observer mode with the given name.

Returns: -1 if no observer mode with the given name exists.

const std::string* makVrv::DtObserverModeManager::findObserverModeStringKey ( int modeKey ) const

Find the observer mode string for a int key.

bool makVrv::DtObserverModeManager::getObserverModeById	(	int	modeKey,
		DtObserverMode &	result
	)		const

Get a observer mode.

bool makVrv::DtObserverModeManager::getObserverModeByName	(	const std::string &	observerModeName,
		DtObserverMode &	result
	)

Gets a reference to the observer mode with the given name.

The return value indicates whether the result reference was populated with the requested observer mode. If false, the result has been untouched.

Returns: whether the reference passed in was populated with the mode.

std::string makVrv::DtObserverModeManager::name ( int modeKey ) const

Get the observer mode's display name.

void makVrv::DtObserverModeManager::setName	(	int	modeKey,
		const std::string &	name
	)

Set the observer mode's display name.

int makVrv::DtObserverModeManager::modelSet ( int modeKey ) const

get the model set for the specified mode

void makVrv::DtObserverModeManager::setModelSet	(	int	modeKey,
		int	modelSet
	)

This specifies the model set for the indicated observer mode.

std::string makVrv::DtObserverModeManager::keyMap ( int modeKey ) const

get the key map for the specified mode

void makVrv::DtObserverModeManager::setKeyMap	(	int	modeKey,
		const std::string &	keyMap
	)

This specifies the key map for the indicated observer mode.

void makVrv::DtObserverModeManager::setIs2D	(	int	modeKey,
		bool	trueOrFalse
	)

Set if the observer mode is 2D or not (3D)

bool makVrv::DtObserverModeManager::is2D ( int modeKey ) const

Get if the observer mode is 2D.

void makVrv::DtObserverModeManager::setSensor	(	int	modeKey,
		const std::string &	sensorName
	)

Set the sensor used for the observer mode.

std::string makVrv::DtObserverModeManager::sensor ( int modeKey ) const

Get the sensor used for the observer mode.

void makVrv::DtObserverModeManager::setGainPrecision	(	int	modeKey,
		int	precision
	)

Set the observer mode's gain precision.

int makVrv::DtObserverModeManager::gainPrecision ( int modeKey ) const

Get the observer mode's gain precision.

void makVrv::DtObserverModeManager::setModelScaleFactor	(	int	modeKey,
		double	modelScaleFactor
	)

Set the observer mode's model scale factor.

double makVrv::DtObserverModeManager::modelScaleFactor ( int modeKey ) const

Get the observer mode's model scale factor.

void makVrv::DtObserverModeManager::setModelScaleType	(	int	modeKey,
		const std::string &	modelScaleType
	)

Set the observer mode's model scale type.

const std::string& makVrv::DtObserverModeManager::modelScaleType ( int modeKey ) const

Get the observer mode's model scale type.

void makVrv::DtObserverModeManager::setMaxModelScaleFactor	(	int	modeKey,
		double	maxModelScaleFactor
	)

Set the observer mode's max model scale factor.

double makVrv::DtObserverModeManager::maxModelScaleFactor ( int modeKey ) const

Get the observer mode's max model scale factor.

void makVrv::DtObserverModeManager::setMaxLinearModelScaleFactor	(	int	modeKey,
		double	maxLinearModelScaleFactor
	)

Set the observer mode's max Linear model scale factor.

double makVrv::DtObserverModeManager::maxLinearModelScaleFactor ( int modeKey ) const

Get the observer mode's max model scale factor.

void makVrv::DtObserverModeManager::setOrbitSpeedGain	(	int	modeKey,
		int	gain
	)

Set the default orbit speed gain.

int makVrv::DtObserverModeManager::orbitSpeedGain ( int modeKey ) const

Get the default orbit speed gain.

void makVrv::DtObserverModeManager::setLinearScaledSpeedGain	(	int	modeKey,
		int	gain
	)

Set the default linear scaled speed gain.

int makVrv::DtObserverModeManager::linearScaledSpeedGain ( int modeKey ) const

Get the default linear scaled speed gain.

void makVrv::DtObserverModeManager::setLinearUnscaledSpeedGain	(	int	modeKey,
		int	gain
	)

Set the default linear unscaled speed gain.

int makVrv::DtObserverModeManager::linearUnscaledSpeedGain ( int modeKey ) const

Get the default linear unscaled speed gain.

void makVrv::DtObserverModeManager::setRotationSpeedGain	(	int	modeKey,
		int	gain
	)

Get and set the default rotation speed gain.

int makVrv::DtObserverModeManager::rotationSpeedGain ( int modeKey ) const

Get and set the default rotation speed gain.

void makVrv::DtObserverModeManager::setSpeedScalingMode	(	int	modeKey,
		DtObserverObject::SpeedScalingMode	mode
	)

Get and set the speed scaling mode.

DtObserverObject::SpeedScalingMode makVrv::DtObserverModeManager::speedScalingMode ( int modeKey ) const

void makVrv::DtObserverModeManager::setSpeedScalingMslModeOffset	(	int	modeKey,
		double	offset
	)

Get and set the speed scaling MSL mode offset.

double makVrv::DtObserverModeManager::speedScalingMslModeOffset ( int modeKey ) const

void makVrv::DtObserverModeManager::setCameraShakeEnabled	(	int	modeKey,
		bool	enabled
	)

Enable or disable camera shake.

bool makVrv::DtObserverModeManager::cameraShakeEnabled ( int modeKey ) const

void makVrv::DtObserverModeManager::setCameraShakeIntensity	(	int	modeKey,
		double	intensity
	)

Get and set the camera shake intensity.

double makVrv::DtObserverModeManager::cameraShakeIntensity ( int modeKey ) const

void makVrv::DtObserverModeManager::setLodScaleCenterEnabled	(	int	modeKey,
		bool	enabled
	)

Enable or disable the use of an lod scale center.

bool makVrv::DtObserverModeManager::lodScaleCenterEnabled ( int modeKey ) const

void makVrv::DtObserverModeManager::setLodScaleCenterMagMinLimit	(	int	modeKey,
		double	limit
	)

Get and set the minimum view magnification that the lod scale will start being used.

double makVrv::DtObserverModeManager::lodScaleCenterMagMinLimit ( int modeKey ) const

void makVrv::DtObserverModeManager::setObserverSetting	(	int	modeKey,
		int	settingKey,
		bool	val
	)

Set whether the given observer setting is enabled or not.

Parameters

modeKey	the key for the observer mode the setting belongs to.
settingKey	the key for the setting to be set.
val	the new enabled state for the setting.

bool makVrv::DtObserverModeManager::observerSetting	(	int	modeKey,
		int	settingKey
	)		const

Get whether the given observer setting is enabled for not.

Parameters

modeKey	the key for the observer mode the setting belongs to.
settingKey	the key for the setting to retrieve the state for.

Returns: whether the given setting is enabled or not.

virtual void makVrv::DtObserverModeManager::loadDefaultSettings ( bool loadOnlyDefaultSettings )

virtual

Load the default settings.

Reimplemented from makVrv::DtCommonBaseSettingsManager< makArchives::DtObserverModesRecord >.

virtual void makVrv::DtObserverModeManager::loadDefaultSettings	(	bool	loadOnlyDefaultSettings,
		bool	merge
	)

virtual

Load the default settings and merge if necessary.

virtual void makVrv::DtObserverModeManager::importSettings	(	const std::string &	filepath,
		bool	merge
	)

virtual

Import settings from the file and merge if necessary.

virtual void makVrv::DtObserverModeManager::exportObserverMode	(	int	modeKey,
		const std::string &	filepath
	)		const

virtual

Export the specified observer mode to the named file.

virtual void makVrv::DtObserverModeManager::setFromRecord ( const makArchives::DtObserverModesRecord & record )

virtual

Use the settings from the given settings record.

Implements makVrv::DtBaseSettingsManager< makArchives::DtObserverModesRecord >.

virtual void makVrv::DtObserverModeManager::setFromRecord	(	const makArchives::DtObserverModesRecord &	record,
		bool	merge
	)

virtual

Sets or merges the current settings with the given settings record.

If the merge parameter is false, the settings are cleared then the record settings are added (essentially a regular set). If the merge parameter is true, the settings are merged with the current settings.

virtual void makVrv::DtObserverModeManager::setObserverModeFromRecord	(	const makArchives::DtObserverModesRecord &	record,
		int	modeKey
	)

virtual

Use the observer mode settings from the given record.

virtual void makVrv::DtObserverModeManager::getRecord ( makArchives::DtObserverModesRecord & record ) const

virtual

Populate the given record with the current settings.

Implements makVrv::DtBaseSettingsManager< makArchives::DtObserverModesRecord >.

virtual DtObserverModesSettingsBackup* makVrv::DtObserverModeManager::observerModeSettingsBackup ( )

virtual

Return our settings backup object, properly cast to the derived version we are using.

DtObserverMode* makVrv::DtObserverModeManager::getObserverModePtr ( int modeKey )

protected

Accessor for a pointer to the observer mode with the given key.

Returns: a pointer to the observer mode, or NULL if there isn't one.

const DtObserverMode* makVrv::DtObserverModeManager::getObserverModeConstPtr ( int modeKey ) const

protected

Accessor for a pointer to the observer mode with the given key.

Returns: a const pointer to the observer mode, or NULL if there isn't one.

virtual void makVrv::DtObserverModeManager::addObserverMode ( const DtObserverMode & mode )

protectedvirtual

Add an already filled out mode (such as one read from a file)

Note that if the mode already exists, it overwrites it.

virtual void makVrv::DtObserverModeManager::clear ( )

protectedvirtual

delete all the current visual modes

virtual void makVrv::DtObserverModeManager::initializeBackup ( )

protectedvirtual

Creates a backup of the settings' current state.

Reimplemented from makVrv::DtBaseSettingsManager< makArchives::DtObserverModesRecord >.

virtual void makVrv::DtObserverModeManager::slot_wireframeModeChanged ( bool onOrOff )

protectedvirtual

Friends And Related Function Documentation

friend class DtObserverModeManagerCreator

friend

Befriend the creator class so the manager can be instantiated properly.

template<typename ManagerClass >

ManagerClass& defaultManagerInstanceFunction	(	DtDe &	de,
		bool	allowedInSlave
	)

friend

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

Manager requirements: 1) Static instance function 2) Protected DtSignalConnectionManager named myConnections. 3) Member functioned called loadDefaults which takes no arguments. and loads the default settings of the manager or factory from disk. 4) define defaultManagerInstanceFunction as friend. 5) define defaultManagerRegisterInstanceFunction as friend (see below). 5) Protected Constructor which only takes a DtDe reference.

*  class Manager
*  {
*  public:
*     static Manager& instance(DtDe& de);
*     void loadDefaults();
*  protected:
*     template <typename ManagerClass>
*     friend ManagerClass& defaultManagerInstanceFunction(DtDe& de, bool);
*     template <typename ManagerClass>
*     friend void defaultManagerRegisterInstanceFunction(DtDe& de, ManagerClass* mgr)
*     Manager(DtDe&);
*     DtSignalConnectionManager myConnections;
*  };
*

Then simply in the implementation of instance call defaultManagerInstanceFunction with the de object and return the return value.

*  Manager& Manager::instance(DtDe& de)
*  {
*     return defaultManagerInstanceFunction<Manager>(de);
*  }
*

template<typename ManagerClass >

void defaultManagerRegisterInstanceFunction	(	DtDe &	de,
		ManagerClass *	mgr
	)

friend

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

*  static void Manager::registerInstance(DtDe& de, Manager* mgr)
*  {
*     defaultManagerRegisterInstanceFunction(de,mgr);
*  }
*  ...else where call.
*  // Assuming class NewManager : public Manager
*  Manager::registerInstance(de,new NewManager(de));
*

Member Data Documentation

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeKeyMapChanged

signal that the indicated observer mode's key map changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeModelSetChanged

signal that the indicated observer mode's model set changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeIs2DChanged

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeNameChanged

signal that the indicated observer mode's name changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeSensorChanged

signal that the indicated observer mode's sensor changed

boost::signal<void (int, int,bool)> makVrv::DtObserverModeManager::observerModeSettingChanged

signal that the indicated observer mode's setting changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeGainPrecisionChanged

signal that the indicated observer mode's gain precision changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeOrbitSpeedGainChanged

signal that the indicated observer mode's orbit speed changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeRotationSpeedGainChanged

signal that the indicated observer mode's rotation speed changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeLinearScaledSpeedGainChanged

signal that the indicated observer mode's scaled linear speed changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeLinearUnscaledSpeedGainChanged

signal that the indicated observer mode's scaled linear speed changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeModelScaleFactorChanged

signal that the indicated observer mode's model scale factor changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeModelScaleTypeChanged

signal that the indicated observer mode's model scale type changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeMaxModelScaleFactorChanged

signal that the indicated observer mode's max model scale factor changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeMaxLinearModelScaleFactorChanged

signal that the indicated observer mode's max linear model scale factor changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeSpeedScalingModeChanged

signal that the indicated observer mode's speed scaling mode has changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeSpeedScalingMslModeOffsetChanged

signal that the indicated observer mode's speed scaling MSL mode offset has changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeCameraShakeEnabledChanged

signal that the camera shake has been enabled or disabled

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeCameraShakeIntensityChanged

signal that the camera shake intensity has changed

boost::signal<void(int)> makVrv::DtObserverModeManager::observerModeLodScaleCenterEnabledChanged

signal that the lod scale center has been enabled or disabled

boost::signal<void(int)> makVrv::DtObserverModeManager::observerModeLodScaleCenterMagMinLimitChanged

signal that the lod scale center view magnification min limit has changed

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeAdded

signal that the indicated observer mode was added

boost::signal<void (int)> makVrv::DtObserverModeManager::observerModeToBeRemoved

signal that the indicated observer mode is about to be removed

DtStringKeyConverter* makVrv::DtObserverModeManager::myStringKeyConverter

protected

ObserverModes makVrv::DtObserverModeManager::myObserverModes

protected

ObserverModesMap makVrv::DtObserverModeManager::myObserverModesMap

protected

DtSignalConnectionManager makVrv::DtObserverModeManager::mySignalConnections

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvCore/DtObserverModeManager.h

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
