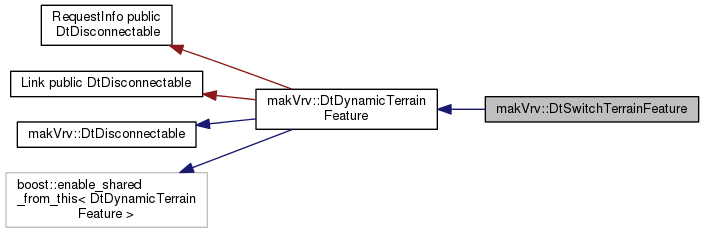

Inheritance diagram for makVrv::DtSwitchTerrainFeature:

Public Member Functions
	DtSwitchTerrainFeature (DtDynamicTerrainSwitch *switcher, const DtString &stateName, const DtDynamicTerrainSwitchNode::ValueChildMap &valueChildMap, const osg::BoundingSphere &sphere, const boost::shared_ptr< DtDynamicTerrainFeature > &parent)

virtual DtString	description () const
	Feature description functions Allows feature to describe itself (for a gui mostly). More...

virtual const DtDynamicTerrainFeature *	parentFeature () const

virtual void	iterateCommands (const boost::function< void(const DtDynamicTerrainChange &)> &callback, const DtString &key) const

virtual const DtDynamicTerrainGeometry *	geometry () const
	Geometry which represents this feature. More...

virtual const DtDynamicTerrainGeometry *	originalGeometry () const
	Unprocessed geometry. More...

virtual bool	matches (const DtDynamicTerrainChange &command, bool useOriginalGeometry) const
	Matching functions. More...

virtual bool	matches (const DtDynamicTerrainGeometry &, bool useOriginalGeometry) const

virtual void	changeState (const DtDynamicTerrainChanges &changes)
	Called by the dynamic terrain system in order to notify a feature that it should change its state. More...

virtual bool	stringValueToState (const DtString &valueName, int &state) const
	Convert a string value (such as one found in the value field of a change request to the state value of a DtDynamicTerrainSwitchNode to which it corresponds. More...

virtual void	setState (const DtDynamicTerrainChange *command)

virtual bool	isInDefaultState () const
	Is this feature in it's default (i.e. unchanged) state? More...

virtual bool	lastStateWasDefaultState () const
	Was the previous state the feature was in immediately before the current state the default state? More...

Public Member Functions inherited from makVrv::DtDynamicTerrainFeature
	DtDynamicTerrainFeature ()
	Default Constructor. More...

virtual	~DtDynamicTerrainFeature ()
	Virtual destructor. More...

virtual boost::optional< DtString >	featureAttribute (const DtString &key) const
	Access attribute values encoded into features. More...

virtual void	iterateCommands (const boost::function< void(const DtDynamicTerrainChange &)> &callback) const
	Call the supplied callback on commands which represent the commands a feature can respond to. More...

void	changed ()
	Calls changeState and all attached query callbacks. More...

bool	pageOut ()
	Remove all change requests links and remove feature from dynamic terrain world. More...

void	changes (const boost::function< void(const DtDynamicTerrainChanges &)> &callback) const
	Calls supplied callback on this features DtDynamicTerrainChanges interface. More...

RequestHandle	addChangeRequest (DtDynamicTerrainChange *change)
	Add a change request directly to this feature. More...

RequestHandle	addChangeRequest (double time, DtDynamicTerrainChange *change)

virtual	~Link ()

RequestInfo &	request ()

DtDynamicTerrainFeature &	feature ()

	RequestInfo (DtDynamicTerrainChange *command)

virtual	~RequestInfo ()

const DtDynamicTerrainChange &	command () const

void	pageOut ()

virtual boost::signals2::connection	connectToChangeSignal (const ChangeCallback &callback) const
	Call callback when feature state is changed. More...

virtual boost::signals2::connection	connectToPageOutSignal (const Callback &callback) const
	Call callback when feature is removed. More...

Public Member Functions inherited from makVrv::DtDisconnectable
	DtDisconnectable ()
	Default constructor. More...

virtual	~DtDisconnectable ()
	Destructor. More...

virtual boost::signals2::connection	addDisconnectFunction (const boost::function< void()> &callback)
	Add a function to be called when callDisconnectFunctions is called. More...

virtual bool	callDisconnectFunctions ()
	Atomically call all the disconnect functions and mark this object as disconnected. More...

Protected Types
typedef tbb::spin_mutex	Mutex
	Mutex to prevent concurrent state switch in mySwitcher. More...

Protected Types inherited from makVrv::DtDisconnectable
enum	State { NotUsed, InUse, Disconnected }

typedef tbb::spin_mutex	Mutex

Protected Attributes
const boost::scoped_ptr < DtDynamicTerrainGeometry >	myGeometry

const boost::scoped_ptr < DtDynamicTerrainGeometry >	myOriginalGeometry

const boost::shared_ptr < DtDynamicTerrainFeature >	myParentFeature

const DtString	myStateName

const DtDynamicTerrainSwitchNode::ValueChildMap	myValueToChildMap

Mutex	myMutex

boost::scoped_ptr < DtDynamicTerrainSwitch >	mySwitcher

Protected Attributes inherited from makVrv::DtDisconnectable
Mutex	myMutex

State	myDisconnectedState

boost::signals2::signal< void()>	myDisconnectSignal

Additional Inherited Members
Public Types inherited from makVrv::DtDynamicTerrainFeature
typedef boost::function< void(const DtDynamicTerrainFeature &)>	Callback
	Signal notification. More...

typedef boost::function< void(const DtDynamicTerrainFeature &, const DtDynamicTerrainChanges &)>	ChangeCallback

Static Public Member Functions inherited from makVrv::DtDynamicTerrainFeature
static unsigned long long	GetObjectCount ()

static unsigned long long	GetObjectCount ()

static bool	Create (const boost::shared_ptr< DtDynamicTerrainFeature > &featureInfo, const boost::shared_ptr< RequestInfo > &reqInfo)

static unsigned long long	GetObjectCount ()

Protected Member Functions inherited from makVrv::DtDynamicTerrainFeature
virtual void	removeTerrainChange (const DtDynamicTerrainChange &change)
	This method is called when a change is removed. More...

void	indexDoubleAscending (const DtString &key)
	Key/value attribute indexing. More...

void	indexDoubleDescending (const DtString &key)

void	indexIntAscending (const DtString &key)

void	indexIntDescending (const DtString &key)

void	indexStringAscending (const DtString &key)

void	indexStringDescending (const DtString &key)

void	setupIndex (const DtString &key, DtDynamicTerrainIndex *index)

Member Typedef Documentation

typedef tbb::spin_mutex makVrv::DtSwitchTerrainFeature::Mutex

protected

Mutex to prevent concurrent state switch in mySwitcher.

Constructor & Destructor Documentation

makVrv::DtSwitchTerrainFeature::DtSwitchTerrainFeature	(	DtDynamicTerrainSwitch *	switcher,
		const DtString &	stateName,
		const DtDynamicTerrainSwitchNode::ValueChildMap &	valueChildMap,
		const osg::BoundingSphere &	sphere,
		const boost::shared_ptr< DtDynamicTerrainFeature > &	parent
	)

explicit

Member Function Documentation

virtual DtString makVrv::DtSwitchTerrainFeature::description ( ) const

virtual

Feature description functions Allows feature to describe itself (for a gui mostly).

These can all be called from query callbacks. None of the values returned by these functions have any meaning besides informational. A description of what is in the feature, how it is setup, configuration, etc.

Implements makVrv::DtDynamicTerrainFeature.

virtual const DtDynamicTerrainFeature* makVrv::DtSwitchTerrainFeature::parentFeature ( ) const

virtual

Reimplemented from makVrv::DtDynamicTerrainFeature.

virtual void makVrv::DtSwitchTerrainFeature::iterateCommands	(	const boost::function< void(const DtDynamicTerrainChange &)> &	callback,
		const DtString &	key
	)		const

virtual

Reimplemented from makVrv::DtDynamicTerrainFeature.

virtual const DtDynamicTerrainGeometry* makVrv::DtSwitchTerrainFeature::geometry ( ) const

virtual

Geometry which represents this feature.

Implements makVrv::DtDynamicTerrainFeature.

virtual const DtDynamicTerrainGeometry* makVrv::DtSwitchTerrainFeature::originalGeometry ( ) const

virtual

Unprocessed geometry.

Reimplemented from makVrv::DtDynamicTerrainFeature.

virtual bool makVrv::DtSwitchTerrainFeature::matches	(	const DtDynamicTerrainChange &	,
		bool	useOriginalGeometry
	)		const

virtual

Matching functions.

Allow for arbitrary matching against requests, queries, and spatial index subspaces. Setting useOriginalGeometry will match against the geometry without any changes made by this system (i.e. uses the original geometry obtained from the parser).

Implements makVrv::DtDynamicTerrainFeature.

virtual bool makVrv::DtSwitchTerrainFeature::matches	(	const DtDynamicTerrainGeometry &	,
		bool	useOriginalGeometry
	)		const

virtual

Implements makVrv::DtDynamicTerrainFeature.

virtual void makVrv::DtSwitchTerrainFeature::changeState ( const DtDynamicTerrainChanges & history )

virtual

Called by the dynamic terrain system in order to notify a feature that it should change its state.

The history is an interface into the all of the terrain state changes. This function may be called concurrently from multiple threads.

Parameters

history History interface.

Implements makVrv::DtDynamicTerrainFeature.

virtual bool makVrv::DtSwitchTerrainFeature::stringValueToState	(	const DtString &	valueName,
		int &	state
	)		const

virtual

Convert a string value (such as one found in the value field of a change request to the state value of a DtDynamicTerrainSwitchNode to which it corresponds.

virtual void makVrv::DtSwitchTerrainFeature::setState ( const DtDynamicTerrainChange * command )

virtual

virtual bool makVrv::DtSwitchTerrainFeature::isInDefaultState ( ) const

virtual

Is this feature in it's default (i.e. unchanged) state?

Implements makVrv::DtDynamicTerrainFeature.

virtual bool makVrv::DtSwitchTerrainFeature::lastStateWasDefaultState ( ) const

virtual

Was the previous state the feature was in immediately before the current state the default state?

Implements makVrv::DtDynamicTerrainFeature.

Member Data Documentation

const boost::scoped_ptr<DtDynamicTerrainGeometry> makVrv::DtSwitchTerrainFeature::myGeometry

protected

const boost::scoped_ptr<DtDynamicTerrainGeometry> makVrv::DtSwitchTerrainFeature::myOriginalGeometry

protected

const boost::shared_ptr<DtDynamicTerrainFeature> makVrv::DtSwitchTerrainFeature::myParentFeature

protected

const DtString makVrv::DtSwitchTerrainFeature::myStateName

protected

const DtDynamicTerrainSwitchNode::ValueChildMap makVrv::DtSwitchTerrainFeature::myValueToChildMap

protected

Mutex makVrv::DtSwitchTerrainFeature::myMutex

mutableprotected

boost::scoped_ptr<DtDynamicTerrainSwitch> makVrv::DtSwitchTerrainFeature::mySwitcher

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-8-branch/include/vrvOsg/DtSwitchTerrainFeature.h
