8.12 - Missile Dynamics System

Table of Contents

• 8.12.1 Component Systems that make up the Missile Dynamics System
  • 8.12.1.1 Systems
  • 8.12.1.2 Other Simulation Components
    • Missile Dynamics Sensors
    • Missile Dynamics Controllers
    • Missile Dynamics Actuators

The missile dynamics system models the movement behavior of a missile entity.

This system can be configured as part of a missile.

8.12.1 Component Systems that make up the Missile Dynamics System

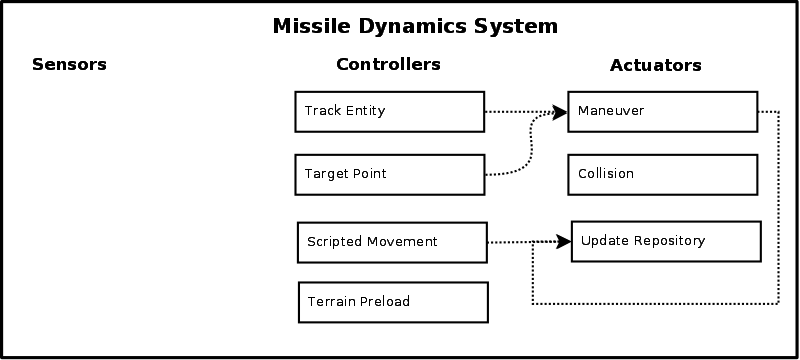

The figure below shows what systems and simulation components are configured as part of the missile dynamics system. The boxes (nodes) represent indivdiual DtSimComponent classes. The edges connecting the boxes indicate port or port group connections between components.

8.12.1.1 Systems

There are no systems configured as part of a missile entity.

8.12.1.2 Other Simulation Components

Individual DtSimComponents (not organized as part of a system) that make up the rest of entity:

Missile Dynamics Sensors

There are no sensors configured as part of a missile entity.

Missile Dynamics Controllers

• DtMissileTrackEntityController – Track an entity target.
• DtMissileMoveToControllerComponent – Maneuver toward a target point .
• DtScriptedMovementController – Processes scripted movement messages.
• DtMovementBasedTerrainPreloadController – For paged terrains, predicts the terrain area that will be needed in the near future.

Missile Dynamics Actuators

• DtMissileManeuverActComponent – Kinematics-based model of movement.
• DtMissileCollisionActuator – Models collisions with other entities, terrain.
• DtUpdateRepositoryActuator – Updates a VR-Forces state repository.
