DtGdbTerrainReader Class Reference

The DtGdbTerrainReader class is responsible for loading a GDB terrain database from file, presumably on disk, into a specified DtTerrainDatabase in memory.

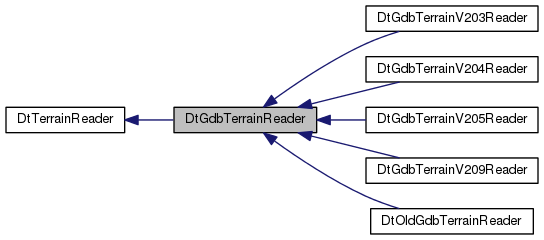

Inheritance diagram for DtGdbTerrainReader:

Public Member Functions
	DtGdbTerrainReader ()
virtual	~DtGdbTerrainReader ()
virtual bool	loadTerrain (const DtFilename &filename, DtTerrainDatabase *terrain)
virtual bool	loadTerrain (const DtFilename &filename, DtTerrainDatabase *terrain, const DtTerrainInitializer *initializer)
virtual const DtString	dataType () const
virtual bool	readFromFile (const DtFilename &basename, DtTerrainDatabase *terrain)
virtual Coordinate_System *	coordinateSystem (const DtFilename &filename)
virtual int	optionalFileFlags (const DtFilename &filename)
Public Member Functions inherited from DtTerrainReader
	DtTerrainReader ()
virtual	~DtTerrainReader ()
virtual DtTerrainDatabase *	terrainDb ()
virtual bool	preprocessTerrain (const DtTerrainFileInitializer &terrainInitializer, DtTerrainDatabase &terrainDb) const
void	setTerrainInitializer (const DtTerrainInitializer *initializer)
const DtTerrainInitializer *	terrainInitializer () const

Static Public Member Functions
static DtTerrainReader *	create ()

Protected Member Functions
bool	testInvariant () const
bool	createTerrain (const DtFilename &filename, DtTerrainDatabase &terrainDb, const DtGdbReaderInitializer &gdbInitializer)
bool	loadTerrainFromFile (const DtFilename &filename, DtTerrainDatabase &terrainDb, const DtGdbReaderInitializer &gdbInitializer)
virtual bool	readCoordinateSystem (FILE *fp)
virtual bool	readVersionNumber (const DtFilename &basename, DtTerrainFileVersionNumber &versionNumber)
virtual bool	readVersionNumberFromFile (FILE *fp)
virtual bool	loadTerrainUsingGdbReader (const DtFilename &basename, const DtTerrainFileVersionNumber versionNumber, DtTerrainDatabase *terrain)
virtual DtTerrainFileVersionNumber	versionNumberFromFile () const
virtual void	setVersionNumberFromFile (DtTerrainFileVersionNumber versionNumber)
virtual bool	verifyFileType (DtString filename, const DtString &type="gdb")
virtual bool	loadSpatialSubdivision (FILE *fp, DtSpatialSubdivisionTerrainIntersectorDescriptor &descriptor) const
Protected Member Functions inherited from DtTerrainReader
virtual void	init (const DtFilename &filename, DtTerrainDatabase *terrain)
	DtTerrainReader (const DtTerrainReader &orig)
DtTerrainReader &	operator= (const DtTerrainReader &orig)

Private Member Functions
	DtGdbTerrainReader (const DtGdbTerrainReader &original)
const DtGdbTerrainReader &	operator= (const DtGdbTerrainReader &original)

Private Attributes
DtTerrainFileVersionNumber	myVersionNumberFromFile

Additional Inherited Members
Protected Attributes inherited from DtTerrainReader
DtTerrainDatabase *	myTerrainDatabase
DtFilename	myFilename
const DtTerrainInitializer *	myTerrainInitializer

Constructor & Destructor Documentation

DtGdbTerrainReader::DtGdbTerrainReader

(

)

Default constructor.

virtual DtGdbTerrainReader::~DtGdbTerrainReader ( )

virtual

Destructor.

DtGdbTerrainReader::DtGdbTerrainReader ( const DtGdbTerrainReader &  original )

private

Copy constructor and Assignment operator not implemented This class is not copyable or assignable.

Member Function Documentation

const DtGdbTerrainReader& DtGdbTerrainReader::operator= ( const DtGdbTerrainReader &  original )

private

virtual bool DtGdbTerrainReader::loadTerrain ( const DtFilename &  filename, DtTerrainDatabase *  terrain  )

virtual

Loads terrain database file named filename, returning the data in terrain. The terrain pointer passed in must be initialized before calling loadTerrain.

Implements DtTerrainReader.

virtual bool DtGdbTerrainReader::loadTerrain ( const DtFilename &  filename, DtTerrainDatabase *  terrain, const DtTerrainInitializer *  initializer  )

virtual

Loads terrain database file named filename, returning the data in terrain. The initializer object is used to pass in additional information about the terrain to be loaded. The terrain pointer passed in must be initialized before calling loadTerrain.

Implements DtTerrainReader.

static DtTerrainReader* DtGdbTerrainReader::create ( )

static

virtual const DtString DtGdbTerrainReader::dataType ( ) const

virtual

Returns the type of file this database was loaded from. This class returns "gdb". Override this function in derived terrain db classes.

Implements DtTerrainReader.

Reimplemented in DtGdbTerrainV203Reader, DtOldGdbTerrainReader, DtGdbTerrainV205Reader, DtGdbTerrainV209Reader, and DtGdbTerrainV204Reader.

virtual bool DtGdbTerrainReader::readFromFile ( const DtFilename &  basename, DtTerrainDatabase *  terrain  )

virtual

Reimplemented in DtGdbTerrainV203Reader, DtOldGdbTerrainReader, DtGdbTerrainV205Reader, DtGdbTerrainV209Reader, and DtGdbTerrainV204Reader.

virtual Coordinate_System* DtGdbTerrainReader::coordinateSystem ( const DtFilename &  filename )

virtual

Implements DtTerrainReader.

virtual int DtGdbTerrainReader::optionalFileFlags ( const DtFilename &  filename )

virtual

Implements DtTerrainReader.

bool DtGdbTerrainReader::testInvariant ( ) const

protected

bool DtGdbTerrainReader::createTerrain ( const DtFilename &  filename, DtTerrainDatabase &  terrainDb, const DtGdbReaderInitializer &  gdbInitializer  )

protected

bool DtGdbTerrainReader::loadTerrainFromFile ( const DtFilename &  filename, DtTerrainDatabase &  terrainDb, const DtGdbReaderInitializer &  gdbInitializer  )

protected

virtual bool DtGdbTerrainReader::readCoordinateSystem ( FILE *  fp )

protectedvirtual

Reimplemented in DtOldGdbTerrainReader, DtGdbTerrainV205Reader, and DtGdbTerrainV209Reader.

virtual bool DtGdbTerrainReader::readVersionNumber ( const DtFilename &  basename, DtTerrainFileVersionNumber &  versionNumber  )

protectedvirtual

Opens the file if possible, and then reads the filename.

virtual bool DtGdbTerrainReader::readVersionNumberFromFile ( FILE *  fp )

protectedvirtual

Reads version number from open file pointer and leaves file open.

virtual bool DtGdbTerrainReader::loadTerrainUsingGdbReader ( const DtFilename &  basename, const DtTerrainFileVersionNumber  versionNumber, DtTerrainDatabase *  terrain  )

protectedvirtual

virtual DtTerrainFileVersionNumber DtGdbTerrainReader::versionNumberFromFile ( ) const

protectedvirtual

virtual void DtGdbTerrainReader::setVersionNumberFromFile ( DtTerrainFileVersionNumber  versionNumber )

protectedvirtual

virtual bool DtGdbTerrainReader::verifyFileType ( DtString  filename, const DtString &  type = "gdb"  )

protectedvirtual

Note

The filename parameter is passed by copy on purpose, as the copy is modified inside this function.

virtual bool DtGdbTerrainReader::loadSpatialSubdivision ( FILE *  fp, DtSpatialSubdivisionTerrainIntersectorDescriptor &  descriptor  ) const

protectedvirtual

Reads the spatial subdivision info from the file and fills it into the descriptor.

Member Data Documentation

DtTerrainFileVersionNumber DtGdbTerrainReader::myVersionNumberFromFile

private

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/gdb/gdbTerrainReader.h
