DtRectangularPyramidStateRepository Class Reference

Instances of DtRectangularPyramidStateRepository are used to store state data for HLAobjectRoot.SensorFieldOfView.RectangularPyramid objects.

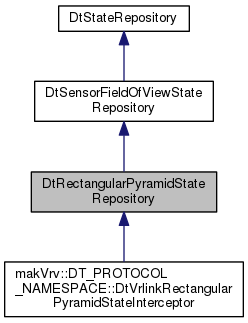

Inheritance diagram for DtRectangularPyramidStateRepository:

Public Member Functions
	DtRectangularPyramidStateRepository ()
virtual	~DtRectangularPyramidStateRepository ()
	DtRectangularPyramidStateRepository (const DtRectangularPyramidStateRepository &orig)
DtRectangularPyramidStateRepository &	operator= (const DtRectangularPyramidStateRepository &orig)
virtual DtStateRepository *	clone (bool copy) const
virtual void	printData () const
virtual void	printDataToStream (std::ostream &stream) const
virtual void	setXHalfAngle (DtFloat64 val)
virtual DtFloat64	xHalfAngle () const
virtual void	setYHalfAngle (DtFloat64 val)
virtual DtFloat64	yHalfAngle () const
Public Member Functions inherited from DtSensorFieldOfViewStateRepository
	DtSensorFieldOfViewStateRepository ()
virtual	~DtSensorFieldOfViewStateRepository ()
	DtSensorFieldOfViewStateRepository (const DtSensorFieldOfViewStateRepository &orig)
DtSensorFieldOfViewStateRepository &	operator= (const DtSensorFieldOfViewStateRepository &orig)
virtual void	setHost (const DtGlobalObjectDesignator &val)
virtual const DtGlobalObjectDesignator &	host () const
virtual void	setId (const DtString &val)
virtual DtString	id () const
virtual void	setRelativeLocation (const DtVector &val)
virtual const DtVector &	relativeLocation () const
virtual void	setRadius (DtFloat64 val)
virtual DtFloat64	radius () const
virtual void	setTrackingMode (DtSensorTrackingMode val)
virtual DtSensorTrackingMode	trackingMode () const
virtual void	setRelativeOrientation (const DtTaitBryan &val)
virtual const DtTaitBryan &	relativeOrientation () const
virtual void	setTargetedEntity (const DtGlobalObjectDesignator &val)
virtual const DtGlobalObjectDesignator &	targetedEntity () const
virtual void	setTargetedLocation (const DtVector &val)
virtual const DtVector &	targetedLocation () const
virtual void	setMinimumAzimuthAngle (DtFloat64 val)
virtual DtFloat64	minimumAzimuthAngle () const
virtual void	setMaximumAzimuthAngle (DtFloat64 val)
virtual DtFloat64	maximumAzimuthAngle () const
virtual void	setMinimumElevationAngle (DtFloat64 val)
virtual DtFloat64	minimumElevationAngle () const
virtual void	setMaximumElevationAngle (DtFloat64 val)
virtual DtFloat64	maximumElevationAngle () const
virtual void	setMaximumZoomLevel (DtFloat64 val)
virtual DtFloat64	maximumZoomLevel () const
virtual void	setZoomLevel (DtFloat64 val)
virtual DtFloat64	zoomLevel () const
virtual void	setColor (DtU32 val)
virtual DtU32	color () const

Static Public Member Functions
static DtRectangularPyramidStateRepository *	create ()
Static Public Member Functions inherited from DtSensorFieldOfViewStateRepository
static DtSensorFieldOfViewStateRepository *	create ()

Protected Attributes
DtFloat64	myXHalfAngle
DtFloat64	myYHalfAngle
Protected Attributes inherited from DtSensorFieldOfViewStateRepository
DtGlobalObjectDesignator	myHost
DtString	myId
DtVector	myRelativeLocation
DtFloat64	myRadius
DtSensorTrackingMode	myTrackingMode
DtTaitBryan	myRelativeOrientation
DtFloat64	myMinimumAzimuthAngle
DtFloat64	myMaximumAzimuthAngle
DtFloat64	myMinimumElevationAngle
DtFloat64	myMaximumElevationAngle
DtGlobalObjectDesignator	myTargetedEntity
DtVector	myTargetedLocation
DtFloat64	myMaximumZoomLevel
DtFloat64	myZoomLevel
DtU32	myColor

Constructor & Destructor Documentation

DtRectangularPyramidStateRepository::DtRectangularPyramidStateRepository

(

)

Constructor.

virtual DtRectangularPyramidStateRepository::~DtRectangularPyramidStateRepository ( )

virtual

Destructor.

DtRectangularPyramidStateRepository::DtRectangularPyramidStateRepository

(

const DtRectangularPyramidStateRepository &

orig

)

Copy Constructor.

Member Function Documentation

DtRectangularPyramidStateRepository& DtRectangularPyramidStateRepository::operator=

(

const DtRectangularPyramidStateRepository &

orig

)

Assignment Operator.

virtual DtStateRepository* DtRectangularPyramidStateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtSensorFieldOfViewStateRepository.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor.

static DtRectangularPyramidStateRepository* DtRectangularPyramidStateRepository::create ( )

static

Create a DtRectangularPyramidStateRepository.

virtual void DtRectangularPyramidStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtSensorFieldOfViewStateRepository.

virtual void DtRectangularPyramidStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtSensorFieldOfViewStateRepository.

virtual void DtRectangularPyramidStateRepository::setXHalfAngle ( DtFloat64  val )

virtual

Set the XHalfAngle.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor.

virtual DtFloat64 DtRectangularPyramidStateRepository::xHalfAngle ( ) const

virtual

Get the XHalfAngle.

virtual void DtRectangularPyramidStateRepository::setYHalfAngle ( DtFloat64  val )

virtual

Set the YHalfAngle.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor.

virtual DtFloat64 DtRectangularPyramidStateRepository::yHalfAngle ( ) const

virtual

Get the YHalfAngle.

Member Data Documentation

DtFloat64 DtRectangularPyramidStateRepository::myXHalfAngle

protected

DtFloat64 DtRectangularPyramidStateRepository::myYHalfAngle

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfExtObjects/rectangularPyramidStateRepository.h
