DtScriptedTaskVariableConverter Class Reference

A class that is used for converting to/from scripted task variables and reader/writer variables to be used in lua tasks.

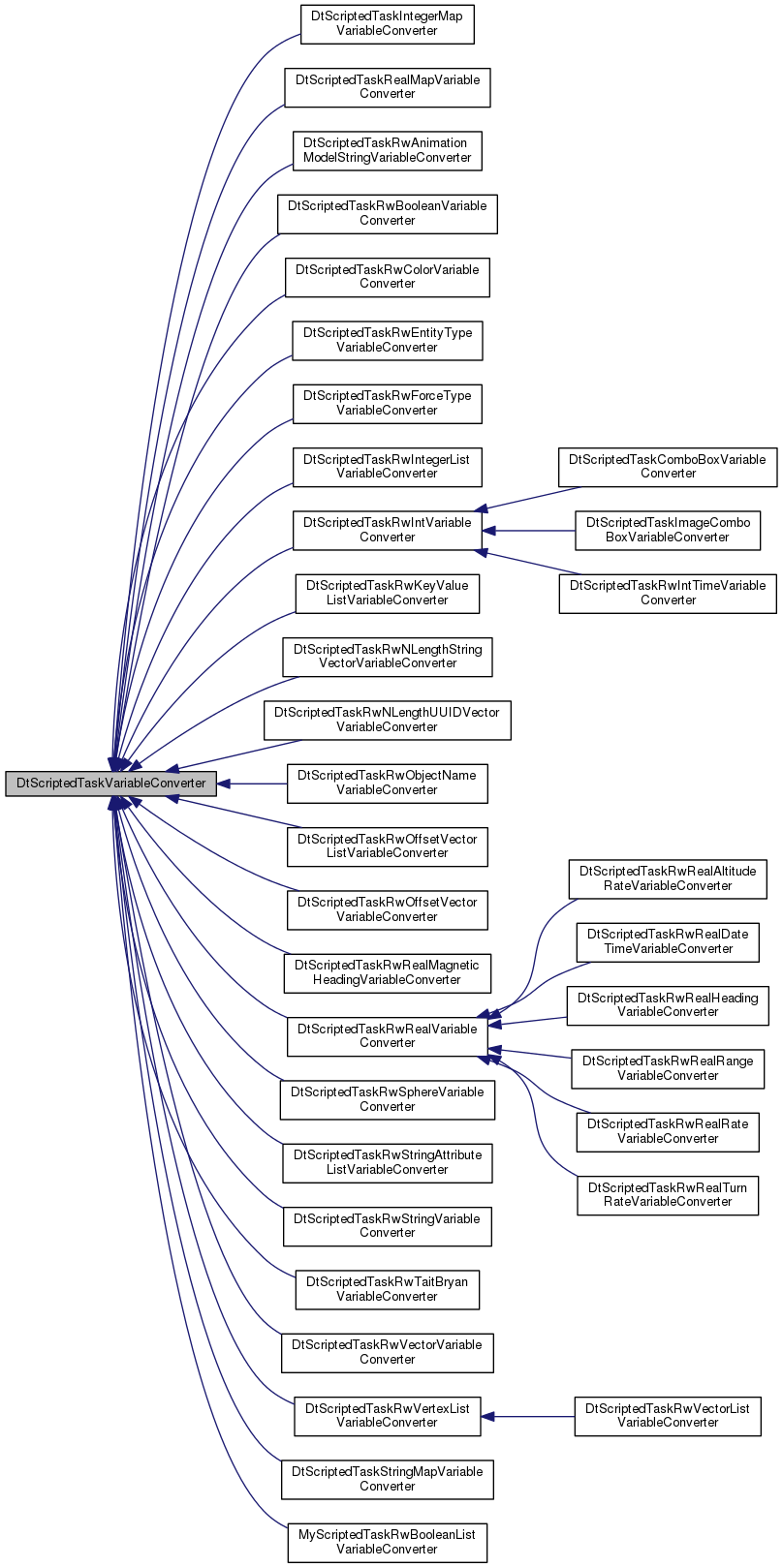

Inheritance diagram for DtScriptedTaskVariableConverter:

Public Member Functions
virtual DtReaderWriter *	toRwPtr (const DtScriptedTaskVariable &) const =0
virtual std::string	fromRwPtr (const DtReaderWriter *) const =0
virtual DtString	stringRep (const DtReaderWriter *) const =0

Static Public Member Functions
static DtString	formatOffset (const DtVector &loc)
static DtString	formatTime (int time)
static DtString	formatDateTime (time_t time)
static DtString	formatLocation (const DtVector &loc)
static DtString	formatSphere (const DtSphere &loc)
static DtString	formatDistance (double d)
static DtString	formatHeading (double d)
static DtString	formatRate (double d)
static DtString	formatAltitudeRate (double d)
static DtString	formatTurnRate (double d)

Member Function Documentation

virtual DtReaderWriter* DtScriptedTaskVariableConverter::toRwPtr ( const DtScriptedTaskVariable &  ) const

pure virtual

Converts from the given scripted task variable to a DtReaderWriter variable that represents it.

Implemented in DtScriptedTaskRwRealMagneticHeadingVariableConverter, DtScriptedTaskRealMapVariableConverter, DtScriptedTaskStringMapVariableConverter, DtScriptedTaskIntegerMapVariableConverter, DtScriptedTaskRwKeyValueListVariableConverter, DtScriptedTaskRwStringAttributeListVariableConverter, DtScriptedTaskRwNLengthStringVectorVariableConverter, DtScriptedTaskRwNLengthUUIDVectorVariableConverter, DtScriptedTaskRwObjectNameVariableConverter, DtScriptedTaskRwTaitBryanVariableConverter, DtScriptedTaskRwAnimationModelStringVariableConverter, DtScriptedTaskRwOffsetVectorVariableConverter, DtScriptedTaskRwOffsetVectorListVariableConverter, DtScriptedTaskRwVectorListVariableConverter, DtScriptedTaskRwVertexListVariableConverter, DtScriptedTaskRwSphereVariableConverter, DtScriptedTaskRwVectorVariableConverter, DtScriptedTaskRwEntityTypeVariableConverter, DtScriptedTaskRwForceTypeVariableConverter, DtScriptedTaskRwBooleanVariableConverter, DtScriptedTaskRwStringVariableConverter, DtScriptedTaskRwRealVariableConverter, DtScriptedTaskRwColorVariableConverter, DtScriptedTaskImageComboBoxVariableConverter, DtScriptedTaskComboBoxVariableConverter, DtScriptedTaskRwIntTimeVariableConverter, DtScriptedTaskRwIntegerListVariableConverter, DtScriptedTaskRwIntVariableConverter, and MyScriptedTaskRwBooleanListVariableConverter.

virtual std::string DtScriptedTaskVariableConverter::fromRwPtr ( const DtReaderWriter *  ) const

pure virtual

Converts from the reader/writer variable to a std::string that will be used as the default value for converting scripted task variable.

Implemented in DtScriptedTaskRwRealMagneticHeadingVariableConverter, DtScriptedTaskRealMapVariableConverter, DtScriptedTaskStringMapVariableConverter, DtScriptedTaskIntegerMapVariableConverter, DtScriptedTaskRwKeyValueListVariableConverter, DtScriptedTaskRwStringAttributeListVariableConverter, DtScriptedTaskRwNLengthStringVectorVariableConverter, DtScriptedTaskRwNLengthUUIDVectorVariableConverter, DtScriptedTaskRwObjectNameVariableConverter, DtScriptedTaskRwTaitBryanVariableConverter, DtScriptedTaskRwAnimationModelStringVariableConverter, DtScriptedTaskRwOffsetVectorVariableConverter, DtScriptedTaskRwOffsetVectorListVariableConverter, DtScriptedTaskRwVertexListVariableConverter, DtScriptedTaskRwSphereVariableConverter, DtScriptedTaskRwVectorVariableConverter, DtScriptedTaskRwEntityTypeVariableConverter, DtScriptedTaskRwForceTypeVariableConverter, DtScriptedTaskRwBooleanVariableConverter, DtScriptedTaskRwStringVariableConverter, DtScriptedTaskRwRealVariableConverter, DtScriptedTaskRwColorVariableConverter, DtScriptedTaskRwIntegerListVariableConverter, DtScriptedTaskRwIntVariableConverter, and MyScriptedTaskRwBooleanListVariableConverter.

virtual DtString DtScriptedTaskVariableConverter::stringRep ( const DtReaderWriter *  ) const

pure virtual

Returns string representation.

Implemented in DtScriptedTaskRwRealMagneticHeadingVariableConverter, DtScriptedTaskRealMapVariableConverter, DtScriptedTaskStringMapVariableConverter, DtScriptedTaskIntegerMapVariableConverter, DtScriptedTaskRwKeyValueListVariableConverter, DtScriptedTaskRwStringAttributeListVariableConverter, DtScriptedTaskRwNLengthStringVectorVariableConverter, DtScriptedTaskRwNLengthUUIDVectorVariableConverter, DtScriptedTaskRwObjectNameVariableConverter, DtScriptedTaskRwTaitBryanVariableConverter, DtScriptedTaskRwAnimationModelStringVariableConverter, DtScriptedTaskRwOffsetVectorVariableConverter, DtScriptedTaskRwOffsetVectorListVariableConverter, DtScriptedTaskRwVectorListVariableConverter, DtScriptedTaskRwVertexListVariableConverter, DtScriptedTaskRwSphereVariableConverter, DtScriptedTaskRwVectorVariableConverter, DtScriptedTaskRwEntityTypeVariableConverter, DtScriptedTaskRwForceTypeVariableConverter, DtScriptedTaskRwBooleanVariableConverter, DtScriptedTaskRwStringVariableConverter, DtScriptedTaskRwRealDateTimeVariableConverter, DtScriptedTaskRwRealRangeVariableConverter, DtScriptedTaskRwRealTurnRateVariableConverter, DtScriptedTaskRwRealAltitudeRateVariableConverter, DtScriptedTaskRwRealRateVariableConverter, DtScriptedTaskRwRealHeadingVariableConverter, DtScriptedTaskRwRealVariableConverter, DtScriptedTaskRwColorVariableConverter, DtScriptedTaskRwIntTimeVariableConverter, DtScriptedTaskRwIntegerListVariableConverter, DtScriptedTaskRwIntVariableConverter, and MyScriptedTaskRwBooleanListVariableConverter.

static DtString DtScriptedTaskVariableConverter::formatOffset ( const DtVector &  loc )

static

Common formatting routines.

static DtString DtScriptedTaskVariableConverter::formatTime ( int  time )

static

static DtString DtScriptedTaskVariableConverter::formatDateTime ( time_t  time )

static

static DtString DtScriptedTaskVariableConverter::formatLocation ( const DtVector &  loc )

static

static DtString DtScriptedTaskVariableConverter::formatSphere ( const DtSphere &  loc )

static

static DtString DtScriptedTaskVariableConverter::formatDistance ( double  d )

static

static DtString DtScriptedTaskVariableConverter::formatHeading ( double  d )

static

static DtString DtScriptedTaskVariableConverter::formatRate ( double  d )

static

static DtString DtScriptedTaskVariableConverter::formatAltitudeRate ( double  d )

static

static DtString DtScriptedTaskVariableConverter::formatTurnRate ( double  d )

static

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfutil/scriptedTaskVariableConverters.h
