Instances of DtSignaturePropagatorDescriptor are used to specify the parameters for a DtSignaturePropagator object.

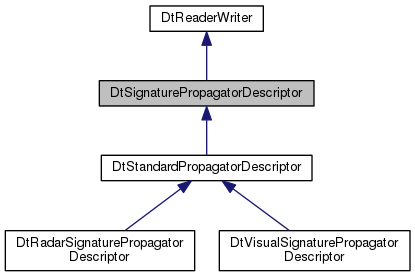

Inheritance diagram for DtSignaturePropagatorDescriptor:

Public Member Functions
	DtSignaturePropagatorDescriptor (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL)

	DtSignaturePropagatorDescriptor (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL)

	DtSignaturePropagatorDescriptor (const DtSignaturePropagatorDescriptor &orig, DtReaderWriterRegistry *parentRegistry=NULL)

DtSignaturePropagatorDescriptor &	operator= (const DtSignaturePropagatorDescriptor &orig)

virtual	~DtSignaturePropagatorDescriptor ()

virtual DtString	type () const

virtual DtSignaturePropagatorDescriptor *	clone (DtReaderWriterRegistry *parentRegistry=NULL) const

virtual void	putData (std::string &fp, int indentLevel=0)

virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

virtual bool	init ()


virtual void	setPropagatorType (const DtString &componentType)

virtual DtString	propagatorType () const

Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()

	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)

const DtReaderWriter &	operator= (const DtReaderWriter &orig)

bool	operator== (const DtReaderWriter &) const

bool	operator!= (const DtReaderWriter &rhs)

virtual	~DtReaderWriter ()

virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual void	postPutSelf ()

virtual void	prePutSelf ()

virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

virtual void	postGetSelf ()

virtual void	preGetSelf ()

virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual DtSymbolString	name () const

virtual void	addAlias (const DtSymbolString &alias)

virtual void	addAlias (const DtString &alias)

virtual bool	hasAlias (const DtSymbolString &alias)

virtual const aliasContainer &	aliases () const

virtual void	setReadonly (bool flag)

bool	isReadonly () const

virtual void	reset ()

virtual int	alignment () const

virtual bool	variableIsBound () const

virtual void	unbindVariable ()

virtual void	setName (const DtString &)

virtual const char *	readerWriterType () const

virtual const char *	xmlType () const

virtual DtString	prettyPrint () const

std::string	debugText () const

virtual void	bindVariables (DtVariableBindingsList variableBindings)

virtual std::list < DtVariableNameType >	unboundVariables () const

bool	invalid () const

virtual bool	hasChild (const DtReaderWriter *p) const

virtual bool	hasVariableReference () const

virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)

virtual void	recordUpdateTime () const

virtual bool	wasUpdatedSince (DtTime t) const

virtual bool	changedSinceLastChecked ()

virtual bool	peekChangedSinceLastChecked () const

virtual void	setValueSpecified (bool specified, bool recurse=false)

virtual bool	valueSpecified () const

virtual bool	isVariableReference () const

virtual void	setIsVariableReference (bool value)

virtual void	clearAllVariableReferenceFlags ()

virtual DtSymbolString	variableName () const

virtual void	setVariableName (const DtSymbolString variableName)

virtual const DtReaderWriter *	defaultRWValue () const

virtual DtReaderWriter *	defaultRWValue ()

virtual void	setDefaultRWValue (DtReaderWriter *)

virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

const DtReaderWriterRegistry &	registry () const

DtReaderWriterRegistry &	registry ()

virtual DtPropertyInterface *	property ()

virtual const DtPropertyInterface *	property () const

virtual DtString	toXml () const

virtual DtRwVariableBindings *	generateVariableBindings () const

virtual bool	toXml (const DtFilename &) const

virtual bool	fromXml (const DtString &)

virtual bool	fromXmlFile (const DtFilename &)

virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const

virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)

virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static DtSignaturePropagatorDescriptorFactory *	factory ()

static void	setFactory (DtSignaturePropagatorDescriptorFactory *factory)

static DtSignaturePropagatorDescriptor *	createSignaturePropagatorDescriptor (DtlObjPtr mtlStream, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

static DtSignaturePropagatorDescriptor *	createSignaturePropagatorDescriptor (const char *pName)

static DtSignaturePropagatorDescriptor *	creator ()

Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)

static const DtVariableBindingsList &	nullVariableReference ()

static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)

static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)

static void	setPutIndent (bool)

static bool	putIndent ()

static const char *	theXmlType ()

static const DtFilename &	appPath ()

static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)

static void	createReaderWriterFactory ()

static void	cleanupFactory ()

static DtReaderWriterFactory *	factory ()

static void	setOutputStream (DtOutputStream *stream)

static DtOutputStream &	outputStream ()

static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)

static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)

static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)

static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Protected Attributes
parameters
These parameters are available for setting in the OPD files.
DtRwString	myPropagatorType

Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName

DtReaderWriterRegistry	myRegistry

DtReaderWriterRegistry *	myParentRegistry

bool	myValueSpecified

bool	myReadOnlyFlag

bool	myIsVariableReference

DtSymbolString	myVariableName

bool	myVariableIsBound

DtReaderWriter *	myDefaultValue

aliasContainer	myAliases

bool	myInvalid

bool	myChangedFlag

Static Protected Attributes
static DtSignaturePropagatorDescriptorFactory *	theFactory

Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue

static DtGetSelfCallbackInfo	thePostGetSelfCallback

static DtPutSelfCallbackInfo	thePrePutSelfCallback

static const DtVariableBindingsList	theEmptyVariableBindingsList

static bool	theCreatorFcnSet

static DtReaderWriterFactory *	theFactory

static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn

static bool	thePutIndent

static DtOutputStream *	theOutputStream

Private Member Functions
	DtSignaturePropagatorDescriptor ()

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer

typedef std::vector < DtSymbolString >::iterator	aliasIter

typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter

typedef std::vector< DtFilename >	SearchPaths

typedef std::pair < DtSymbolString, DtString >	DtVariableNameType

typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()

Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)

Constructor & Destructor Documentation

DtSignaturePropagatorDescriptor::DtSignaturePropagatorDescriptor	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = `NULL`
	)

real constructor

DtSignaturePropagatorDescriptor::DtSignaturePropagatorDescriptor	(	const DtSymbolString &	name,
		DtReaderWriterRegistry *	parentRegistry = `NULL`
	)

DtSignaturePropagatorDescriptor::DtSignaturePropagatorDescriptor	(	const DtSignaturePropagatorDescriptor &	orig,
		DtReaderWriterRegistry *	parentRegistry = `NULL`
	)

copy constructor

virtual DtSignaturePropagatorDescriptor::~DtSignaturePropagatorDescriptor ( )

virtual

DtSignaturePropagatorDescriptor::DtSignaturePropagatorDescriptor ( )

private

default constructor; not implemented

Member Function Documentation

DtSignaturePropagatorDescriptor& DtSignaturePropagatorDescriptor::operator= ( const DtSignaturePropagatorDescriptor & orig )

assignment

virtual DtString DtSignaturePropagatorDescriptor::type ( ) const

virtual

Returns the type of this descriptor. Used to create the descriptor on read from an mtl file. Signature propagator descriptor type strings are defined in signaturePropagatorDescTypes.h.

Reimplemented in DtVisualSignaturePropagatorDescriptor, DtRadarSignaturePropagatorDescriptor, and DtStandardPropagatorDescriptor.

virtual DtSignaturePropagatorDescriptor* DtSignaturePropagatorDescriptor::clone ( DtReaderWriterRegistry * parentRegistry = NULL ) const

virtual

Reimplemented in DtVisualSignaturePropagatorDescriptor, DtRadarSignaturePropagatorDescriptor, and DtStandardPropagatorDescriptor.

virtual void DtSignaturePropagatorDescriptor::setPropagatorType ( const DtString & componentType )

virtual

Accessor/mutator for myPropagatorType.

virtual DtString DtSignaturePropagatorDescriptor::propagatorType ( ) const

virtual

Accessor/mutator for myPropagatorType.

virtual void DtSignaturePropagatorDescriptor::putData	(	std::string &	fp,
		int	indentLevel = `0`
	)

virtual

Overrides base class putData to output our type.

Reimplemented from DtReaderWriter.

virtual DtlObjPtr DtSignaturePropagatorDescriptor::getData	(	DtlObjPtr	args,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	variableBindings
	)

virtual

getData is just used to get us past the type in the data stream, since it's not actually stored.

Reimplemented from DtReaderWriter.

virtual bool DtSignaturePropagatorDescriptor::init ( )

virtual

Base class init does nothing, but will be called by createSignaturePropagatorDescriptor(), allowing derived classes to do memory allocation if necessary.

static DtSignaturePropagatorDescriptorFactory* DtSignaturePropagatorDescriptor::factory ( )

static

Factory used to generate new instances of DtSignaturePropagatorDescriptor objects, based on the types defined in signaturePropagatorDescTypes.h.

static void DtSignaturePropagatorDescriptor::setFactory ( DtSignaturePropagatorDescriptorFactory * factory )

static

static DtSignaturePropagatorDescriptor* DtSignaturePropagatorDescriptor::createSignaturePropagatorDescriptor	(	DtlObjPtr	mtlStream,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	variableBindings
	)

static

static DtSignaturePropagatorDescriptor* DtSignaturePropagatorDescriptor::createSignaturePropagatorDescriptor ( const char * pName )

static

static DtSignaturePropagatorDescriptor* DtSignaturePropagatorDescriptor::creator ( )

static

Returns: Newly created instance of this class, with an empty DtReaderWriter name. Creation methods are registered with a DtComponentDescriptorFactory, so they can be created on demand as they are read in from a parameter database file.

Member Data Documentation

DtRwString DtSignaturePropagatorDescriptor::myPropagatorType

protected

Parameter Name: propagator-type
Parameter Description: String identifying type of signature propagator object.
Parameter Default Value:
.

DtSignaturePropagatorDescriptorFactory* DtSignaturePropagatorDescriptor::theFactory

staticprotected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfobjparam/signaturePropagatorDescriptor.h
