Abstract base class for all simCommand executors. Every DtSimCommand should have a corresponding DtSimCommandExecutor subclass that implements the execution of that command.

Examples

Add Simulation Command Example

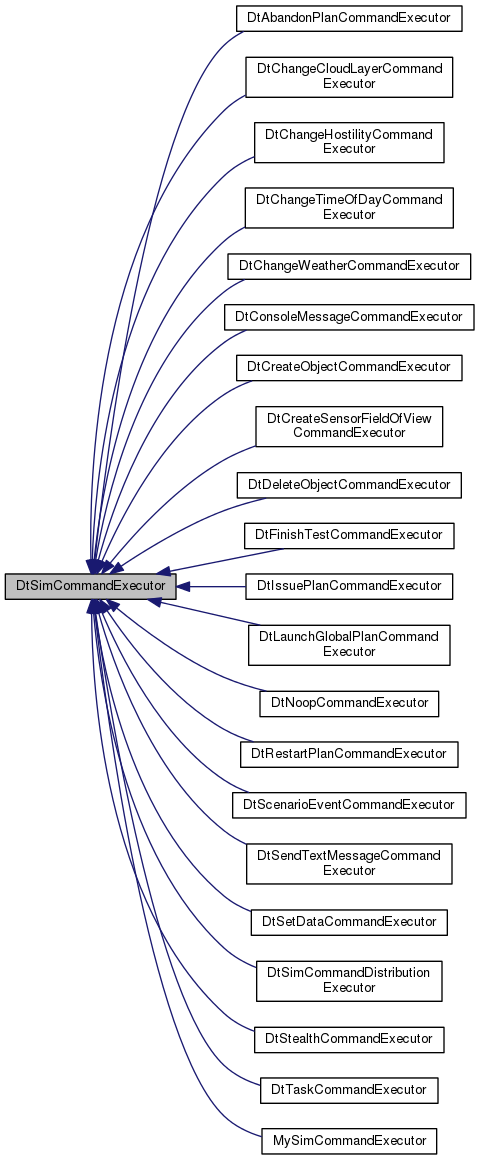

Inheritance diagram for DtSimCommandExecutor:

[legend]

Public Member Functions
	DtSimCommandExecutor (DtSimulationServices *simManager)

virtual	~DtSimCommandExecutor ()

virtual bool	executeAndDistribute (const DtSimCommand command, DtSimCommandContextPtr &context, const DtPlan plan=0)

virtual bool	executeAndDistribute (const DtSimCommand command, DtSimCommandContextPtr &context, const DtUUID &objectName, const DtPlan plan=0)

virtual bool	isSimCommandComplete (const DtSimCommand command, const DtSimCommandContextPtr &context, const DtPlan =0) const

virtual void	distribute (const DtSimCommand command, const DtPlan plan=0)

virtual void	distribute (const DtSimCommand command, const DtUUID &objectName, const DtPlan plan=0)

Static Public Member Functions
static void	setFactory (DtSimCommandExecutorFactory *factory)

static DtSimCommandExecutor *	createSimCommandExecutor (const DtSimCommandMessageType &type, DtSimulationServices *simManager)

Protected Member Functions
virtual bool	execute (const DtSimCommand command, DtSimCommandContextPtr &context, const DtPlan plan=0)=0

virtual bool	execute (const DtSimCommand command, DtSimCommandContextPtr &context, const DtUUID &objectName, const DtPlan plan=0)

Protected Attributes
DtSimulationServices *	mySimulationServices

Static Protected Attributes
static DtSimCommandExecutorFactory *	myFactory

Private Member Functions
	DtSimCommandExecutor ()

	DtSimCommandExecutor (const DtSimCommandExecutor &orig)

DtSimCommandExecutor &	operator= (const DtSimCommandExecutor &orig)

Constructor & Destructor Documentation

DtSimCommandExecutor::DtSimCommandExecutor ( DtSimulationServices * simManager )

virtual DtSimCommandExecutor::~DtSimCommandExecutor ( )

virtual

DtSimCommandExecutor::DtSimCommandExecutor ( )

private

Not implemented.

DtSimCommandExecutor::DtSimCommandExecutor ( const DtSimCommandExecutor & orig )

private

Not implemented.

Member Function Documentation

virtual bool DtSimCommandExecutor::executeAndDistribute	(	const DtSimCommand *	command,
		DtSimCommandContextPtr &	context,
		const DtPlan *	plan = `0`
	)

virtual

Executes and then distributes the sim command by calling the execute and distribute functions in turn.

Returns: True if the execute command was successful.

virtual bool DtSimCommandExecutor::executeAndDistribute	(	const DtSimCommand *	command,
		DtSimCommandContextPtr &	context,
		const DtUUID &	objectName,
		const DtPlan *	plan = `0`
	)

virtual

Executes and then distributes the sim command in the context of a specific entity by calling the execute and distribute functions in turn.

Returns: True if the execute command was successful.

virtual bool DtSimCommandExecutor::isSimCommandComplete	(	const DtSimCommand *	command,
		const DtSimCommandContextPtr &	context,
		const DtPlan *	= `0`
	)		const

virtual

Will, by default, return true to indicate the sim command is complete. Override and provide context if you wish to delay the completion of the sim command. An example of this is when an entity wants to be created but the terrain is not paged in yet.

Reimplemented in DtCreateObjectCommandExecutor.

virtual void DtSimCommandExecutor::distribute	(	const DtSimCommand *	command,
		const DtPlan *	plan = `0`
	)

virtual

Calls on the sim command distributor to distribute the command to registered callback functions.

virtual void DtSimCommandExecutor::distribute	(	const DtSimCommand *	command,
		const DtUUID &	objectName,
		const DtPlan *	plan = `0`
	)

virtual

Calls on the sim command distributor to distribute the command to registered callback functions, providing the context of a specific entity. The default implementation of this is to call distribute(command), and simply throw out the objectName. This method should be reimplemented by deriving classes if the command is executed differently when in in the context of an object. The default sim command distributor does not support specific entity contexts.

static void DtSimCommandExecutor::setFactory ( DtSimCommandExecutorFactory * factory )

static

Sets the static factory member.

static DtSimCommandExecutor* DtSimCommandExecutor::createSimCommandExecutor	(	const DtSimCommandMessageType &	type,
		DtSimulationServices *	simManager
	)

static

Uses the static factory member to create a new executor of the specified type.

virtual bool DtSimCommandExecutor::execute	(	const DtSimCommand *	command,
		DtSimCommandContextPtr &	context,
		const DtPlan *	plan = `0`
	)

protectedpure virtual

Perform the actual execution of the DtSimCommand. Pure virtual function; must be overloaded by derived classes. This method executes the command in the global context. If the command should be executed differently when in the context of a specific entity (i.e. in that entity's plan), see execute() which takes an object name.

Returns: True if command was successfully carried out, false otherwise.

Implemented in DtSimCommandDistributionExecutor, DtCreateObjectCommandExecutor, DtDeleteObjectCommandExecutor, DtAbandonPlanCommandExecutor, DtLaunchGlobalPlanCommandExecutor, DtNoopCommandExecutor, DtRestartPlanCommandExecutor, DtChangeHostilityCommandExecutor, DtChangeTimeOfDayCommandExecutor, DtIssuePlanCommandExecutor, MySimCommandExecutor, DtFinishTestCommandExecutor, DtScenarioEventCommandExecutor, DtSendTextMessageCommandExecutor, DtChangeCloudLayerCommandExecutor, DtChangeWeatherCommandExecutor, DtSetDataCommandExecutor, DtStealthCommandExecutor, DtTaskCommandExecutor, DtConsoleMessageCommandExecutor, and DtCreateSensorFieldOfViewCommandExecutor.

virtual bool DtSimCommandExecutor::execute	(	const DtSimCommand *	command,
		DtSimCommandContextPtr &	context,
		const DtUUID &	objectName,
		const DtPlan *	plan = `0`
	)

protectedvirtual

Performs the actual executor of the DtSimCommand in the context of a specific entity. The default implementation of this is to call execute(command), and simply throw out the objectName. This method should be reimplemented by deriving classes if the command is executed differently when in in the context of an object.

Reimplemented in DtDeleteObjectCommandExecutor, MySimCommandExecutor, DtSetDataCommandExecutor, DtTaskCommandExecutor, DtFinishTestCommandExecutor, DtLaunchGlobalPlanCommandExecutor, DtConsoleMessageCommandExecutor, DtStealthCommandExecutor, DtCreateSensorFieldOfViewCommandExecutor, and DtSendTextMessageCommandExecutor.

DtSimCommandExecutor& DtSimCommandExecutor::operator= ( const DtSimCommandExecutor & orig )

private

Not implemented.

Member Data Documentation

DtSimulationServices* DtSimCommandExecutor::mySimulationServices

protected

DtSimCommandExecutorFactory* DtSimCommandExecutor::myFactory

staticprotected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfobjcore/simCommandExecutor.h
