DtSimCondExpr is an abstract base class representing various Conditional Expressions used by the Plan engine and triggers.

For those conditional expressions that can use a modifier for determining whether or not the conditional expression can apply to a pattern (DtCeCheckEntityIdentificationLevel, DtCeEntDestroyed, etc.) the pattern is defined as follows as a comma delimited text that must have the following format:

PATTERN,[ANY],[INVERT],<EXCLUDEDESTROYED|LOOKATALL>,[force number],[super type],[kind],[domain],[country],[category],[subcategory],[specific],[extra]

Once the keyword PATTERN is seen by the conditional expression it will know to look for the specific format supplied above to fill out the pattern match. Any item in a [] can be filled in or left blank. Any item in a <> must have one of the options selected.

If the keyword ANY is supplied it means that it will also apply to any subordinate of the entity this conditional is applied to also meets the requirement of the conditional If the keyword INVERT is supplied it means it will search for any pattern that is not the pattern specified If EXCLUDEDESTROYED is given destroyed objects will be excluded from the search Force number may be omitted to ignore force in a search. Examples:

Match only non-destroyed friendly M1A2s: PATTERN,,,EXCLUDEDESTROYED,1,1,1,1,225,1,1,3,0

Match all humans of any force: PATTERN,,,LOOKATALL,,1,3,-1,-1,-1,-1,-1,-1

Related examples

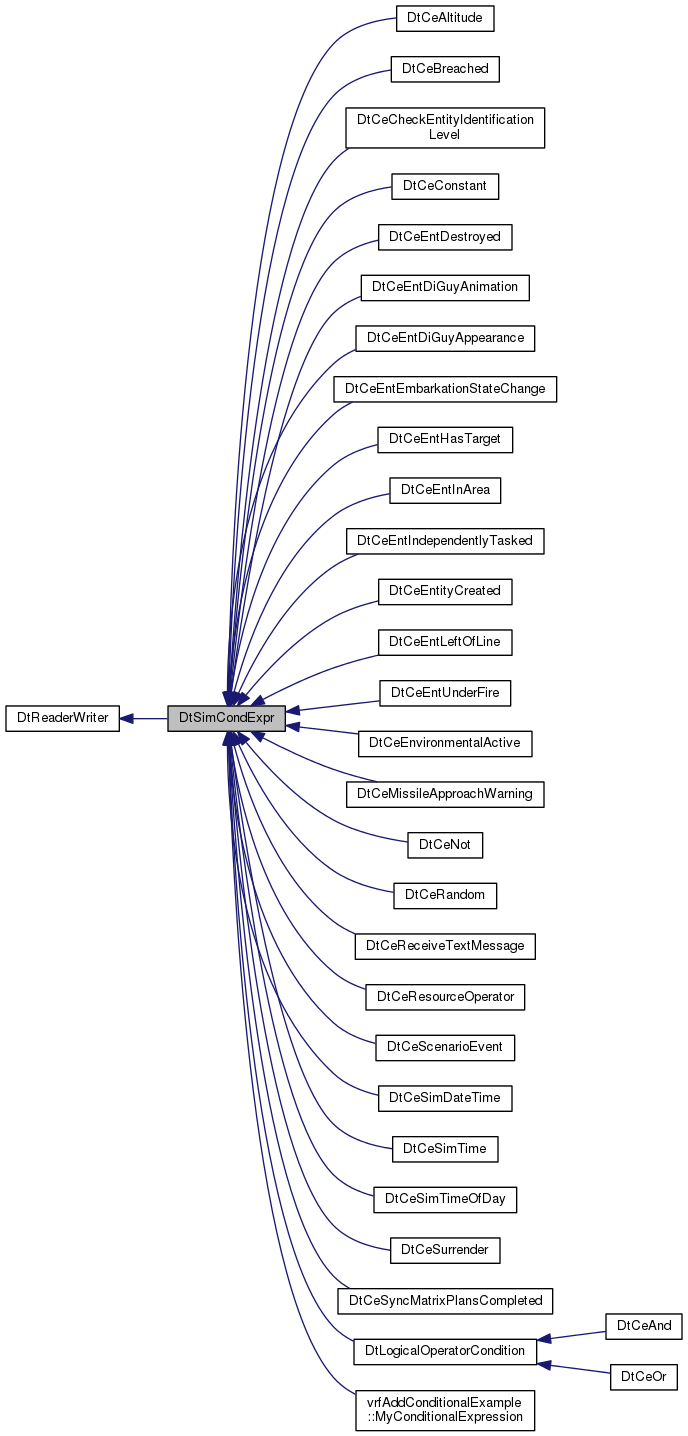

Inheritance diagram for DtSimCondExpr:

[legend]

Public Member Functions
	DtSimCondExpr ()

	DtSimCondExpr (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL)

	DtSimCondExpr (const DtSimCondExpr &orig, DtReaderWriterRegistry *parentRegistry=NULL)

virtual	~DtSimCondExpr ()

virtual bool	init ()

DtSimCondExpr &	operator= (const DtSimCondExpr &orig)

virtual DtSimCondExpr *	clone (DtReaderWriterRegistry *parentRegistry=NULL) const =0

virtual int	type () const =0

virtual void	setEvaluator (DtEvaluator *evaluator)

DtEvaluator *	evaluator ()

virtual bool	evaluate (DtLocalObject owner, const DtSimulationServices simManager, const DtPlan *=0) const

virtual int	subExprCount () const

virtual DtSimCondExpr *	subExpr (int index)

virtual DtString	modifierStringRep (const DtString &) const

virtual DtString	stringRep (int subExprIndex=DtSR_EXPR) const =0

DtString	stringRepFull () const

virtual char *	netRep ()

virtual int	netRepSize () const

virtual bool	setFromNet (const char *contentBuffer, unsigned contentSize)

virtual bool	setToNet ()

virtual const DtUUID &	simulationObject () const

Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()

	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)

const DtReaderWriter &	operator= (const DtReaderWriter &orig)

bool	operator== (const DtReaderWriter &) const

bool	operator!= (const DtReaderWriter &rhs)

virtual	~DtReaderWriter ()

virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual void	postPutSelf ()

virtual void	prePutSelf ()

virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

virtual void	postGetSelf ()

virtual void	preGetSelf ()

virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual DtSymbolString	name () const

virtual void	addAlias (const DtSymbolString &alias)

virtual void	addAlias (const DtString &alias)

virtual bool	hasAlias (const DtSymbolString &alias)

virtual const aliasContainer &	aliases () const

virtual void	setReadonly (bool flag)

bool	isReadonly () const

virtual void	reset ()

virtual int	alignment () const

virtual bool	variableIsBound () const

virtual void	unbindVariable ()

virtual void	setName (const DtString &)

virtual const char *	readerWriterType () const

virtual const char *	xmlType () const

virtual DtString	prettyPrint () const

std::string	debugText () const

virtual void	bindVariables (DtVariableBindingsList variableBindings)

virtual std::list < DtVariableNameType >	unboundVariables () const

bool	invalid () const

virtual bool	hasChild (const DtReaderWriter *p) const

virtual bool	hasVariableReference () const

virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)

virtual void	recordUpdateTime () const

virtual bool	wasUpdatedSince (DtTime t) const

virtual bool	changedSinceLastChecked ()

virtual bool	peekChangedSinceLastChecked () const

virtual void	putData (std::string &fp, int indentLevel=0)

virtual DtlObjPtr	getData (DtlObjPtr args, const SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

virtual void	setValueSpecified (bool specified, bool recurse=false)

virtual bool	valueSpecified () const

virtual bool	isVariableReference () const

virtual void	setIsVariableReference (bool value)

virtual void	clearAllVariableReferenceFlags ()

virtual DtSymbolString	variableName () const

virtual void	setVariableName (const DtSymbolString variableName)

virtual const DtReaderWriter *	defaultRWValue () const

virtual DtReaderWriter *	defaultRWValue ()

virtual void	setDefaultRWValue (DtReaderWriter *)

virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

const DtReaderWriterRegistry &	registry () const

DtReaderWriterRegistry &	registry ()

virtual DtPropertyInterface *	property ()

virtual const DtPropertyInterface *	property () const

virtual DtString	toXml () const

virtual DtRwVariableBindings *	generateVariableBindings () const

virtual bool	toXml (const DtFilename &) const

virtual bool	fromXml (const DtString &)

virtual bool	fromXmlFile (const DtFilename &)

virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const

virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)

virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static DtSimCondExpr *	createCondExpr (DtlObjPtr mtlStream)

static void	addCondExprCreatorFcn (const DtString &type, const int intType, DtCondExprCreatorFcn fcn)

static void	setFactory (DtCondExprFactory *factory)

static DtCondExprFactory *	factory ()

Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)

static const DtVariableBindingsList &	nullVariableReference ()

static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)

static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)

static void	setPutIndent (bool)

static bool	putIndent ()

static const char *	theXmlType ()

static const DtFilename &	appPath ()

static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)

static void	createReaderWriterFactory ()

static void	cleanupFactory ()

static DtReaderWriterFactory *	factory ()

static void	setOutputStream (DtOutputStream *stream)

static DtOutputStream &	outputStream ()

static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)

static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)

static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)

static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Static Public Attributes
static const int	DtSR_EXPR = -1

Protected Member Functions
virtual char *	createNetworkBuffer ()

Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)

Protected Attributes
char *	myNetRep

DtEvaluator *	myEvaluator

Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName

DtReaderWriterRegistry	myRegistry

DtReaderWriterRegistry *	myParentRegistry

bool	myValueSpecified

bool	myReadOnlyFlag

bool	myIsVariableReference

DtSymbolString	myVariableName

bool	myVariableIsBound

DtReaderWriter *	myDefaultValue

aliasContainer	myAliases

bool	myInvalid

bool	myChangedFlag

Static Protected Attributes
static DtCondExprFactory *	myFactory

Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue

static DtGetSelfCallbackInfo	thePostGetSelfCallback

static DtPutSelfCallbackInfo	thePrePutSelfCallback

static const DtVariableBindingsList	theEmptyVariableBindingsList

static bool	theCreatorFcnSet

static DtReaderWriterFactory *	theFactory

static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn

static bool	thePutIndent

static DtOutputStream *	theOutputStream

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer

typedef std::vector < DtSymbolString >::iterator	aliasIter

typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter

typedef std::vector< DtFilename >	SearchPaths

typedef std::pair < DtSymbolString, DtString >	DtVariableNameType

typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()

Constructor & Destructor Documentation

DtSimCondExpr::DtSimCondExpr ( )

default constructor

DtSimCondExpr::DtSimCondExpr	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = `NULL`
	)

real constructor

DtSimCondExpr::DtSimCondExpr	(	const DtSimCondExpr &	orig,
		DtReaderWriterRegistry *	parentRegistry = `NULL`
	)

copy constructor

virtual DtSimCondExpr::~DtSimCondExpr ( )

virtual

destructor

Member Function Documentation

virtual bool DtSimCondExpr::init ( )

virtual

Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.

DtSimCondExpr& DtSimCondExpr::operator= ( const DtSimCondExpr & orig )

assignment operator

virtual DtSimCondExpr* DtSimCondExpr::clone ( DtReaderWriterRegistry * parentRegistry = NULL ) const

pure virtual

virtual int DtSimCondExpr::type ( ) const

pure virtual

virtual void DtSimCondExpr::setEvaluator ( DtEvaluator * evaluator )

virtual

Set the evaluator object to be used in our evaluate() function. Takes over responsiblity for deleting the memory associated with the DtEvaluator. You must set an evaluator if you intend to call evaluate() on the conditional expression.

DtEvaluator* DtSimCondExpr::evaluator ( )

inline

virtual bool DtSimCondExpr::evaluate	(	DtLocalObject *	owner,
		const DtSimulationServices *	simManager,
		const DtPlan *	= `0`
	)		const

virtual

Evaluate this conditional expression for the entity with the given object object plan (which will have the same UUID as the owner).

Uses the DtEvaluator object set in setEvaluator() to actually perform the evaluation. An evaluator must be set before this function is called. Evaluation is expected to be performed by back-ends only (remote-control applications such as GUIs will not typically call this function).

If issued from a plan, the owner is the owner of that plan

virtual int DtSimCondExpr::subExprCount ( ) const

virtual

Get the number of sub-expressions nested inside this expression.

Reimplemented in DtCeNot, and DtLogicalOperatorCondition.

virtual DtSimCondExpr* DtSimCondExpr::subExpr ( int index )

virtual

Get a pointer to any particular sub-expression nested inside this expression. Sub-expressions are indexed as C arrays are (i.e. starting with sub-expression #0).

Reimplemented in DtCeNot, and DtLogicalOperatorCondition.

virtual DtString DtSimCondExpr::modifierStringRep ( const DtString & ) const

virtual

Given the modifier string, come up with a human readable name for it.

virtual DtString DtSimCondExpr::stringRep ( int subExprIndex = DtSR_EXPR ) const

pure virtual

Get a readable string representation of this level of this expression.

The subExprIndex argument indicates which stringRep to get if this expression can have sub-expressions. If a sub-expression index >= 0 is given, the string returned will be the one that should precede that sub-expression. A sub-expression index of DtSimCondExpr::DtSR_EXPR requests the string that should follow any and all sub-expressions, this is the value that should be used for expressions that have no subExprs (i.e. subExprCount() == 0).

Implemented in DtCeResourceOperator, DtCeAltitude, DtCeSimTime, DtCeNot, DtCeConstant, DtCeEntInArea, DtCeSurrender, DtCeCheckEntityIdentificationLevel, DtCeEntLeftOfLine, DtCeEntEmbarkationStateChange, DtCeRandom, DtCeEntDiGuyAnimation, DtCeEntDiGuyAppearance, vrfAddConditionalExample::MyConditionalExpression, DtCeEntHasTarget, DtCeEntUnderFire, DtCeEntDestroyed, DtCeScenarioEvent, DtCeEntIndependentlyTasked, DtCeReceiveTextMessage, DtCeBreached, DtCeEntityCreated, DtCeMissileApproachWarning, DtCeSimDateTime, DtCeEnvironmentalActive, DtCeSimTimeOfDay, DtCeAnd, DtCeOr, and DtCeSyncMatrixPlansCompleted.

DtString DtSimCondExpr::stringRepFull ( ) const

Get a readable string representation of this full expression. This calls stringRep and stringRepFull recursively for each subExpr and combines them into a single string.

virtual char* DtSimCondExpr::netRep ( )

virtual

virtual int DtSimCondExpr::netRepSize ( ) const

inlinevirtual

virtual bool DtSimCondExpr::setFromNet	(	const char *	contentBuffer,
		unsigned	contentSize
	)

inlinevirtual

virtual const DtUUID& DtSimCondExpr::simulationObject ( ) const

virtual

Static functions.

If there is a simulation object that has satisfied the requirement of this conditional expression it is returned from this statement. Calls down to evaluator to return the simulation object that was found during evaluation

static DtSimCondExpr* DtSimCondExpr::createCondExpr ( DtlObjPtr mtlStream )

static

Construct an empty conditional expression of the appropriate type. Creates a new conditional expression, given a pointer to an MTL stream. It parses the stream to extract the type of conditional expression to create. Then it calls the conditional expression factory's create() member function with the statement type. This returns a new instance of the conditional expression type. The conditional expression's getData() member function is then called to retrieve the conditional expression parameters from the stream. The pointer to the new conditional expression is returned.

static void DtSimCondExpr::addCondExprCreatorFcn	(	const DtString &	type,
		const int	intType,
		DtCondExprCreatorFcn	fcn
	)

static

Adds a conditional expression creator member function to the conditional expression factory.

static void DtSimCondExpr::setFactory ( DtCondExprFactory * factory )

static

static DtCondExprFactory* DtSimCondExpr::factory ( )

static

virtual char* DtSimCondExpr::createNetworkBuffer ( )

protectedvirtual

Member Data Documentation

const int DtSimCondExpr::DtSR_EXPR = -1

static

A constant for use as the subExprIndex argument to stringRep().

DtCondExprFactory* DtSimCondExpr::myFactory

staticprotected

char* DtSimCondExpr::myNetRep

protected

DtEvaluator* DtSimCondExpr::myEvaluator

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfutil/simCondExpr.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
