DtSingleConnectionInputPort Class Reference

Contains the class declaration for DtSingleConnectionInputPort.

Intances of DtSingleConnectionInputPort are data ports owned by data consumers. They receive data from a DtPortConnection, and make that data available to the user of the input port. Users of the port should call newData() to check if new data has arrived on this port, and then call dataReceived() to signal that they have received and processed the data currently on the port.

DtSingleConnectionInputPorts allow only a single active connection at a time. If a connection with a better priority attempts to activate, other connections will be deactivated.

This is an abstract base class. Derived types must provide an acceptType method that specifies which DtPortData types this port is capable if receiving, and accessors for the values within the DtPortData types it is accepting.

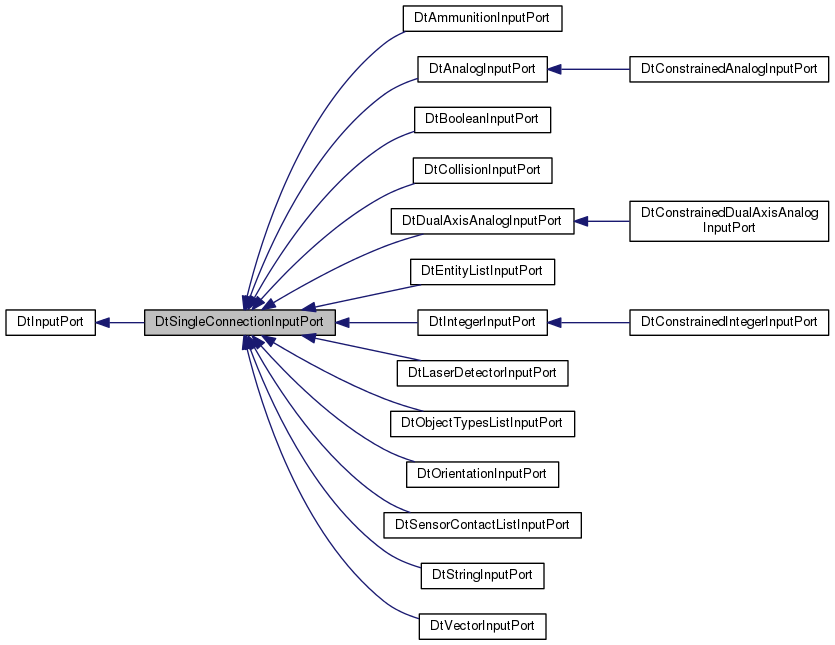

Inheritance diagram for DtSingleConnectionInputPort:

Public Member Functions
	DtSingleConnectionInputPort (const DtString &portName)
virtual	~DtSingleConnectionInputPort ()
virtual void	receiveData (DtPortData *data, const DtPortConnection *conn=0)
virtual const DtPortData *	data () const
virtual bool	attemptToActivateConnection (DtPortConnection *conn, int connectionPriority)
virtual bool	canActivate (const DtPortConnection *conn, int connectionPriority) const
virtual void	deactivateConnection (DtPortConnection *conn)
virtual bool	activeConnection () const
virtual bool	connectionActive (const DtPortConnection *connection) const
virtual int	connectionPriority () const
Public Member Functions inherited from DtInputPort
	DtInputPort (const DtString &portName)
virtual	~DtInputPort ()
virtual const DtString &	name () const
virtual bool	acceptType (const DtString &type) const =0
virtual void	addConnection (DtPortConnection *conn)
virtual void	removeConnection (DtPortConnection *conn)
virtual const DtList *	connectionList () const
virtual bool	newData () const
virtual void	dataReceived ()
virtual bool	enabled () const
virtual void	setEnabled (bool flag)

Protected Attributes
DtPortData *	myData
int	myConnectionPriority
DtPortConnection *	myActiveConnection
Protected Attributes inherited from DtInputPort
DtString	myName
bool	myNewDataFlag
bool	myEnabled
DtList	myConnectionList

Private Member Functions
	DtSingleConnectionInputPort ()
	DtSingleConnectionInputPort (const DtSingleConnectionInputPort &)
DtSingleConnectionInputPort &	operator= (const DtSingleConnectionInputPort &)

Constructor & Destructor Documentation

DtSingleConnectionInputPort::DtSingleConnectionInputPort

(

const DtString &

portName

)

Constructor.

virtual DtSingleConnectionInputPort::~DtSingleConnectionInputPort ( )

virtual

Destructor.

DtSingleConnectionInputPort::DtSingleConnectionInputPort ( )

private

Not implemented.

DtSingleConnectionInputPort::DtSingleConnectionInputPort ( const DtSingleConnectionInputPort &  )

private

Not implemented.

Member Function Documentation

DtSingleConnectionInputPort& DtSingleConnectionInputPort::operator= ( const DtSingleConnectionInputPort &  )

private

Not implemented.

virtual void DtSingleConnectionInputPort::receiveData ( DtPortData *  data, const DtPortConnection *  conn = 0  )

virtual

clones the specified DtPortData into myData, and sets the newDataFlag to true. conn is not used by this class.

Implements DtInputPort.

virtual const DtPortData* DtSingleConnectionInputPort::data ( ) const

virtual

Returns the current pointer to a port data.

virtual bool DtSingleConnectionInputPort::attemptToActivateConnection ( DtPortConnection *  conn, int  connectionPriority  )

virtual

Attempt to make this connection the active connection providing data to this port with the specified priority. Returns true if the activation was successful. Only allows one connection to be active at any one time, and arbitrate based on the priority values of the connections.

Implements DtInputPort.

virtual bool DtSingleConnectionInputPort::canActivate ( const DtPortConnection *  conn, int  connectionPriority  ) const

virtual

Checks if this connection can be the active connection.

Implements DtInputPort.

virtual void DtSingleConnectionInputPort::deactivateConnection ( DtPortConnection *  conn )

virtual

If conn is the currently active connection, it is deactivated and this port has no active input connection.

Implements DtInputPort.

virtual bool DtSingleConnectionInputPort::activeConnection ( ) const

virtual

Returns true if there is an active connection into this port.

Implements DtInputPort.

virtual bool DtSingleConnectionInputPort::connectionActive ( const DtPortConnection *  connection ) const

virtual

Returns true if the specified connection is currently active.

Implements DtInputPort.

virtual int DtSingleConnectionInputPort::connectionPriority ( ) const

virtual

Returns the current connection priority.

Implements DtInputPort.

Member Data Documentation

DtPortData* DtSingleConnectionInputPort::myData

protected

int DtSingleConnectionInputPort::myConnectionPriority

protected

DtPortConnection* DtSingleConnectionInputPort::myActiveConnection

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfobjcore/singleConnectionInputPort.h
