This DtTacticalGraphicLocalObjectFacadeInterface class will provide API functionality for tactical graphics objects.

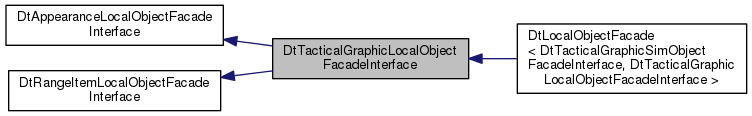

Inheritance diagram for DtTacticalGraphicLocalObjectFacadeInterface:

Public Member Functions
	DtTacticalGraphicLocalObjectFacadeInterface ()

virtual	~DtTacticalGraphicLocalObjectFacadeInterface ()

bool	isUsable () const

void	setNextFrameCeiling (double)

void	setNextFramePhysicalLineHeight (double)

double	nextFramePhysicalLineHeight () const

void	setNextFrameFloor (double)

double	nextFramePhysicalLineWidth () const

void	setNextFramePhysicalLineWidth (double)

int	nextFrameColor () const

void	setNextFrameColor (int color)

void	setNextFrameColor (const DtRwColor &)

void	setNextFrameColor (DtU8 red, DtU8 green, DtU8 blue, DtU8 alpha)

void	setNextFrameUserData (const char *data, int dataLen)

const DtString	nextFrameUserData () const

void	setNextFrameProjection (bool b)

void	setNextFrameClosedFigure (bool b)

void	setNextFrameEllipsoid (bool b)

double	nextFrameFloor () const


void	setNextFrameFillStyle (int)

int	nextFrameFillStyle () const


void	setNextFramePenStyle (int)

int	nextFramePenStyle () const


void	setNextFrameLineWidth (int)

int	nextFrameLineWidth () const


void	setNextFrameArrowStyle (int)

int	nextFrameArrowStyle () const


void	setNextFrameArrowHeadPlacement (int)

int	nextFrameArrowHeadPlacement () const


void	setNextFrameArrowSize (int)

int	nextFrameArrowSize () const


void	addNextFrameRangeItem (const DtRangeItem &)

void	removeNextFrameRangeItem (int index)

void	setNextFrameRangeItems (const DtRangeItems &)

DtRangeItems &	nextFrameRangeItems ()

void	clearNextFrameRangeItems ()


bool	nextFrameActivated () const

void	setNextFrameActivated (bool)

bool	nextFrameUseActivationTimes () const

void	setNextFrameUseActivationTimes (bool)

bool	nextFrameActivationTimesAreSimulationTime () const

void	setNextFrameActivationTimesAreSimulationTime (bool)

bool	nextFrameActivationTimeIsReusable () const

void	setNextFrameActivationTimeIsReusable (bool)

int	nextFrameActivationMode () const

void	setNextFrameActivationMode (int)

void	setNextFrameActivatedOnce (bool)

bool	nextFrameActivatedOnce () const

void	setNextFrameActivationTime (double)

double	nextFrameActivationTime () const

void	setNextFrameDeactivationTime (double)

double	nextFrameDeactivationTime () const

bool	nextFrameShouldDeactivate () const

bool	nextFrameShouldActivate () const

void	setNextFrameAssumeUnknownIsHostile (bool)

bool	nextFrameAssumeUnknownIsHostile () const

Public Member Functions inherited from DtAppearanceLocalObjectFacadeInterface
	DtAppearanceLocalObjectFacadeInterface ()

virtual	~DtAppearanceLocalObjectFacadeInterface ()

void	setNextFrameAppearance (const DtAppearance &)

void	setNextFrameAppearanceBits (unsigned int)

DtAppearance	nextFrameAppearance () const

bool	nextFrameMobilityKilled () const

void	setNextFrameMobilityKilled (const bool mobilityKilled)

void	setNextFrameFirePowerKilled (bool)

int	nextFrameFirepowerKilled () const

void	setNextFrameDamageState (int)

DtDamageState	nextFrameDamageState () const

void	setNextFrameHealthPct (DtReal pct)

void	setNextFrameCapabilities (int)

int	nextFrameCapabilities () const

void	setNextFramePrimaryWeaponState (int s)

int	nextFramePrimaryWeaponState () const

void	setNextFrameConcealed (bool)

bool	nextFrameConcealed () const

void	setNextFrameComplianceState (int)

int	nextFrameComplianceState () const

void	setNextFrameDestroyed (bool)

bool	nextFrameDestroyed () const

Public Member Functions inherited from DtRangeItemLocalObjectFacadeInterface
	DtRangeItemLocalObjectFacadeInterface ()

virtual	~DtRangeItemLocalObjectFacadeInterface ()

bool	isUsable () const

bool	hasRangeRings () const

void	addNextFrameRangeItem (const DtRangeItem &)

void	removeNextFrameRangeItem (int index)

void	setNextFrameRangeItems (const DtRangeItems &)

DtRangeItems &	nextFrameRangeItems ()

void	clearNextFrameRangeItems ()

void	updateMaximumSensorRangeRing ()

void	disableRangeRingPublishing (bool)

void	setRangeRingsParametersPublisherTickRate (double d)

Protected Member Functions
virtual DtLocalObject *	localObject () const =0

virtual void	setupDecorator () override

Additional Inherited Members
Protected Attributes inherited from DtAppearanceLocalObjectFacadeInterface
makVrf::DtSimulatedObjectStateComponent *	myNextFrameSimulatedObjectStateComponent

Protected Attributes inherited from DtRangeItemLocalObjectFacadeInterface
DtRangeItemLocalObjectDecorator *	myRangeItemLocalDecorator

Constructor & Destructor Documentation

DtTacticalGraphicLocalObjectFacadeInterface::DtTacticalGraphicLocalObjectFacadeInterface ( )

CTOR.

virtual DtTacticalGraphicLocalObjectFacadeInterface::~DtTacticalGraphicLocalObjectFacadeInterface ( )

virtual

DTOR.

Member Function Documentation

bool DtTacticalGraphicLocalObjectFacadeInterface::isUsable ( ) const

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameFillStyle ( int )

Acessors for fill style See DtSetTacticalGraphicFormattingData.

int DtTacticalGraphicLocalObjectFacadeInterface::nextFrameFillStyle ( ) const

Acessors for fill style See DtSetTacticalGraphicFormattingData.

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFramePenStyle ( int )

Acessors for pen style See DtSetTacticalGraphicFormattingData.

int DtTacticalGraphicLocalObjectFacadeInterface::nextFramePenStyle ( ) const

Acessors for pen style See DtSetTacticalGraphicFormattingData.

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameLineWidth ( int )

Acessors for line width See DtSetTacticalGraphicFormattingData.

int DtTacticalGraphicLocalObjectFacadeInterface::nextFrameLineWidth ( ) const

Acessors for line width See DtSetTacticalGraphicFormattingData.

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameArrowStyle ( int )

Acessors for arrow head See DtSetTacticalGraphicFormattingData.

int DtTacticalGraphicLocalObjectFacadeInterface::nextFrameArrowStyle ( ) const

Acessors for arrow head See DtSetTacticalGraphicFormattingData.

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameArrowHeadPlacement ( int )

Acessors for arrow head placement See DtSetTacticalGraphicFormattingData.

int DtTacticalGraphicLocalObjectFacadeInterface::nextFrameArrowHeadPlacement ( ) const

Acessors for arrow head placement See DtSetTacticalGraphicFormattingData.

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameArrowSize ( int )

Acessors for arrow head size See DtSetTacticalGraphicFormattingData.

int DtTacticalGraphicLocalObjectFacadeInterface::nextFrameArrowSize ( ) const

Acessors for arrow head size See DtSetTacticalGraphicFormattingData.

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameCeiling ( double )

Note that if the ceiling becomes lower than the floor the floor will change to match Ceiling is the floor plus the physical line height.

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFramePhysicalLineHeight ( double )

double DtTacticalGraphicLocalObjectFacadeInterface::nextFramePhysicalLineHeight ( ) const

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameFloor ( double )

The floor is taken as the altitude of the first point. If you set the floor here it will change the altitude of all the points. Note that if the floor becomes higher than the ceiling the ceiling will change to match.

double DtTacticalGraphicLocalObjectFacadeInterface::nextFramePhysicalLineWidth ( ) const

Physical (database) width of a line.

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFramePhysicalLineWidth ( double )

int DtTacticalGraphicLocalObjectFacadeInterface::nextFrameColor ( ) const

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameColor ( int color )

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameColor ( const DtRwColor & )

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameColor	(	DtU8	red,
		DtU8	green,
		DtU8	blue,
		DtU8	alpha
	)

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameUserData	(	const char *	data,
		int	dataLen
	)

const DtString DtTacticalGraphicLocalObjectFacadeInterface::nextFrameUserData ( ) const

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameProjection ( bool b )

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameClosedFigure ( bool b )

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameEllipsoid ( bool b )

void DtTacticalGraphicLocalObjectFacadeInterface::addNextFrameRangeItem ( const DtRangeItem & )

Range ring control.

void DtTacticalGraphicLocalObjectFacadeInterface::removeNextFrameRangeItem ( int index )

Range ring control.

void DtTacticalGraphicLocalObjectFacadeInterface::setNextFrameRangeItems ( const DtRangeItems & )

Range ring control.

DtRangeItems& DtTacticalGraphicLocalObjectFacadeInterface::nextFrameRangeItems ( )

Range ring control.

void DtTacticalGraphicLocalObjectFacadeInterface::clearNextFrameRangeItems ( )

Range ring control.

double DtTacticalGraphicLocalObjectFacadeInterface::nextFrameFloor ( ) const

The floor is taken as the altitude of the first point. If you set the floor here it will change the altitude of all the points. Note that if the floor becomes higher than the ceiling the ceiling will change to match.

bool DtTacticalGraphicLocalObjectFacadeInterface::nextFrameActivated ( ) const
