Provide some functionality such that an intervisibility updater class can use this to determine when to request a new line of sight test and handle the results.

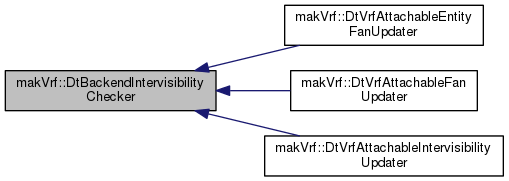

Inheritance diagram for makVrf::DtBackendIntervisibilityChecker:

[legend]

Classes
struct	IntersectionPoint

Public Types
typedef std::vector < IntersectionPoint >	IntersectionPoints

Public Member Functions
	DtBackendIntervisibilityChecker (makVrv::DtDe &, const std::string &type)

virtual	~DtBackendIntervisibilityChecker ()

virtual const IntersectionPoints &	intersections () const

Protected Member Functions
virtual bool	canCheckBackend () const

virtual bool	needsRequestForBackendLineOfSight (const DtVector &startPoint, const DtVector &endPoint, bool *retStartingTimeRequest=0, bool useRegardlessOfBackendStatus=false)

virtual void	slot_optionsChanged (makVrv::DtUniqueID, DtVrfExtendedIntervisibilitySettingsData::IntervisibilitySettings)

virtual bool	backendUpdateReady ()

virtual void	requestLineOfSightCheck (const DtVector &start, const DtVector &end)

virtual void	processLineOfSightResponse (makVrv::DtUniqueID, const DtIfIntersectionInformationResponse::IntersectionPairInformation &)

virtual void	processedBackendData ()

virtual bool	shouldWaitForServer () const

virtual makVrv::DtUniqueID	lineOfSightKey () const =0

Protected Attributes
makVrv::DtDe &	myCheckerDe

makVrv::DtSignalConnectionManager	myCheckerConnections

DtVrfExtendedIntervisibilitySettingsData::IntervisibilitySettings	myIntersectionSettings

bool	myBackendUpdateReady

DtBackendLineOfSightManager &	myLineOfSightManager

bool	myOptionsChanged

IntersectionPoints	myIntersectionPoints

makVrv::DtUniqueID	myLineOfSightId

Member Typedef Documentation

typedef std::vector<IntersectionPoint> makVrf::DtBackendIntervisibilityChecker::IntersectionPoints

Constructor & Destructor Documentation

makVrf::DtBackendIntervisibilityChecker::DtBackendIntervisibilityChecker	(	makVrv::DtDe &	,
		const std::string &	type
	)

virtual makVrf::DtBackendIntervisibilityChecker::~DtBackendIntervisibilityChecker ( )

virtual

Member Function Documentation

virtual const IntersectionPoints& makVrf::DtBackendIntervisibilityChecker::intersections ( ) const

virtual

virtual bool makVrf::DtBackendIntervisibilityChecker::canCheckBackend ( ) const

protectedvirtual

virtual bool makVrf::DtBackendIntervisibilityChecker::needsRequestForBackendLineOfSight	(	const DtVector &	startPoint,
		const DtVector &	endPoint,
		bool *	retStartingTimeRequest = `0`,
		bool	useRegardlessOfBackendStatus = `false`
	)

protectedvirtual

virtual void makVrf::DtBackendIntervisibilityChecker::slot_optionsChanged	(	makVrv::DtUniqueID	,
		DtVrfExtendedIntervisibilitySettingsData::IntervisibilitySettings
	)

protectedvirtual

Reimplemented in makVrf::DtVrfAttachableFanUpdater, and makVrf::DtVrfAttachableEntityFanUpdater.

virtual bool makVrf::DtBackendIntervisibilityChecker::backendUpdateReady ( )

protectedvirtual

virtual void makVrf::DtBackendIntervisibilityChecker::requestLineOfSightCheck	(	const DtVector &	start,
		const DtVector &	end
	)

protectedvirtual

Reimplemented in makVrf::DtVrfAttachableFanUpdater, and makVrf::DtVrfAttachableEntityFanUpdater.

virtual void makVrf::DtBackendIntervisibilityChecker::processLineOfSightResponse	(	makVrv::DtUniqueID	,
		const DtIfIntersectionInformationResponse::IntersectionPairInformation &
	)

protectedvirtual

virtual void makVrf::DtBackendIntervisibilityChecker::processedBackendData ( )

protectedvirtual

virtual bool makVrf::DtBackendIntervisibilityChecker::shouldWaitForServer ( ) const

protectedvirtual

virtual makVrv::DtUniqueID makVrf::DtBackendIntervisibilityChecker::lineOfSightKey ( ) const

protectedpure virtual

Returns a unique identifier that can be used for this line of sight check. Note this can be shared amongst intervisibility objects that represent the same object, but maybe in different views (PVD, Stealth, etc)

Implemented in makVrf::DtVrfAttachableFanUpdater, makVrf::DtVrfAttachableIntervisibilityUpdater, and makVrf::DtVrfAttachableEntityFanUpdater.

Member Data Documentation

makVrv::DtDe& makVrf::DtBackendIntervisibilityChecker::myCheckerDe

protected

makVrv::DtSignalConnectionManager makVrf::DtBackendIntervisibilityChecker::myCheckerConnections

protected

DtVrfExtendedIntervisibilitySettingsData::IntervisibilitySettings makVrf::DtBackendIntervisibilityChecker::myIntersectionSettings

protected

bool makVrf::DtBackendIntervisibilityChecker::myBackendUpdateReady

protected

DtBackendLineOfSightManager& makVrf::DtBackendIntervisibilityChecker::myLineOfSightManager

protected

bool makVrf::DtBackendIntervisibilityChecker::myOptionsChanged

protected

IntersectionPoints makVrf::DtBackendIntervisibilityChecker::myIntersectionPoints

protected

makVrv::DtUniqueID makVrf::DtBackendIntervisibilityChecker::myLineOfSightId

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfGuiCore/backendIntervisibilityChecker.h
