This menu is added to the right click menu, the entites menu and the plan dialog in order to allow the tasking or setting of an embedded entity from the context of the host entity.

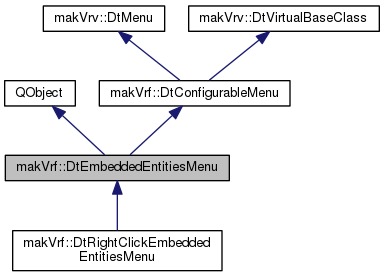

Inheritance diagram for makVrf::DtEmbeddedEntitiesMenu:

[legend]

Public Member Functions
	DtEmbeddedEntitiesMenu (makVrv::DtDe &, const std::string &menuIdName=DtEmbeddedEntitiesMenuId, int flags=0)

virtual	~DtEmbeddedEntitiesMenu ()

virtual QMenu *	createMenu (makVrv::DtDe &, QWidget *parent)

virtual DtSubMenuConfiguration &	menuConfiguration ()

virtual DtConfigurableMenuAssembler &	menuAssembler ()

virtual void	buildMenu ()

virtual void	clearMenu ()

virtual void	setPlanEntitySet (const makVrv::DtSelectionManager::IdSet &set)

virtual DtEmbeddedEntitiesMenu *	newInstance (int flags=0)

virtual void	slot_planTaskCreated (const DtSimTask &task)

virtual void	setRecreateFlags (int)

partofPlanDialog
This integer is based on DtVrfTaskSetMenu::partOfPlanDialog and is used by buildMenu().
virtual void	setPartOfPlanDialog (int partOfPlanDialog)

virtual int	partOfPlanDialog ()

Public Member Functions inherited from makVrf::DtConfigurableMenu
	DtConfigurableMenu (makVrv::DtDe &, const std::string &className)

virtual	~DtConfigurableMenu ()

virtual void	registerMenu (makVrv::DtMenu *customMenu)

virtual void	registerMenuItem (makVrv::DtMenuItem *customMenuItem)

virtual void	createSimpleMenu (std::string menuText, makVrv::DtMenuPath menuIdPath, const makVrv::DtMenuConfiguration::MenuSortFlags &sortFlagsIfMenu=(makVrv::DtMenuConfiguration::MenuSortFlags)(makVrv::DtMenuConfiguration::SortAllAlphabetically\|makVrv::DtMenuConfiguration::SortWithinSubmenus\|makVrv::DtMenuConfiguration::SortBetweenSeparators))

virtual void	createSimpleMenuAfter (std::string menuText, makVrv::DtMenuPath menuIdPath, makVrv::DtMenuPath afterIdPath)

virtual void	createSimpleMenuBefore (std::string menuText, makVrv::DtMenuPath menuIdPath, makVrv::DtMenuPath beforeIdPath)

virtual void	createSimpleMenuItem (std::string itemText, makVrv::DtMenuPath itemIdPath, DtSimpleMenuItemAction action, void usr=NULL, const makVrv::DtMenuConfiguration::MenuSortFlags &sortFlagsIfMenu=(makVrv::DtMenuConfiguration::MenuSortFlags)(makVrv::DtMenuConfiguration::SortAllAlphabetically\|makVrv::DtMenuConfiguration::SortWithinSubmenus\|makVrv::DtMenuConfiguration::SortBetweenSeparators))

virtual void	createSimpleMenuItemAfter (std::string itemText, makVrv::DtMenuPath itemIdPath, makVrv::DtMenuPath afterIdPath, DtSimpleMenuItemAction action, void usr=NULL)

virtual void	createSimpleMenuItemBefore (std::string itemText, makVrv::DtMenuPath itemIdPath, makVrv::DtMenuPath beforeIdPath, DtSimpleMenuItemAction action, void usr=NULL)

virtual void	mergeMenu (makVrv::DtQtMenuAssembler &assembler, makVrv::DtMenuConfiguration &configuration)

virtual void	mergeMenu (makVrv::DtQtMenuAssembler &assembler)

virtual void	mergeMenu (makVrv::DtMenuConfiguration &configuration)

Public Member Functions inherited from makVrv::DtMenu
	DtMenu (DtDe &de, const std::string &menuIdName)

virtual	~DtMenu ()

virtual const std::string &	menuIdName () const

Public Member Functions inherited from makVrv::DtVirtualBaseClass
	DtVirtualBaseClass ()

virtual	~DtVirtualBaseClass ()

Static Public Member Functions
static DtEmbeddedEntitiesMenu &	instance (makVrv::DtDe &)

static DtEmbeddedEntitiesMenu *	menuInstance (makVrv::DtDe &, int flags=0)

Static Public Member Functions inherited from makVrf::DtConfigurableMenu
static bool	hasMenuPath (const makVrv::DtMenuConfiguration &menus, const makVrv::DtMenuPath &sourcePath, const std::string &item, makVrv::DtMenuPath &foundPath)

Public Attributes
boost::signals2::signal< void(std::vector < DtUUID > names, const DtSimTask &)>	signal_planTaskCreated

Public Attributes inherited from makVrf::DtConfigurableMenu
boost::signals2::signal< void(DtConfigurableMenu *)>	signal_menuRecreated

boost::signals2::signal< void(QAction *)>	signal_validateMenuItem

Protected Slots
virtual void	onAboutToShow ()

Protected Member Functions
virtual void	slot_onInfoCacheUpdated (const DtObjectType &updatedType)

virtual void	resolveContext (DtObjectType &objType, DtUUID &uuid, bool &isHomogeneous)

virtual void	setActionsEnabled (QMenu *, bool b)

Protected Member Functions inherited from makVrf::DtConfigurableMenu
virtual void	initMenuItems (makVrv::DtDe &de)

DtConfigurableMenuAssembler &	assembler ()

DtSubMenuConfiguration &	configuration ()

virtual void	createMenuConfiguration (makVrv::DtDe &)

Protected Attributes
DtObjectType	myHostObjectType

DtUUID	myHost

int	myHostPlanPart

bool	myHostContextIsHomogeneous

QMenu *	myMenu

int	myPartOfPlanDialog

makVrv::DtSelectionManager::IdSet	myPlanEntitySet

int	myCachedEmbeddedEntitiesSize

int	myFlags

DtConfigurableMenuAssembler *	myMenuAssembler

DtSubMenuConfiguration *	myMenuConfiguration

Protected Attributes inherited from makVrf::DtConfigurableMenu
DtConfigurableMenuAssembler	myAssembler

DtSubMenuConfiguration	myConfiguration

bool	myInitialized

makVrv::DtSignalConnectionManager	myConnections

Protected Attributes inherited from makVrv::DtMenu
DtDe &	myDe

std::string	myMenuIdName

Constructor & Destructor Documentation

makVrf::DtEmbeddedEntitiesMenu::DtEmbeddedEntitiesMenu	(	makVrv::DtDe &	,
		const std::string &	menuIdName = `DtEmbeddedEntitiesMenuId`,
		int	flags = `0`
	)

Connects DtEmbeddedEntitiesListRequestor::signal_InfoCacheUpdated to onAboutToShow().

Constructor

virtual makVrf::DtEmbeddedEntitiesMenu::~DtEmbeddedEntitiesMenu ( )

virtual

Destructor.

Member Function Documentation

virtual QMenu* makVrf::DtEmbeddedEntitiesMenu::createMenu	(	makVrv::DtDe &	,
		QWidget *	parent
	)

virtual

Creates a new QMenu and caches the pointer in myMenu. Connects the aboutToShow() signal from the QMenu to the aboutToShow() function in this class.

Returns: The menu that was created

Implements makVrv::DtMenu.

Reimplemented in makVrf::DtRightClickEmbeddedEntitiesMenu.

virtual DtSubMenuConfiguration& makVrf::DtEmbeddedEntitiesMenu::menuConfiguration ( )

virtual

Returns theMenuConfiguration. If it is null when this is called a new DtSubMenuConfiguration is allocated and assigned to theMenuConfiguration.

Reimplemented from makVrf::DtConfigurableMenu.

virtual DtConfigurableMenuAssembler& makVrf::DtEmbeddedEntitiesMenu::menuAssembler ( )

virtual

Returns theMenuAssembler. If it is null when this is called a new DtConfigurableMenuAssembler is allocated and assigned to theMenuAssembler.

Reimplemented from makVrf::DtConfigurableMenu.

virtual void makVrf::DtEmbeddedEntitiesMenu::buildMenu ( )

virtual

Builds the submenus for each embedded entity and puts a DtEmbeddedEntityTaskMenu and DtEmbeddedEntitySetMenu under each one. The DtEmbeddedEntitiesListRequestor is used to look up the embedded entities. If partOfPlanDialog() returns 1, myPlanEntitySet is used as the source and otherwise the currently selected entity is the source. When the submenus are created, their signal_planTaskCreated is connected to slot_planTaskCreated. Note that regardless of whether a task or set is selected, they both generate a task - either a DtEmbeddedTaskForwardTask or an DtEmbeddedSetForwardTask.

virtual void makVrf::DtEmbeddedEntitiesMenu::clearMenu ( )

virtual

Calls clear() on myMenu. Goes through the DtSubMenuConfiguration and finds each path DtConfigurableMenuAssembler and deletes each menu. Finally, calls setDeleteReferences(true) and cleanup() on the assembler.

virtual void makVrf::DtEmbeddedEntitiesMenu::setPartOfPlanDialog ( int partOfPlanDialog )

virtual

virtual int makVrf::DtEmbeddedEntitiesMenu::partOfPlanDialog ( )

virtual

virtual void makVrf::DtEmbeddedEntitiesMenu::setPlanEntitySet ( const makVrv::DtSelectionManager::IdSet & set )

virtual

Called by DtEditEntityPlanWidget::setupMenuForPlanDialog to setup the source for the embedded entities.

static DtEmbeddedEntitiesMenu& makVrf::DtEmbeddedEntitiesMenu::instance ( makVrv::DtDe & )

static

Finds the instance of DtEmbeddedEntitiesMenuId registered with the DtDe and allocates it if it isn't found.

static DtEmbeddedEntitiesMenu* makVrf::DtEmbeddedEntitiesMenu::menuInstance	(	makVrv::DtDe &	,
		int	flags = `0`
	)

static

Return a new copy, not the registered copy. It will do this by calling the newInstance method on the currently registered version. newInstance needs to be overridden by subclasses to return their own new instance.

virtual DtEmbeddedEntitiesMenu* makVrf::DtEmbeddedEntitiesMenu::newInstance ( int flags = 0 )

virtual

Creates a DtEmbeddedEntitiesMenu and returns the pointer.

virtual void makVrf::DtEmbeddedEntitiesMenu::slot_planTaskCreated ( const DtSimTask & task )

virtual

Connected to the signal_planTaskCreated of each of the DtEmbeddedEntityVrfSetMenu and DtEmbeddedEntityVrfTaskMenu instances.

virtual void makVrf::DtEmbeddedEntitiesMenu::setRecreateFlags ( int )

virtual

virtual void makVrf::DtEmbeddedEntitiesMenu::slot_onInfoCacheUpdated ( const DtObjectType & updatedType )

protectedvirtual

Disconnects itself from the requestor's signal and calls clearMenu() and buildMenu() if the updated type is the one in context.

virtual void makVrf::DtEmbeddedEntitiesMenu::resolveContext	(	DtObjectType &	objType,
		DtUUID &	uuid,
		bool &	isHomogeneous
	)

protectedvirtual

Gets the currently selected object type and name, and (assuming a multiple-object context) whether or not all object types are homogeneous.

virtual void makVrf::DtEmbeddedEntitiesMenu::setActionsEnabled	(	QMenu *	,
		bool	b
	)

protectedvirtual

virtual void makVrf::DtEmbeddedEntitiesMenu::onAboutToShow ( )

protectedvirtualslot

Checks that the object for which the menu is currently based on is the object currently in context. If not, rebuilds the menu.

Member Data Documentation

boost::signals2::signal<void (std::vector<DtUUID> names, const DtSimTask&)> makVrf::DtEmbeddedEntitiesMenu::signal_planTaskCreated

Connected to DtEditEntityPlanWidget::slot_addTaskRequest by DtEditEntityPlanWidget::setupMenuForPlanDialog to add the DtEmbeddedTaskForwardTask or DtEmbeddedSetForwardTask to the plan.

DtObjectType makVrf::DtEmbeddedEntitiesMenu::myHostObjectType

protected

Name & type of the object that was in context when the menu is created, along with any other context data relevant from the last time the menu was built.

DtUUID makVrf::DtEmbeddedEntitiesMenu::myHost

protected

int makVrf::DtEmbeddedEntitiesMenu::myHostPlanPart

protected

bool makVrf::DtEmbeddedEntitiesMenu::myHostContextIsHomogeneous

protected

QMenu* makVrf::DtEmbeddedEntitiesMenu::myMenu

protected

int makVrf::DtEmbeddedEntitiesMenu::myPartOfPlanDialog

protected

makVrv::DtSelectionManager::IdSet makVrf::DtEmbeddedEntitiesMenu::myPlanEntitySet

protected

int makVrf::DtEmbeddedEntitiesMenu::myCachedEmbeddedEntitiesSize

protected

int makVrf::DtEmbeddedEntitiesMenu::myFlags

protected

DtConfigurableMenuAssembler* makVrf::DtEmbeddedEntitiesMenu::myMenuAssembler

protected

DtSubMenuConfiguration* makVrf::DtEmbeddedEntitiesMenu::myMenuConfiguration

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrfGuiCoreQt/embeddedEntitiesMenu.h
