Contains Dt2DEllipseVisualizer class. Visualizer for a 2D (overlay) ellipse. The model will inherently assume that if there are 2 points defined the distance between the first (origin) and second is the X Radius. If there are three points defined the distance between the third and the first is the Y radius. If there is no Y radius a f is assumed.

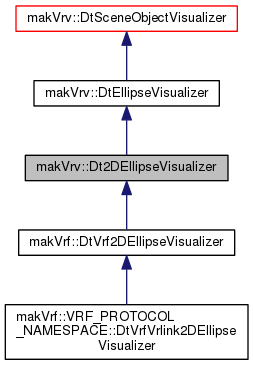

Inheritance diagram for makVrv::Dt2DEllipseVisualizer:

[legend]

Public Member Functions
	Dt2DEllipseVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

	Dt2DEllipseVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual	~Dt2DEllipseVisualizer ()

	Dt2DEllipseVisualizer ()=delete

	Dt2DEllipseVisualizer (const Dt2DEllipseVisualizer &)=delete

Dt2DEllipseVisualizer &	operator= (const Dt2DEllipseVisualizer &)=delete

virtual const DtStateVisualizer::TypeInfo &	typeInfo () const

virtual void	setStipplePattern (unsigned short) override

virtual void	setPixelLineWidth (int) override

virtual void	setPickable (bool b) override

virtual void	setDimensions (double, double) override

virtual void	setFilled (bool filled) override

virtual void	setFillStyle (vrvTacticalGraphicUtilities::FillStyle) override

virtual DtOverlayEllipseArcModelAgent *	findEllipseModel ()

Public Member Functions inherited from makVrv::DtEllipseVisualizer
	DtEllipseVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

	DtEllipseVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual	~DtEllipseVisualizer ()

	DtEllipseVisualizer ()=delete

	DtEllipseVisualizer (const DtEllipseVisualizer &)=delete

DtEllipseVisualizer &	operator= (const DtEllipseVisualizer &)=delete

virtual void	initialize () override

virtual vrvTacticalGraphicUtilities::FillStyle	fillStyle () const

virtual void	setPenStyle (vrvTacticalGraphicUtilities::PenStyle)

virtual unsigned short	stipplePattern () const

virtual void	slot_setSelected (bool) override

virtual void	setColor (float r, float g, float b, float a)

virtual void	getColor (float &r, float &g, float &b, float &a) const

virtual void	useDefaultColor ()

virtual void	setOutsideColor (float r, float g, float b, float a)

virtual void	setSelectedOutsideColor (float r, float g, float b, float a)

virtual void	setInsideColor (float r, float g, float b, float a)

virtual void	setSelectedInsideColor (float r, float g, float b, float a)

virtual void	getDimensions (double &x, double &y)

virtual bool	isFilled ()

Public Member Functions inherited from makVrv::DtSceneObjectVisualizer
	DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

	DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual	~DtSceneObjectVisualizer ()

virtual DtUniqueID	sceneObjectID () const override

virtual DtSceneObjectAgent *	sceneObjectAgent ()

virtual void	setParent (DtStateVisualizer *p)

virtual void	setSceneObjectAgent (DtSceneObjectAgent *)

virtual void	setElementID (const DtElementID &elementID)

DtElementID	elementID () const

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)

virtual	~DtStateVisualizer ()

virtual DtObserverMode::ModelSets	modelSet ()

virtual const DtStateVisualizer *	parent () const

void	setModelDefinition (const std::string &definition)

const std::string &	modelDefinition () const

virtual void	implementVisibility (bool visible)

void	setName (const std::string &)

const std::string &	name () const

virtual bool	pickable () const

virtual void	setSceneObjectID (DtUniqueID id)

int	visualizerType () const

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener &	listener ()

const DtStateListener &	listener () const

DtBaseConnection &	simulation ()

void	setDistribute (bool b)

bool	distribute () const

virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Static Public Member Functions
static const DtStateVisualizer::TypeInfo &	theTypeInfo ()

Protected Member Functions
virtual void	createModelAgents () override

virtual void	destroyModelAgents () override

virtual void	setModelDefinitionForAgents () override

virtual void	updateColors () override

Protected Member Functions inherited from makVrv::DtEllipseVisualizer
virtual void	connectToListenerSignals () override

virtual void	setInitialValuesFromVisualizerDefinition () override

virtual void	setArrowSize (double s)

Protected Member Functions inherited from makVrv::DtSceneObjectVisualizer
virtual DtSceneObjectAgent *	createObjectAgent ()

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	makeVisible ()

virtual bool	isVisible () const

template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
DtOverlayEllipseArcModelAgent *	myEllipseModelAgent

Protected Attributes inherited from makVrv::DtEllipseVisualizer
DtTacticalGraphicStateListener &	myEllipseListener

double	myXRadius

double	myYRadius

float	myDefaultColor [4]

float	myColor [4]

float	myInsideColor [4]

float	myOutsideColor [4]

float	mySelectedOutsideColor [4]

float	mySelectedInsideColor [4]

bool	mySelectedInsideColorSet

bool	mySelectedOutsideColorSet

bool	myFill

bool	myFillAlphaSet

bool	myDefaultColorSet

bool	myXDimensionSet

bool	myYDimensionSet

unsigned short	myLineStipple

int	myLineWidth

vrvTacticalGraphicUtilities::FillStyle	myFillStyle

std::vector< unsigned int >	myFillPattern

float	myFillAlpha

double	myDefaultLineWidth

Protected Attributes inherited from makVrv::DtSceneObjectVisualizer
DtElementID	myElementID

bool	myOwnsSceneObjectAgent

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	mySceneObjectID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

int	myModelSet

int	myVisualizerType

bool	myPickable

bool	myVisible

const DtVisualizerDefinition *	myVisualizerDefinition

DtStateVisualizer *	myParent

DtSceneObjectAgent *	mySceneObjectAgent

bool	myInitialInitializeDone

ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }

Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal < void(DtStateVisualizer , DtStateVisualizer , DtStateVisualizer *)>	signal_reparented

Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::Dt2DEllipseVisualizer::Dt2DEllipseVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		int	modelSet
	)

CTOR.

makVrv::Dt2DEllipseVisualizer::Dt2DEllipseVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		int	modelSet
	)

CTOR.

virtual makVrv::Dt2DEllipseVisualizer::~Dt2DEllipseVisualizer ( )

virtual

DTOR.

makVrv::Dt2DEllipseVisualizer::Dt2DEllipseVisualizer ( )

delete

default constructor - not allowed

makVrv::Dt2DEllipseVisualizer::Dt2DEllipseVisualizer ( const Dt2DEllipseVisualizer & )

delete

copy constructor - not allowed

Member Function Documentation

Dt2DEllipseVisualizer& makVrv::Dt2DEllipseVisualizer::operator= ( const Dt2DEllipseVisualizer & )

delete

equals operator - not allowed

virtual const DtStateVisualizer::TypeInfo& makVrv::Dt2DEllipseVisualizer::typeInfo ( ) const

virtual

Get the instance's type info.

Implements makVrv::DtStateVisualizer.

static const DtStateVisualizer::TypeInfo& makVrv::Dt2DEllipseVisualizer::theTypeInfo ( )

static

The class's type info.

virtual void makVrv::Dt2DEllipseVisualizer::setStipplePattern ( unsigned short )

overridevirtual

Sets the stipple pattern of the line.

Reimplemented from makVrv::DtEllipseVisualizer.

virtual void makVrv::Dt2DEllipseVisualizer::setPixelLineWidth ( int )

overridevirtual

Sets the width of the outside line. Default is 2. The pixel line width is the line in osg pixel space. This is different than physicalLineWidth which sets the width of the line in datasbe space.

Reimplemented from makVrv::DtEllipseVisualizer.

virtual void makVrv::Dt2DEllipseVisualizer::setPickable ( bool b )

overridevirtual

Whether or not the ellipse can be pickable.

Reimplemented from makVrv::DtEllipseVisualizer.

virtual void makVrv::Dt2DEllipseVisualizer::setDimensions	(	double	,
		double
	)

overridevirtual

Sets the dimensions of the ellipse.

Reimplemented from makVrv::DtEllipseVisualizer.

virtual void makVrv::Dt2DEllipseVisualizer::setFilled ( bool filled )

overridevirtual

Set if the ellipse is filled.

Reimplemented from makVrv::DtEllipseVisualizer.

virtual void makVrv::Dt2DEllipseVisualizer::setFillStyle ( vrvTacticalGraphicUtilities::FillStyle )

overridevirtual

Sets the fill style of the area. If fill is 0, will be considered an outlined area. Translates the fill style bit to a patterened fill style using the mapping routines found in vrvTacticalGraphicUtilities.h.

Reimplemented from makVrv::DtEllipseVisualizer.

Reimplemented in makVrf::DtVrf2DEllipseVisualizer.

virtual DtOverlayEllipseArcModelAgent* makVrv::Dt2DEllipseVisualizer::findEllipseModel ( )

virtual

Find the model - can return nullptr.

virtual void makVrv::Dt2DEllipseVisualizer::createModelAgents ( )

overrideprotectedvirtual

Create the DtOverlayEllipseArcModelAgent.

Reimplemented from makVrv::DtSceneObjectVisualizer.

Reimplemented in makVrf::VRF_PROTOCOL_NAMESPACE::DtVrfVrlink2DEllipseVisualizer.

virtual void makVrv::Dt2DEllipseVisualizer::destroyModelAgents ( )

overrideprotectedvirtual
