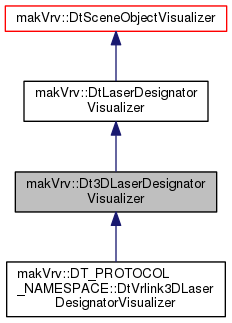

Inheritance diagram for makVrv::Dt3DLaserDesignatorVisualizer:

Public Member Functions
	Dt3DLaserDesignatorVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

	Dt3DLaserDesignatorVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual	~Dt3DLaserDesignatorVisualizer ()

virtual void	destroyModelAgents ()

virtual const DtStateVisualizer::TypeInfo &	typeInfo () const


virtual void	setTexture (const std::string &texture)

virtual const std::string &	texture () const


virtual void	setRadius (float radius)

virtual float	radius () const

Public Member Functions inherited from makVrv::DtLaserDesignatorVisualizer
	DtLaserDesignatorVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

	DtLaserDesignatorVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual	~DtLaserDesignatorVisualizer ()

virtual void	setParent (DtStateVisualizer *)

virtual void	createModelAgents ()

virtual void	setModelDefinitionForAgents ()

virtual void	setDesignatorId (DtUniqueID id)

virtual DtUniqueID	designatorId () const

virtual void	setDesignatorLocation (const DtVector &loc)

virtual const DtVector &	designatorLocation () const

virtual void	setDesignatorCode (int code)

virtual int	designatorCode () const

virtual void	setPower (DtFloat32 power)

virtual float	power () const

virtual void	setDesignatedObject (DtUniqueID designee)

virtual DtUniqueID	designatedObject () const

virtual void	setFont (const std::string &font)

virtual const std::string &	font () const

virtual void	setFontSize (float fontSize)

virtual float	fontSize () const

virtual void	setFontColor (float r, float g, float b, float a)

virtual void	getFontColor (float &r, float &g, float &b, float &a) const

Public Member Functions inherited from makVrv::DtSceneObjectVisualizer
	DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

	DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual	~DtSceneObjectVisualizer ()

virtual DtUniqueID	sceneObjectID () const override

virtual DtSceneObjectAgent *	sceneObjectAgent ()

virtual void	setSceneObjectAgent (DtSceneObjectAgent *)

virtual void	setElementID (const DtElementID &elementID)

DtElementID	elementID () const

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)

virtual	~DtStateVisualizer ()

virtual DtObserverMode::ModelSets	modelSet ()

virtual const DtStateVisualizer *	parent () const

void	setModelDefinition (const std::string &definition)

const std::string &	modelDefinition () const

virtual void	implementVisibility (bool visible)

virtual void	slot_setSelected (bool b)

void	setName (const std::string &)

const std::string &	name () const

virtual void	setPickable (bool)

virtual bool	pickable () const

virtual void	setSceneObjectID (DtUniqueID id)

int	visualizerType () const

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener &	listener ()

const DtStateListener &	listener () const

DtBaseConnection &	simulation ()

void	setDistribute (bool b)

bool	distribute () const

virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Static Public Member Functions
static const DtStateVisualizer::TypeInfo &	theTypeInfo ()

Protected Member Functions
virtual void	createDesignatorSpot ()

virtual void	setInitialValuesFromVisualizerDefinition () override

Protected Member Functions inherited from makVrv::DtLaserDesignatorVisualizer
virtual void	createDesignatorText ()

virtual void	createUpdater ()

virtual void	connectToListenerSignals () override

virtual void	initialize () override

Protected Member Functions inherited from makVrv::DtSceneObjectVisualizer
virtual DtSceneObjectAgent *	createObjectAgent ()

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	makeVisible ()

virtual bool	isVisible () const

template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
std::string	myTexture

float	myRadius

DtPolygonModelAgent *	myPolygonAgent

Protected Attributes inherited from makVrv::DtLaserDesignatorVisualizer
DtUniqueID	myDesignatorId

int	myDesignatorCode

DtVector	myDesignatorSpotLocation

float	myPower

DtUniqueID	myDesignatedObject

DtSignalConnectionManager	myConnections

std::string	myFont

float	myFontSize

float	myFontColor [4]

DtProjectedWidgetModelAgent *	myTextModelAgent

DtWidgetLabelAgent *	myTextAgent

DtLaserDesignatorUpdaterAgent *	myUpdater

Protected Attributes inherited from makVrv::DtSceneObjectVisualizer
DtElementID	myElementID

bool	myOwnsSceneObjectAgent

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	mySceneObjectID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

int	myModelSet

int	myVisualizerType

bool	myPickable

bool	myVisible

const DtVisualizerDefinition *	myVisualizerDefinition

DtStateVisualizer *	myParent

DtSceneObjectAgent *	mySceneObjectAgent

bool	myInitialInitializeDone

ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }

Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal < void(DtStateVisualizer , DtStateVisualizer , DtStateVisualizer *)>	signal_reparented

Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::Dt3DLaserDesignatorVisualizer::Dt3DLaserDesignatorVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		int	modelSet
	)

CTOR; expects DtStateListener to be a DtLaserDesignatorStateListener.

makVrv::Dt3DLaserDesignatorVisualizer::Dt3DLaserDesignatorVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		int	modelSet
	)

CTOR.

virtual makVrv::Dt3DLaserDesignatorVisualizer::~Dt3DLaserDesignatorVisualizer ( )

virtual

Member Function Documentation

virtual void makVrv::Dt3DLaserDesignatorVisualizer::destroyModelAgents ( )

virtual

Destroy the agents.

Reimplemented from makVrv::DtLaserDesignatorVisualizer.

virtual void makVrv::Dt3DLaserDesignatorVisualizer::setTexture ( const std::string & texture )

virtual

Set/get texture to the polygon created for the designator spot.

virtual const std::string& makVrv::Dt3DLaserDesignatorVisualizer::texture ( ) const

virtual

Set/get texture to the polygon created for the designator spot.

virtual void makVrv::Dt3DLaserDesignatorVisualizer::setRadius ( float radius )

virtual

Set/get the width and height of the polygon represent the designator spot.

virtual float makVrv::Dt3DLaserDesignatorVisualizer::radius ( ) const

virtual

Set/get the width and height of the polygon represent the designator spot.

virtual const DtStateVisualizer::TypeInfo& makVrv::Dt3DLaserDesignatorVisualizer::typeInfo ( ) const

virtual

The instance's type info.

Implements makVrv::DtStateVisualizer.

static const DtStateVisualizer::TypeInfo& makVrv::Dt3DLaserDesignatorVisualizer::theTypeInfo ( )

static

This class's type info.

virtual void makVrv::Dt3DLaserDesignatorVisualizer::createDesignatorSpot ( )

protectedvirtual

Work function for designator spot creation.

Implements makVrv::DtLaserDesignatorVisualizer.

virtual void makVrv::Dt3DLaserDesignatorVisualizer::setInitialValuesFromVisualizerDefinition ( )

overrideprotectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize.

Reimplemented from makVrv::DtLaserDesignatorVisualizer.

Member Data Documentation

std::string makVrv::Dt3DLaserDesignatorVisualizer::myTexture

protected

float makVrv::Dt3DLaserDesignatorVisualizer::myRadius

protected

DtPolygonModelAgent* makVrv::Dt3DLaserDesignatorVisualizer::myPolygonAgent

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/Dt3DLaserDesignatorVisualizer.h
