DtAggregateExtentVisualizer visualize bounding boxes for aggregates.

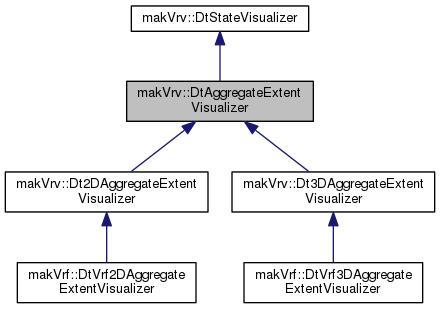

Inheritance diagram for makVrv::DtAggregateExtentVisualizer:

Public Member Functions
	DtAggregateExtentVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

	DtAggregateExtentVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

	DtAggregateExtentVisualizer ()=delete

	DtAggregateExtentVisualizer (const DtAggregateExtentVisualizer &)=delete

DtAggregateExtentVisualizer &	operator= (const DtAggregateExtentVisualizer &)=delete

virtual void	initialize () override

virtual	~DtAggregateExtentVisualizer ()

virtual void	setDimensions (const DtVector &dim)

virtual void	setColor (float r, float g, float b, float a)

virtual void	setShowExtentsEnabled (bool enabled)

bool	showExtentsEnabled () const

virtual void	setShowOnlyIfSelected (bool)

bool	showOnlyIfSelected () const

virtual void	slot_setSelected (bool)

DtAggregateStateListener &	aggregateStateListener ()

const DtAggregateStateListener &	aggregateStateListener () const

virtual void	refreshForceColor ()

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)

virtual	~DtStateVisualizer ()

virtual DtObserverMode::ModelSets	modelSet ()

virtual const TypeInfo &	typeInfo () const =0

virtual void	setParent (DtStateVisualizer *)

virtual void	setSceneObjectAgent (DtSceneObjectAgent *sceneObject)

virtual const DtStateVisualizer *	parent () const

void	setModelDefinition (const std::string &definition)

const std::string &	modelDefinition () const

virtual void	implementVisibility (bool visible)

void	setName (const std::string &)

const std::string &	name () const

virtual void	setPickable (bool)

virtual bool	pickable () const

virtual void	setSceneObjectID (DtUniqueID id)

virtual DtUniqueID	sceneObjectID () const

int	visualizerType () const

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener &	listener ()

const DtStateListener &	listener () const

DtBaseConnection &	simulation ()

void	setDistribute (bool b)

bool	distribute () const

virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Protected Member Functions
virtual void	createModelAgents ()

virtual void	destroyModelAgents ()

virtual void	setModelDefinitionForAgents ()

virtual DtModelAgent *	createExtentModelAgent ()=0

virtual void	adjustSelectionVisibility ()

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	connectToListenerSignals ()

virtual void	makeVisible ()

virtual bool	isVisible () const

virtual void	setInitialValuesFromVisualizerDefinition ()

template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
DtModelAgent *	myAggregateExtentModelAgent

float	myColor [4]

DtVector	myDimensions

bool	myShowOnlyIfSelected

bool	myShowExtentsEnabled

DtAggregateStateListener *	myAggregateStateListener

DtSignalConnectionManager	mySignalConnections

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	mySceneObjectID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

int	myModelSet

int	myVisualizerType

bool	myPickable

bool	myVisible

const DtVisualizerDefinition *	myVisualizerDefinition

DtStateVisualizer *	myParent

DtSceneObjectAgent *	mySceneObjectAgent

bool	myInitialInitializeDone

ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }

Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal < void(DtStateVisualizer , DtStateVisualizer , DtStateVisualizer *)>	signal_reparented

Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::DtAggregateExtentVisualizer::DtAggregateExtentVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		int	modelSet
	)

Constructor.

makVrv::DtAggregateExtentVisualizer::DtAggregateExtentVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		int	modelSet
	)

Constructor.

makVrv::DtAggregateExtentVisualizer::DtAggregateExtentVisualizer ( )

delete

not allowed - default constructor

makVrv::DtAggregateExtentVisualizer::DtAggregateExtentVisualizer ( const DtAggregateExtentVisualizer & )

delete

not allowed - copy constructor

virtual makVrv::DtAggregateExtentVisualizer::~DtAggregateExtentVisualizer ( )

virtual

Destructor.

Member Function Documentation

DtAggregateExtentVisualizer& makVrv::DtAggregateExtentVisualizer::operator= ( const DtAggregateExtentVisualizer & )

delete

not allowed - equals operator

virtual void makVrv::DtAggregateExtentVisualizer::initialize ( )

overridevirtual

called soon after construction to initialize the signals/state from the listener

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtVrf3DAggregateExtentVisualizer, and makVrf::DtVrf2DAggregateExtentVisualizer.

virtual void makVrv::DtAggregateExtentVisualizer::setDimensions ( const DtVector & dim )

virtual

Sets the dimensions of the cuboid (length is X, width is Y, height is Z)

Reimplemented in makVrv::Dt2DAggregateExtentVisualizer, and makVrv::Dt3DAggregateExtentVisualizer.

virtual void makVrv::DtAggregateExtentVisualizer::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Sets the color of the cuboid.

Reimplemented in makVrv::Dt2DAggregateExtentVisualizer, and makVrv::Dt3DAggregateExtentVisualizer.

virtual void makVrv::DtAggregateExtentVisualizer::setShowExtentsEnabled ( bool enabled )

virtual

set whether aggregate bounding volumes can be shown

bool makVrv::DtAggregateExtentVisualizer::showExtentsEnabled ( ) const

virtual void makVrv::DtAggregateExtentVisualizer::setShowOnlyIfSelected ( bool )

virtual

Will show only if the item is also selected.

bool makVrv::DtAggregateExtentVisualizer::showOnlyIfSelected ( ) const

virtual void makVrv::DtAggregateExtentVisualizer::slot_setSelected ( bool )

virtual

Slot connected to the state listener's selection change signal.

Reimplemented from makVrv::DtStateVisualizer.

DtAggregateStateListener& makVrv::DtAggregateExtentVisualizer::aggregateStateListener ( )

Get the aggregate state listener.

const DtAggregateStateListener& makVrv::DtAggregateExtentVisualizer::aggregateStateListener ( ) const

virtual void makVrv::DtAggregateExtentVisualizer::refreshForceColor ( )

virtual

refresh the force color from the state listener.

virtual void makVrv::DtAggregateExtentVisualizer::createModelAgents ( )

protectedvirtual

create the model agents for this visualizer

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrf::DtVrf3DAggregateExtentVisualizer, makVrf::DtVrf2DAggregateExtentVisualizer, makVrv::Dt2DAggregateExtentVisualizer, and makVrv::Dt3DAggregateExtentVisualizer.

virtual void makVrv::DtAggregateExtentVisualizer::destroyModelAgents ( )

protectedvirtual

destroy the model agents used by this visualizer

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::Dt2DAggregateExtentVisualizer, and makVrv::Dt3DAggregateExtentVisualizer.

virtual void makVrv::DtAggregateExtentVisualizer::setModelDefinitionForAgents ( )

protectedvirtual

set the model definitions for the agents. This is empty in this class but setup by the child classes.

Implements makVrv::DtStateVisualizer.

virtual DtModelAgent* makVrv::DtAggregateExtentVisualizer::createExtentModelAgent ( )

protectedpure virtual

Creates and returns the extent model agent.

Implemented in makVrv::Dt2DAggregateExtentVisualizer, and makVrv::Dt3DAggregateExtentVisualizer.

virtual void makVrv::DtAggregateExtentVisualizer::adjustSelectionVisibility ( )

protectedvirtual

Determine if the extent is visible or not based on extents enabled, show state and current selection when applicable.

Member Data Documentation

DtModelAgent* makVrv::DtAggregateExtentVisualizer::myAggregateExtentModelAgent

protected

float makVrv::DtAggregateExtentVisualizer::myColor[4]

protected

DtVector makVrv::DtAggregateExtentVisualizer::myDimensions

protected

bool makVrv::DtAggregateExtentVisualizer::myShowOnlyIfSelected

protected

bool makVrv::DtAggregateExtentVisualizer::myShowExtentsEnabled

protected

DtAggregateStateListener* makVrv::DtAggregateExtentVisualizer::myAggregateStateListener

protected

DtSignalConnectionManager makVrv::DtAggregateExtentVisualizer::mySignalConnections

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtAggregateExtentVisualizer.h
