DtCuboidStateVisualizer objects are responsible for displaying cuboid object.

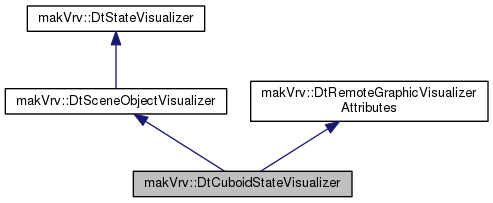

Inheritance diagram for makVrv::DtCuboidStateVisualizer:

Public Member Functions
	DtCuboidStateVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

	DtCuboidStateVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual	~DtCuboidStateVisualizer ()

virtual void	setDimensions (const DtVector &dim)

virtual void	setColor (float r, float g, float b, float a)

virtual void	setFlashing (bool flashing)

virtual void	setPosition (const DtVector &pos)

virtual void	setOrientation (const DtTaitBryan &orientation)

virtual void	setAttached (DtUniqueID id, int vtx, double percentage)

virtual void	setHostId (const std::string &id, int vtx, double percentage)

virtual const DtStateVisualizer::TypeInfo &	typeInfo () const

Public Member Functions inherited from makVrv::DtSceneObjectVisualizer
	DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

	DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual	~DtSceneObjectVisualizer ()

virtual DtUniqueID	sceneObjectID () const override

virtual DtSceneObjectAgent *	sceneObjectAgent ()

virtual void	setParent (DtStateVisualizer *p)

virtual void	setSceneObjectAgent (DtSceneObjectAgent *)

virtual void	setElementID (const DtElementID &elementID)

DtElementID	elementID () const

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)

virtual	~DtStateVisualizer ()

virtual DtObserverMode::ModelSets	modelSet ()

virtual const DtStateVisualizer *	parent () const

void	setModelDefinition (const std::string &definition)

const std::string &	modelDefinition () const

virtual void	implementVisibility (bool visible)

virtual void	initialize ()

virtual void	slot_setSelected (bool b)

void	setName (const std::string &)

const std::string &	name () const

virtual void	setPickable (bool)

virtual bool	pickable () const

virtual void	setSceneObjectID (DtUniqueID id)

int	visualizerType () const

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener &	listener ()

const DtStateListener &	listener () const

DtBaseConnection &	simulation ()

void	setDistribute (bool b)

bool	distribute () const

virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Public Member Functions inherited from makVrv::DtRemoteGraphicVisualizerAttributes
	DtRemoteGraphicVisualizerAttributes ()

virtual	~DtRemoteGraphicVisualizerAttributes ()

virtual void	setActive (bool active)

virtual void	setLayerName (const std::string &layerName)

Static Public Member Functions
static const DtStateVisualizer::TypeInfo &	theTypeInfo ()

Protected Member Functions
virtual void	setVisible (bool yesNo)

virtual void	createModelAgents ()

virtual void	destroyModelAgents ()

virtual void	setModelDefinitionForAgents ()

Protected Member Functions inherited from makVrv::DtSceneObjectVisualizer
virtual DtSceneObjectAgent *	createObjectAgent ()

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	connectToListenerSignals ()

virtual void	makeVisible ()

virtual bool	isVisible () const

virtual void	setInitialValuesFromVisualizerDefinition ()

template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
DtAttachableCuboidModelAgent *	myCuboidModelAgent

DtAttachableUpdaterAgent *	myAttachedUpdaterAgent

DtVisibilityAdapter < DtAttachableCuboidModelAgent > *	myVisibilityAdapter

Protected Attributes inherited from makVrv::DtSceneObjectVisualizer
DtElementID	myElementID

bool	myOwnsSceneObjectAgent

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	mySceneObjectID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

int	myModelSet

int	myVisualizerType

bool	myPickable

bool	myVisible

const DtVisualizerDefinition *	myVisualizerDefinition

DtStateVisualizer *	myParent

DtSceneObjectAgent *	mySceneObjectAgent

bool	myInitialInitializeDone

ShowHideContextVector	myVisualizerShowHideContexts

Protected Attributes inherited from makVrv::DtRemoteGraphicVisualizerAttributes
bool	myActive

bool	myFlashing

std::vector< std::string >	myLayers

std::string	myLayerName

bool	myRemoteGraphicsEnabled

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }

Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal < void(DtStateVisualizer , DtStateVisualizer , DtStateVisualizer *)>	signal_reparented

Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::DtCuboidStateVisualizer::DtCuboidStateVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		int	modelSet
	)

Constructor.

makVrv::DtCuboidStateVisualizer::DtCuboidStateVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		int	modelSet
	)

CTOR.

virtual makVrv::DtCuboidStateVisualizer::~DtCuboidStateVisualizer ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtCuboidStateVisualizer::setDimensions ( const DtVector & dim )

virtual

Sets the dimensions of the cuboid.

virtual void makVrv::DtCuboidStateVisualizer::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Sets the color of the cuboid.

virtual void makVrv::DtCuboidStateVisualizer::setFlashing ( bool flashing )

virtual

Sets whether the cuboid is flashing.

Implements makVrv::DtRemoteGraphicVisualizerAttributes.

virtual void makVrv::DtCuboidStateVisualizer::setPosition ( const DtVector & pos )

virtual

Sets the position of the cuboid in database coordinates, or body coordinates (if attached)

virtual void makVrv::DtCuboidStateVisualizer::setOrientation ( const DtTaitBryan & orientation )

virtual

Sets the orientation of the cuboid in database coordinates.

virtual void makVrv::DtCuboidStateVisualizer::setAttached	(	DtUniqueID	id,
		int	vtx,
		double	percentage
	)

virtual

Attaches the cuboid to the unique ID specified.

Parameters

id	Unique ID of the object attached to, if 0, detaches
vtx	ignored
percentage	Specifies the percentage between 2 vertices if attached to a line or cylinder

virtual void makVrv::DtCuboidStateVisualizer::setHostId	(	const std::string &	id,
		int	vtx,
		double	percentage
	)

virtual

Sets the host ID attached to. Overridden by child classes.

virtual const DtStateVisualizer::TypeInfo& makVrv::DtCuboidStateVisualizer::typeInfo ( ) const

virtual

The instance's type info.

Implements makVrv::DtStateVisualizer.

static const DtStateVisualizer::TypeInfo& makVrv::DtCuboidStateVisualizer::theTypeInfo ( )

static

This class's type info.

virtual void makVrv::DtCuboidStateVisualizer::setVisible ( bool yesNo )

protectedvirtual

Implements makVrv::DtRemoteGraphicVisualizerAttributes.

virtual void makVrv::DtCuboidStateVisualizer::createModelAgents ( )

protectedvirtual

Creates the model agent. If already created, makes it visible.

Reimplemented from makVrv::DtSceneObjectVisualizer.

virtual void makVrv::DtCuboidStateVisualizer::destroyModelAgents ( )

protectedvirtual

Model agent is only destroyed in destructor. Here, it will be hidden (if it has been created)

Reimplemented from makVrv::DtSceneObjectVisualizer.

virtual void makVrv::DtCuboidStateVisualizer::setModelDefinitionForAgents ( )

protectedvirtual

Sets model definition for all the agents that this visualizer might be using. If model agents are not created, should create them. Should not call this directly. Called by initialize.

Reimplemented from makVrv::DtSceneObjectVisualizer.

Member Data Documentation

DtAttachableCuboidModelAgent* makVrv::DtCuboidStateVisualizer::myCuboidModelAgent

protected

DtAttachableUpdaterAgent* makVrv::DtCuboidStateVisualizer::myAttachedUpdaterAgent

protected

DtVisibilityAdapter<DtAttachableCuboidModelAgent>* makVrv::DtCuboidStateVisualizer::myVisibilityAdapter

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtCuboidStateVisualizer.h
