makVrv::DtDynamicTerrainGeometry Class Reference

Represents (possibly infinite) area of space.

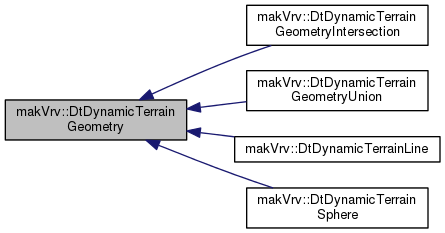

Inheritance diagram for makVrv::DtDynamicTerrainGeometry:

Classes
class	Visitor

Public Member Functions
	DtDynamicTerrainGeometry ()
virtual	~DtDynamicTerrainGeometry ()
	DtDynamicTerrainGeometry (const DtDynamicTerrainGeometry &copy)=delete
DtDynamicTerrainGeometry &	operator= (const DtDynamicTerrainGeometry &copy)=delete
virtual DtDynamicTerrainGeometry *	clone () const =0
virtual void	accept (Visitor &visitor) const =0
virtual bool	intersects (const DtDynamicTerrainGeometry &geometry) const =0
virtual double	distanceTo (const DtVector &point) const =0
virtual bool	isFinite () const =0

Static Public Member Functions
static DtDynamicTerrainGeometry *	Union (DtDynamicTerrainGeometry *, DtDynamicTerrainGeometry *)
static DtDynamicTerrainGeometry *	Intersection (DtDynamicTerrainGeometry *, DtDynamicTerrainGeometry *)
static DtDynamicTerrainGeometry *	Sphere (const DtVector &center, double radius)
static DtDynamicTerrainGeometry *	Point (const DtVector &center)
static DtDynamicTerrainGeometry *	Line (const std::vector< DtVector > &vertices)

Constructor & Destructor Documentation

makVrv::DtDynamicTerrainGeometry::DtDynamicTerrainGeometry

(

)

Constructor.

virtual makVrv::DtDynamicTerrainGeometry::~DtDynamicTerrainGeometry ( )

virtual

Virtual destructor.

makVrv::DtDynamicTerrainGeometry::DtDynamicTerrainGeometry ( const DtDynamicTerrainGeometry &  copy )

delete

Member Function Documentation

static DtDynamicTerrainGeometry* makVrv::DtDynamicTerrainGeometry::Union ( DtDynamicTerrainGeometry *  , DtDynamicTerrainGeometry *    )

static

Factory functions.

static DtDynamicTerrainGeometry* makVrv::DtDynamicTerrainGeometry::Intersection ( DtDynamicTerrainGeometry *  , DtDynamicTerrainGeometry *    )

static

Factory functions.

static DtDynamicTerrainGeometry* makVrv::DtDynamicTerrainGeometry::Sphere ( const DtVector &  center, double  radius  )

static

Factory functions.

static DtDynamicTerrainGeometry* makVrv::DtDynamicTerrainGeometry::Point ( const DtVector &  center )

static

Factory functions.

static DtDynamicTerrainGeometry* makVrv::DtDynamicTerrainGeometry::Line ( const std::vector< DtVector > &  vertices )

static

Factory functions.

DtDynamicTerrainGeometry& makVrv::DtDynamicTerrainGeometry::operator= ( const DtDynamicTerrainGeometry &  copy )

delete

virtual DtDynamicTerrainGeometry* makVrv::DtDynamicTerrainGeometry::clone ( ) const

pure virtual

Return cloned copy of this object. Caller takes ownership.

Implemented in makVrv::DtDynamicTerrainLine, makVrv::DtDynamicTerrainSphere, makVrv::DtDynamicTerrainGeometryIntersection, and makVrv::DtDynamicTerrainGeometryUnion.

virtual void makVrv::DtDynamicTerrainGeometry::accept ( Visitor &  visitor ) const

pure virtual

Run the visitor on this geometry.

Implemented in makVrv::DtDynamicTerrainLine, makVrv::DtDynamicTerrainSphere, makVrv::DtDynamicTerrainGeometryIntersection, and makVrv::DtDynamicTerrainGeometryUnion.

virtual bool makVrv::DtDynamicTerrainGeometry::intersects ( const DtDynamicTerrainGeometry &  geometry ) const

pure virtual

Test if this geometry object intersects another one.

Parameters

geometry

Geometry object to test this object against.

Return values

True	if the geometries intersect.

Implemented in makVrv::DtDynamicTerrainLine, makVrv::DtDynamicTerrainSphere, makVrv::DtDynamicTerrainGeometryIntersection, and makVrv::DtDynamicTerrainGeometryUnion.

virtual double makVrv::DtDynamicTerrainGeometry::distanceTo ( const DtVector &  point ) const

pure virtual

Distance to the closest point which intersects this geometry.

Implemented in makVrv::DtDynamicTerrainLine, makVrv::DtDynamicTerrainSphere, makVrv::DtDynamicTerrainGeometryIntersection, and makVrv::DtDynamicTerrainGeometryUnion.

virtual bool makVrv::DtDynamicTerrainGeometry::isFinite ( ) const

pure virtual

Returns whether the geometry has all finite components.

Implemented in makVrv::DtDynamicTerrainLine, makVrv::DtDynamicTerrainSphere, makVrv::DtDynamicTerrainGeometryIntersection, and makVrv::DtDynamicTerrainGeometryUnion.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvUtil/DtDynamicTerrainGeometry.h
