makVrv::DtEnvironmentalLineVisualizer Class Referenceabstract
vrvCore

DtEnvironmentalLineVisualizer display a line that contains at least two points.

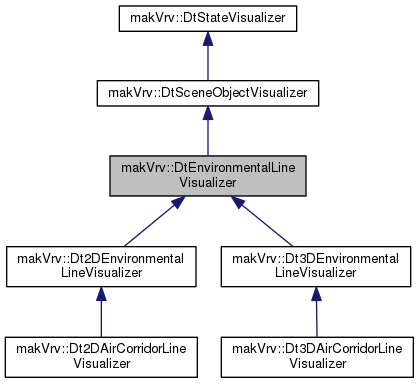

Inheritance diagram for makVrv::DtEnvironmentalLineVisualizer:
Inheritance graph
[legend]

Public Member Functions

 DtEnvironmentalLineVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

 DtEnvironmentalLineVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual ~DtEnvironmentalLineVisualizer ()

virtual void initialize () override

virtual void slot_setSelected (bool) override

virtual void setPixelLineWidth (int)

virtual void setStipplePattern (unsigned short)

virtual unsigned short stipplePattern () const

virtual void setPenStyle (vrvTacticalGraphicUtilities::PenStyle)

virtual void setLineStyle (vrvTacticalGraphicUtilities::LineStyle)

virtual void setFixedWidthSizing (bool)

virtual bool fixedWidthSizing () const

virtual void setColor (float r, float g, float b, float a)

virtual void useDefaultColor ()

virtual void getColor (float &r, float &g, float &b, float &a) const

virtual void setSelectedColor (float r, float g, float b, float a)

virtual void getSelectedColor (float &r, float &g, float &b, float &a) const

virtual void updateColors ()=0

virtual void addVertex (int index, const DtVector &)

virtual void removeVertex (int index)

virtual void modifyVertex (int index, const DtVector &)

virtual void setVertexList (const DtEnvironmentalStateListener::VertexList &)

virtual void setSegmentEndArrow (int seg, bool flag)=0

virtual void setSegmentStartArrow (int seg, bool flag)=0

virtual void setArrowSize (double)

virtual double arrowSize () const

virtual void setArrowHeadPlacement (vrvTacticalGraphicUtilities::ArrowHeadPlacement, bool force)

virtual
vrvTacticalGraphicUtilities::ArrowHeadPlacement 		arrowHeadPlacement () const

virtual void setArrowStyle (vrvTacticalGraphicUtilities::ArrowStyle)

virtual
vrvTacticalGraphicUtilities::ArrowStyle 		arrowStyle () const

- Public Member Functions inherited from makVrv::DtSceneObjectVisualizer
 DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, int modelSet)

 DtSceneObjectVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual ~DtSceneObjectVisualizer ()

virtual DtUniqueID sceneObjectID () const override

virtual DtSceneObjectAgent * sceneObjectAgent ()

virtual void setParent (DtStateVisualizer *p)

virtual void setModelDefinitionForAgents ()

virtual void setSceneObjectAgent (DtSceneObjectAgent *)

virtual void setElementID (const DtElementID &elementID)

DtElementID elementID () const

- Public Member Functions inherited from makVrv::DtStateVisualizer
 DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

 DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)

virtual ~DtStateVisualizer ()

virtual DtObserverMode::ModelSets modelSet ()

virtual const TypeInfo & typeInfo () const =0

virtual const DtStateVisualizer * parent () const

void setModelDefinition (const std::string &definition)

const std::string & modelDefinition () const

virtual void implementVisibility (bool visible)

void setName (const std::string &)

const std::string & name () const

virtual void setPickable (bool)

virtual bool pickable () const

virtual void setSceneObjectID (DtUniqueID id)

int visualizerType () const

virtual void setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener & listener ()

const DtStateListener & listener () const

DtBaseConnection & simulation ()

void setDistribute (bool b)

bool distribute () const

virtual bool setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)


Protected Member Functions

virtual void setSolid (bool)

virtual void updateArrowFrequencyForSegment (int)

virtual void setInitialValuesFromVisualizerDefinition () override

virtual void connectToListenerSignals () override

- Protected Member Functions inherited from makVrv::DtSceneObjectVisualizer
virtual DtSceneObjectAgent * createObjectAgent ()

virtual void createModelAgents ()

virtual void destroyModelAgents ()

- Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void makeVisible ()

virtual bool isVisible () const

template<typename T , typename C >
void connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)


Protected Attributes

DtTacticalGraphicStateListener * myLineListener

DtEnvironmentalStateListener::VertexList myVertices

DtVector myPointOffset

float myDefaultColor [4]

float myColor [4]

float mySelectedColor [4]

vrvTacticalGraphicUtilities::ArrowStyle myArrowStyle

vrvTacticalGraphicUtilities::ArrowHeadPlacement myArrowHeadPlacement

vrvTacticalGraphicUtilities::LineStyle myLineStyle

double myArrowSize

unsigned short myLineStipple

bool myFixedWidthSizing

bool mySolid

int myPixelLineWidth

- Protected Attributes inherited from makVrv::DtSceneObjectVisualizer
DtElementID myElementID

bool myOwnsSceneObjectAgent

- Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection & mySimulation

DtStateListener & myListener

bool myDistributeFlag

DtUniqueID mySceneObjectID

std::string myName

std::string myModelDefinition

DtSignalConnectionManager myConnections

int myModelSet

int myVisualizerType

bool myPickable

bool myVisible

const DtVisualizerDefinition * myVisualizerDefinition

DtStateVisualizer * myParent

DtSceneObjectAgent * mySceneObjectAgent

bool myInitialInitializeDone

ShowHideContextVector myVisualizerShowHideContexts


Additional Inherited Members

- Public Types inherited from makVrv::DtStateVisualizer
enum  Type {
  AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,
  AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000
}

- Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal
< void(DtStateVisualizer
*, DtStateVisualizer
*, DtStateVisualizer *)> 		signal_reparented

- Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector
< DtVisualizerShowHideContext::VisualizerShowHideContext > 		ShowHideContextVector


Constructor & Destructor Documentation

makVrv::DtEnvironmentalLineVisualizer::DtEnvironmentalLineVisualizer ( DtBaseConnection &  simulation,
DtStateListener &  listener,
int  modelSet
)

Constructor.

makVrv::DtEnvironmentalLineVisualizer::DtEnvironmentalLineVisualizer ( DtBaseConnection &  simulation,
DtStateListener &  listener,
DtSceneObjectAgent *  sceneObject,
int  modelSet
)

Constructor.

virtual makVrv::DtEnvironmentalLineVisualizer::~DtEnvironmentalLineVisualizer ( )
virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtEnvironmentalLineVisualizer::initialize ( )
overridevirtual

Initialize the visualizer.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, and makVrv::Dt3DAirCorridorLineVisualizer.

virtual void makVrv::DtEnvironmentalLineVisualizer::setColor ( float  r,
float  g,
float  b,
float  a
)
virtual

ColoursSets the color for the line. This will apply to all segments of the line. If the default (all 0's), uses the default as defined in the visual definition.

Reimplemented in makVrv::Dt3DEnvironmentalLineVisualizer, and makVrv::Dt3DAirCorridorLineVisualizer.

virtual void makVrv::DtEnvironmentalLineVisualizer::useDefaultColor ( )
virtual

Sets color to default color as defined in the visualizer definition. Called when color set is 0, 0, 0, 0.

virtual void makVrv::DtEnvironmentalLineVisualizer::getColor ( float &  r,
float &  g,
float &  b,
float &  a
) const
virtual

Returns the color.

virtual void makVrv::DtEnvironmentalLineVisualizer::setSelectedColor ( float  r,
float  g,
float  b,
float  a
)
virtual

Selected colors.

virtual void makVrv::DtEnvironmentalLineVisualizer::getSelectedColor ( float &  r,
float &  g,
float &  b,
float &  a
) const
virtual

ColoursSets the color for the line. This will apply to all segments of the line. If the default (all 0's), uses the default as defined in the visual definition.

virtual void makVrv::DtEnvironmentalLineVisualizer::updateColors ( )
pure virtual

Derived classes override.

Implemented in makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, and makVrv::Dt3DAirCorridorLineVisualizer.

virtual void makVrv::DtEnvironmentalLineVisualizer::addVertex ( int  index,
const DtVector &
)
virtual

VerticesAdds a vertex to the line. If index is -1, appends else places at given point.

virtual void makVrv::DtEnvironmentalLineVisualizer::removeVertex ( int  index)
virtual

Removes vertex at the given index.

virtual void makVrv::DtEnvironmentalLineVisualizer::modifyVertex ( int  index,
const DtVector &
)
virtual

Modifies the vertex at the given index.

virtual void makVrv::DtEnvironmentalLineVisualizer::setVertexList ( const DtEnvironmentalStateListener::VertexList &  )
virtual

Sets the myVertexList to the specified list, adding, removing and changing as needed.

virtual void makVrv::DtEnvironmentalLineVisualizer::slot_setSelected ( bool  )
overridevirtual

Sets whether or not the line is selected. Connected to DtStateListener's signal_objectSelectionChanged signal.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtEnvironmentalLineVisualizer::setSegmentEndArrow ( int  seg,
bool  flag
)
pure virtual

ArrowsSets arrow at end of segment.

Implemented in makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, and makVrv::Dt3DAirCorridorLineVisualizer.

virtual void makVrv::DtEnvironmentalLineVisualizer::setSegmentStartArrow ( int  seg,
bool  flag
)
pure virtual

Sets arrow at start of segment.

Implemented in makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, and makVrv::Dt3DAirCorridorLineVisualizer.

virtual void makVrv::DtEnvironmentalLineVisualizer::setArrowSize ( double  )
virtual

Sets the size of the arrow. In 3D this is meters, in 2D this is pixels.

Reimplemented in makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, and makVrv::Dt3DAirCorridorLineVisualizer.

virtual double makVrv::DtEnvironmentalLineVisualizer::arrowSize ( ) const
virtual

Returns the size of the awwow.

virtual void makVrv::DtEnvironmentalLineVisualizer::setArrowHeadPlacement ( vrvTacticalGraphicUtilities::ArrowHeadPlacement  ,
bool  force
)
virtual

Sets how often the arrows should be displayed.

See Also
makVrv::vrvTacticalGraphicUtilities::ArrowHeadPlacement
virtual vrvTacticalGraphicUtilities::ArrowHeadPlacement makVrv::DtEnvironmentalLineVisualizer::arrowHeadPlacement ( ) const
virtual

Returns the current arrow head placement strategy.

virtual void makVrv::DtEnvironmentalLineVisualizer::setArrowStyle ( vrvTacticalGraphicUtilities::ArrowStyle  )
virtual

Sets the style of arrows for the line.

Reimplemented in makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, and makVrv::Dt3DAirCorridorLineVisualizer.

virtual vrvTacticalGraphicUtilities::ArrowStyle makVrv::DtEnvironmentalLineVisualizer::arrowStyle ( ) const
virtual

Returns the arrow style.

virtual void makVrv::DtEnvironmentalLineVisualizer::setPixelLineWidth ( int  )
virtual

Sets the width of the outside line. Default is 2. The pixel line width is the line in osg pixel space. This is different than physicalLineWidth which sets the width of the line in database space. If value is 0 will use default pixel line width.

Reimplemented in makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, and makVrv::Dt2DEnvironmentalLineVisualizer.

virtual void makVrv::DtEnvironmentalLineVisualizer::setStipplePattern ( unsigned  short)
virtual

Sets the stipple pattern style.

Reimplemented in makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt2DEnvironmentalLineVisualizer, makVrv::Dt2DAirCorridorLineVisualizer, and makVrv::Dt3DAirCorridorLineVisualizer.

virtual unsigned short makVrv::DtEnvironmentalLineVisualizer::stipplePattern ( ) const
virtual

Returns the currently set stipple pattern.

virtual void makVrv::DtEnvironmentalLineVisualizer::setPenStyle ( vrvTacticalGraphicUtilities::PenStyle  )
virtual

Takes the pen style and translates it to a stipple pattern. See vrvTacticalGraphicUtilities for styles.

virtual void makVrv::DtEnvironmentalLineVisualizer::setLineStyle ( vrvTacticalGraphicUtilities::LineStyle  )
virtual

Sets the style of the line. The line style will map to internal factory of line styles to transform the line points into the final line style.

Reimplemented in makVrv::Dt3DEnvironmentalLineVisualizer, and makVrv::Dt2DEnvironmentalLineVisualizer.

virtual void makVrv::DtEnvironmentalLineVisualizer::setFixedWidthSizing ( bool  )
virtual

For those lines that support it, whether or not the lines sizes when zooming to pixel space (fixed width) or to the database (non-fixed width). Default is fixed width. If changing modes, be sure to change the arrow size.

Reimplemented in makVrv::Dt3DEnvironmentalLineVisualizer, and makVrv::Dt2DEnvironmentalLineVisualizer.

virtual bool makVrv::DtEnvironmentalLineVisualizer::fixedWidthSizing ( ) const
virtual

Returns whether or not this line will be sized with fixed width sizing.

virtual void makVrv::DtEnvironmentalLineVisualizer::setSolid ( bool  )
protectedvirtual

Set whether the object created by this visualizer can be ground- clamped to.

virtual void makVrv::DtEnvironmentalLineVisualizer::updateArrowFrequencyForSegment ( int  )
protectedvirtual

Updates the arrow segments given the current arrow segment frequency for the given segment.

virtual void makVrv::DtEnvironmentalLineVisualizer::setInitialValuesFromVisualizerDefinition ( )
overrideprotectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::Dt3DEnvironmentalLineVisualizer, makVrv::Dt3DAirCorridorLineVisualizer, and makVrv::Dt2DAirCorridorLineVisualizer.

virtual void makVrv::DtEnvironmentalLineVisualizer::connectToListenerSignals ( )
overrideprotectedvirtual

Connect the visualizer to the listeners signals Called by DtStateVisualizer::initialize()

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::Dt3DEnvironmentalLineVisualizer.

Member Data Documentation

DtTacticalGraphicStateListener* makVrv::DtEnvironmentalLineVisualizer::myLineListener
protected
DtEnvironmentalStateListener::VertexList makVrv::DtEnvironmentalLineVisualizer::myVertices
protected
DtVector makVrv::DtEnvironmentalLineVisualizer::myPointOffset
protected
float makVrv::DtEnvironmentalLineVisualizer::myDefaultColor[4]
protected
float makVrv::DtEnvironmentalLineVisualizer::myColor[4]
protected
float makVrv::DtEnvironmentalLineVisualizer::mySelectedColor[4]
protected
vrvTacticalGraphicUtilities::ArrowStyle makVrv::DtEnvironmentalLineVisualizer::myArrowStyle
protected
vrvTacticalGraphicUtilities::ArrowHeadPlacement makVrv::DtEnvironmentalLineVisualizer::myArrowHeadPlacement
protected
vrvTacticalGraphicUtilities::LineStyle makVrv::DtEnvironmentalLineVisualizer::myLineStyle
protected
double makVrv::DtEnvironmentalLineVisualizer::myArrowSize
protected
unsigned short makVrv::DtEnvironmentalLineVisualizer::myLineStipple
protected
bool makVrv::DtEnvironmentalLineVisualizer::myFixedWidthSizing
protected
bool makVrv::DtEnvironmentalLineVisualizer::mySolid
protected
int makVrv::DtEnvironmentalLineVisualizer::myPixelLineWidth
protected
The documentation for this class was generated from the following file:
Document ID: Generated on Mon Jun 20 00:38:30 EDT 2022 from SVN revision 244029
Copyright © 2005-2021 MAK Technologies. All Rights Reserved (www.mak.com)
