A visualizer for displaying a Image (Bitmap) Symbology Icon. The visualizer stores a map by integer of which image to display. If no image identifier is supplied, the first available image in the map is displayed.

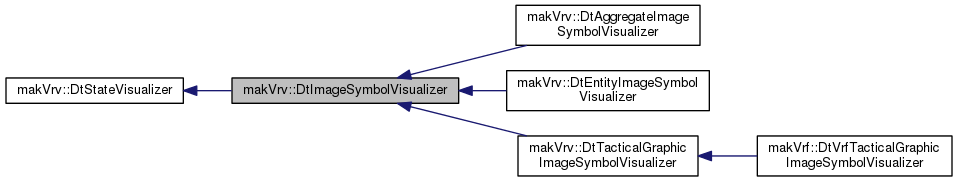

Inheritance diagram for makVrv::DtImageSymbolVisualizer:

[legend]

Public Member Functions
	DtImageSymbolVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

	DtImageSymbolVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObject, int modelSet)

virtual	~DtImageSymbolVisualizer ()

	DtImageSymbolVisualizer ()=delete

	DtImageSymbolVisualizer (const DtImageSymbolVisualizer &)=delete

DtImageSymbolVisualizer &	operator= (const DtImageSymbolVisualizer &)=delete

virtual void	initialize () override

virtual void	setModelDefinitionForAgents ()

virtual void	slot_setSelected (bool) override

virtual void	setFixedIconScalingEnabled (bool fixedScalingEnabled)

void	setScale (float scale)

virtual void	setAltitudeSpecificConfigurations (const makArchives::DtDynamicScaleConfigurationCollection &collection)

virtual void	setImageSymbol (int)

virtual int	imageSymbol () const

virtual void	setPickable (bool b)

virtual void	setImageSymbolMap (const DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap &)

const DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap &	imageSymbolMap () const

virtual void	setImageSize (int x, int y)

void	getImageSize (int &x, int &y)

virtual void	setDestroyed (bool)

bool	destroyed () const

virtual void	setDestroyedModel (const std::string &)

const std::string &	destroyedModel () const

virtual void	rotateSymbolToHeading (double)

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, int modelSet)

	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, int modelSet)

virtual	~DtStateVisualizer ()

virtual DtObserverMode::ModelSets	modelSet ()

virtual const TypeInfo &	typeInfo () const =0

virtual void	setParent (DtStateVisualizer *)

virtual void	setSceneObjectAgent (DtSceneObjectAgent *sceneObject)

virtual const DtStateVisualizer *	parent () const

void	setModelDefinition (const std::string &definition)

const std::string &	modelDefinition () const

virtual void	implementVisibility (bool visible)

void	setName (const std::string &)

const std::string &	name () const

virtual bool	pickable () const

virtual void	setSceneObjectID (DtUniqueID id)

virtual DtUniqueID	sceneObjectID () const

int	visualizerType () const

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener &	listener ()

const DtStateListener &	listener () const

DtBaseConnection &	simulation ()

void	setDistribute (bool b)

bool	distribute () const

virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Protected Member Functions
virtual DtObjectTypeStateListener &	objectTypeStateListener ()

virtual void	setHasMouse (bool hasMouse)

virtual void	createModelAgents ()

virtual void	destroyModelAgents ()

virtual void	update ()

virtual DtUnicode	imageSymbolDefinition (int) const

virtual void	connectToListenerSignals () override

virtual void	setInitialValuesFromVisualizerDefinition () override

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	makeVisible ()

virtual bool	isVisible () const

template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
DtProjectedWidgetModelAgent *	myProjectIconPosition

DtWidgetAgent *	myIcon

DtWidgetInstanceSignaler *	myIconSignaler

DtWidgetAgent *	mySelectedIcon

bool	myHasMouse

float	myScale

int	myImageSymbol

DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap	myImageSymbolMap

unsigned int	myIconGroup

unsigned int	myDestroyedIconGroup

int	mySizeX

int	mySizeY

DtWidgetAgent *	myDestroyedIcon

bool	myDestroyed

std::string	myDestroyedModel

bool	myFixedScalingEnabled

makArchives::DtDynamicScaleConfigurationCollection	myLabelScalesByMinimumAltitude

DtObjectTypeStateListener *	myObjectTypeStateListener

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	mySceneObjectID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

int	myModelSet

int	myVisualizerType

bool	myPickable

bool	myVisible

const DtVisualizerDefinition *	myVisualizerDefinition

DtStateVisualizer *	myParent

DtSceneObjectAgent *	mySceneObjectAgent

bool	myInitialInitializeDone

ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }

Public Attributes inherited from makVrv::DtStateVisualizer
boost::signalslib::signal < void(DtStateVisualizer , DtStateVisualizer , DtStateVisualizer *)>	signal_reparented

Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::DtImageSymbolVisualizer::DtImageSymbolVisualizer	(	DtBaseConnection &	connection,
		DtStateListener &	listener,
		int	modelSet
	)

CTOR.

makVrv::DtImageSymbolVisualizer::DtImageSymbolVisualizer	(	DtBaseConnection &	connection,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		int	modelSet
	)

CTOR.

virtual makVrv::DtImageSymbolVisualizer::~DtImageSymbolVisualizer ( )

virtual

DTOR.

makVrv::DtImageSymbolVisualizer::DtImageSymbolVisualizer ( )

delete

not allowed - default constructor

makVrv::DtImageSymbolVisualizer::DtImageSymbolVisualizer ( const DtImageSymbolVisualizer & )

delete

not allowed - copy constructor

Member Function Documentation

DtImageSymbolVisualizer& makVrv::DtImageSymbolVisualizer::operator= ( const DtImageSymbolVisualizer & )

delete

not allowed = equals operator

virtual void makVrv::DtImageSymbolVisualizer::initialize ( )

overridevirtual

Initialize the visualizer.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtAggregateImageSymbolVisualizer, makVrv::DtEntityImageSymbolVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, and makVrf::DtVrfTacticalGraphicImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::setModelDefinitionForAgents ( )

virtual

Sets the model definition of the agents.

Implements makVrv::DtStateVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::slot_setSelected ( bool )

overridevirtual

Sets whether or not the symbol is selected. Connected to DtStateListener's signal_objectSelectionChanged signal.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::setFixedIconScalingEnabled ( bool fixedScalingEnabled )

virtual

Set whether or not fixed icon scaling will be used. If fixed icon scaling is NOT used, then icons will be dynamically scaled based on the altitude of the observer for the channel rendering the icon.

void makVrv::DtImageSymbolVisualizer::setScale ( float scale )

Sets scale of the item relative to the default size This is only used if setFixedIconScalingEnabled(true).

virtual void makVrv::DtImageSymbolVisualizer::setAltitudeSpecificConfigurations ( const makArchives::DtDynamicScaleConfigurationCollection & collection )

virtual

Set the altitude-specific scale values to use for this visualizer.

virtual void makVrv::DtImageSymbolVisualizer::setImageSymbol ( int )

virtual

Sets the image to display.

virtual int makVrv::DtImageSymbolVisualizer::imageSymbol ( ) const

virtual

Returns the image symbol to display.

virtual void makVrv::DtImageSymbolVisualizer::setPickable ( bool b )

virtual

Sets whether or not the item is selectable.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::setImageSymbolMap ( const DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap & )

virtual

Sets the integer to model definition map of this visualizer.

const DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap& makVrv::DtImageSymbolVisualizer::imageSymbolMap ( ) const

Returns the map.

virtual void makVrv::DtImageSymbolVisualizer::setImageSize	(	int	x,
		int	y
	)

virtual

Sets the size of the image if scaling is 1.0.

void makVrv::DtImageSymbolVisualizer::getImageSize	(	int &	x,
		int &	y
	)

Returns the current size of the image if scale is 1.0.

virtual void makVrv::DtImageSymbolVisualizer::setDestroyed ( bool )

virtual

Sets whether or not this item is destroyed. If it is the destroyed model definition will be displayed on top of the icon.

bool makVrv::DtImageSymbolVisualizer::destroyed ( ) const

inline

Returns whether or not this object is destroyed.

virtual void makVrv::DtImageSymbolVisualizer::setDestroyedModel ( const std::string & )

virtual

Sets the model definition to display when item is destroyed.

const std::string& makVrv::DtImageSymbolVisualizer::destroyedModel ( ) const

inline

Returns the model used for the destroyed image.

virtual void makVrv::DtImageSymbolVisualizer::rotateSymbolToHeading ( double )

virtual

Rotates the object to the given heading as indicated by the radians contents of heading.

virtual DtObjectTypeStateListener& makVrv::DtImageSymbolVisualizer::objectTypeStateListener ( )

inlineprotectedvirtual

virtual void makVrv::DtImageSymbolVisualizer::setHasMouse ( bool hasMouse )

protectedvirtual

Sets whether or not the mouse is on this item. If so will show as "highlighted".

virtual void makVrv::DtImageSymbolVisualizer::createModelAgents ( )

protectedvirtual

Creates the agents used to display this model.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtTacticalGraphicImageSymbolVisualizer, and makVrv::DtAggregateImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::destroyModelAgents ( )

protectedvirtual

Destroys agents used to create this mode.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtTacticalGraphicImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::update ( )

protectedvirtual

Updates the model with items to display.

virtual DtUnicode makVrv::DtImageSymbolVisualizer::imageSymbolDefinition ( int ) const

protectedvirtual

Given an integer, return the image symbol definition for that. If it does not exist, return the first element.

Reimplemented in makVrf::DtVrfTacticalGraphicImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::connectToListenerSignals ( )

overrideprotectedvirtual

Connect the visualizer to the listeners signals Called by DtStateVisualizer::initialize()

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtTacticalGraphicImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::setInitialValuesFromVisualizerDefinition ( )

overrideprotectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtTacticalGraphicImageSymbolVisualizer.

Member Data Documentation

DtProjectedWidgetModelAgent* makVrv::DtImageSymbolVisualizer::myProjectIconPosition

protected

DtWidgetAgent* makVrv::DtImageSymbolVisualizer::myIcon

protected

DtWidgetInstanceSignaler* makVrv::DtImageSymbolVisualizer::myIconSignaler

protected

DtWidgetAgent* makVrv::DtImageSymbolVisualizer::mySelectedIcon

protected

bool makVrv::DtImageSymbolVisualizer::myHasMouse

protected

float makVrv::DtImageSymbolVisualizer::myScale

protected

int makVrv::DtImageSymbolVisualizer::myImageSymbol

protected

DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap makVrv::DtImageSymbolVisualizer::myImageSymbolMap

protected

unsigned int makVrv::DtImageSymbolVisualizer::myIconGroup

protected

unsigned int makVrv::DtImageSymbolVisualizer::myDestroyedIconGroup

protected

int makVrv::DtImageSymbolVisualizer::mySizeX

protected

int makVrv::DtImageSymbolVisualizer::mySizeY

protected

DtWidgetAgent* makVrv::DtImageSymbolVisualizer::myDestroyedIcon

protected

bool makVrv::DtImageSymbolVisualizer::myDestroyed

protected

std::string makVrv::DtImageSymbolVisualizer::myDestroyedModel

protected

bool makVrv::DtImageSymbolVisualizer::myFixedScalingEnabled

protected

makArchives::DtDynamicScaleConfigurationCollection makVrv::DtImageSymbolVisualizer::myLabelScalesByMinimumAltitude

protected

DtObjectTypeStateListener* makVrv::DtImageSymbolVisualizer::myObjectTypeStateListener

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtImageSymbolVisualizer.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
