makVrv::DtIntervisibilitySettingsManager Class Reference
vrvCore

This manager will manage settings for intervisibility objects.

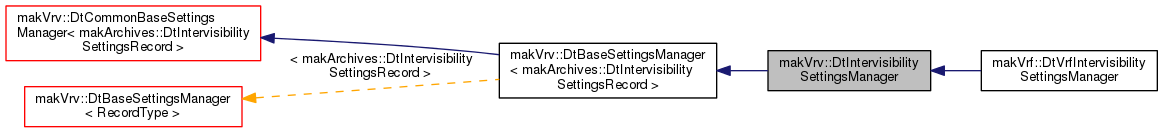

Inheritance diagram for makVrv::DtIntervisibilitySettingsManager:
Inheritance graph
[legend]

Public Member Functions

virtual ~DtIntervisibilitySettingsManager ()

Setters/getters for settings
void setIntervisibilityEnabled (bool enabled)

bool intervisibilityEnabled () const

void setLeftClickMakesObjectsPermanent (bool enabled)

bool leftClickMakesObjectsPermanent () const

void setOriginIntervisibilityElevation (double height)

double originIntervisibilityElevation () const

void setEndPointIntervisibilityElevation (double height)

double endPointIntervisibilityElevation () const

void setFanModeSamplingRate (double radAngle)

double fanModeSamplingRate () const

void setEntityFanUpdateRate (double interval)

double entityFanUpdateRate () const

void setHatLinesEnabled (bool hatEnabled)

bool hatLinesEnabled () const

void setHatLinesOnSelectionOnly (bool selOnly)

bool hatLinesOnSelectionOnly () const

void setVisibleColor (float r, float g, float b, float a)

void visibleColor (float &r, float &g, float &b, float &a) const

void setBlockedColor (float r, float g, float b, float a)

void blockedColor (float &r, float &g, float &b, float &a) const

void setCircleColor (float r, float g, float b, float a)

void circleColor (float &r, float &g, float &b, float &a) const

void setRangeInfoLabelsEnabled (bool enabled)

bool rangeInfoLabelsEnabled () const

void setRangeInfoLabelBackgroundColor (float r, float g, float b)

void rangeInfoLabelBackgroundColor (float &r, float &g, float &b)

void setRangeInfoLabelBackgroundOpacity (float opacity)

float rangeInfoLabelBackgroundOpacity () const

void setRangeInfoAltChangeFieldEnabled (bool enabled)

bool rangeInfoAltChangeFieldEnabled () const

void setRangeInfoLocationFieldEnabled (bool enabled)

bool rangeInfoLocationFieldEnabled () const

void setRangeInfoHeadingFieldEnabled (bool enabled)

bool rangeInfoHeadingFieldEnabled () const

void setRangeInfoRangeFieldEnabled (bool enabled)

bool rangeInfoRangeFieldEnabled () const

Archiving methods
virtual void setFromRecord (const makArchives::DtIntervisibilitySettingsRecord &rec)

virtual void getRecord (makArchives::DtIntervisibilitySettingsRecord &rec) const

Methods for checking if object (object type) is attachable.
virtual bool isAttachableObjectType (DtElementEntry::ObjectType t) const

virtual bool isAttachableObjectType (DtUniqueID elementId) const

- Public Member Functions inherited from makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
 DtBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)

virtual ~DtBaseSettingsManager ()

virtual void initializeBackup ()

- Public Member Functions inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
 DtCommonBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)

virtual ~DtCommonBaseSettingsManager ()

virtual void autoSaveIfNecessary ()

virtual void setAutoSave (bool doit)

virtual bool autoSave () const

virtual void setUseDefaultSettingsRecord (bool useit)

virtual bool useDefaultSettingsRecord () const

virtual DtDeSettings * settings ()

virtual const DtDeSettings * settings () const

virtual DtSettingsBackup * settingsBackup ()

virtual const DtSettingsBackup * settingsBackup () const

virtual void loadDefaults ()

virtual void saveDefaultSettings ()

virtual void loadDefaultSettings (bool loadOnlyFactorySettings)

virtual void importSettings (const std::string &filePath)

virtual void exportSettings (const std::string &filePath) const

virtual void getSplitRecord (std::vector< makArchives::DtIntervisibilitySettingsRecord > &rec, std::vector< std::string > &fileNames)

virtual void addRecords (makArchives::DtIntervisibilitySettingsRecord &rec, makArchives::DtIntervisibilitySettingsRecord &combinedRec)

- Public Member Functions inherited from makVrv::DtVirtualBaseClass
 DtVirtualBaseClass ()

virtual ~DtVirtualBaseClass ()


Static Public Member Functions

static
DtIntervisibilitySettingsManager & 		instance (DtDe &de)


Public Attributes

Boost signals for changed settings
boost::signalslib::signal
< void(bool)> 		signal_intervisibilityEnabledSet

boost::signalslib::signal
< void(bool)> 		signal_leftClickMakesObjectsPermanentSet

boost::signalslib::signal
< void(double)> 		signal_originIntervisibilityElevationSet

boost::signalslib::signal
< void(double)> 		signal_endPointIntervisibilityElevationSet

boost::signalslib::signal
< void(double)> 		signal_fanModeSamplingRateSet

boost::signalslib::signal
< void(double)> 		signal_entityFanUpdateRateSet

boost::signalslib::signal
< void(bool)> 		signal_hatLinesEnabledSet

boost::signalslib::signal
< void(bool)> 		signal_hatLinesOnSelectionOnlySet

boost::signalslib::signal
< void(float r, float g, float
b, float a)> 		signal_visibleColorSet

boost::signalslib::signal
< void(float r, float g, float
b, float a)> 		signal_blockedColorSet

boost::signalslib::signal
< void(float r, float g, float
b, float a)> 		signal_circleColorSet

boost::signalslib::signal
< void(bool)> 		signal_rangeInfoLabelsEnabledSet

boost::signalslib::signal
< void(float r, float g, float
b, float a)> 		signal_rangeInfoBackgroundColorSet

boost::signalslib::signal
< void(bool)> 		signal_rangeInfoAltChangeFieldEnabledChanged

boost::signalslib::signal
< void(bool)> 		signal_rangeInfoLocationFieldEnabledChanged

boost::signalslib::signal
< void(bool)> 		signal_rangeInfoHeadingFieldEnabledChanged

boost::signalslib::signal
< void(bool)> 		signal_rangeInfoRangeFieldEnabledChanged


Protected Member Functions

 DtIntervisibilitySettingsManager (DtDe &de)


Protected Attributes

bool myIntervisibilityEnabled

bool myLeftClickMakesObjectsPermanent

bool myHatLinesEnabled

bool myHatLinesOnSelectionOnly

double myOriginIntervisibilityElevation

double myEndPointIntervisibilityElevation

double myFanModeSamplingRate

double myEntityFanUpdateRate

float myVisibleColor [4]

float myBlockedColor [4]

float myCircleColor [4]

bool myRangeInfoLabelsEnabled

float myRangeInfoBackgroundColor [4]

bool myRangeInfoAltChangeFieldEnabled

bool myRangeInfoLocationFieldEnabled

bool myRangeInfoHeadingFieldEnabled

bool myRangeInfoRangeFieldEnabled

- Protected Attributes inherited from makVrv::DtCommonBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
DtSignalConnectionManager myConnections

std::string myName

std::string myExtension

std::string myDisplayName

bool myUseDefaultSettingsRecordFlag

bool myAutoSaveFlag

DtSettingsBackup * mySettingsBackup

DtDe & myDe


Friends

template<typename ManagerClass >
ManagerClass & defaultManagerInstanceFunction (DtDe &, bool)

template<typename ManagerClass >
void defaultManagerRegisterInstanceFunction (DtDe &, ManagerClass *)


Additional Inherited Members

- Protected Types inherited from makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >
typedef DtRecordSettingsBackup
< DtBaseSettingsManager
< makArchives::DtIntervisibilitySettingsRecord >
, makArchives::DtIntervisibilitySettingsRecord > 		RecordBackupType


Constructor & Destructor Documentation

virtual makVrv::DtIntervisibilitySettingsManager::~DtIntervisibilitySettingsManager ( )
virtual

DTOR.

makVrv::DtIntervisibilitySettingsManager::DtIntervisibilitySettingsManager ( DtDe &  de)
protected

Protected CTOR ( use instance(..) ).

Member Function Documentation

static DtIntervisibilitySettingsManager& makVrv::DtIntervisibilitySettingsManager::instance ( DtDe &  de)
static

Get an instance of the settings manager.

void makVrv::DtIntervisibilitySettingsManager::setIntervisibilityEnabled ( bool  enabled)

Sets whether intervisibility objects are globally seen/hidden.

bool makVrv::DtIntervisibilitySettingsManager::intervisibilityEnabled ( ) const

Gets whether intervisibility objects are globally seen/hidden.

void makVrv::DtIntervisibilitySettingsManager::setLeftClickMakesObjectsPermanent ( bool  enabled)

Sets whether left-clicking places object or starts a new one.

bool makVrv::DtIntervisibilitySettingsManager::leftClickMakesObjectsPermanent ( ) const

Gets whether left-clicking places object or starts a new one.

void makVrv::DtIntervisibilitySettingsManager::setOriginIntervisibilityElevation ( double  height)

Sets the distance above the origin to place the intervisibility line (in meters).

double makVrv::DtIntervisibilitySettingsManager::originIntervisibilityElevation ( ) const

Gets the distance above the origin the intervisibility line is placed (in meters).

void makVrv::DtIntervisibilitySettingsManager::setEndPointIntervisibilityElevation ( double  height)

Sets the distance above the end point to place the intervisibility line (in meters).

double makVrv::DtIntervisibilitySettingsManager::endPointIntervisibilityElevation ( ) const

Gets the distance above the end point the intervisibility line is placed (in meters).

void makVrv::DtIntervisibilitySettingsManager::setFanModeSamplingRate ( double  radAngle)

Sets the angle between fan mode samples (in radians).

double makVrv::DtIntervisibilitySettingsManager::fanModeSamplingRate ( ) const

Gets the angle between fan mode samples (in radians).

void makVrv::DtIntervisibilitySettingsManager::setEntityFanUpdateRate ( double  interval)

Sets the time between entity fan mode updates (in seconds). Zero (0) default means check as fast as possible.

double makVrv::DtIntervisibilitySettingsManager::entityFanUpdateRate ( ) const

Gets the time between entity fan mode updates (in seconds). Zero (0) default means check as fast as possible.

void makVrv::DtIntervisibilitySettingsManager::setHatLinesEnabled ( bool  hatEnabled)

Sets whether height above terrain lines are enabled.

bool makVrv::DtIntervisibilitySettingsManager::hatLinesEnabled ( ) const

Gets whether height above terrain lines are enabled.

void makVrv::DtIntervisibilitySettingsManager::setHatLinesOnSelectionOnly ( bool  selOnly)

Sets whether HAT lines are shown only when the object is selected.

bool makVrv::DtIntervisibilitySettingsManager::hatLinesOnSelectionOnly ( ) const

Gets whether HAT lines are shown only when the object is selected.

void makVrv::DtIntervisibilitySettingsManager::setVisibleColor ( float  r,
float  g,
float  b,
float  a
)

Sets the color of the visible portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::visibleColor ( float &  r,
float &  g,
float &  b,
float &  a
) const

Gets the color of the visible portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::setBlockedColor ( float  r,
float  g,
float  b,
float  a
)

Sets the color of the blocked portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::blockedColor ( float &  r,
float &  g,
float &  b,
float &  a
) const

Gets the color of the blocked portion of the intervisibility line.

void makVrv::DtIntervisibilitySettingsManager::setCircleColor ( float  r,
float  g,
float  b,
float  a
)

Sets the color of the circle outline of a fan, grid line or entity intervisibility.

void makVrv::DtIntervisibilitySettingsManager::circleColor ( float &  r,
float &  g,
float &  b,
float &  a
) const

Gets the color of the circle outline of a fan, grid line or entity intervisibility.

void makVrv::DtIntervisibilitySettingsManager::setRangeInfoLabelsEnabled ( bool  enabled)

Sets whether intervisibility lines display range ruler information.

bool makVrv::DtIntervisibilitySettingsManager::rangeInfoLabelsEnabled ( ) const

Gets whether intervisibility lines display range ruler information.

void makVrv::DtIntervisibilitySettingsManager::setRangeInfoLabelBackgroundColor ( float  r,
float  g,
float  b
)

Sets the background color for the range info labels.

void makVrv::DtIntervisibilitySettingsManager::rangeInfoLabelBackgroundColor ( float &  r,
float &  g,
float &  b
)

Gets the background color for the range info labels.

void makVrv::DtIntervisibilitySettingsManager::setRangeInfoLabelBackgroundOpacity ( float  opacity)

Sets the opacity/transparency level for the range info label backgrounds.

float makVrv::DtIntervisibilitySettingsManager::rangeInfoLabelBackgroundOpacity ( ) const

Gets the opacity/transparency level for the range info label backgrounds.

void makVrv::DtIntervisibilitySettingsManager::setRangeInfoAltChangeFieldEnabled ( bool  enabled)

Sets whether the range info's altitude change field is enabled.

bool makVrv::DtIntervisibilitySettingsManager::rangeInfoAltChangeFieldEnabled ( ) const

Gets whether the range info's altitude change field is enabled.

void makVrv::DtIntervisibilitySettingsManager::setRangeInfoLocationFieldEnabled ( bool  enabled)

Sets whether the range info's location field is enabled.

bool makVrv::DtIntervisibilitySettingsManager::rangeInfoLocationFieldEnabled ( ) const

Gets whether the range info's location field is enabled.

void makVrv::DtIntervisibilitySettingsManager::setRangeInfoHeadingFieldEnabled ( bool  enabled)

Sets whether the range info's heading field is enabled.

bool makVrv::DtIntervisibilitySettingsManager::rangeInfoHeadingFieldEnabled ( ) const

Gets whether the range info's heading field is enabled.

void makVrv::DtIntervisibilitySettingsManager::setRangeInfoRangeFieldEnabled ( bool  enabled)

Sets whether the range info's range field is enabled.

bool makVrv::DtIntervisibilitySettingsManager::rangeInfoRangeFieldEnabled ( ) const

Gets whether the range info's range field is enabled.

virtual void makVrv::DtIntervisibilitySettingsManager::setFromRecord ( const makArchives::DtIntervisibilitySettingsRecord &  rec)
virtual

Use the settings from the given settings record.

Implements makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >.

virtual void makVrv::DtIntervisibilitySettingsManager::getRecord ( makArchives::DtIntervisibilitySettingsRecord &  rec) const
virtual

Populate the given record with the current settings.

Implements makVrv::DtBaseSettingsManager< makArchives::DtIntervisibilitySettingsRecord >.

virtual bool makVrv::DtIntervisibilitySettingsManager::isAttachableObjectType ( DtElementEntry::ObjectType  t) const
virtual

Checks whether the given object type is one that can be attached to.

virtual bool makVrv::DtIntervisibilitySettingsManager::isAttachableObjectType ( DtUniqueID  elementId) const
virtual

Checks whether the entity with the given element id can be attached to.

Reimplemented in makVrf::DtVrfIntervisibilitySettingsManager.

Friends And Related Function Documentation

template<typename ManagerClass >
ManagerClass& defaultManagerInstanceFunction ( DtDe &  de,
bool  allowedInSlave
)
friend

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

class Manager
{
public:
static Manager& instance(DtDe& de);
void loadDefaults();
protected:
template <typename ManagerClass>
friend ManagerClass& defaultManagerInstanceFunction(DtDe& de, bool);
template <typename ManagerClass>
friend void defaultManagerRegisterInstanceFunction(DtDe& de, ManagerClass* mgr)
Manager(DtDe&);
DtSignalConnectionManager myConnections;
};

Then simply in the implementation of instance call defaultManagerInstanceFunction with the de object and return the return value.

Manager& Manager::instance(DtDe& de)
{
return defaultManagerInstanceFunction<Manager>(de);
}
template<typename ManagerClass >
void defaultManagerRegisterInstanceFunction ( DtDe &  de,
ManagerClass *  mgr
)
friend

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retreival/creation.

Befriend the manager instance functions for instance retrieval/creation.

static void Manager::registerInstance(DtDe& de, Manager* mgr)
{
defaultManagerRegisterInstanceFunction(de,mgr);
}
...else where call.
// Assuming class NewManager : public Manager
Manager::registerInstance(de,new NewManager(de));

Member Data Documentation

boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_intervisibilityEnabledSet
boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_leftClickMakesObjectsPermanentSet
boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_originIntervisibilityElevationSet
boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_endPointIntervisibilityElevationSet
boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_fanModeSamplingRateSet
boost::signalslib::signal<void (double)> makVrv::DtIntervisibilitySettingsManager::signal_entityFanUpdateRateSet
boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_hatLinesEnabledSet
boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_hatLinesOnSelectionOnlySet
boost::signalslib::signal<void (float r, float g, float b, float a)> makVrv::DtIntervisibilitySettingsManager::signal_visibleColorSet
boost::signalslib::signal<void (float r, float g, float b, float a)> makVrv::DtIntervisibilitySettingsManager::signal_blockedColorSet
boost::signalslib::signal<void (float r, float g, float b, float a)> makVrv::DtIntervisibilitySettingsManager::signal_circleColorSet
boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_rangeInfoLabelsEnabledSet
boost::signalslib::signal<void (float r, float g, float b, float a)> makVrv::DtIntervisibilitySettingsManager::signal_rangeInfoBackgroundColorSet
boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_rangeInfoAltChangeFieldEnabledChanged
boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_rangeInfoLocationFieldEnabledChanged
boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_rangeInfoHeadingFieldEnabledChanged
boost::signalslib::signal<void (bool)> makVrv::DtIntervisibilitySettingsManager::signal_rangeInfoRangeFieldEnabledChanged
bool makVrv::DtIntervisibilitySettingsManager::myIntervisibilityEnabled
protected
bool makVrv::DtIntervisibilitySettingsManager::myLeftClickMakesObjectsPermanent
protected
bool makVrv::DtIntervisibilitySettingsManager::myHatLinesEnabled
protected
bool makVrv::DtIntervisibilitySettingsManager::myHatLinesOnSelectionOnly
protected
double makVrv::DtIntervisibilitySettingsManager::myOriginIntervisibilityElevation
protected
double makVrv::DtIntervisibilitySettingsManager::myEndPointIntervisibilityElevation
protected
double makVrv::DtIntervisibilitySettingsManager::myFanModeSamplingRate
protected
double makVrv::DtIntervisibilitySettingsManager::myEntityFanUpdateRate
protected
float makVrv::DtIntervisibilitySettingsManager::myVisibleColor[4]
protected
float makVrv::DtIntervisibilitySettingsManager::myBlockedColor[4]
protected
float makVrv::DtIntervisibilitySettingsManager::myCircleColor[4]
protected
bool makVrv::DtIntervisibilitySettingsManager::myRangeInfoLabelsEnabled
protected
float makVrv::DtIntervisibilitySettingsManager::myRangeInfoBackgroundColor[4]
protected
bool makVrv::DtIntervisibilitySettingsManager::myRangeInfoAltChangeFieldEnabled
protected
bool makVrv::DtIntervisibilitySettingsManager::myRangeInfoLocationFieldEnabled
protected
bool makVrv::DtIntervisibilitySettingsManager::myRangeInfoHeadingFieldEnabled
protected
bool makVrv::DtIntervisibilitySettingsManager::myRangeInfoRangeFieldEnabled
protected
The documentation for this class was generated from the following file:
Document ID: Generated on Mon Jun 20 00:38:30 EDT 2022 from SVN revision 244029
Copyright © 2005-2021 MAK Technologies. All Rights Reserved (www.mak.com)
