makVrv::DtOsgChannel Class Reference

This class provides the OSG-specific implementation of a DtChannel.

Examples

• exampleChannelPlugin
• exampleCreator

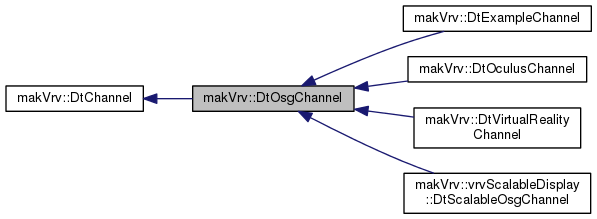

Inheritance diagram for makVrv::DtOsgChannel:

Public Member Functions
virtual	~DtOsgChannel ()
virtual void	setSensorName (const std::string &sensorName)
virtual void	setClearColor (float r, float g, float b, float a)
virtual void	setWindow (DtWindow *view)
virtual const DtWindow *	window () const
virtual void	setViewport (int x, int y, int width, int height)
virtual void	clearFrameBufferIfChanged ()
virtual void	getViewport (int &x, int &y, int &width, int &height) const
virtual void	setCameraPosition (double x, double y, double z)
virtual void	setCameraOrientation (double psi, double theta, double phi)
virtual void	setCameraPositionAndOrientation (double x, double y, double z, double psi, double theta, double phi)
virtual void	setCameraPositionAndOrientation (osg::Vec3d &pos, osg::Quat &orient)
virtual void	getCameraPositionAndOrientation (osg::Vec3d &position, osg::Quat &rotation) const
virtual void	setChannelEnabled (bool enabled, bool partial) override
virtual bool	channelEnabled () const
virtual void	update ()
virtual void	connectToObserver ()
virtual osgViewer::View &	view ()
virtual DtCameraNode *	sceneCamera ()
virtual const DtCameraNode *	sceneCamera () const
virtual DtCameraNode *	rttCamera () const
virtual DtCameraNode *	activeMainCamera ()
virtual const DtCameraNode *	activeMainCamera () const
virtual DtCameraNode *	overlayCamera ()
virtual DtCameraNode *	normalizedOverlayCamera ()
virtual void	setRenderToTexture (bool enabled)
virtual void	setRenderToTextureFormat (int format, int sourceFormat, int sourceType)
virtual osg::ref_ptr < osg::Texture >	allocateRenderTexture (int width, int height) const
virtual osg::ref_ptr < osg::Texture >	getRenderTexture ()
virtual osg::ref_ptr < osg::Texture >	getOcculsionTexture ()
virtual osg::ref_ptr < osg::Texture >	getDepthTexture () const
virtual void	setDepthTextureUsesStencilBuffer (bool useStencil)
virtual bool	depthTextureUsesStencilBuffer () const
virtual void	setEnablePostProcessors (bool enable)
virtual bool	getEnablePostProcessors ()
virtual bool	useOldChannelOffsetCalcuation () const
virtual void	setUseOldChannelOffsetCalcuation (bool enable)
virtual bool	forceHdrLuminanceOverride ()
virtual void	setForceHdrLuminanceOverride (bool force)
virtual void	clearStateGraph (void)
virtual void	setEnableHdrPassthrough (bool flag)
virtual bool	enableHdrPassthrough ()
virtual void	setHdrOutputScale (float scale)
virtual float	hdrOutputScale ()
virtual void	screenCapture ()
virtual void	setOcclusionTextureEnabled (bool enabled)
virtual void	initOcclusionTexture ()
virtual void	updateCameraFrustumPlanes (std::vector< DtVector4< double > > &planes)
virtual void	updateAcquisitionBoxFrustumPlanes (const int &boxCenterX, const int &boxCenterY, const int &boxWidth, const int &boxHeight, std::vector< DtVector4< double > > &planes)
virtual void	setChannelSensor (DtOsgChannelSensor *extension)
virtual DtOsgChannelSensor *	findChannelSensor ()
virtual void	releaseResources (osg::State *gcState)
virtual void	updateShowTracksUniform (bool value)
Public Member Functions inherited from makVrv::DtChannel
virtual	~DtChannel ()
DtObserverObject *	findObserver () const
unsigned int	currentModelSet () const
const DtChannelConfiguration &	configuration () const
virtual void	setObserverName (const std::string &observerName)
virtual DtChannelConfiguration::ProjectionResizePolicy	projectionResizePolicy () const
std::string &	observerName ()

Protected Types
typedef std::map< int, DtChannelSpecificGroup * >	VisualTypeMap

Protected Member Functions
	DtOsgChannel (DtDe &de, DtOsgWindow *window, DtChannelConfiguration &config)
virtual void	makeObserverToCameraMatrix (osg::Vec3d &orient, osg::Matrixd &offsetObserverToCamera, osg::Matrixd &observerToCamera)
virtual void	makeObserverToCameraMatrix (osg::Quat &qObserverToWorld, osg::Matrixd &offsetObserverToCamera, osg::Matrixd &observerToCamera)
virtual void	calculateNearFar (double &zNear, double &zFar)
virtual bool	useAttachedForNearClip (double alt)
virtual double	calculateNearClip (double alt, double zFar)
virtual double	calculateFarClip (double alt)
virtual double	calculateNearClipMagClamp (double zNear, double zFar, float magLevel=2.)
virtual void	projectFor3D ()
virtual void	projectFor2D ()
virtual void	connectRttCameraToScene ()
virtual void	stopUsingModelSet (int modelSet)
virtual void	startUsingModelSet (int modelSet)
virtual void	slot_visualizerRootAdded (int modelSet, int visualType)
virtual void	slot_shadowsRemoved ()
virtual void	slot_observerModelSetChanged (DtObserverObject *observer, int modelSet)
virtual void	slot_observerSettingChanged (DtObserverObject *observer, int setting, bool value)
virtual void	slot_observerSettingRemoved (DtObserverObject *observer, int setting)
virtual void	slot_projectionChanged (DtObserverObject *observer, bool is2D)
virtual void	slot_windowConfigurationModified (const std::string &deName, const std::string &oldWindowName, const DtWindowConfiguration &config)
virtual void	slot_channelConfigurationModified (const std::string &deName, const std::string &windowName, const std::string &oldChannelName, const DtChannelConfiguration &channelConfig)
virtual void	slot_onCoordinateSystemChanged ()
virtual void	slot_paperMapEnabledChanged (bool setting)
virtual void	observerRemoved (const std::string &observerName)
virtual void	updateMultiSampleOverrideSetting ()
virtual void	getRenderTextureAttachmentInfo (unsigned int &level, unsigned int &face, unsigned int &sampleBuffers, unsigned int &samples)
virtual void	initializeRenderTextureColor ()
virtual void	initializeRenderTextureDepth ()
virtual void	initializeRttCameraDepth ()
virtual void	changedRttCameraFbo ()
virtual void	enableLighting (osg::ref_ptr< osg::Camera > camera, bool enable)
virtual void	calculateAndSetFocusPointDistance (double zNear, double zFar)
osgViewer::CompositeViewer *	getOrCreateViewer ()
virtual void	flipHorizontal (bool flip)
Initialization functions
virtual bool	initialize ()
Create and initialize cameras
virtual void	initializeNormalized2DCamera ()
virtual void	initialize2DCamera (int w, int h)
virtual void	initializeSceneCamera ()
virtual void	initializeRenderTexture ()
virtual void	initializeRTTCamera ()
virtual void	clearRttCamera ()
virtual void	recreateRTTCamera ()
Enables shadow casting for the channel object
virtual void	setShadowState (bool enable)
virtual void	addOverlayDrawablesToCameras ()
virtual void	initializeSignalConnections ()
Protected Member Functions inherited from makVrv::DtChannel
	DtChannel (DtDe &de, DtChannelConfiguration &)
virtual void	observerAdded (const std::string &observerName)

Protected Attributes
osg::ref_ptr< osgViewer::View >	myView
DtOsgWindow *	myOsgWindow
DtOsgObserverObject *	myOsgObserverObject
int	myRenderTextureFormat
int	myRenderTextureSourceFormat
int	myRenderTextureSourceType
bool	myRenderTextureFormatDirty
bool	mySensorInitialized
bool	myChannelEnabled
osg::ref_ptr< osg::Group >	myRoot
osg::ref_ptr< DtCameraNode >	mySceneCamera
osg::ref_ptr< DtCameraNode >	my2DCamera
osg::ref_ptr< DtCameraNode >	myNormalized2DCamera
osg::ref_ptr< osg::Texture >	myRenderTexture
osg::ref_ptr< osg::Texture >	myDepthTexture
osg::ref_ptr< osg::Texture >	myOcclusionTexture
bool	myDepthTextureUsesStencilBuffer
osg::ref_ptr< DtCameraNode >	myRTTCamera
bool	myIsUsingTrackballManipulator
bool	myCoordinateSystemChanged
bool	myRenderToTextureFlag
bool	myShadowState
PostProcessorEffectList	myPostProcessorEffects
osg::Node::NodeMask	myOldSceneCameraNodeMask
DtLight *	myFlashlight
bool	myEnablePostProcessors
bool	myUseOldChannelOffsetCalcuation
osg::ref_ptr < osg::DatabaseRequestHandlerCallback >	myDatabasePagerCallback
bool	myEnableHdrPassthrough
bool	myForceHdrLuminanceOverride
float	myHdrOutputScale
bool	myFrameBufferNeedsClear
bool	myLastMirrorMode
double	myPreviousClampedNearClipDistance
int	myLastNumMultiSamplesOverride
std::vector< osg::Vec3d >	myFocusPoints
int	myLastFocusPointAttempted
bool	myLastFocusPointAttemptedOsgEarthFailed
DtOsgChannelSensor *	myChannelSensor
bool	myShowTracksEnabled
DtIntersectorsContainer *	myIntersectors = nullptr
Protected Attributes inherited from makVrv::DtChannel
DtDe &	myDe
DtChannelConfiguration &	myChannelConfiguration
DtSignalConnectionManager	myConnections
int	myModelSet
DtObserverObject *	myObserver
std::string	myObserverName
DtChannelConfiguration::ProjectionResizePolicy	myProjectionResizePolicy

Static Protected Attributes
static int	theRunningCameraId

Private Member Functions
	DtOsgChannel ()
	DtOsgChannel (const DtOsgChannel &)
DtOsgChannel &	operator= (const DtOsgChannel &)

Friends
class	DtOsgChannelCreator

Gets the shadow quality for the channel object
typedef std::list< std::string >	PostProcessorEffectList
boost::signalslib::signal < void(int, int, int, int)>	signal_viewportChanged
virtual int	shadowQuality () const
virtual std::vector< const osg::Camera * >	getShadowableCameras () const
virtual void	setProjectionResizePolicy (DtChannelConfiguration::ProjectionResizePolicy policy)
virtual void	updateProjection ()
virtual void	projectionUnitsToFrustum (DtChannelConfiguration::ProjectionUnits units, double &left, double zNear, double &right, double &top, double &bottom)
virtual void	projectionUnitsToFrustumWithZoomAdjustment (DtChannelConfiguration::ProjectionUnits units, double &left, double zNear, double &right, double &top, double &bottom)
virtual void	connectChannelToScene ()
virtual bool	processMouseEvent (const DtMouseEvent &ev)
virtual bool	processKeyboardEvent (const DtKeyEvent &ev)
virtual void	getWorldToWindowMatrix (osg::Matrix &worldToWindowMatrix) const
virtual void	moveMouseToScreenLocation (float screenX, float screenY)
virtual void	projectToScreen (double dbX, double dbY, double dbZ, double &screenX, double &screenY, double &screenZ)
virtual void	projectToWorld (double screenX, double screenY, double &dbX, double &dbY, double &dbZ)
virtual DtIntersectorResult	findWorldIntersection (double screenX, double screenY, DtIntersector::IntersectProperties properties=DtIntersector::AllNodes, std::vector< DtElementID > *ignoreList=0)
virtual const std::string &	name ()
virtual void	addPostProcessEffect (const std::string &postProcessorEffect)
virtual void	removePostProcessEffect (const std::string &postProcessorEffect)
virtual void	set3DCullVisitorParams (DtOsgCullVisitorParameters *params)
virtual void	set2DCullVisitorParams (DtOsgCullVisitorParameters *params)

Member Typedef Documentation

typedef std::list<std::string> makVrv::DtOsgChannel::PostProcessorEffectList

Emitted when the channel's viewport changes dimensions.

Parameters are lower left x, y, width, and height, as in glViewport.

typedef std::map< int, DtChannelSpecificGroup*> makVrv::DtOsgChannel::VisualTypeMap

protected

Constructor & Destructor Documentation

makVrv::DtOsgChannel::DtOsgChannel ( DtDe &  de, DtOsgWindow *  window, DtChannelConfiguration &  config  )

protected

Called by Creator object.

Must call initialize() on an instance of this class before using it

virtual makVrv::DtOsgChannel::~DtOsgChannel ( )

virtual

DTOR.

makVrv::DtOsgChannel::DtOsgChannel ( )

private

Default Constructor not implemented.

makVrv::DtOsgChannel::DtOsgChannel ( const DtOsgChannel &  )

private

Copy Constructor not implemented - Copy not allowed.

Member Function Documentation

virtual bool makVrv::DtOsgChannel::initialize ( )

protectedvirtual

Initialize the channel.

Must call this on an instance of this class before using it. Returns false if initialization failed.

Reimplemented in makVrv::vrvScalableDisplay::DtScalableOsgChannel, makVrv::DtOculusChannel, makVrv::DtVirtualRealityChannel, and makVrv::DtExampleChannel.

virtual void makVrv::DtOsgChannel::initializeNormalized2DCamera ( )

protectedvirtual

virtual void makVrv::DtOsgChannel::initialize2DCamera ( int  w, int  h  )

protectedvirtual

virtual void makVrv::DtOsgChannel::initializeSceneCamera ( )

protectedvirtual

virtual void makVrv::DtOsgChannel::initializeRenderTexture ( )

protectedvirtual

virtual void makVrv::DtOsgChannel::initializeRTTCamera ( )

protectedvirtual

virtual void makVrv::DtOsgChannel::clearRttCamera ( )

protectedvirtual

virtual void makVrv::DtOsgChannel::recreateRTTCamera ( )

protectedvirtual

virtual void makVrv::DtOsgChannel::setShadowState ( bool  enable )

protectedvirtual

Add drawables to render overlays to their respective cameras.

virtual void makVrv::DtOsgChannel::addOverlayDrawablesToCameras ( )

protectedvirtual

Add drawables to render overlays to their respective cameras.

virtual void makVrv::DtOsgChannel::initializeSignalConnections ( )

protectedvirtual

Connect channel's slots to signals from other objects.

All signal connections are managed by the member signal connection manager and automatically disconnected when this object is deleted

Reimplemented in makVrv::DtVirtualRealityChannel.

virtual void makVrv::DtOsgChannel::setSensorName ( const std::string &  sensorName )

virtual

Set the name of the sensor to use.

The special name defined by DtChannelManager::UseObserverSensor causes the channel to use the sensor specified by its observer

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::setClearColor ( float  r, float  g, float  b, float  a  )

virtual

Set the clear color for the channel.

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::setWindow ( DtWindow *  view )

virtual

Set the window the channel is displayed on.

Exceptions

DtCorruptedState

if the window pointer is NULL or is not a DtOsgView

Implements makVrv::DtChannel.

virtual const DtWindow* makVrv::DtOsgChannel::window ( ) const

virtual

Get the window the channel is displayed on.

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::setViewport ( int  x, int  y, int  width, int  height  )

virtual

Set the viewport.

Implements makVrv::DtChannel.

Reimplemented in makVrv::DtVirtualRealityChannel.

virtual void makVrv::DtOsgChannel::clearFrameBufferIfChanged ( )

virtual

If something that would mess with the area of the frame buffer outside the current channel needs to be cleaned up then this fucntion will clear the framebuffer. This happens when the viewport changes sizes.

virtual void makVrv::DtOsgChannel::getViewport ( int &  x, int &  y, int &  width, int &  height  ) const

virtual

Get the viewport.

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::setCameraPosition ( double  x, double  y, double  z  )

virtual

Set the camera position.

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::setCameraOrientation ( double  psi, double  theta, double  phi  )

virtual

Set the camera orientation.

virtual void makVrv::DtOsgChannel::setCameraPositionAndOrientation ( double  x, double  y, double  z, double  psi, double  theta, double  phi  )

virtual

Set camera position and orientation. When you need to set Set camera position and orientation. When you need to set both, this a little more efficient than calling setCameraPosition and setCameraOrientation seperately.

virtual void makVrv::DtOsgChannel::setCameraPositionAndOrientation ( osg::Vec3d &  pos, osg::Quat &  orient  )

virtual

virtual void makVrv::DtOsgChannel::getCameraPositionAndOrientation ( osg::Vec3d &  position, osg::Quat &  rotation  ) const

virtual

Get the camera position and orientation.

virtual void makVrv::DtOsgChannel::setChannelEnabled ( bool  enabled, bool  partial  )

overridevirtual

Enable/Disable the channel. When a channel is disabled, it no longer renders or receives key/mouse events - unless partial is set to true. In that case, the channel osgViewer::View will not be removed from the compositeViewer (or added back on enable) which will cause it to receives key/mouse events. The reason for this option is that if you disable then re-enable a channel, needing to add the channel's View back into the compositeViewer, this may result in a significant stall (seconds). In the case of something like an IG use where there are no mouse or keyboard events involved, there is no need to pay this penalty; in that case, set partial to false when enabling and disabling.

Implements makVrv::DtChannel.

virtual bool makVrv::DtOsgChannel::channelEnabled ( ) const

virtual

Enable/Disable the channel. When a channel is disabled, it no longer renders or receives key/mouse events.

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::update ( )

virtual

Update a channel.

Implements makVrv::DtChannel.

Reimplemented in makVrv::DtOculusChannel.

virtual void makVrv::DtOsgChannel::connectToObserver ( )

virtual

Set up based on current observer parameters, such as modelSet and is2D.

Implements makVrv::DtChannel.

virtual osgViewer::View& makVrv::DtOsgChannel::view ( )

virtual

Window accessor.

virtual DtCameraNode* makVrv::DtOsgChannel::sceneCamera ( )

virtual

Accessor for the 3D camera.

virtual const DtCameraNode* makVrv::DtOsgChannel::sceneCamera ( ) const

virtual

Accessor for the 3D camera.

virtual DtCameraNode* makVrv::DtOsgChannel::rttCamera ( ) const

virtual

Accessor for RTT camera.

virtual DtCameraNode* makVrv::DtOsgChannel::activeMainCamera ( )

virtual

Accessor for which ever camera is currently the main render camera.

virtual const DtCameraNode* makVrv::DtOsgChannel::activeMainCamera ( ) const

virtual

Accessor for which ever camera is currently the main render camera.

virtual DtCameraNode* makVrv::DtOsgChannel::overlayCamera ( )

virtual

Accessor for the 2D overlay camera.

virtual DtCameraNode* makVrv::DtOsgChannel::normalizedOverlayCamera ( )

virtual

Accessor for the normalized 2D overlay camera.

virtual void makVrv::DtOsgChannel::setRenderToTexture ( bool  enabled )

virtual

Toggles whether this channel renders the scene to a texture.

Reimplemented in makVrv::DtVirtualRealityChannel.

virtual void makVrv::DtOsgChannel::setRenderToTextureFormat ( int  format, int  sourceFormat, int  sourceType  )

virtual

sets the render to texture format for the rttCamera, this was separated from the setRenderToTexture format function so that the SensorFX module could use HDR rendere to texture

virtual osg::ref_ptr<osg::Texture> makVrv::DtOsgChannel::allocateRenderTexture ( int  width, int  height  ) const

virtual

Allocate a new texture and set its size, allows custom channel (DtVirtualRealityChannel) to override.

Reimplemented in makVrv::DtVirtualRealityChannel.

virtual osg::ref_ptr<osg::Texture> makVrv::DtOsgChannel::getRenderTexture ( )

virtual

Gets the texture the scene was rendered to, if setRenderToTexture was enabled.

virtual osg::ref_ptr<osg::Texture> makVrv::DtOsgChannel::getOcculsionTexture ( )

virtual

virtual osg::ref_ptr<osg::Texture> makVrv::DtOsgChannel::getDepthTexture ( ) const

virtual

Returns the depth texture for this channel.

virtual void makVrv::DtOsgChannel::setDepthTextureUsesStencilBuffer ( bool  useStencil )

virtual

Set the depth texture in RTT mode to use a stencil buffer.

virtual bool makVrv::DtOsgChannel::depthTextureUsesStencilBuffer ( ) const

virtual

Return if the depth texture should be using stencil buffer.

virtual int makVrv::DtOsgChannel::shadowQuality ( ) const

virtual

Emitted when the channel's viewport changes dimensions.

Parameters are lower left x, y, width, and height, as in glViewport.

virtual std::vector<const osg::Camera*> makVrv::DtOsgChannel::getShadowableCameras ( ) const

virtual

Used by DtOsgShadowTechnique::setChannelShadowState to determine which cameras should have shadows. Returns the scene camera and RTT camera by default; if other cameras are added this should be overridden to add to the list.

Reimplemented in makVrv::DtOculusChannel.

virtual void makVrv::DtOsgChannel::setProjectionResizePolicy ( DtChannelConfiguration::ProjectionResizePolicy  policy )

virtual

Set the policy used to determine if and how the projection matrix should be adjusted on window resizes. */.

Reimplemented from makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::updateProjection ( )

virtual

This method is called when ever the channel's projection matrix needs to be updated.

Implements makVrv::DtChannel.

Reimplemented in makVrv::DtVirtualRealityChannel, makVrv::DtOculusChannel, and makVrv::vrvScalableDisplay::DtScalableOsgChannel.

virtual void makVrv::DtOsgChannel::projectionUnitsToFrustum ( DtChannelConfiguration::ProjectionUnits  units, double &  left, double  zNear, double &  right, double &  top, double &  bottom  )

virtual

Emitted when the channel's viewport changes dimensions.

Parameters are lower left x, y, width, and height, as in glViewport.

virtual void makVrv::DtOsgChannel::projectionUnitsToFrustumWithZoomAdjustment ( DtChannelConfiguration::ProjectionUnits  units, double &  left, double  zNear, double &  right, double &  top, double &  bottom  )

virtual

Emitted when the channel's viewport changes dimensions.

Parameters are lower left x, y, width, and height, as in glViewport.

virtual void makVrv::DtOsgChannel::connectChannelToScene ( )

virtual

Set the channel's scene graph root.

virtual bool makVrv::DtOsgChannel::processMouseEvent ( const DtMouseEvent &  ev )

virtual

attempt to handle a mouse event with the channel's overlay

Implements makVrv::DtChannel.

virtual bool makVrv::DtOsgChannel::processKeyboardEvent ( const DtKeyEvent &  ev )

virtual

attempt to handle a keyboard event with the channel's overlay

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::getWorldToWindowMatrix ( osg::Matrix &  worldToWindowMatrix ) const

virtual

Get the channel's dynamic overlay if any.

Get the camera's world to window matrix

virtual void makVrv::DtOsgChannel::moveMouseToScreenLocation ( float  screenX, float  screenY  )

virtual

Move the mouse pointer to the specified location in screen coordinates.

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::projectToScreen ( double  dbX, double  dbY, double  dbZ, double &  screenX, double &  screenY, double &  screenZ  )

virtual

Project a point from world coordinates to screen coordinates.

Returns screen coordinates in screenX, screenY, screenZ

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::projectToWorld ( double  screenX, double  screenY, double &  dbX, double &  dbY, double &  dbZ  )

virtual

project the local world coordinates given screen coordinates

Implements makVrv::DtChannel.

virtual DtIntersectorResult makVrv::DtOsgChannel::findWorldIntersection ( double  screenX, double  screenY, DtIntersector::IntersectProperties  properties = DtIntersector::AllNodes, std::vector< DtElementID > *  ignoreList = 0  )

virtual

project the non-normalized screen coordinates, i.e. in pixels, and intersects the world

Implements makVrv::DtChannel.

virtual const std::string& makVrv::DtOsgChannel::name ( )

virtual

Returns the channel's name as defined in its configuration.

virtual void makVrv::DtOsgChannel::addPostProcessEffect ( const std::string &  postProcessorEffect )

virtual

Add post processor effect names to be enabled during the DtOsgChannel update function The order of the effects is set in the DtPostProcessorFactory.

virtual void makVrv::DtOsgChannel::removePostProcessEffect ( const std::string &  postProcessorEffect )

virtual

Remove post processor effect names to be enabled during the DtOsgChannel update function The order of the effects is set in the DtPostProcessorFactory.

virtual void makVrv::DtOsgChannel::set3DCullVisitorParams ( DtOsgCullVisitorParameters *  params )

virtual

Emitted when the channel's viewport changes dimensions.

Parameters are lower left x, y, width, and height, as in glViewport.

virtual void makVrv::DtOsgChannel::set2DCullVisitorParams ( DtOsgCullVisitorParameters *  params )

virtual

Emitted when the channel's viewport changes dimensions.

Parameters are lower left x, y, width, and height, as in glViewport.

virtual void makVrv::DtOsgChannel::setEnablePostProcessors ( bool  enable )

virtual

virtual bool makVrv::DtOsgChannel::getEnablePostProcessors ( )

virtual

virtual bool makVrv::DtOsgChannel::useOldChannelOffsetCalcuation ( ) const

virtual

virtual void makVrv::DtOsgChannel::setUseOldChannelOffsetCalcuation ( bool  enable )

virtual

virtual bool makVrv::DtOsgChannel::forceHdrLuminanceOverride ( )

virtual

should the HDR post processor force the luminance scalar to 1.0 for this channel used for when the sky is turned off (XR mode)

virtual void makVrv::DtOsgChannel::setForceHdrLuminanceOverride ( bool  force )

virtual

virtual void makVrv::DtOsgChannel::clearStateGraph ( void  )

virtual

osg maintains an internal cache of StateSets in a StateGraph

virtual void makVrv::DtOsgChannel::setEnableHdrPassthrough ( bool  flag )

virtual

getter/setter for the whether the HDR post processor

virtual bool makVrv::DtOsgChannel::enableHdrPassthrough ( )

virtual

virtual void makVrv::DtOsgChannel::setHdrOutputScale ( float  scale )

virtual

set the hdr output scale to use with this channel it does not necessarily match the shared state when correlation is turned off

virtual float makVrv::DtOsgChannel::hdrOutputScale ( )

virtual

get the hdr output scale to use with this channel it does not necessarily match the shared state when correlation is turned off

virtual void makVrv::DtOsgChannel::screenCapture ( )

virtual

Takes Screen capture of the current channel.

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::setOcclusionTextureEnabled ( bool  enabled )

virtual

enable or disable the creation of an occlusion texture, used for some screen space effects

virtual void makVrv::DtOsgChannel::initOcclusionTexture ( )

virtual

init occlusion texture, used for some screen space effects

virtual void makVrv::DtOsgChannel::updateCameraFrustumPlanes ( std::vector< DtVector4< double > > &  planes )

virtual

Set the Frustum planes for this channel.

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::updateAcquisitionBoxFrustumPlanes ( const int &  boxCenterX, const int &  boxCenterY, const int &  boxWidth, const int &  boxHeight, std::vector< DtVector4< double > > &  planes  )

virtual

Set the frustum planes for a subset of this channel Scales the channels projection values based on the box's values that are passed in.

Implements makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::setChannelSensor ( DtOsgChannelSensor *  extension )

virtual

Set an extension.

virtual DtOsgChannelSensor* makVrv::DtOsgChannel::findChannelSensor ( )

inlinevirtual

virtual void makVrv::DtOsgChannel::releaseResources ( osg::State *  gcState )

virtual

called by the window manager when the last window is about to be destroyed in order to give the channel a chance to release it's resources before the final flush.

virtual void makVrv::DtOsgChannel::updateShowTracksUniform ( bool  value )

virtual

update the scene and rtt camera uniforms for the show tracks observer mode setting. This is used by the persistent tracks shader to hide/show the tracks.

virtual void makVrv::DtOsgChannel::makeObserverToCameraMatrix ( osg::Vec3d &  orient, osg::Matrixd &  offsetObserverToCamera, osg::Matrixd &  observerToCamera  )

protectedvirtual

Reimplemented in makVrv::vrvScalableDisplay::DtScalableOsgChannel.

virtual void makVrv::DtOsgChannel::makeObserverToCameraMatrix ( osg::Quat &  qObserverToWorld, osg::Matrixd &  offsetObserverToCamera, osg::Matrixd &  observerToCamera  )

protectedvirtual

Reimplemented in makVrv::vrvScalableDisplay::DtScalableOsgChannel.

virtual void makVrv::DtOsgChannel::calculateNearFar ( double &  zNear, double &  zFar  )

protectedvirtual

Calculates near/far depending on visual mode.

virtual bool makVrv::DtOsgChannel::useAttachedForNearClip ( double  alt )

protectedvirtual

When using dynamic clipping plane calculations, determine if channel's view is attached to an entity and that entity should be taken into consideration.

virtual double makVrv::DtOsgChannel::calculateNearClip ( double  alt, double  zFar  )

protectedvirtual

Calculate the dynamic near clipping plane.

virtual double makVrv::DtOsgChannel::calculateFarClip ( double  alt )

protectedvirtual

Calculate the dynamic far clipping plane.

virtual double makVrv::DtOsgChannel::calculateNearClipMagClamp ( double  zNear, double  zFar, float  magLevel = 2.  )

protectedvirtual

When the NEAR_FAR_DYNAMIC_CLAMP_NEAR_CLIP policy is enabled, this is called with the calculated near and far dynamic clipping planes. It returns the new (possibly clamped) near clipping plane. If the current view magnification is less than magLevel, then zNear is returned unchanged.

virtual void makVrv::DtOsgChannel::projectFor3D ( )

protectedvirtual

Projects frustum matrix for 3D viewing.

Reimplemented in makVrv::DtVirtualRealityChannel, and makVrv::DtOculusChannel.

virtual void makVrv::DtOsgChannel::projectFor2D ( )

protectedvirtual

Projects ortho matrix for 2D viewing.

Reimplemented in makVrv::DtVirtualRealityChannel.

virtual void makVrv::DtOsgChannel::connectRttCameraToScene ( )

protectedvirtual

This method is called by initializeRTTCamera and connectChannelToScene to handle the scene setup (including the overlay cameras) for the rtt camera.

virtual void makVrv::DtOsgChannel::stopUsingModelSet ( int  modelSet )

protectedvirtual

Stop rendering the specified model set on this channel.

Forwards calls to stopUsingModelSetWork

virtual void makVrv::DtOsgChannel::startUsingModelSet ( int  modelSet )

protectedvirtual

Start rendering the specified model set on this channel.

Forwards calls to startUsingModelSetWork

virtual void makVrv::DtOsgChannel::slot_visualizerRootAdded ( int  modelSet, int  visualType  )

protectedvirtual

called by signal when a new visualizer root is added

virtual void makVrv::DtOsgChannel::slot_shadowsRemoved ( )

protectedvirtual

Called by signal when the renderer removes all shadows.

virtual void makVrv::DtOsgChannel::slot_observerModelSetChanged ( DtObserverObject *  observer, int  modelSet  )

protectedvirtual

Called by signal when an observer's model set changes.

virtual void makVrv::DtOsgChannel::slot_observerSettingChanged ( DtObserverObject *  observer, int  setting, bool  value  )

protectedvirtual

Called by signal when an observer's visual setting changes.

virtual void makVrv::DtOsgChannel::slot_observerSettingRemoved ( DtObserverObject *  observer, int  setting  )

protectedvirtual

Called by signal when an observer's visual setting is removed.

virtual void makVrv::DtOsgChannel::slot_projectionChanged ( DtObserverObject *  observer, bool  is2D  )

protectedvirtual

Called by signal when an observer's projection (3D/2D) changes.

virtual void makVrv::DtOsgChannel::slot_windowConfigurationModified ( const std::string &  deName, const std::string &  oldWindowName, const DtWindowConfiguration &  config  )

protectedvirtual

slot to be called when the window configuration changes.

Reimplemented in makVrv::DtVirtualRealityChannel.

virtual void makVrv::DtOsgChannel::slot_channelConfigurationModified ( const std::string &  deName, const std::string &  windowName, const std::string &  oldChannelName, const DtChannelConfiguration &  channelConfig  )

protectedvirtual

slot to be called when the channel configuration changes.

virtual void makVrv::DtOsgChannel::slot_onCoordinateSystemChanged ( )

protectedvirtual

receive signals from the shared state about coordinate system changes

virtual void makVrv::DtOsgChannel::slot_paperMapEnabledChanged ( bool  setting )

protectedvirtual

Receives signals from the shared state about paper map feature changes (i.e. osgEarth mask layer feature being enabled or disabled)

virtual void makVrv::DtOsgChannel::observerRemoved ( const std::string &  observerName )

protectedvirtual

connects to signal_observerRemoved so the channel can update it's observer when the observer is removed.

Reimplemented from makVrv::DtChannel.

virtual void makVrv::DtOsgChannel::updateMultiSampleOverrideSetting ( )

protectedvirtual

helper function for getting the imgui setting for the multi sample override

virtual void makVrv::DtOsgChannel::getRenderTextureAttachmentInfo ( unsigned int &  level, unsigned int &  face, unsigned int &  sampleBuffers, unsigned int &  samples  )

protectedvirtual

Get the rtt camera attachment values, allows custom channels (DtVirtualRealityChannel) to override.

Reimplemented in makVrv::DtVirtualRealityChannel.

virtual void makVrv::DtOsgChannel::initializeRenderTextureColor ( )

protectedvirtual

Create and initialize render texture color buffer.

virtual void makVrv::DtOsgChannel::initializeRenderTextureDepth ( )

protectedvirtual

Create and initialize render texture depth buffer.

virtual void makVrv::DtOsgChannel::initializeRttCameraDepth ( )

protectedvirtual

Initialize the depth settings for the RTT camera.

virtual void makVrv::DtOsgChannel::changedRttCameraFbo ( )

protectedvirtual

Called after changes to the RTT camera FBO setting.

virtual void makVrv::DtOsgChannel::enableLighting ( osg::ref_ptr< osg::Camera >  camera, bool  enable  )

protectedvirtual

virtual void makVrv::DtOsgChannel::calculateAndSetFocusPointDistance ( double  zNear, double  zFar  )

protectedvirtual

Calculate the focus point if the lod scale center is enabled and the zoom magnification is higher than the limit.

osgViewer::CompositeViewer* makVrv::DtOsgChannel::getOrCreateViewer ( )

protected

Returns the CompositeViewer for the channel. The function can return NULL and will create a CompositeViewer, if needed.

virtual void makVrv::DtOsgChannel::flipHorizontal ( bool  flip )

protectedvirtual

Flip the channel horizontally (ex. to help make a rear view mirror)

DtOsgChannel& makVrv::DtOsgChannel::operator= ( const DtOsgChannel &  )

private

Assignment Operator not implemented - Copy not allowed.

Friends And Related Function Documentation

friend class DtOsgChannelCreator

friend

Member Data Documentation

boost::signalslib::signal<void(int, int, int, int)> makVrv::DtOsgChannel::signal_viewportChanged

Emitted when the channel's viewport changes dimensions.

Parameters are lower left x, y, width, and height, as in glViewport.

osg::ref_ptr<osgViewer::View> makVrv::DtOsgChannel::myView

protected

DtOsgWindow* makVrv::DtOsgChannel::myOsgWindow

protected

DtOsgObserverObject* makVrv::DtOsgChannel::myOsgObserverObject

protected

int makVrv::DtOsgChannel::myRenderTextureFormat

protected

int makVrv::DtOsgChannel::myRenderTextureSourceFormat

protected

int makVrv::DtOsgChannel::myRenderTextureSourceType

protected

bool makVrv::DtOsgChannel::myRenderTextureFormatDirty

protected

bool makVrv::DtOsgChannel::mySensorInitialized

protected

bool makVrv::DtOsgChannel::myChannelEnabled

protected

osg::ref_ptr<osg::Group> makVrv::DtOsgChannel::myRoot

protected

osg::ref_ptr<DtCameraNode> makVrv::DtOsgChannel::mySceneCamera

protected

osg::ref_ptr<DtCameraNode> makVrv::DtOsgChannel::my2DCamera

protected

osg::ref_ptr<DtCameraNode> makVrv::DtOsgChannel::myNormalized2DCamera

protected

osg::ref_ptr<osg::Texture> makVrv::DtOsgChannel::myRenderTexture

protected

The textures the 3D scene renders into when post processing is on.

osg::ref_ptr<osg::Texture> makVrv::DtOsgChannel::myDepthTexture

protected

osg::ref_ptr<osg::Texture> makVrv::DtOsgChannel::myOcclusionTexture

protected

bool makVrv::DtOsgChannel::myDepthTextureUsesStencilBuffer

protected

osg::ref_ptr<DtCameraNode> makVrv::DtOsgChannel::myRTTCamera

protected

Slave camera configured to render to myRenderTexture.

bool makVrv::DtOsgChannel::myIsUsingTrackballManipulator

protected

bool makVrv::DtOsgChannel::myCoordinateSystemChanged

protected

bool makVrv::DtOsgChannel::myRenderToTextureFlag

protected

bool makVrv::DtOsgChannel::myShadowState

protected

PostProcessorEffectList makVrv::DtOsgChannel::myPostProcessorEffects

protected

osg::Node::NodeMask makVrv::DtOsgChannel::myOldSceneCameraNodeMask

protected

DtLight* makVrv::DtOsgChannel::myFlashlight

protected

bool makVrv::DtOsgChannel::myEnablePostProcessors

protected

bool makVrv::DtOsgChannel::myUseOldChannelOffsetCalcuation

protected

osg::ref_ptr<osg::DatabaseRequestHandlerCallback> makVrv::DtOsgChannel::myDatabasePagerCallback

protected

bool makVrv::DtOsgChannel::myEnableHdrPassthrough

protected

bool makVrv::DtOsgChannel::myForceHdrLuminanceOverride

protected

float makVrv::DtOsgChannel::myHdrOutputScale

protected

bool makVrv::DtOsgChannel::myFrameBufferNeedsClear

protected

bool makVrv::DtOsgChannel::myLastMirrorMode

protected

double makVrv::DtOsgChannel::myPreviousClampedNearClipDistance

protected

int makVrv::DtOsgChannel::myLastNumMultiSamplesOverride

protected

std::vector<osg::Vec3d> makVrv::DtOsgChannel::myFocusPoints

protected

int makVrv::DtOsgChannel::myLastFocusPointAttempted

protected

bool makVrv::DtOsgChannel::myLastFocusPointAttemptedOsgEarthFailed

protected

DtOsgChannelSensor* makVrv::DtOsgChannel::myChannelSensor

protected

bool makVrv::DtOsgChannel::myShowTracksEnabled

protected

DtIntersectorsContainer* makVrv::DtOsgChannel::myIntersectors = nullptr

protected

int makVrv::DtOsgChannel::theRunningCameraId

staticprotected

This is used to give names to each camera created. This is appended to the camera name This is useful to differentiate cameras across different views.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvOsg/DtOsgChannel.h
