makVrv::DtOsgModelInstance Class Reference
vrvOsg

The base class for simple OSG based model instances. This call can't be instantiated itself.

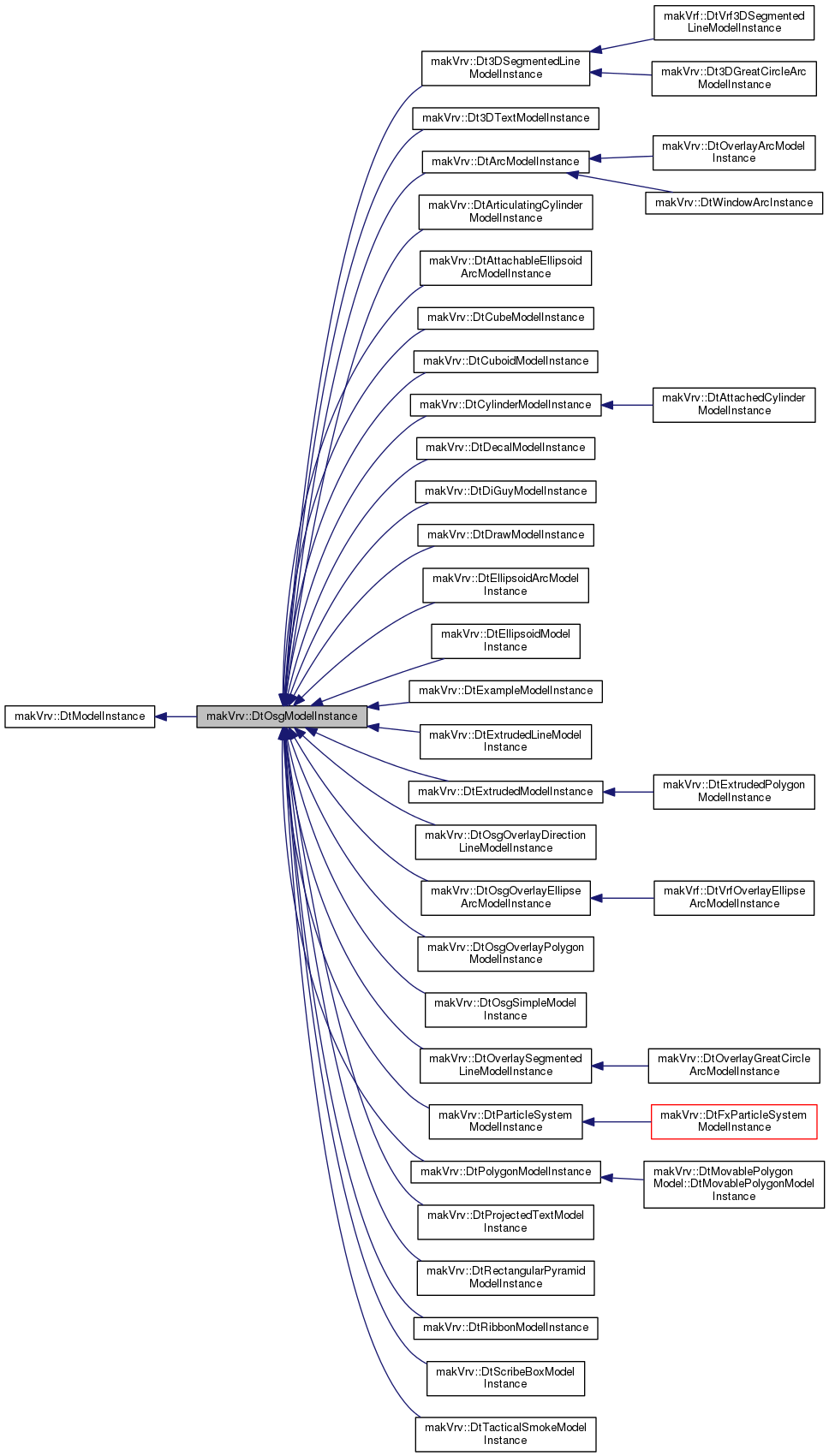

Inheritance diagram for makVrv::DtOsgModelInstance:
Inheritance graph
[legend]

Public Types

enum  AlphaToCoverageState { USE_GLOBAL, FORCE_OFF, FORCE_ON }


Public Member Functions

virtual ~DtOsgModelInstance ()

virtual bool realize (DtModelDefinition &definition)

virtual bool cloneInstance (DtModelDefinition &definition)

virtual void addToConnector (DtOsgSceneConnector *connector)

virtual bool removeFromConnector (DtOsgSceneConnector *connector)

virtual bool saveModelToFile (const std::string &filename) const

virtual void enableColorBlending (bool b)

virtual void setBlendColor (float r, float g, float b, float a)

virtual void enableTexture (bool onOff)

virtual osg::Node * rootNode ()

virtual const osg::Node * rootNode () const

virtual osg::Node * sensorNode ()

virtual const osg::Node * sensorNode () const

- Public Member Functions inherited from makVrv::DtModelInstance
 DtModelInstance (DtDe &de)

virtual ~DtModelInstance ()

const std::string & realizedDefinitionName () const

const DtVector & boundingBoxExtents () const

void getBoundingBoxExtents (double &x, double &y, double &z) const

const DtVector & boundingBoxCenter () const

void getBoundingBoxCenter (double &x, double &y, double &z) const

void getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)

const DtVector & allGeometryboundingBoxExtents () const

void getAllGeometryBoundingBoxExtents (double &x, double &y, double &z) const

const DtVector & allGeometryboundingBoxCenter () const

void getAllGeometryBoundingBoxCenter (double &x, double &y, double &z) const

void getAllGeometryBoundingBoxComponents (DtVector &minimum, DtVector &maximum)

virtual void setContributesToBound (bool trueOrFalse)

bool contributesToBound () const

virtual void setVisible (bool isVisible)=0


Static Public Member Functions

static osg::Vec4 readVec4 (const std::string &paramName, const DtModelDefinition &definition, const osg::Vec4 &initValue=osg::Vec4(1, 1, 1, 1))

static osg::Vec3 readVec3 (const std::string &paramName, const DtModelDefinition &definition, const osg::Vec3 &initValue=osg::Vec3(1, 1, 1))

- Static Public Member Functions inherited from makVrv::DtModelInstance
static float readFloat (const std::string &paramName, const DtModelDefinition &definition)

static DtVector readVector (const std::string &paramName, const DtModelDefinition &definition)


Protected Member Functions

 DtOsgModelInstance (DtDe &de)

virtual void updateColorBlending ()

virtual void updateColorBlending (osg::Node *node)

virtual void enableTexture (osg::Node *root, bool onOff)

virtual void updateBoundingBoxViaContents ()

virtual void setRootNode (osg::Node *node)

virtual void setUpDepthTest (osg::StateSet *stateSet)


Protected Attributes

osg::ref_ptr< osg::Node > myModelRoot

osg::ref_ptr< osg::StateSet > myCachedState

SensorRegionStateMap mySensorRegionMap

AlphaToCoverageState myAlphaToCoverageState

DtSignalConnectionManager myConnections

bool myModelInstanceShaderSet

- Protected Attributes inherited from makVrv::DtModelInstance
DtDe & myDe

std::string myRealizedModelDefinitionName

DtVector myBoundingBoxCenter

DtVector myBoundingBoxExtents

DtVector myBoundingBoxMinimum

DtVector myBoundingBoxMaximum

DtVector myAllGeometryBoundingBoxCenter

DtVector myAllGeometryBoundingBoxExtents

DtVector myAllGeometryBoundingBoxMinimum

DtVector myAllGeometryBoundingBoxMaximum

bool myContributesToBound

bool myColorBlendingEnabled

float myBlendRed

float myBlendBlue

float myBlendGreen

float myBlendAlpha

typedef std::unordered_map
< std::string, bool > 		SensorRegionStateMap

boost::signalslib::signal
< void(const std::string &) > 		signal_dynamicSensorRegionAdded

boost::signalslib::signal
< void(const std::string
&, bool) > 		signal_dynamicSensorRegionChanged

boost::signalslib::signal
< void(bool)> 		signal_atcModeEnableChanged

virtual void setDynamicSensorRegion (const std::string &region, bool state)

virtual bool dynamicSensorRegion (const std::string &region)

virtual const
SensorRegionStateMap & 		dynamicSensorRegionMap () const

virtual void slot_atcGlobalModelEnableChanged ()

virtual bool alphaToCoverageEnabled ()

virtual void registerLightPoints (const std::string &groupName, bool daylightControlledLights)


Additional Inherited Members

- Public Attributes inherited from makVrv::DtModelInstance
boost::signalslib::signal
< void(DtModelInstance *)> 		signal_modelInstanceChanged


Member Typedef Documentation

typedef std::unordered_map<std::string, bool> makVrv::DtOsgModelInstance::SensorRegionStateMap

Dynamic Sensor Region methods.

How Dynamic Sensor Region states are stored

Member Enumeration Documentation

enum makVrv::DtOsgModelInstance::AlphaToCoverageState

The possible states of a control point.

Enumerator
USE_GLOBAL
FORCE_OFF
FORCE_ON

Constructor & Destructor Documentation

virtual makVrv::DtOsgModelInstance::~DtOsgModelInstance ( )
virtual

DTOR.

makVrv::DtOsgModelInstance::DtOsgModelInstance ( DtDe &  de)
protected

CTOR.

Member Function Documentation

virtual bool makVrv::DtOsgModelInstance::realize ( DtModelDefinition &  definition)
virtual

Attempt to realize a definition. If the model instance can't realize the definition it should return false.

Reimplemented from makVrv::DtModelInstance.

Reimplemented in makVrv::DtAttachableEllipsoidArcModelInstance, makVrv::DtArcModelInstance, makVrv::DtOsgOverlayEllipseArcModelInstance, makVrv::DtOsgOverlayDirectionLineModelInstance, makVrv::DtOverlaySegmentedLineModelInstance, makVrv::Dt3DSegmentedLineModelInstance, makVrv::DtExtrudedLineModelInstance, makVrv::DtFxParticleSystemModelInstance, makVrv::Dt3DTextModelInstance, makVrv::DtArticulatingCylinderModelInstance, makVrv::DtEllipsoidArcModelInstance, makVrv::DtPolygonModelInstance, makVrv::DtCuboidModelInstance, makVrv::DtCylinderModelInstance, makVrv::DtEllipsoidModelInstance, makVrv::DtCubeModelInstance, makVrv::DtParticleSystemModelInstance, makVrv::DtRibbonModelInstance, makVrv::DtRectangularPyramidModelInstance, makVrv::DtTacticalSmokeModelInstance, makVrv::DtDecalModelInstance, makVrv::DtOverlayGreatCircleArcModelInstance, makVrv::DtDiGuyModelInstance, makVrv::Dt3DGreatCircleArcModelInstance, and makVrv::DtOsgSimpleModelInstance.

virtual bool makVrv::DtOsgModelInstance::cloneInstance ( DtModelDefinition &  definition)
virtual

Attempt to clone the basic geometry. Can be done in the background. If the model instance can't clone the definition it should return false.

Reimplemented from makVrv::DtModelInstance.

Reimplemented in makVrv::DtOsgSimpleModelInstance.

virtual void makVrv::DtOsgModelInstance::addToConnector ( DtOsgSceneConnector *  connector)
virtual

Brief Tell the model instance to add itself to the provided node.

Reimplemented in makVrv::DtAttachableEllipsoidArcModelInstance, makVrv::Dt3DSegmentedLineModelInstance, makVrv::DtPolygonModelInstance, makVrv::DtExtrudedLineModelInstance, makVrv::DtExtrudedModelInstance, makVrv::DtFxParticleSystemModelInstance, makVrv::Dt3DTextModelInstance, makVrv::DtArticulatingCylinderModelInstance, makVrv::DtEllipsoidArcModelInstance, makVrv::DtCuboidModelInstance, makVrv::DtParticleSystemModelInstance, makVrv::DtRibbonModelInstance, makVrv::DtDecalModelInstance, makVrv::DtRectangularPyramidModelInstance, makVrv::DtMovablePolygonModel::DtMovablePolygonModelInstance, makVrv::DtProjectedTextModelInstance, makVrv::DtScribeBoxModelInstance, and makVrv::DtDrawModelInstance.

virtual bool makVrv::DtOsgModelInstance::removeFromConnector ( DtOsgSceneConnector *  connector)
virtual

Brief Tell the model instance to remove itself from the provided node. Returns true if the node was removed.

Reimplemented in makVrv::DtAttachableEllipsoidArcModelInstance, makVrv::Dt3DSegmentedLineModelInstance, makVrv::DtPolygonModelInstance, makVrv::DtExtrudedLineModelInstance, makVrv::DtExtrudedModelInstance, makVrv::DtFxParticleSystemModelInstance, makVrv::Dt3DTextModelInstance, makVrv::DtArticulatingCylinderModelInstance, makVrv::DtEllipsoidArcModelInstance, makVrv::DtCuboidModelInstance, makVrv::DtParticleSystemModelInstance, makVrv::DtRibbonModelInstance, makVrv::DtDecalModelInstance, makVrv::DtRectangularPyramidModelInstance, makVrv::DtProjectedTextModelInstance, makVrv::DtScribeBoxModelInstance, and makVrv::DtDrawModelInstance.

virtual osg::Node* makVrv::DtOsgModelInstance::rootNode ( )
virtual

Get the model instance's root node.

Reimplemented in makVrv::DtExtrudedModelInstance.

virtual const osg::Node* makVrv::DtOsgModelInstance::rootNode ( ) const
virtual

Get the model instance's root node.

virtual osg::Node* makVrv::DtOsgModelInstance::sensorNode ( )
virtual

Get the model instance's sensor node, .

Reimplemented in makVrv::DtRibbonModelInstance, and makVrv::DtDiGuyModelInstance.

virtual const osg::Node* makVrv::DtOsgModelInstance::sensorNode ( ) const
virtual

Get the model instance's sensor node, .

Reimplemented in makVrv::DtRibbonModelInstance, and makVrv::DtDiGuyModelInstance.

virtual bool makVrv::DtOsgModelInstance::saveModelToFile ( const std::string &  filename) const
virtual

Attempt to save the model to a file.

Reimplemented from makVrv::DtModelInstance.

virtual void makVrv::DtOsgModelInstance::enableColorBlending ( bool  b)
virtual

Enable / disable coloring on all models in the scene object Note about enableColorBlending: If this particular model has instancing enabled then this flag is set to false and color blending is handled by the instance manager. It should not be set to true if the model has instancing enabled.

Reimplemented from makVrv::DtModelInstance.

Reimplemented in makVrv::DtPolygonModelInstance.

virtual void makVrv::DtOsgModelInstance::setBlendColor ( float  r,
float  g,
float  b,
float  a
)
virtual

set the model's color

Reimplemented from makVrv::DtModelInstance.

virtual void makVrv::DtOsgModelInstance::enableTexture ( bool  onOff)
virtual
virtual void makVrv::DtOsgModelInstance::setDynamicSensorRegion ( const std::string &  region,
bool  state
)
virtual

Set the state of an active region.

virtual bool makVrv::DtOsgModelInstance::dynamicSensorRegion ( const std::string &  region)
virtual

Get the current state of the specified sensor region.

virtual const SensorRegionStateMap& makVrv::DtOsgModelInstance::dynamicSensorRegionMap ( ) const
virtual

Get the map containing all regions and their current states.

virtual void makVrv::DtOsgModelInstance::slot_atcGlobalModelEnableChanged ( )
virtual

Slot to handle the global alpha to coverage signal for entities.

Reimplemented in makVrv::DtScribeBoxModelInstance.

virtual bool makVrv::DtOsgModelInstance::alphaToCoverageEnabled ( )
virtual

Get the current setting for alpha to coverage for this model.

virtual void makVrv::DtOsgModelInstance::registerLightPoints ( const std::string &  groupName,
bool  daylightControlledLights
)
virtual

loop over all this models light points and register them with the light point manager daylightControlled is only used if the light points do not already have a type specified

static osg::Vec4 makVrv::DtOsgModelInstance::readVec4 ( const std::string &  paramName,
const DtModelDefinition &  definition,
const osg::Vec4 &  initValue = osg::Vec4(1, 1, 1, 1)
)
static
static osg::Vec3 makVrv::DtOsgModelInstance::readVec3 ( const std::string &  paramName,
const DtModelDefinition &  definition,
const osg::Vec3 &  initValue = osg::Vec3(1, 1, 1)
)
static
virtual void makVrv::DtOsgModelInstance::updateColorBlending ( )
protectedvirtual

calls update color blending with the model root. Override to use a different root

virtual void makVrv::DtOsgModelInstance::updateColorBlending ( osg::Node *  node)
protectedvirtual
virtual void makVrv::DtOsgModelInstance::enableTexture ( osg::Node *  root,
bool  onOff
)
protectedvirtual
virtual void makVrv::DtOsgModelInstance::updateBoundingBoxViaContents ( )
protectedvirtual

Reimplemented in makVrv::DtDiGuyModelInstance.

virtual void makVrv::DtOsgModelInstance::setRootNode ( osg::Node *  node)
protectedvirtual

Set the model instance's root node.

Reimplemented in makVrv::DtDiGuyModelInstance.

virtual void makVrv::DtOsgModelInstance::setUpDepthTest ( osg::StateSet *  stateSet)
protectedvirtual

Helper function to set up a depth test on a state set taking into account whether reverse z is enabled or not.

Member Data Documentation

boost::signalslib::signal< void(const std::string&) > makVrv::DtOsgModelInstance::signal_dynamicSensorRegionAdded

Signal raised when a dynamic sensor region is added.

boost::signalslib::signal< void(const std::string&, bool) > makVrv::DtOsgModelInstance::signal_dynamicSensorRegionChanged

Signal raised when a dynamic sensor region's state changes.

boost::signalslib::signal<void(bool)> makVrv::DtOsgModelInstance::signal_atcModeEnableChanged

Signal raised when alpha to coverage for this model is changed.

osg::ref_ptr<osg::Node> makVrv::DtOsgModelInstance::myModelRoot
protected
osg::ref_ptr<osg::StateSet> makVrv::DtOsgModelInstance::myCachedState
protected
SensorRegionStateMap makVrv::DtOsgModelInstance::mySensorRegionMap
protected
AlphaToCoverageState makVrv::DtOsgModelInstance::myAlphaToCoverageState
protected
DtSignalConnectionManager makVrv::DtOsgModelInstance::myConnections
protected
bool makVrv::DtOsgModelInstance::myModelInstanceShaderSet
protected

Has this model instance had a shader generated for it? Used for classes (ex. Dt3DSegmentedLineModelInstance) which call DtOsgShaderUtils::generateModelInstanceShaders.

The documentation for this class was generated from the following file:
