makVrv::DtPageConfiguration Class Reference

A configuration of the pages in the gui.

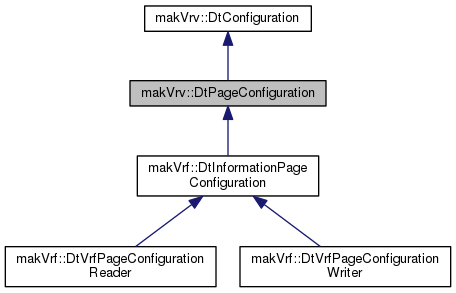

Inheritance diagram for makVrv::DtPageConfiguration:

Classes
struct	OrderParameters
struct	PageCollectionGeometry
struct	PageCollectionState

Public Types
enum	PageCollectionLocation {   DockLeft = 0, DockRight = 1, DockTop = 2, DockBottom = 3,   FloatLeft = DockLeft | 4, FloatRight = DockRight | 4, FloatTop = DockTop | 4, FloatBottom = DockBottom | 4,   Dialog, Location_End }
typedef std::list< DtPagePath >	PagePathList
typedef std::set< DtPagePath >	PagePathSet
typedef std::map< std::string, PageCollectionState >	PageCollectionStatesMap
typedef std::map< std::string, DtUnicode >	PageCollectionTitlesMap
Public Types inherited from makVrv::DtConfiguration
typedef std::map< std::string, std::string >	ParameterMap

Public Member Functions
	DtPageConfiguration ()
virtual	~DtPageConfiguration ()
DtPageConfiguration &	operator= (const DtPageConfiguration &rhs)
void	addPageCollection (const std::string &collectionClassName, const DtUnicode &pageTitle, PageCollectionLocation location, bool visible, const std::string &pageClassToShow, bool closable=true, bool floatable=true, bool movable=true)
void	removePageCollection (const std::string &collectionClassName)
const PageCollectionState *	findPageCollectionState (const std::string &collectionClassName) const
PageCollectionState *	findPageCollectionState (const std::string &collectionClassName)
const bool	isPageVisible (const std::string &pageName) const
const DtUnicode *	findPageCollectionTitle (const std::string &collectionClassName) const
DtUnicode *	findPageCollectionTitle (const std::string &collectionClassName)
void	addPagePath (const DtPagePath &, int weight=-1)
void	addPagePathAfter (const DtPagePath &newPath, const DtPagePath &relativeTo)
void	addPagePathBefore (const DtPagePath &newPath, const DtPagePath &relativeTo)
void	addConfiguration (const DtPageConfiguration &subConfiguration)
void	removePagePath (const DtPagePath &)
void	getRootPaths (PagePathList &children) const
void	getChildren (const DtPagePath &path, PagePathList &children) const
void	sortChildren (PagePathList &children) const
virtual PagePathList	filterForAbsoluteChildren (const PagePathList &children) const
virtual PagePathList	filterForRelativeChildren (const PagePathList &children) const
int	getNewWeight ()
void	merge (const DtPageConfiguration &rhs)
void	copyValuesFrom (const DtPageConfiguration &source)
bool	hasPagePath (const DtPagePath &p) const
const PageCollectionStatesMap &	states () const
const PageCollectionTitlesMap &	titles () const
Public Member Functions inherited from makVrv::DtConfiguration
	DtConfiguration (const std::string &name="")
	DtConfiguration (const DtConfiguration &)
DtConfiguration &	operator= (const DtConfiguration &)
virtual	~DtConfiguration ()
virtual const std::string &	name () const
virtual void	setName (const std::string &name)
virtual const std::string *	findOptionalParameter (const std::string &name) const
virtual void	setOptionalParameter (const std::string &name, const std::string &value)
virtual void	setOptionalParameters (const ParameterMap &)
virtual void	removeOptionalParameter (const std::string &name)
const ParameterMap &	optionalParameters () const

Protected Types
typedef std::map< DtPagePath, OrderParameters >	PagePathOrderMap

Protected Member Functions
template<class Archive >
void	_serialize (Archive &ar, const unsigned int version)
bool	comparePagesByPageOrder (const DtPagePath &a, const DtPagePath &b) const
virtual const OrderParameters &	pageOrderFor (const DtPagePath &pagePath) const
Protected Member Functions inherited from makVrv::DtConfiguration
template<class Archive >
void	_serialize (Archive &ar, const unsigned int version)

Protected Attributes
PagePathSet	myPagePaths
PagePathOrderMap	myPageOrder
PageCollectionStatesMap	myCollections
PageCollectionTitlesMap	myPageCollectionTitles
int	myCurrentWeight
Protected Attributes inherited from makVrv::DtConfiguration
std::string	myName
ParameterMap	myOptionalParameters
DtProxyWP	myAttachedInterface

Member Typedef Documentation

typedef std::list<DtPagePath> makVrv::DtPageConfiguration::PagePathList

typedef std::set<DtPagePath> makVrv::DtPageConfiguration::PagePathSet

typedef std::map<std::string,PageCollectionState> makVrv::DtPageConfiguration::PageCollectionStatesMap

typedef std::map<std::string,DtUnicode> makVrv::DtPageConfiguration::PageCollectionTitlesMap

typedef std::map<DtPagePath,OrderParameters> makVrv::DtPageConfiguration::PagePathOrderMap

protected

Member Enumeration Documentation

enum makVrv::DtPageConfiguration::PageCollectionLocation

Enumerator
DockLeft
DockRight
DockTop
DockBottom
FloatLeft
FloatRight
FloatTop
FloatBottom
Dialog
Location_End

Constructor & Destructor Documentation

makVrv::DtPageConfiguration::DtPageConfiguration

(

)

CTOR.

virtual makVrv::DtPageConfiguration::~DtPageConfiguration ( )

virtual

DTOR.

Member Function Documentation

DtPageConfiguration& makVrv::DtPageConfiguration::operator=

(

const DtPageConfiguration &

rhs

)

Assignment operator.

void makVrv::DtPageConfiguration::addPageCollection	(	const std::string &	collectionClassName,
		const DtUnicode &	pageTitle,
		PageCollectionLocation	location,
		bool	visible,
		const std::string &	pageClassToShow,
		bool	closable = true,
		bool	floatable = true,
		bool	movable = true
	)

Add a new page collection to the configuration.

void makVrv::DtPageConfiguration::removePageCollection

(

const std::string &

collectionClassName

)

Remove a page collection.

const PageCollectionState* makVrv::DtPageConfiguration::findPageCollectionState

(

const std::string &

collectionClassName

)

const

Find a page collection state. The page collection can't be changed; to modify a page collection, call addPageCollection with the same collection class name, and new parameters.

PageCollectionState* makVrv::DtPageConfiguration::findPageCollectionState

(

const std::string &

collectionClassName

)

const bool makVrv::DtPageConfiguration::isPageVisible

(

const std::string &

pageName

)

const

Check whether a page (specified by name) is visible in this configuration.

const DtUnicode* makVrv::DtPageConfiguration::findPageCollectionTitle

(

const std::string &

collectionClassName

)

const

Find a page collection title. The page collection title can't be changed; to modify a page collection title, call addPageCollection with the same collection class name, and new parameters.

DtUnicode* makVrv::DtPageConfiguration::findPageCollectionTitle

(

const std::string &

collectionClassName

)

void makVrv::DtPageConfiguration::addPagePath	(	const DtPagePath &	,
		int	weight = -1
	)

Adds the menu path (as well as its entire family).

void makVrv::DtPageConfiguration::addPagePathAfter	(	const DtPagePath &	newPath,
		const DtPagePath &	relativeTo
	)

Adds the menu path after a relative (they must share the same parent). Pages added after get negative weights, to indicate they are added in reverse order.

void makVrv::DtPageConfiguration::addPagePathBefore	(	const DtPagePath &	newPath,
		const DtPagePath &	relativeTo
	)

Adds the menu path before a relative (they must share the same parent).

void makVrv::DtPageConfiguration::addConfiguration

(

const DtPageConfiguration &

subConfiguration

)

Merges from an external configurations into this configuration.

void makVrv::DtPageConfiguration::removePagePath

(

const DtPagePath &

)

Remove the page path.

void makVrv::DtPageConfiguration::getRootPaths

(

PagePathList &

children

)

const

Get all paths which have no parents (aka top level paths).

void makVrv::DtPageConfiguration::getChildren	(	const DtPagePath &	path,
		PagePathList &	children
	)		const

Get a list of children (first generation only) for a given path./.

If there are these three pages:
  Panel\
  Panel\Page1
  Panel\Page2
  And you call getChildren("Panel\",children).
  children will only contain 'Page1' and 'Page2'.

void makVrv::DtPageConfiguration::sortChildren

(

PagePathList &

children

)

const

Sort the list of children.

virtual PagePathList makVrv::DtPageConfiguration::filterForAbsoluteChildren ( const PagePathList &  children ) const

virtual

Filter a list of only the page paths with absolute positions.

virtual PagePathList makVrv::DtPageConfiguration::filterForRelativeChildren ( const PagePathList &  children ) const

virtual

Filter a list of only the page paths with relative positions.

int makVrv::DtPageConfiguration::getNewWeight

(

)

Get new weight.

void makVrv::DtPageConfiguration::merge

(

const DtPageConfiguration &

rhs

)

Merges in contents of supplied configuration, adding new paths. Order will get added at the end.

void makVrv::DtPageConfiguration::copyValuesFrom

(

const DtPageConfiguration &

source

)

Uses the location, geometry, order, etc. values from the supplied configuration while keeping the existence of pages based on the existing configuration.

bool makVrv::DtPageConfiguration::hasPagePath

(

const DtPagePath &

p

)

const

Returns true if has the menu path.

const PageCollectionStatesMap& makVrv::DtPageConfiguration::states

(

)

const

Returns the map of page collection states.

const PageCollectionTitlesMap& makVrv::DtPageConfiguration::titles

(

)

const

Returns the map of page collection titles.

template<class Archive >

void makVrv::DtPageConfiguration::_serialize ( Archive &  ar, const unsigned int  version  )

inlineprotected

Declare serialize functions Call via serialize(Archive ar, unsigned int version); Where Archive can be any of : xml_oarchive,xml_iarchive,binary_oarchive binary_iarchive,text_oarchive, or text_iarchive.

References DT_SERIALIZE_BASE, and DT_SERIALIZE_MEMBER.

bool makVrv::DtPageConfiguration::comparePagesByPageOrder ( const DtPagePath &  a, const DtPagePath &  b  ) const

protected

Compare by page order, then compare pages with equal order alphabetically.

virtual const OrderParameters& makVrv::DtPageConfiguration::pageOrderFor ( const DtPagePath &  pagePath ) const

protectedvirtual

Get the page order parameters for a given page path.

pagePath must exist in the myPageOrder map; throws DtInvalidInput if not found.

Member Data Documentation

PagePathSet makVrv::DtPageConfiguration::myPagePaths

protected

PagePathOrderMap makVrv::DtPageConfiguration::myPageOrder

protected

PageCollectionStatesMap makVrv::DtPageConfiguration::myCollections

protected

PageCollectionTitlesMap makVrv::DtPageConfiguration::myPageCollectionTitles

protected

int makVrv::DtPageConfiguration::myCurrentWeight

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtPageConfiguration.h
