makVrv::DtPostProcessorDrawable Class Reference

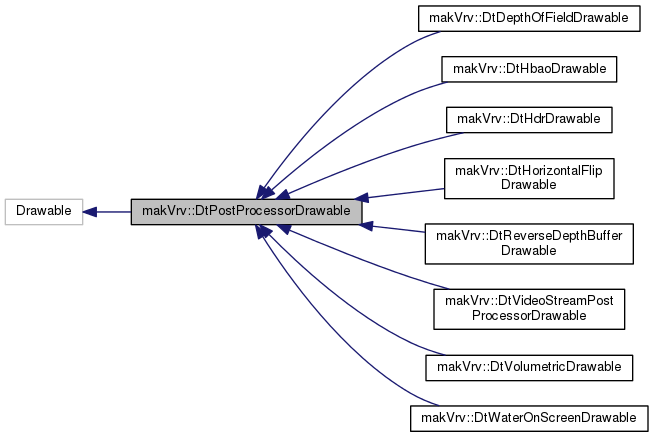

Inheritance diagram for makVrv::DtPostProcessorDrawable:

Public Member Functions
	DtPostProcessorDrawable (DtDe &de)
	DtPostProcessorDrawable (const DtPostProcessorDrawable &orig, const osg::CopyOp &op)
virtual	~DtPostProcessorDrawable ()
virtual void	drawTexturedQuad (bool drawOnly=false) const
virtual void	beginTexturedQuad () const
virtual void	endTexturedQuad () const
virtual std::string	preprocessorDefinesString (void) const
virtual DtGlProgram *	createProgram (const std::string &path, const std::string &prefixName, const std::string &preprocessor="") const

Protected Member Functions
void	setupGeometry () const

Protected Attributes
DtDe &	myDe
unsigned int	myMutableVbo

Private Member Functions
	DtPostProcessorDrawable ()
	DtPostProcessorDrawable (const DtPostProcessorDrawable &)
DtPostProcessorDrawable &	operator= (const DtPostProcessorDrawable &)

Constructor & Destructor Documentation

makVrv::DtPostProcessorDrawable::DtPostProcessorDrawable

(

DtDe &

de

)

makVrv::DtPostProcessorDrawable::DtPostProcessorDrawable	(	const DtPostProcessorDrawable &	orig,
		const osg::CopyOp &	op
	)

virtual makVrv::DtPostProcessorDrawable::~DtPostProcessorDrawable ( )

virtual

makVrv::DtPostProcessorDrawable::DtPostProcessorDrawable ( )

private

private default constructor. not allowed.

makVrv::DtPostProcessorDrawable::DtPostProcessorDrawable ( const DtPostProcessorDrawable &  )

private

prevent copy-construction

Member Function Documentation

DtPostProcessorDrawable& makVrv::DtPostProcessorDrawable::operator= ( const DtPostProcessorDrawable &  )

private

prevent assignment

virtual void makVrv::DtPostProcessorDrawable::drawTexturedQuad ( bool  drawOnly = false ) const

virtual

prevent assignment

render a simple quad using the current opengl state (setup shader/uniform/textures before calling)

virtual void makVrv::DtPostProcessorDrawable::beginTexturedQuad ( ) const

virtual

vert pointes gl states etc

virtual void makVrv::DtPostProcessorDrawable::endTexturedQuad ( ) const

virtual

disable modes stup in begin

virtual std::string makVrv::DtPostProcessorDrawable::preprocessorDefinesString ( void  ) const

virtual

preprocessor string taking into account the current options (multiview, etc)

virtual DtGlProgram* makVrv::DtPostProcessorDrawable::createProgram ( const std::string &  path, const std::string &  prefixName, const std::string &  preprocessor = ""  ) const

virtual

create a program based on the name (name_ps.glsl and name_vs.glsl files are used)

void makVrv::DtPostProcessorDrawable::setupGeometry ( ) const

protected

brief setup the vertex buffer object used in draw quad

Member Data Documentation

DtDe& makVrv::DtPostProcessorDrawable::myDe

protected

unsigned int makVrv::DtPostProcessorDrawable::myMutableVbo

mutableprotected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvPostProcessor/DtPostProcessorDrawable.h
