exampleSimple

Table of Contents

• Overview
• Expected Result
• Example details
• Building the Example
• Running the Example
• Example Source Files
• exampleSimple.cxx

Overview

This example shows how to create a simple VR-Vantage application.

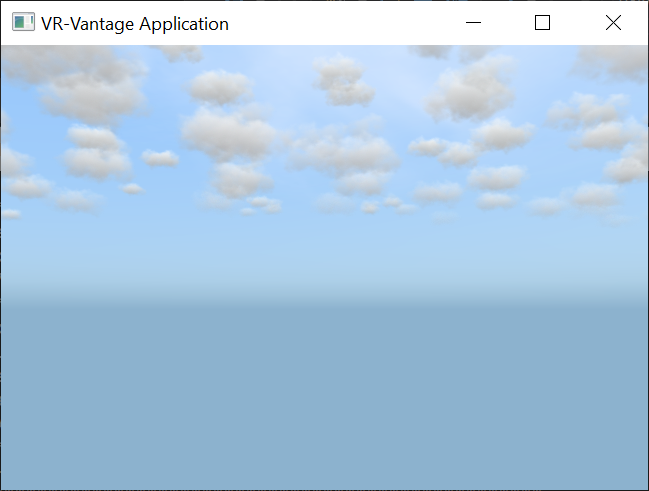

Expected Result

Simple Application Result

Example details

There are three required steps.

The first step is to create the DtVrvApplication.

   // A DtVrvApplication wraps up all the components required to build a complete
   // VR-Vantage application (DtDe, DtPluginManager, DtEventLoop, and a
   // DtVrvApplicationConfiguration).
   DtVrvApplication igApp;

Once the application has been created, it must be initialized.

   // This causes the plugin manager to load plugins, cause a Display Configuration
   // to be realized, creates the default environment, etc.
   igApp.initialize(argc, argv);

Finally, the application's main event loop is started.

   // Creates an event loop and begins running it, causing the creation of frames.
   igApp.run();

Building the Example

VR-Vantage includes pre-built versions of the example application. To build it yourself, follow the instructions at Building VR-Vantage Examples, Applications, and Plug-ins.

Running the Example

This example is an application. You can run it by running ./bin64/exampleSimple.exe (on Windows) or ./bin64/exampleSimple (on Linux). For more information about running examples, please see Running Applications and Examples.

Example Source Files

• exampleSimple.cxx

---

exampleSimple.cxx

// /******************************************************************************
// ** Copyright (c) 2019 MAK Technologies, Inc.
// ** All rights reserved.
// ******************************************************************************/

#include <vrvCore/DtVrvApplication.h>
#include <vrvUtil/DtGuiConfiguration.h>

// Use the VR-Vantage namespace. All classes in VR-Vantage are in this namespace.
using namespace makVrv;

int main(int argc,char** argv)
{
   // A DtVrvApplication wraps up all the components required to build a complete
   // VR-Vantage application (DtDe, DtPluginManager, DtEventLoop, and a
   // DtVrvApplicationConfiguration).
   DtVrvApplication igApp;

   // This causes the plugin manager to load plugins, cause a Display Configuration
   // to be realized, creates the default environment, etc.
   igApp.initialize(argc, argv);

   // Creates an event loop and begins running it, causing the creation of frames.
   igApp.run();

   return 0;
}
