makVrv::DtOverlaySegmentedLineModel Class Reference

The model interface for remote graphics segmented lines.

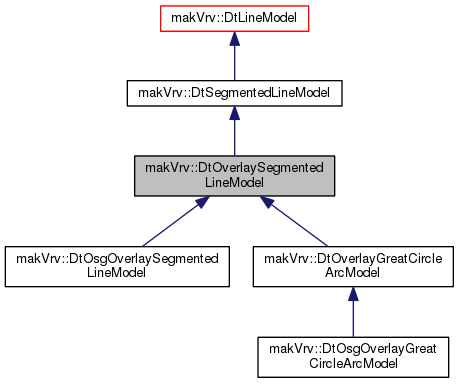

Inheritance diagram for makVrv::DtOverlaySegmentedLineModel:

Public Member Functions
	DtOverlaySegmentedLineModel (DtDe &de, DtUniqueID id)
virtual	~DtOverlaySegmentedLineModel ()
virtual void	setEventsEnabled (bool)=0
virtual void	setEventWidth (float width)=0
virtual void	setLineStyle (int)=0
virtual void	setFixedWidthSizing (bool)=0
virtual void	setGroup (int)=0
Public Member Functions inherited from makVrv::DtSegmentedLineModel
	DtSegmentedLineModel (DtDe &de, DtUniqueID id)
virtual	~DtSegmentedLineModel ()
virtual void	setStyleSegments (const std::vector< double > &segmentPercentages)=0
virtual void	setSegmentColor (unsigned int segmentIndex, float r, float g, float b, float a)=0
virtual void	setSegmentLightningStyle (unsigned int segmentIndex, bool enableLightningStyle)=0
virtual void	setSegmentStartArrow (unsigned int segmentIndex, bool enableArrow)=0
virtual void	setSegmentEndArrow (unsigned int segmentIndex, bool enableArrow)=0
virtual void	setSegmentStipplePattern (unsigned int segmentIndex, unsigned int stipplePattern, int repeatFactor=1)=0
virtual void	setSegmentWidth (unsigned int segmentIndex, double width)=0
virtual void	setSegmentStartColor (unsigned int segmentIndex, float r, float g, float b, float a)=0
virtual void	setSegmentEndColor (unsigned int segmentIndex, float r, float g, float b, float a)=0
virtual void	setArrowSize (double)=0
virtual void	setArrowStyle (int)=0
Public Member Functions inherited from makVrv::DtLineModel
	DtLineModel (DtDe &de, DtUniqueID id)
virtual	~DtLineModel ()
virtual void	setColor (float r, float g, float b, float a)=0
virtual void	setWidth (float width)=0
virtual void	setStipplePattern (unsigned int pattern, int repeatFactor=1)=0
virtual const std::vector < DtVector > &	points () const =0
Public Member Functions inherited from makVrv::DtModel
	DtModel (DtDe &de, DtUniqueID id)
virtual	~DtModel ()
DtModelInstance *	createModelInstance (const std::string &modelDefName, bool realize=true)
virtual void	setModelDefinition (const std::string &str)
virtual const std::string &	modelDefinitionName ()
virtual void	saveModelToFile (const std::string &filename)
virtual const std::string &	className () const
unsigned int	transformSize () const
virtual void	setPosition (int vtx, const DtVector &position)
virtual const DtVector &	position (int vtx=0) const
virtual void	removePosition (int vtx)
virtual void	setPositionOffset (const DtVector &positionOffset)
virtual const DtVector &	positionOffset () const
virtual void	setOrientation (int vtx, const DtTaitBryan &orientation)
virtual void	setPositionAndOrientation (int vtx, const DtVector &positionOffset, const DtTaitBryan &orientation)
virtual const DtTaitBryan &	orientation (int vtx=0) const
virtual void	setOrientationOffset (const DtTaitBryan &orientationOffset)
virtual const DtTaitBryan &	orientationOffset () const
virtual void	enableColorBlending (bool b)
virtual void	setBlendColor (float r, float g, float b, float a)
virtual void	getBlendColor (float &r, float &g, float &b, float &a)
virtual bool	colorBlendingEnabled () const
virtual void	enableLighting (bool l)
virtual int	modelSet () const
const DtVector &	boundingBoxExtents () const
void	getBoundingBoxExtents (double &x, double &y, double &z) const
const DtVector &	boundingBoxCenter () const
virtual void	getBoundingBoxCenter (double &x, double &y, double &z) const
virtual void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)
void	setContributesToBound (bool trueOrFalse)
bool	contributesToBound () const
DtDe &	de ()
virtual void	setModelInstance (DtModelInstance *modelInstance)
virtual void	promoteBackgroundModelInstance (DtModelDefinition &defintion)
virtual void	setVisible (bool isVisible)
virtual bool	visible () const
DtUniqueID	parentSceneObjectID () const
virtual void	addedToSceneObjectAsProp (const DtUniqueID &sceneObj)
virtual void	addedToSceneObject (const DtUniqueID &sceneObj, int modelSet, int visualizerType)
virtual void	setElementId (DtUniqueID id)
virtual void	removedFromSceneObject ()
virtual void	setIsSupportModel (bool isSupport)=0
virtual void	setSolid (bool isSolid)
virtual bool	isProp ()
virtual void	updateMinLastFrameDistance (float distance)
virtual void	resetLastFrameDistance ()
virtual float	minLastFrameDistance () const
virtual DtModelInstance *	modelInstance ()
virtual const DtModelInstance *	modelInstance () const
int	visualizerType () const
virtual bool	supportsMultithreadedLoad ()
virtual void	backgroundLoad ()
virtual void	foregroundLoad ()
virtual bool	isActivelyBackgroundLoading ()
virtual DtLoaderHandle *	getLoadQueueHandle ()

Additional Inherited Members
Public Attributes inherited from makVrv::DtModel
boost::signalslib::signal < void(DtModel *)>	signal_modelToBeDestroyed
boost::signalslib::signal < void(DtModel *)>	signal_modelChanged
boost::signalslib::signal < bool(DtModel *, bool), SlotReturnOR >	signal_visibilityChangeRequested
boost::signalslib::signal < void(DtModelInstance *, DtModel *)>	signal_modelInstanceCreated
boost::signalslib::signal < void(DtModelInstance *, DtModel *)>	signal_modelInstanceToBeDestroyed
Protected Types inherited from makVrv::DtModel
typedef std::vector < ObjectTransform >	TransformList
Protected Member Functions inherited from makVrv::DtModel
virtual void	addToScene (const DtUniqueID &sceneObjectId, int modelSet, int visualizerType)=0
virtual void	addToSceneAsProp (const DtUniqueID &sceneObjectId)
virtual void	removeFromScene ()=0
virtual void	initializeModelInstance ()
void	slot_modelInstanceChanged (DtModelInstance *instance)
virtual void	waitAndClearLoadHandle ()
virtual void	removedFromLoadQueue ()
virtual void	setDoneBackgroundLoading ()
virtual void	setActivelyBackgroundLoading ()
Protected Attributes inherited from makVrv::DtModel
DtLoaderHandle *	myInLoadQueueHandle
DtDe &	myDe
const DtUniqueID	myUniqueId
bool	myColorBlendingEnabled
DtModelInstance *	myBackgroundModelInstance
float	myMinLastFrameDistance
TransformList	myTransforms
DtModelInstance *	myModelInstance
int	myModelSet
int	myVisualizerType
bool	myContributesToBound
DtUniqueID	myParentSceneObjectID
bool	myIsPropFlag
float	myBlendColor [4]
bool	myVisibleFlag
DtVector	myPositionOffset
DtTaitBryan	myOrientationOffset
std::string	myModelDefinitionName
Static Protected Attributes inherited from makVrv::DtModel
static bool	theInittedState

Constructor & Destructor Documentation

makVrv::DtOverlaySegmentedLineModel::DtOverlaySegmentedLineModel	(	DtDe &	de,
		DtUniqueID	id
	)

Constructor.

virtual makVrv::DtOverlaySegmentedLineModel::~DtOverlaySegmentedLineModel ( )

virtual

Destructor.

Member Function Documentation

virtual void makVrv::DtOverlaySegmentedLineModel::setEventsEnabled ( bool  )

pure virtual

Enable or disable widget events, such as picking and mouse-over.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setEventWidth ( float  width )

pure virtual

Set the line width for handling events.

Implemented in makVrv::DtOsgOverlaySegmentedLineModel, and makVrv::DtOsgOverlayGreatCircleArcModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setLineStyle ( int  )

pure virtual

Sets the style of line to use. See DtLineFacadeBase.h for styles.

Implemented in makVrv::DtOsgOverlayGreatCircleArcModel, and makVrv::DtOsgOverlaySegmentedLineModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setFixedWidthSizing ( bool  )

pure virtual

For those lines that support it, whether or not the lines sizes when zooming to pixel space (fixed width) or to the database (non-fixed width). Default is fixed width. If changing modes, be sure to change the arrow size.

Implemented in makVrv::DtOsgOverlayGreatCircleArcModel, and makVrv::DtOsgOverlaySegmentedLineModel.

virtual void makVrv::DtOverlaySegmentedLineModel::setGroup ( int  )

pure virtual

The higher the z order the "closer" to the eyepoint this element will be drawn. Use this variable to stack overlay objects in the particular order you want them displayed.

Implemented in makVrv::DtOsgOverlayGreatCircleArcModel, and makVrv::DtOsgOverlaySegmentedLineModel.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrvCore/DtOverlaySegmentedLineModel.h
