A single tactical graphic element. A tactical graphic element may be visualized using multiple visualizer sets one per model set.

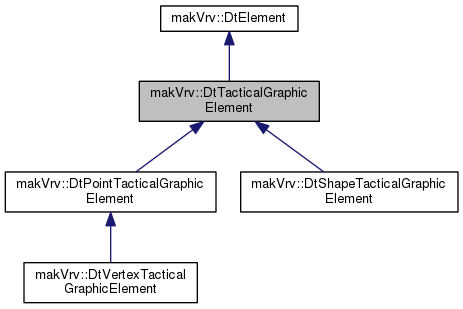

Inheritance diagram for makVrv::DtTacticalGraphicElement:

[legend]

Classes
struct	DtTacticalGraphicObjectStruct

Public Types
using	ModelSetToTacticalGraphicObjectMap = boost::unordered_map< int, DtTacticalGraphicObjectStruct * >

Public Types inherited from makVrv::DtElement
using	ModelSetToSceneObjectIdMap = boost::unordered_map< DtObserverMode::ModelSets, DtUniqueID >

Public Member Functions
	DtTacticalGraphicElement (DtBaseConnection &conn, DtStateListener &listener)

virtual	~DtTacticalGraphicElement ()

	DtTacticalGraphicElement ()=delete

	DtTacticalGraphicElement (const DtTacticalGraphicElement &)=delete

DtTacticalGraphicElement &	operator= (const DtTacticalGraphicElement &)=delete

virtual void	visualize (const DtSharedModelSetSettings::ModelSetVisualizedMap &sets) override

virtual void	setModelSetEnabled (int modelSet, bool enabled) override

virtual void	createVisualizersByModelSetAndType (int modelSet, int visualType)

virtual void	destroyVisualizersByModelSetAndType (int modelSet, int visualType)

template<typename VisualizerClass >
void	findVisualizers (std::vector< VisualizerClass * > &visualizers)

template<typename VisualizerClass >
void	findVisualizersByDynamicCast (std::vector< VisualizerClass * > &visualizers)

virtual void	setVisible (bool vis) override

virtual const ModelSetToTacticalGraphicObjectMap &	tacticalGraphicObjectMap () const

virtual DtTacticalGraphicStateListener &	tacticalGraphicStateListener ()

virtual const DtElementEntry::ElementType	elementType () const override

virtual void	slot_forceChanged (DtForceType force)

virtual DtEnvironmentalKinematicState *	createKinState (DtSceneObjectAgent *sceneObject, const int modelSet)


virtual DtTacticalGraphicObjectStruct *	findObjectStructForModelSet (int modelSet) const

virtual DtSceneObjectAgent *	findSceneObjectForModelSet (int modelSet) const

virtual DtTacticalGraphicVisualizerSet *	findVisualizerSetForModelSet (int modelSet) const

virtual DtEnvironmentalKinematicState *	findKinematicStateForModelSet (int modelSet) const


virtual void	setPickable (bool pickable)

virtual void	setPickable (bool pickable, int modelSet)


virtual std::vector< DtUniqueID >	sceneObjectUniqueIds ()

virtual DtUniqueID	sceneObjectIdForModelSet (int modelSet)

Public Member Functions inherited from makVrv::DtElement
	DtElement (DtBaseConnection &conn, DtElementID elementId)

virtual	~DtElement ()

	DtElement ()=delete

	DtElement (const DtElement &)=delete

DtElement &	operator= (const DtElement &)=delete

virtual bool	visible () const

virtual void	setElementId (const DtElementID)

DtElementID	elementID () const

virtual const DtUnicode &	elementDefinition () const

virtual void	setElementDefinition (const DtUnicode &definition)

virtual std::string	displayUnitCollectionName () const

virtual void	setDisplayUnitCollectionName (const std::string &definition)

virtual void	setDriverType (const std::string &driverType)

virtual void	setElementSubtype (DtElementAttributes::ElementSubtypes subtype)

virtual void	changeElementAttribute (const DtElementAttribute *attr)

virtual void	updateElementDefinitionFromDefinitions ()

virtual void	updateElementDefinitionFromDefinitions (std::vector< DtUnicode > &definitions)

virtual ModelSetToSceneObjectIdMap &	modelSetToSceneObjectIdMap ()

virtual void	setSceneObjectIdForModelSet (DtObserverMode::ModelSets modelSet, DtUniqueID id)

virtual void	removeSceneObjectIdForModelSet (DtObserverMode::ModelSets modelSet)

virtual DtUniqueID	sceneObjectIdForModelSet (DtObserverMode::ModelSets modelSet) const

Static Public Member Functions
static const DtElementEntry::ElementType	theElementType ()

Protected Member Functions
void	setKindAndCategory (int kind, int category)

void	reportKindAndCategory ()

virtual void	slot_visibilityChanged (bool vis)

Protected Member Functions inherited from makVrv::DtElement
void	slot_updateOverlayNameRaw (const char *text)

void	slot_updateConnectionObjectID (const std::string &id)

void	slot_updateConnectionObjectType (const std::string &type)

void	slot_updateDisplayName (const std::string &text)

void	slot_updateOverlayName (const std::string &pname)

void	slot_updateDamageState (EntityStateListener::DamageState state)

virtual void	getDefinitions (std::vector< DtUnicode > &definitions)

virtual void	reportElementCreated ()

virtual void	reportDisplayName ()

virtual void	reportConnectionObjectID ()

virtual void	reportConnectionObjectType ()

virtual void	reportOverlayNameChanged ()

virtual void	reportVisibility ()

virtual void	reportDamageStateChanged ()

virtual void	reportDriverType ()

virtual void	reportElementSubtype ()

virtual void	reportElementDefinitionName ()

virtual void	reportDisplayUnitCollectionName ()

virtual bool	distribute () const

virtual void	setDistribute (const bool distribute)

Protected Attributes
DtTacticalGraphicStateListener &	myListener

ModelSetToTacticalGraphicObjectMap	myModelSetToTacticalGraphicObjectMap

DtSignalConnectionManager	myConnections

std::pair< int, int >	myKindCategory

Protected Attributes inherited from makVrv::DtElement
DtAgentManagerInterface &	mySceneInterface

DtSharedSettingsManager &	mySettingsManager

const DtVisualizerCreationSettings::VisualTypeVisualizerCreationMap &	myVisualTypeVisualizerCreationMap

DtBaseConnection &	myBaseConnection

DtElementID	myElementId

DtUnicode	myElementDefinitionName

const DtElementDefinitionNew *	myElementDefinition

std::string	myDisplayUnitCollectionName

std::string	myConnectionObjectID

std::string	myConnectionObjectType

std::string	myDisplayName

std::string	myElementOverlayName

std::string	myDriverType

DtElementAttributes::ElementSubtypes	myElementSubtype

EntityStateListener::DamageState	myDamageState

bool	myElementVisible

bool	myElementReported

bool	myDistribute

ModelSetToSceneObjectIdMap	myModelSetToSceneObjectIdMap

Member Typedef Documentation

using makVrv::DtTacticalGraphicElement::ModelSetToTacticalGraphicObjectMap = boost::unordered_map<int, DtTacticalGraphicObjectStruct*>

Constructor & Destructor Documentation

makVrv::DtTacticalGraphicElement::DtTacticalGraphicElement	(	DtBaseConnection &	conn,
		DtStateListener &	listener
	)

CTOR.

virtual makVrv::DtTacticalGraphicElement::~DtTacticalGraphicElement ( )

virtual

DTOR.

makVrv::DtTacticalGraphicElement::DtTacticalGraphicElement ( )

delete

not allowed - default constructor

makVrv::DtTacticalGraphicElement::DtTacticalGraphicElement ( const DtTacticalGraphicElement & )

delete

not allowed - copy constructor

Member Function Documentation

DtTacticalGraphicElement& makVrv::DtTacticalGraphicElement::operator= ( const DtTacticalGraphicElement & )

delete

not allowed - equals operator

virtual void makVrv::DtTacticalGraphicElement::visualize ( const DtSharedModelSetSettings::ModelSetVisualizedMap & sets )

overridevirtual

Visualize the element.

Reimplemented from makVrv::DtElement.

Reimplemented in makVrv::DtVertexTacticalGraphicElement, makVrv::DtShapeTacticalGraphicElement, and makVrv::DtPointTacticalGraphicElement.

virtual void makVrv::DtTacticalGraphicElement::setModelSetEnabled	(	int	modelSet,
		bool	enabled
	)

overridevirtual

Sets the particular model set up. Does nothing if it already exists. This method does a large portion of entity creation. It creates the sceneObject agent, the visualizer set, and kinematic state object for a model set. It sets information from the visualizer definition on the kin state, and then calls updateVisibilityState If the model set is disabled it will delete the pointers and the stuct in myModelSetToEntityObjectMap.

Implements makVrv::DtElement.

virtual void makVrv::DtTacticalGraphicElement::createVisualizersByModelSetAndType	(	int	modelSet,
		int	visualType
	)

virtual

virtual void makVrv::DtTacticalGraphicElement::destroyVisualizersByModelSetAndType	(	int	modelSet,
		int	visualType
	)

virtual

template<typename VisualizerClass >

void makVrv::DtTacticalGraphicElement::findVisualizers ( std::vector< VisualizerClass * > & visualizers )

inline

Find all visualizers Note this is for all model sets.

References myModelSetToTacticalGraphicObjectMap.

template<typename VisualizerClass >

void makVrv::DtTacticalGraphicElement::findVisualizersByDynamicCast ( std::vector< VisualizerClass * > & visualizers )

inline

Find all visualizers in all model sets if they satisfy the dynamic_cast to the VizualizerClass.

References myModelSetToTacticalGraphicObjectMap.

virtual void makVrv::DtTacticalGraphicElement::setVisible ( bool vis )

overridevirtual

Set the element to be visible.

Reimplemented from makVrv::DtElement.

virtual const ModelSetToTacticalGraphicObjectMap& makVrv::DtTacticalGraphicElement::tacticalGraphicObjectMap ( ) const

virtual

Get the current model set map.

virtual DtTacticalGraphicObjectStruct* makVrv::DtTacticalGraphicElement::findObjectStructForModelSet ( int modelSet ) const

virtual

Model set object accessors.

virtual DtSceneObjectAgent* makVrv::DtTacticalGraphicElement::findSceneObjectForModelSet ( int modelSet ) const

virtual

Model set object accessors.

virtual DtTacticalGraphicVisualizerSet* makVrv::DtTacticalGraphicElement::findVisualizerSetForModelSet ( int modelSet ) const

virtual

Model set object accessors.

virtual DtEnvironmentalKinematicState* makVrv::DtTacticalGraphicElement::findKinematicStateForModelSet ( int modelSet ) const

virtual

Model set object accessors.

virtual DtTacticalGraphicStateListener& makVrv::DtTacticalGraphicElement::tacticalGraphicStateListener ( )

virtual

Get the listener for the entity this visualizer is visualizing.

virtual const DtElementEntry::ElementType makVrv::DtTacticalGraphicElement::elementType ( ) const

overridevirtual

Returns the element type, in this case tactical graphic.

Implements makVrv::DtElement.

Reimplemented in makVrv::DtVertexTacticalGraphicElement, makVrv::DtShapeTacticalGraphicElement, and makVrv::DtPointTacticalGraphicElement.

static const DtElementEntry::ElementType makVrv::DtTacticalGraphicElement::theElementType ( )

static

virtual void makVrv::DtTacticalGraphicElement::slot_forceChanged ( DtForceType force )

virtual

Used to set the elements subtype, which is used to determine force type in the object list panel.

virtual DtEnvironmentalKinematicState* makVrv::DtTacticalGraphicElement::createKinState	(	DtSceneObjectAgent *	sceneObject,
		const int	modelSet
	)

virtual

Create a DtEnvironmentalKinematicState object Shape and Vertex elements override this method to create derived types.

Reimplemented in makVrv::DtShapeTacticalGraphicElement, makVrv::DtVertexTacticalGraphicElement, and makVrv::DtPointTacticalGraphicElement.

virtual void makVrv::DtTacticalGraphicElement::setPickable ( bool pickable )

virtual

PickableSet pickable for all model sets.

virtual void makVrv::DtTacticalGraphicElement::setPickable	(	bool	pickable,
		int	modelSet
	)

virtual

Set pickable for a specific model set.

virtual std::vector<DtUniqueID> makVrv::DtTacticalGraphicElement::sceneObjectUniqueIds ( )

virtual

Scene Object Unique IDs.

Get the IDs for all the scene objects in this element There is one scene object per model set

virtual DtUniqueID makVrv::DtTacticalGraphicElement::sceneObjectIdForModelSet ( int modelSet )

virtual

Get the ID of a scene object for a specific model set.

void makVrv::DtTacticalGraphicElement::setKindAndCategory	(	int	kind,
		int	category
	)

protected

Set the kind and category for later identification of this tactical.

void makVrv::DtTacticalGraphicElement::reportKindAndCategory ( )

protected

Report that element kind/category was updated.

virtual void makVrv::DtTacticalGraphicElement::slot_visibilityChanged ( bool vis )

protectedvirtual

Called when the listener indicates the element has become visible or not.

Member Data Documentation

DtTacticalGraphicStateListener& makVrv::DtTacticalGraphicElement::myListener

protected

ModelSetToTacticalGraphicObjectMap makVrv::DtTacticalGraphicElement::myModelSetToTacticalGraphicObjectMap

protected

Referenced by findVisualizers(), and findVisualizersByDynamicCast().

DtSignalConnectionManager makVrv::DtTacticalGraphicElement::myConnections

protected

std::pair<int, int> makVrv::DtTacticalGraphicElement::myKindCategory

protected
