DtSimReport is an abstract base class from which real reports can derive. It manages the read/write capability; derived classes need only use and register read/writatble data types for derived information. The DtReportMessage class is used to convey a DtSimReport over the radio network. Components register callback functions for report messages in the same way that they do for task and set data messages.

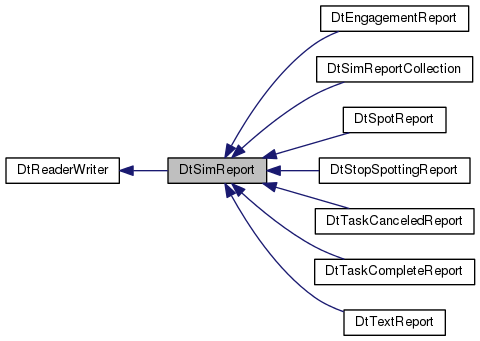

Inheritance diagram for DtSimReport:

[legend]

Public Member Functions
virtual	~DtSimReport ()

virtual bool	init ()

virtual const DtSimReportMessageType &	type () const =0

virtual DtSimReport *	clone (const DtString &name, DtReaderWriterRegistry *parentRegistry=0) const =0

virtual void	putData (std::string &fp, int indentLevel=0)

virtual DtlObjPtr	getData (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths, const DtVariableBindingsList &variableBindings)

virtual char *	netRep ()

virtual void	clearNetRep ()

virtual int	netRepSize () const =0

virtual bool	setFromNet (const char *contentBuffer, unsigned contentSize)=0

virtual bool	setToNet ()=0

virtual DtString	stringRep () const

Public Member Functions inherited from DtReaderWriter
	DtReaderWriter ()

	DtReaderWriter (const DtString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtSymbolString &name, DtReaderWriterRegistry *parentRegistry=NULL, bool readonly=false)

	DtReaderWriter (const DtString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtSymbolString &name, const DtReaderWriter &orig, DtReaderWriterRegistry *parentRegistry=NULL)

	DtReaderWriter (const DtReaderWriter &, DtReaderWriterRegistry *parentRegistry=NULL)

const DtReaderWriter &	operator= (const DtReaderWriter &orig)

bool	operator== (const DtReaderWriter &) const

bool	operator!= (const DtReaderWriter &rhs)

virtual	~DtReaderWriter ()

virtual void	putSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual void	postPutSelf ()

virtual void	prePutSelf ()

virtual void	getSelf (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

virtual void	postGetSelf ()

virtual void	preGetSelf ()

virtual void	writeSelf (std::string &fp, int indentLevel=0, bool writeUnspecified=false, const DtFilename &path=DtFilename::nullFilename())

virtual DtSymbolString	name () const

virtual void	addAlias (const DtSymbolString &alias)

virtual void	addAlias (const DtString &alias)

virtual bool	hasAlias (const DtSymbolString &alias)

virtual const aliasContainer &	aliases () const

virtual void	setReadonly (bool flag)

bool	isReadonly () const

virtual void	reset ()

virtual int	alignment () const

virtual bool	variableIsBound () const

virtual void	unbindVariable ()

virtual void	setName (const DtString &)

virtual const char *	readerWriterType () const

virtual const char *	xmlType () const

virtual DtString	prettyPrint () const

std::string	debugText () const

virtual void	bindVariables (DtVariableBindingsList variableBindings)

virtual std::list < DtVariableNameType >	unboundVariables () const

bool	invalid () const

virtual bool	hasChild (const DtReaderWriter *p) const

virtual bool	hasVariableReference () const

virtual void	bindLocalVariables (const DtVariableBindingsList &variableBindings)

virtual void	recordUpdateTime () const

virtual bool	wasUpdatedSince (DtTime t) const

virtual bool	changedSinceLastChecked ()

virtual bool	peekChangedSinceLastChecked () const

virtual void	setValueSpecified (bool specified, bool recurse=false)

virtual bool	valueSpecified () const

virtual bool	isVariableReference () const

virtual void	setIsVariableReference (bool value)

virtual void	clearAllVariableReferenceFlags ()

virtual DtSymbolString	variableName () const

virtual void	setVariableName (const DtSymbolString variableName)

virtual const DtReaderWriter *	defaultRWValue () const

virtual DtReaderWriter *	defaultRWValue ()

virtual void	setDefaultRWValue (DtReaderWriter *)

virtual bool	checkAndSetDefaultRWValue (DtlObjPtr args, const DtReaderWriter::SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &variableBindings=nullVariableReference())

const DtReaderWriterRegistry &	registry () const

DtReaderWriterRegistry &	registry ()

virtual DtPropertyInterface *	property ()

virtual const DtPropertyInterface *	property () const

virtual DtString	toXml () const

virtual DtRwVariableBindings *	generateVariableBindings () const

virtual bool	toXml (const DtFilename &) const

virtual bool	fromXml (const DtString &)

virtual bool	fromXmlFile (const DtFilename &)

virtual void	putSelf (DtEnvironmentSP, DtEnvValueSP parent) const

virtual void	putData (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	putVariableReference (DtEnvironmentSP, DtEnvValueSP value) const

virtual void	getSelf (const DtEnvironmentSP, const DtEnvValueSP root, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	getData (const DtEnvironmentSP, const DtEnvValueSP, const SearchPaths &searchPaths=SearchPaths(), const DtVariableBindingsList &bindings=DtVariableBindingsList())

virtual void	unrecognizedItem (const DtEnvironmentSP env, const DtEnvValueSP root, const SearchPaths &searchPaths, const DtVariableBindingsList &varBindings)

virtual void	getVariableReference (DtEnvironmentSP, DtEnvValueSP value)

Static Public Member Functions
static DtSimReport *	createReport (const DtSimReportMessageType &reportTypeString)

static void	addReportCreatorFcn (const DtSimReportMessageType &reportName, DtSimReportCreatorFcn fcn)

static void	setFactory (DtSimReportFactory *factory)

static DtSimReportFactory *	factory ()

static bool	isTypeRegistered (const DtSimReportMessageType &type)

Static Public Member Functions inherited from DtReaderWriter
static void	putIndent (std::string &fp, int indentLevel)

static const DtVariableBindingsList &	nullVariableReference ()

static void	setPostGetSelfCallback (DtGetSelfCallbackFcn fcn, void *usrData)

static void	setPrePutSelfCallback (DtPutSelfCallbackFcn fcn, void *usrData)

static void	setPutIndent (bool)

static bool	putIndent ()

static const char *	theXmlType ()

static const DtFilename &	appPath ()

static void	setFactoryCreatorFunction (DtReaderWriterFactoryCreatorFcn fcn)

static void	createReaderWriterFactory ()

static void	cleanupFactory ()

static DtReaderWriterFactory *	factory ()

static void	setOutputStream (DtOutputStream *stream)

static DtOutputStream &	outputStream ()

static DtReaderWriter *	createFromXmlFile (const DtFilename &, bool createAsProperty=false)

static DtReaderWriter *	createFromXml (const DtString &, bool createAsProperty=false)

static DtReaderWriter *	createFromEnvironment (DtEnvironmentSP, bool createAsProperty=false)

static DtString	getAttribute (DtEnvironmentSP env, const DtString &name, DtEnvValueSP root)

Protected Member Functions
	DtSimReport ()

	DtSimReport (const DtString &writeName, DtReaderWriterRegistry *parentRegistry=0)

	DtSimReport (const DtString &writeName, const DtSimReport &orig, DtReaderWriterRegistry *parentRegistry=0)

const DtSimReport &	operator= (const DtSimReport &orig)

virtual char *	createNetworkBuffer ()

Protected Member Functions inherited from DtReaderWriter
virtual void	bindToRwAsVariable (const DtReaderWriter *rw)

Protected Attributes
char *	myNetRep

Protected Attributes inherited from DtReaderWriter
const DtSymbolString	myName

DtReaderWriterRegistry	myRegistry

DtReaderWriterRegistry *	myParentRegistry

bool	myValueSpecified

bool	myReadOnlyFlag

bool	myIsVariableReference

DtSymbolString	myVariableName

bool	myVariableIsBound

DtReaderWriter *	myDefaultValue

aliasContainer	myAliases

bool	myInvalid

bool	myChangedFlag

Static Protected Attributes
static DtSimReportFactory *	myFactory

Static Protected Attributes inherited from DtReaderWriter
static DtString	theUnspecifiedValue

static DtGetSelfCallbackInfo	thePostGetSelfCallback

static DtPutSelfCallbackInfo	thePrePutSelfCallback

static const DtVariableBindingsList	theEmptyVariableBindingsList

static bool	theCreatorFcnSet

static DtReaderWriterFactory *	theFactory

static DtReaderWriterFactoryCreatorFcn	theFactoryCreatorFcn

static bool	thePutIndent

static DtOutputStream *	theOutputStream

Additional Inherited Members
Public Types inherited from DtReaderWriter
typedef std::vector < DtSymbolString >	aliasContainer

typedef std::vector < DtSymbolString >::iterator	aliasIter

typedef std::vector < DtSymbolString > ::const_iterator	aliasConstIter

typedef std::vector< DtFilename >	SearchPaths

typedef std::pair < DtSymbolString, DtString >	DtVariableNameType

typedef DtReaderWriterFactory (	DtReaderWriterFactoryCreatorFcn )()

Constructor & Destructor Documentation

DtSimReport::DtSimReport ( )

protected

Constructors are protected because no one should instantiate the base class, just derived versions.

default constructor

DtSimReport::DtSimReport	(	const DtString &	writeName,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

protected

constructor if you have a task 'put' itself, the write name will preface the task.

DtSimReport::DtSimReport	(	const DtString &	writeName,
		const DtSimReport &	orig,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)

protected

copy constructor

virtual DtSimReport::~DtSimReport ( )

virtual

destructor

Member Function Documentation

const DtSimReport& DtSimReport::operator= ( const DtSimReport & orig )

protected

assignment operator; same as copy constructor

virtual bool DtSimReport::init ( )

virtual

Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.

virtual const DtSimReportMessageType& DtSimReport::type ( ) const

pure virtual

What kind of report am I? Returns a character string representing the kind of report. Derived classes must implement this function, returning a string that uniquely represents the kind of report it is. The definitions for report types used in VR-Forces are in radioMsgTypes.h.

Implemented in DtSpotReport, DtTaskCompleteReport, DtSimReportCollection, DtEngagementReport, DtStopSpottingReport, DtTaskCanceledReport, and DtTextReport.

virtual DtSimReport* DtSimReport::clone	(	const DtString &	name,
		DtReaderWriterRegistry *	parentRegistry = `0`
	)		const

pure virtual

Make a copy of this report. Returns a pointer to a newly created copy of this report. Derived classes must implement this function to instantiate and initialize a copy of the derived class type.

Implemented in DtTaskCompleteReport, DtTaskCanceledReport, DtSpotReport, DtSimReportCollection, DtTextReport, DtEngagementReport, and DtStopSpottingReport.

virtual void DtSimReport::putData	(	std::string &	fp,
		int	indentLevel = `0`
	)

virtual

putData writes our type, which is provided by the virtual type accessor of the deriving class.

Reimplemented from DtReaderWriter.

virtual DtlObjPtr DtSimReport::getData	(	DtlObjPtr	args,
		const DtReaderWriter::SearchPaths &	searchPaths,
		const DtVariableBindingsList &	variableBindings
	)

virtual

getData is just used to get us past the type in the data stream, since it's not actually stored.

Reimplemented from DtReaderWriter.

virtual char* DtSimReport::netRep ( )

virtual

virtual void DtSimReport::clearNetRep ( )

virtual

Clears the stored netRep. It will be regenerated the next time netRep() is called. If a report already has a netRep, and some of the data has changed, call this to force a update of the netRep next time the report is sent on the network.

Reimplemented in DtSimReportCollection.

virtual int DtSimReport::netRepSize ( ) const

pure virtual

Implemented in DtSpotReport, DtTaskCompleteReport, DtStopSpottingReport, DtEngagementReport, DtTaskCanceledReport, DtSimReportCollection, and DtTextReport.

virtual bool DtSimReport::setFromNet	(	const char *	contentBuffer,
		unsigned	contentSize
	)

pure virtual

Implemented in DtSpotReport, DtTaskCompleteReport, DtStopSpottingReport, DtEngagementReport, DtTaskCanceledReport, DtSimReportCollection, and DtTextReport.

virtual bool DtSimReport::setToNet ( )

pure virtual

Implemented in DtSpotReport, DtTaskCompleteReport, DtStopSpottingReport, DtEngagementReport, DtTaskCanceledReport, DtSimReportCollection, and DtTextReport.

virtual DtString DtSimReport::stringRep ( ) const

virtual

Reimplemented in DtSpotReport, DtTaskCompleteReport, DtStopSpottingReport, DtEngagementReport, DtTaskCanceledReport, DtSimReportCollection, and DtTextReport.

static DtSimReport* DtSimReport::createReport ( const DtSimReportMessageType & reportTypeString )

static

Static functions.

Creates a report based on a string type.

static void DtSimReport::addReportCreatorFcn	(	const DtSimReportMessageType &	reportName,
		DtSimReportCreatorFcn	fcn
	)

static

static void DtSimReport::setFactory ( DtSimReportFactory * factory )

static

static DtSimReportFactory* DtSimReport::factory ( )

static

static bool DtSimReport::isTypeRegistered ( const DtSimReportMessageType & type )

static

virtual char* DtSimReport::createNetworkBuffer ( )

protectedvirtual

Member Data Documentation

char* DtSimReport::myNetRep

protected

DtSimReportFactory* DtSimReport::myFactory

staticprotected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-0-branch/include/vrftasks/simReport.h
