exampleGLDrawingPlugin

Table of Contents

• Overview
• Expected Result
• Example details
• Building the Example
• Running the Example
• Example Source Files
• exampleGLDrawingPlugin.cxx

Overview

This example plugin creates a new driver that demonstrates how to use OpenGL draw calls from a subclass of osg::Drawable that gets added to the normalized 2D camera of all DtOsgChannels.

Expected Result

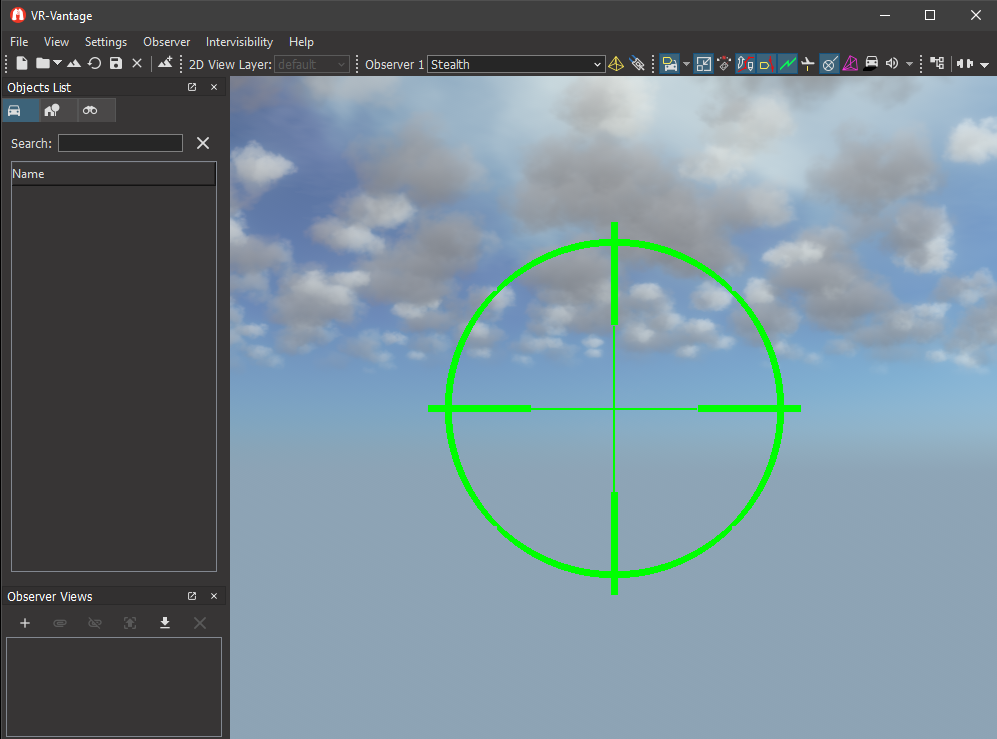

GL Drawing Plugin Result

Example details

Make a DtReticleDrawable which is subclassed from osg::Drawable:

// This subclass of osg::Drawable has a drawImplementation that can draw a
// green reticle overlay
class DtReticleDrawable : public osg::Drawable

Override drawImplementation to make some OpenGL calls:

   virtual void drawImplementation(osg::RenderInfo& state) const
   {
      // Access the viewport to determine the dimensions and aspect ratio of the
      // current channel
      osg::Viewport* viewport = state.getCurrentCamera()->getViewport();
      if (!viewport)
      {
         return;
      }
      int width = viewport->width();
      int height = viewport->height();
      float aspect = viewport->width() / viewport->height();

      // Push the current OpenGL state for the things that will be modified
      glPushMatrix();
      glPushAttrib(GL_LINE_BIT);

      // Update the projection matrix for the current aspect ratio and to base
      // the coordinates on OpenGL (which uses -1,-1 .. 1, 1) instead of the
      // normalized overlay coordinates in DtOsgChannel (which uses 0,0 .. 1,1)
      glMatrixMode(GL_PROJECTION);
      glLoadIdentity();
      if (width >= height)
      {
         gluOrtho2D(-1.0 * aspect, 1.0 * aspect, -1.0, 1.0);
      }
      else
      {
         gluOrtho2D(-1.0, 1.0, -1.0 / aspect, 1.0 / aspect);
      }

      // Default thicker lines to 10 but if the window is smaller (like with
      // an inset view) use 1% of the screen width as the line width so they
      // don't get drawn so fat as to hide the proper shape of the reticle.
      int lineWidth = 10;
      if ((width * .01) < lineWidth)
      {
         lineWidth = width * .01;
      }
      glLineWidth(lineWidth);

      // Draw the circle
      glBegin(GL_LINE_LOOP);
      glColor3f(0.0f, 1.0f, 0.0f);
      float radius = 0.5;
      float centerX = 0.0;
      float centerY = 0.0;

      for (int i=0; i < 360; i++)
      {
         float radians = i * M_DEG2RAD;
         glVertex2f(centerX + cos(radians)*radius,
            centerY + sin(radians)*radius);
      }
      glEnd();

Instantiate a DtReticleDrawable when the driver starts up and put it into an osg::Geode so it can be added to cameras:

   virtual bool onStart()
   {
      // Create myReticle and add it to myReticleGeode
      myReticle = new DtReticleDrawable();
      myReticleGeode = new osg::Geode();
      myReticleGeode->setName("Reticle Geode");
      myReticleGeode->addDrawable(myReticle);

Next make sure it's added to all the current channels:

      // Add myReticleGeode to all the current channels
      DtWindowManager::WindowList wins =
         myAgentManager.de().display()->windowManager().windows();
      DtWindowManager::WindowList::iterator winIter = wins.begin();
      for(winIter; winIter != wins.end(); ++winIter)
      {
         DtChannelManager::ChannelMap channels =
            (*winIter)->channelManager().channels();
         DtChannelManager::ChannelMap::iterator chanIter=channels.begin();
         for(chanIter; chanIter!=channels.end(); ++chanIter)
         {
            DtOsgChannel* osgChannel =
               dynamic_cast<DtOsgChannel*>(chanIter->second);
            if (osgChannel)
            {
               //osgChannel->overlayCamera()->addChild(myReticleGeode);
               osgChannel->normalizedOverlayCamera()->addChild(myReticleGeode);
            }
         }
      }

      // onStart() complete

To get the reticle geode added to any new channels, hook up signal_channelCreated from the drivers constructor:

      mySignalConnections += DtChannelManagerSignaler::instance(
         myAgentManager.de()).signal_channelCreated.connect(
         boost::bind(&DtExampleGLDrawingDriver::slot_channelCreated, this,
         _1, _2));

And then add it from the callback:

   void slot_channelCreated(DtChannelManager* mgr, DtChannel* channel)
   {
      DtOsgChannel* osgChannel = dynamic_cast<DtOsgChannel*>(channel);
      if (!osgChannel || !myReticleGeode)
      {
         return;
      }

      // Add myReticleGeode to the new channel
      osgChannel->normalizedOverlayCamera()->addChild(myReticleGeode);

Building the Example

VR-Vantage includes pre-built versions of the example plug-in. To build it yourself, follow the instructions at Building VR-Vantage Examples, Applications, and Plug-ins.

Running the Example

This example is a plug-in. You can run it by running ./bin64/exampleGLDrawingPlugin_stealth.bat (on Windows) or ./bin64/exampleGLDrawingPlugin_stealth.sh (on Linux). For more information about running examples, please see Running Applications and Examples.

Example Source Files

• exampleGLDrawingPlugin.cxx

---

exampleGLDrawingPlugin.cxx

/******************************************************************************
 * Copyright (c) 2019 MAK Technologies, Inc.
 * All rights reserved.
 ******************************************************************************/

#ifdef _WIN32
#ifdef EXAMPLEGLDRAWINGPLUGIN_EXPORTS
#define DT_DLL_EXAMPLEGLDRAWINGPLUGIN __declspec ( dllexport )
#else
#define DT_DLL_EXAMPLEGLDRAWINGPLUGIN __declspec ( dllimport )
#endif
#else
#define DT_DLL_EXAMPLEGLDRAWINGPLUGIN
#endif

#define DT_DE_PLUGIN_EXPORT_MACRO DT_DLL_EXAMPLEGLDRAWINGPLUGIN
// Declare & export the plugin initialization function (bool initDeModule(DtDe* de))
#include <vrvCore/exportPlugin.h>

#include <vrvCore/DtDe.h>
#include <vrvCore/DtDriver.h>
#include <vrvCore/DtDriverManager.h>
#include <vrvCore/DtChannelManager.h>
#include <vrvCore/DtAgentManager.h>
#include <vrvCore/DtWindowManager.h>
#include <vrvCore/DtDisplay.h>
#include <vrvCore/DtWindow.h>
#include <vrvOsg/DtOsgChannel.h>
#include <vrvUtil/DtSignalConnectionManager.h>

#include <matrix/vlMath.h>

#include <osg/Drawable>
#include <osg/Geode>

#include <GL/gl.h>
#include <GL/glu.h>
#include <GL/glut.h>

#include <boost/bind.hpp>

// Use the VR-Vantage namespace. All classes in VR-Vantage are in this namespace.
using namespace makVrv;

// NOTE: For this example to work in Virtual Reality, the normalizedOverlayCamera should be switched to just overlayCamera

// This subclass of osg::Drawable has a drawImplementation that can draw a
// green reticle overlay
class DtReticleDrawable : public osg::Drawable
{
public:
   DtReticleDrawable()
   {
      // set to false to make sure drawImplementation is called every frame
      setSupportsDisplayList(false);
      setUseDisplayList(false);
   };

   DtReticleDrawable(const DtReticleDrawable& reticle,
      const osg::CopyOp& copyop = osg::CopyOp::SHALLOW_COPY) :
      osg::Drawable(reticle,copyop)
   {
      // set to false to make sure drawImplementation is called every frame
      setSupportsDisplayList(false);
      setUseDisplayList(false);
   }

   virtual ~DtReticleDrawable()
   {
   };

   META_Object(test, DtReticleDrawable)

   virtual void drawImplementation(osg::RenderInfo& state) const
   {
      // Access the viewport to determine the dimensions and aspect ratio of the
      // current channel
      osg::Viewport* viewport = state.getCurrentCamera()->getViewport();
      if (!viewport)
      {
         return;
      }
      int width = viewport->width();
      int height = viewport->height();
      float aspect = viewport->width() / viewport->height();

      // Push the current OpenGL state for the things that will be modified
      glPushMatrix();
      glPushAttrib(GL_LINE_BIT);

      // Update the projection matrix for the current aspect ratio and to base
      // the coordinates on OpenGL (which uses -1,-1 .. 1, 1) instead of the
      // normalized overlay coordinates in DtOsgChannel (which uses 0,0 .. 1,1)
      glMatrixMode(GL_PROJECTION);
      glLoadIdentity();
      if (width >= height)
      {
         gluOrtho2D(-1.0 * aspect, 1.0 * aspect, -1.0, 1.0);
      }
      else
      {
         gluOrtho2D(-1.0, 1.0, -1.0 / aspect, 1.0 / aspect);
      }

      // Default thicker lines to 10 but if the window is smaller (like with
      // an inset view) use 1% of the screen width as the line width so they
      // don't get drawn so fat as to hide the proper shape of the reticle.
      int lineWidth = 10;
      if ((width * .01) < lineWidth)
      {
         lineWidth = width * .01;
      }
      glLineWidth(lineWidth);

      // Draw the circle
      glBegin(GL_LINE_LOOP);
      glColor3f(0.0f, 1.0f, 0.0f);
      float radius = 0.5;
      float centerX = 0.0;
      float centerY = 0.0;

      for (int i=0; i < 360; i++)
      {
         float radians = i * M_DEG2RAD;
         glVertex2f(centerX + cos(radians)*radius,
            centerY + sin(radians)*radius);
      }
      glEnd();

      // Draw the thick lines
      glBegin(GL_LINES);
      glColor3f(0.0f, 1.0f, 0.0f);
      float extra = 0.06;
      glVertex2f(centerX - (radius + extra), centerY);
      glVertex2f(centerX - radius/2, centerY);
      glVertex2f(centerX + (radius + extra), centerY);
      glVertex2f(centerX + radius/2, centerY);
      glVertex2f(centerX, centerY - (radius + extra));
      glVertex2f(centerX, centerY - radius/2);
      glVertex2f(centerX, centerY + (radius + extra));
      glVertex2f(centerX, centerY + radius/2);
      glEnd();

      // Draw the thin lined inner crosshair
      glLineWidth(2.0);
      glBegin(GL_LINES);
      glVertex2f(centerX - radius/2, centerY);
      glVertex2f(centerX + radius/2, centerY);
      glVertex2f(centerX, centerY - radius/2);
      glVertex2f(centerX, centerY + radius/2);
      glEnd();

      // Clean up the OpenGL state
      glPopAttrib();
      glPopMatrix();
   }
};

// This driver creates and owns the example driver.
class DtExampleGLDrawingDriver : public makVrv::DtDriver
{
public:

   DtExampleGLDrawingDriver( DtAgentManager& am )
      : makVrv::DtDriver( am, "DtExampleGLDrawingDriver" )
   {
      // Hook up slot_channelCreated so it gets calls whenever a new channel is
      // created.
      mySignalConnections += DtChannelManagerSignaler::instance(
         myAgentManager.de()).signal_channelCreated.connect(
         boost::bind(&DtExampleGLDrawingDriver::slot_channelCreated, this,
         _1, _2));
   }

   virtual ~DtExampleGLDrawingDriver()
   {
   }

   virtual const std::string& className() const
   {
      static std::string name = "DtExampleGLDrawingDriver";
      return name;
   }

   void slot_channelCreated(DtChannelManager* mgr, DtChannel* channel)
   {
      DtOsgChannel* osgChannel = dynamic_cast<DtOsgChannel*>(channel);
      if (!osgChannel || !myReticleGeode)
      {
         return;
      }

      // Add myReticleGeode to the new channel
      osgChannel->normalizedOverlayCamera()->addChild(myReticleGeode);
   }

   virtual bool onStart()
   {
      // Create myReticle and add it to myReticleGeode
      myReticle = new DtReticleDrawable();
      myReticleGeode = new osg::Geode();
      myReticleGeode->setName("Reticle Geode");
      myReticleGeode->addDrawable(myReticle);

      // Set up a known scenegraph state set used for drawing.
      osg::StateSet* ss = myReticleGeode->getOrCreateStateSet();
      ss->setAttributeAndModes(new osg::Program(), osg::StateAttribute::OFF);
      ss->setTextureMode(0, GL_TEXTURE_1D, osg::StateAttribute::OFF);
      ss->setTextureMode(0, GL_TEXTURE_2D, osg::StateAttribute::OFF);
      ss->setTextureMode(0, GL_TEXTURE_3D, osg::StateAttribute::OFF);
      ss->setMode(GL_LIGHTING, osg::StateAttribute::OFF);
      ss->setMode(GL_BLEND, osg::StateAttribute::OFF);
      ss->setMode(GL_CULL_FACE, osg::StateAttribute::OFF);
      ss->setMode(GL_DEPTH_TEST, osg::StateAttribute::OFF | osg::StateAttribute::PROTECTED);

      // Add myReticleGeode to all the current channels
      DtWindowManager::WindowList wins =
         myAgentManager.de().display()->windowManager().windows();
      DtWindowManager::WindowList::iterator winIter = wins.begin();
      for(winIter; winIter != wins.end(); ++winIter)
      {
         DtChannelManager::ChannelMap channels =
            (*winIter)->channelManager().channels();
         DtChannelManager::ChannelMap::iterator chanIter=channels.begin();
         for(chanIter; chanIter!=channels.end(); ++chanIter)
         {
            DtOsgChannel* osgChannel =
               dynamic_cast<DtOsgChannel*>(chanIter->second);
            if (osgChannel)
            {
               //osgChannel->overlayCamera()->addChild(myReticleGeode);
               osgChannel->normalizedOverlayCamera()->addChild(myReticleGeode);
            }
         }
      }

      // onStart() complete
      return true;
   }

   virtual bool onStop()
   {
      return true;
   }

   virtual bool onTick()
   {
      return true;
   }

protected:
   osg::ref_ptr<DtReticleDrawable> myReticle;
   osg::ref_ptr<osg::Geode> myReticleGeode;

   makVrv::DtSignalConnectionManager mySignalConnections;
};

void installDriver(DtDe& de)
{
   // Create DtExampleDriver.
   DtExampleGLDrawingDriver* driver =
      new DtExampleGLDrawingDriver(de.agentManager());

   // The driver is now owned by the display engine. Do not delete it.
   de.driverManager().addDriver(driver);

   // Start the driver, creating the agent.
   de.driverManager().startDriver(driver);
}

void init(DtDe& de)
{
   // Ensure that init only gets called once
   // (not strictly necessary here, but this is good practice in general)
   DT_DE_INIT_ONCE(de);

   // We only want to create the driver if we are running in master mode.
   if (de.isInMasterMode())
   {
      // The accessory must be created after the DE's initialization is
      // finished, to make sure all the objects it uses exist.
      de.signal_postInitialize.connect(boost::bind(
         &installDriver, boost::ref(de) ));
   }
}

bool initDeModule(makVrv::DtDe* de)
{
   // Setup the plug-in. Normally, the init function and functionality
   // should be in its own library.
   init(*de);
   return true;
}

[<< Examples] [Home] [Top of Page]
