Base class for Terrain Source trackers. Determines if the necessary data To perform an intersection is currently available. Can also create commands for a DtTerrainSourceTracker to actually perform the paging.

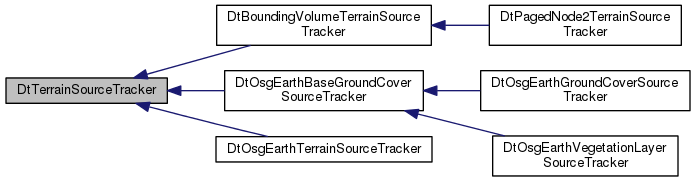

Inheritance diagram for DtTerrainSourceTracker:

[legend]

Public Member Functions
	DtTerrainSourceTracker (DtVantageTerrainEngine , DtPagerCommandQueue commandQueue, osgEarth::MapNode *mapNode)

virtual	~DtTerrainSourceTracker ()

virtual DtTerrainInterfaceConfig &	configOptions ()

virtual const DtTerrainInterfaceConfig &	configOptions () const

virtual bool	init (DtTerrainSourcePager &)

virtual boost::optional < DtTerrainIntersectOptions::Fidelity >	intersectFidelity () const

virtual bool	dataAvailable (DtPagingMetaDataPtr metaData, DtTerrainPagingGeometryPtr geometry)=0

virtual void	pageInData (DtPagingMetaDataPtr metaData, DtTerrainPagingGeometryPtr geometry)=0

virtual bool	canPageOutData (DtTerrainIntersectIDType intersectId)=0

virtual DtTerrainIntersectIDType	findOldestPagedData (unsigned int &numTriangles)=0

virtual void	pageOutOldestData (const int priority)=0

virtual void	addNodesToCollisionMapping (DtNodeId node, DtCollisionObjectList *collObjList)

virtual void	removeNodeToCollisionMappings (DtNodeId node)

virtual DtCollisionObjectList	collisionObjectsForNode (DtNodeId node)

virtual osgEarth::MapNode *	mapNode () const

virtual const osgEarth::Profile *	profile () const

virtual const Coordinate_System *	localCS () const

virtual void	setLabel (const DtString &)

virtual void	printInfo () const

virtual void	getPageOutData (DtNodeBoundingList &nodeBoundingList)

virtual void	getPageInData (DtNodeBoundingList &nodeBoundingList)

virtual void	getProceduralTreeTile (DtDebugDrawTerrainOutputInterface::terrainLineList &nodeBoundingList)

virtual unsigned	getMaxLODForBilinearIntersection () const

virtual double	intersetionTriangleMergeTolerance () const

virtual bool	useLandCoverData () const

virtual bool	useLifeMapLayer () const

virtual void	getSoilFromString (const std::string &soilType, DtSurface &surface) const

virtual double	triangleOutputMergeTolerance () const

virtual unsigned	minElevationIndexLOD () const

virtual unsigned	maxElevationIndexLOD () const

virtual unsigned	maxLOD () const

virtual bool	useRawElevation () const

virtual osgEarth::TileKey	getBestTileKey (const osgEarth::TileKey &) const

virtual bool	findTileInCache (const DtTerrainPagingGeometry geometry, std::vector< boost::shared_ptr< DtTileData > > &data, const DtChord chord=NULL) const

virtual void	addTileToCache (const boost::shared_ptr< DtTileData > &data, const DtChord *chord=NULL)

virtual void	clearTileCache ()

DtString	myLabel

DtTerrainInterfaceConfig	myConfig

DtPagerCommandQueue *	myCommandQueue

DtNodeToCollObjMMap	myNodeToCollObjMMap

tbb::spin_rw_mutex	myMutex

tbb::spin_rw_mutex	myTileCacheMutex

DtVantageTerrainEngine *	myVantageTerrainEngine

const osg::ref_ptr < osgEarth::MapNode >	myMapNode

const osgEarth::Map *	myMap

const osgEarth::Profile *	myMapProfile

tileDataCacheVector	myTileDataCache

tbb::atomic< int >	myTileCacheHit

tbb::atomic< int >	myTileCacheQuery

unsigned	myMinElevationTileLoadingLOD

DtTerrainSourcePager *	myPager

virtual unsigned	minElevationTileLoadingLOD () const

virtual void	setMinElevationTileLoading (unsigned lod)

Constructor & Destructor Documentation

DtTerrainSourceTracker::DtTerrainSourceTracker	(	DtVantageTerrainEngine *	,
		DtPagerCommandQueue *	commandQueue,
		osgEarth::MapNode *	mapNode
	)

CTOR.

virtual DtTerrainSourceTracker::~DtTerrainSourceTracker ( )

virtual

DTOR.

Member Function Documentation

virtual DtTerrainInterfaceConfig& DtTerrainSourceTracker::configOptions ( )

virtual

virtual const DtTerrainInterfaceConfig& DtTerrainSourceTracker::configOptions ( ) const

virtual

virtual bool DtTerrainSourceTracker::init ( DtTerrainSourcePager & )

virtual

Called after options are set. Returns false if error.

Reimplemented in DtOsgEarthTerrainSourceTracker, DtOsgEarthBaseGroundCoverSourceTracker, DtOsgEarthGroundCoverSourceTracker, and DtOsgEarthVegetationLayerSourceTracker.

virtual boost::optional<DtTerrainIntersectOptions::Fidelity> DtTerrainSourceTracker::intersectFidelity ( ) const

virtual

Fidelity that this tracker is configured for. The default returns an empty optional which means that this tracker will be used for all terrain intersections. If value is returned then this tracker will only be used for intersections which specify that fidelity.

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual bool DtTerrainSourceTracker::dataAvailable	(	DtPagingMetaDataPtr	metaData,
		DtTerrainPagingGeometryPtr	geometry
	)

pure virtual

Returns: True if all data along this chord has been paged in.

Implemented in DtOsgEarthTerrainSourceTracker, DtBoundingVolumeTerrainSourceTracker, DtOsgEarthBaseGroundCoverSourceTracker, and DtPagedNode2TerrainSourceTracker.

virtual void DtTerrainSourceTracker::pageInData	(	DtPagingMetaDataPtr	metaData,
		DtTerrainPagingGeometryPtr	geometry
	)

pure virtual

Page in data within geometry. Determines which tiles are within the geometry and adds a page in command to myCommandQueue to page in any tiles within the geometry that have not yet been paged in.

Parameters

geometry	The geometry to page in data within.
intersectId	Id to assign to the page in command to seed tileData for newly paged-in tiles.
priority	Priority to use for commands generated by this call.

Implemented in DtOsgEarthTerrainSourceTracker, DtBoundingVolumeTerrainSourceTracker, DtOsgEarthBaseGroundCoverSourceTracker, DtOsgEarthGroundCoverSourceTracker, DtOsgEarthVegetationLayerSourceTracker, and DtPagedNode2TerrainSourceTracker.

virtual bool DtTerrainSourceTracker::canPageOutData ( DtTerrainIntersectIDType intersectId )

pure virtual

Implemented in DtOsgEarthTerrainSourceTracker, DtBoundingVolumeTerrainSourceTracker, DtOsgEarthBaseGroundCoverSourceTracker, and DtPagedNode2TerrainSourceTracker.

virtual DtTerrainIntersectIDType DtTerrainSourceTracker::findOldestPagedData ( unsigned int & numTriangles )

pure virtual

Finds the least-recently-used tile and set myOldestPagedObject to it.

Parameters

numTrianglesOut The number of triangles the least-recently-used tileId represents in the collision world.

Returns: The id of the last intersect test for which this tracker's least-recently-used data was necessary.

Implemented in DtOsgEarthTerrainSourceTracker, DtBoundingVolumeTerrainSourceTracker, DtOsgEarthBaseGroundCoverSourceTracker, and DtPagedNode2TerrainSourceTracker.

virtual void DtTerrainSourceTracker::pageOutOldestData ( const int priority )

pure virtual

Adds a page out command for the least-recently-used tileID to myCommandQueue.

Parameters

priority Priority to use for commands generated by this call.

Implemented in DtOsgEarthTerrainSourceTracker, DtBoundingVolumeTerrainSourceTracker, DtOsgEarthBaseGroundCoverSourceTracker, DtPagedNode2TerrainSourceTracker, DtOsgEarthGroundCoverSourceTracker, and DtOsgEarthVegetationLayerSourceTracker.

virtual void DtTerrainSourceTracker::addNodesToCollisionMapping	(	DtNodeId	node,
		DtCollisionObjectList *	collObjList
	)

virtual

virtual void DtTerrainSourceTracker::removeNodeToCollisionMappings ( DtNodeId node )

virtual

virtual DtCollisionObjectList DtTerrainSourceTracker::collisionObjectsForNode ( DtNodeId node )

virtual

virtual osgEarth::MapNode* DtTerrainSourceTracker::mapNode ( ) const

virtual

Access osgEarth::MapNode object.

virtual const osgEarth::Profile* DtTerrainSourceTracker::profile ( ) const

virtual

Access osgEarth::profile object.

virtual const Coordinate_System* DtTerrainSourceTracker::localCS ( ) const

virtual

Return the local coordinate system.

virtual void DtTerrainSourceTracker::setLabel ( const DtString & )

virtual

virtual void DtTerrainSourceTracker::printInfo ( ) const

virtual

Reimplemented in DtBoundingVolumeTerrainSourceTracker.

virtual void DtTerrainSourceTracker::getPageOutData ( DtNodeBoundingList & nodeBoundingList )

virtual

Return a list of bounding sphere that represent the the paged in tiles.

Reimplemented in DtBoundingVolumeTerrainSourceTracker.

virtual void DtTerrainSourceTracker::getPageInData ( DtNodeBoundingList & nodeBoundingList )

virtual

Return a list of bounding sphere that represent the the paged out tiles.

Reimplemented in DtBoundingVolumeTerrainSourceTracker.

virtual void DtTerrainSourceTracker::getProceduralTreeTile ( DtDebugDrawTerrainOutputInterface::terrainLineList & nodeBoundingList )

virtual

Return a list of tiles that represent the ground cover loaded.

Reimplemented in DtOsgEarthGroundCoverSourceTracker, and DtOsgEarthVegetationLayerSourceTracker.

virtual unsigned DtTerrainSourceTracker::getMaxLODForBilinearIntersection ( ) const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual double DtTerrainSourceTracker::intersetionTriangleMergeTolerance ( ) const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual bool DtTerrainSourceTracker::useLandCoverData ( ) const

virtual

Return true if the current tracker use land cover data.

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual bool DtTerrainSourceTracker::useLifeMapLayer ( ) const

virtual

Return true if the current tracker use Biome data.

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual void DtTerrainSourceTracker::getSoilFromString	(	const std::string &	soilType,
		DtSurface &	surface
	)		const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual double DtTerrainSourceTracker::triangleOutputMergeTolerance ( ) const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual unsigned DtTerrainSourceTracker::minElevationIndexLOD ( ) const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual unsigned DtTerrainSourceTracker::maxElevationIndexLOD ( ) const

virtual

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual unsigned DtTerrainSourceTracker::maxLOD ( ) const

virtual

Return the max lod.

Reimplemented in DtOsgEarthTerrainSourceTracker, and DtOsgEarthBaseGroundCoverSourceTracker.

virtual bool DtTerrainSourceTracker::useRawElevation ( ) const

virtual

Return true if the current tracker use raw elevation.

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual osgEarth::TileKey DtTerrainSourceTracker::getBestTileKey ( const osgEarth::TileKey & ) const

virtual

Return the best tile key to use (based on the tracker) for a pass tilekey.

Reimplemented in DtOsgEarthTerrainSourceTracker.

virtual bool DtTerrainSourceTracker::findTileInCache	(	const DtTerrainPagingGeometry *	geometry,
		std::vector< boost::shared_ptr< DtTileData > > &	data,
		const DtChord *	chord = `NULL`
	)		const

virtual

Check it the geometry intersect the tileDataCache (when we know the geometry is a chord, pass the chord pointer as the last optional parameters)

virtual void DtTerrainSourceTracker::addTileToCache	(	const boost::shared_ptr< DtTileData > &	data,
		const DtChord *	chord = `NULL`
	)

virtual

Add a tile that was not find in the cache (by findTileInCache) (when we know the geometry is a chord, pass the chord pointer as the last optional parameters)

virtual void DtTerrainSourceTracker::clearTileCache ( )

virtual

Clear the cache.

virtual unsigned DtTerrainSourceTracker::minElevationTileLoadingLOD ( ) const

virtual

Sets the min LOD levels where elevation tiles can be loaded.

virtual void DtTerrainSourceTracker::setMinElevationTileLoading ( unsigned lod )

virtual

map node for whole terrain

Member Data Documentation

DtString DtTerrainSourceTracker::myLabel

protected

map node for whole terrain

DtTerrainInterfaceConfig DtTerrainSourceTracker::myConfig

protected

map node for whole terrain

DtPagerCommandQueue* DtTerrainSourceTracker::myCommandQueue

protected

map node for whole terrain

DtNodeToCollObjMMap DtTerrainSourceTracker::myNodeToCollObjMMap

protected

map node for whole terrain

tbb::spin_rw_mutex DtTerrainSourceTracker::myMutex

mutableprotected

map node for whole terrain

tbb::spin_rw_mutex DtTerrainSourceTracker::myTileCacheMutex

mutableprotected

map node for whole terrain

DtVantageTerrainEngine* DtTerrainSourceTracker::myVantageTerrainEngine

protected

map node for whole terrain

const osg::ref_ptr<osgEarth::MapNode> DtTerrainSourceTracker::myMapNode

protected

map node for whole terrain

const osgEarth::Map* DtTerrainSourceTracker::myMap

protected

map node for whole terrain

const osgEarth::Profile* DtTerrainSourceTracker::myMapProfile

protected

map node for whole terrain

tileDataCacheVector DtTerrainSourceTracker::myTileDataCache

protected

Tile Data cache to speed up intersections.

tbb::atomic<int> DtTerrainSourceTracker::myTileCacheHit

protected

Stats for cache.

tbb::atomic<int> DtTerrainSourceTracker::myTileCacheQuery

protected

map node for whole terrain

unsigned DtTerrainSourceTracker::myMinElevationTileLoadingLOD

protected

Min lod an elevation tile can loaded.

DtTerrainSourcePager* DtTerrainSourceTracker::myPager

protected

map node for whole terrain

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vantageTerrainImplementation/terrainSourceTracker.h
