makVrv::DtArticulatedModel Class Reference

An articulated model manipulator for controlling an articulated model.

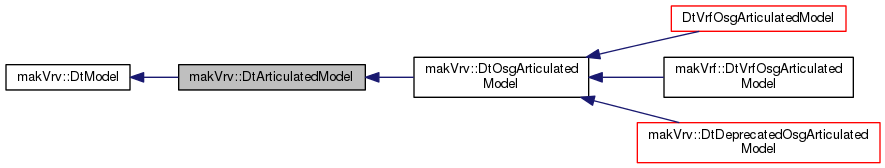

Inheritance diagram for makVrv::DtArticulatedModel:

Public Types
enum	AnimationState { START, STOP, PAUSE, RESUME }
typedef std::vector< int >	PartList

Public Member Functions
	DtArticulatedModel (DtDe &, DtUniqueID id)
virtual	~DtArticulatedModel ()
virtual void	setModelScalingEnabled (bool b)=0
virtual void	setModelDefinition (const std::string &def)=0
virtual void	setLocalModelScalingEnabled (bool enabled)=0
virtual void	setLocalModelScalingAmount (float localScl)=0
virtual const std::string &	className () const =0
virtual void	setAnimationFrame (const std::string &animationName, int frameIndex)=0
virtual void	setAnimationRange (const std::string &animationName, int firstFrameIndex, int lastFrameIndex)=0
virtual void	setAnimationSpeed (const std::string &animationName, double framesPerSecond)=0
virtual void	setAnimationState (const std::string &animationName, AnimationState mode)=0
virtual void	getParts (PartList &parts) const =0
virtual bool	hasPart (int partId) const =0
virtual void	setUvOffset (const std::string &annotation, float uOffset, float vOffset)=0
virtual void	setDynamicSensorRegion (const std::string &region, bool state)=0
virtual void	weaponFired (const DtUnicode &munitionModelDefName)=0
virtual bool	dynamicSensorRegion (const std::string &region)=0
virtual void	setLinkageConfigPair (const std::string &linkageName, const std::string &configName)=0
virtual bool	findPartPositionAndOrientation (int partNumber, DtVector &position, DtQuat &ori)=0
virtual bool	supportsMultithreadedLoad ()
virtual void	setPartTranslation (int partNumber, const DtVector &transform, const DtVector &velocity)=0
virtual void	setPartOrientation (int partNumber, const DtTaitBryan &orientation, const DtVector &rotationalVelocity)=0
virtual void	setPartRotationalVelocity (int partNumber, const DtVector &rotationalVelocity, bool forceUpdate)=0
virtual void	setPartVisibility (int partNumber, bool onOff)=0
virtual void	setState (int stateNumber, int stateValue)=0
virtual void	setLightpointMaxDistance (float distance)=0
virtual void	setLightPointGroup (const std::string &groupName)=0
virtual void	setLightPointGroupIntensity (const std::string &groupName, float intensity)=0
Public Member Functions inherited from makVrv::DtModel
	DtModel (DtDe &de, DtUniqueID id)
virtual	~DtModel ()
DtModelInstance *	createModelInstance (const std::string &modelDefName, bool realize=true)
virtual const std::string &	modelDefinitionName ()
virtual void	saveModelToFile (const std::string &filename)
virtual DtUniqueID	uniqueId () const
unsigned int	transformSize () const
virtual void	setPosition (int vtx, const DtVector &position)
virtual const DtVector &	position (int vtx=0) const
virtual void	removePosition (int vtx)
virtual void	setPositionOffset (const DtVector &positionOffset)
virtual const DtVector &	positionOffset () const
virtual void	setOrientation (int vtx, const DtTaitBryan &orientation)
virtual void	setPositionAndOrientation (int vtx, const DtVector &positionOffset, const DtTaitBryan &orientation)
virtual const DtTaitBryan &	orientation (int vtx=0) const
virtual void	setOrientationOffset (const DtTaitBryan &orientationOffset)
virtual const DtTaitBryan &	orientationOffset () const
virtual void	enableColorBlending (bool b)
virtual void	setBlendColor (float r, float g, float b, float a)
virtual void	getBlendColor (float &r, float &g, float &b, float &a)
virtual bool	colorBlendingEnabled () const
virtual void	setColor (float r, float g, float b, float a)
virtual void	enableLighting (bool l)
virtual DtModelSetId	modelSet () const
const DtVector &	boundingBoxExtents () const
void	getBoundingBoxExtents (double &x, double &y, double &z) const
const DtVector &	boundingBoxCenter () const
virtual void	getBoundingBoxCenter (double &x, double &y, double &z) const
virtual void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)
void	setContributesToBound (bool trueOrFalse)
bool	contributesToBound () const
DtDe &	de ()
virtual void	setModelInstance (DtModelInstance *modelInstance)
virtual void	promoteBackgroundModelInstance (const DtModelDefinition &defintion)
virtual void	setVisible (bool isVisible)
virtual bool	visible () const
DtUniqueID	sceneObjectId () const
virtual void	addedToSceneObjectAsProp (const DtUniqueID &sceneObj)
virtual void	addedToSceneObject (const DtUniqueID &sceneObj, DtModelSetId modelSet, int visualizerType)
virtual void	setElementId (DtElementID id)
virtual void	removedFromSceneObject ()
virtual void	setIsSupportModel (bool isSupport)=0
virtual void	setSolid (bool isSolid)
virtual bool	isProp ()
virtual void	updateMinLastFrameDistance (float distance)
virtual void	resetLastFrameDistance ()
virtual float	minLastFrameDistance () const
virtual DtModelInstance *	modelInstance ()
virtual const DtModelInstance *	modelInstance () const
int	visualizerType () const
virtual void	backgroundLoad ()
virtual void	foregroundLoad ()
virtual bool	isActivelyBackgroundLoading ()
virtual DtLoaderHandle *	getLoadQueueHandle ()

Additional Inherited Members
Public Attributes inherited from makVrv::DtModel
boost::signalslib::signal < void(DtModel *)>	signal_modelToBeDestroyed
boost::signalslib::signal < void(DtModel *)>	signal_modelChanged
boost::signalslib::signal < bool(DtModel *, bool), SlotReturnOR >	signal_visibilityChangeRequested
boost::signalslib::signal < void(DtModelInstance *, DtModel *)>	signal_modelInstanceCreated
boost::signalslib::signal < void(DtModelInstance *, DtModel *)>	signal_modelInstanceToBeDestroyed
Protected Types inherited from makVrv::DtModel
typedef std::vector < ObjectTransform >	TransformList
Protected Member Functions inherited from makVrv::DtModel
virtual void	addToScene (const DtUniqueID &sceneObjectId, DtModelSetId modelSet, int visualizerType)=0
virtual void	addToSceneAsProp (const DtUniqueID &sceneObjectId)
virtual void	removeFromScene ()=0
virtual void	initializeModelInstance ()
void	slot_modelInstanceChanged (DtModelInstance *instance)
virtual void	waitAndClearLoadHandle ()
virtual void	removedFromLoadQueue ()
virtual void	setDoneBackgroundLoading ()
virtual void	setActivelyBackgroundLoading ()
Protected Attributes inherited from makVrv::DtModel
DtLoaderHandle *	myInLoadQueueHandle
DtDe &	myDe
const DtUniqueID	myUniqueId
DtUniqueID	myElementId
DtUniqueID	myParentSceneObjectID
bool	myColorBlendingEnabled
DtModelInstance *	myBackgroundModelInstance
float	myMinLastFrameDistance
TransformList	myTransforms
DtModelInstance *	myModelInstance
DtModelSetId	myModelSet
int	myVisualizerType
bool	myContributesToBound
bool	myIsPropFlag
float	myBlendColor [4]
bool	myVisibleFlag
DtVector	myPositionOffset
DtTaitBryan	myOrientationOffset
std::string	myModelDefinitionName
bool	myRequireModelInstance = true
Static Protected Attributes inherited from makVrv::DtModel
static bool	theInittedState

Member Typedef Documentation

typedef std::vector<int> makVrv::DtArticulatedModel::PartList

Member Enumeration Documentation

enum makVrv::DtArticulatedModel::AnimationState

Enumerator
START
STOP
PAUSE
RESUME

Constructor & Destructor Documentation

makVrv::DtArticulatedModel::DtArticulatedModel	(	DtDe &	,
		DtUniqueID	id
	)

CTOR.

virtual makVrv::DtArticulatedModel::~DtArticulatedModel ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtArticulatedModel::setModelScalingEnabled ( bool  b )

pure virtual

Indicate whether or not this model may be model-scaled Default is false.

Implemented in makVrv::DtOsgArticulatedModel, and makVrv::DtDeprecatedOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setModelDefinition ( const std::string &  def )

pure virtual

Override the set model definition function. Use this to parse a model after it is loaded.

Reimplemented from makVrv::DtModel.

Implemented in makVrv::DtOsgArticulatedModel, makVrf::DtVrfOsgArticulatedModel, and DtVrfOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setLocalModelScalingEnabled ( bool  enabled )

pure virtual

Indicates whether local model scaling for the model is enabled. Local model scaling overrides generic (global) model scaling. Default is false.

Implemented in makVrv::DtOsgArticulatedModel, and makVrv::DtDeprecatedOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setLocalModelScalingAmount ( float  localScl )

pure virtual

Sets the amount of local scaling to apply to the model. Only applies when local model scaling is enabled.

Implemented in makVrv::DtOsgArticulatedModel, and makVrv::DtDeprecatedOsgArticulatedModel.

virtual const std::string& makVrv::DtArticulatedModel::className ( ) const

pure virtual

Get the class name of the model instance owner. This is used to control how model instances are created.

Reimplemented from makVrv::DtModel.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setPartTranslation ( int  partNumber, const DtVector &  transform, const DtVector &  velocity  )

pure virtual

Update the part translation.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setPartOrientation ( int  partNumber, const DtTaitBryan &  orientation, const DtVector &  rotationalVelocity  )

pure virtual

Rotate the part.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setPartRotationalVelocity ( int  partNumber, const DtVector &  rotationalVelocity, bool  forceUpdate  )

pure virtual

Set just rotational velocity for part with the option to force an update next frame (default) or not.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setPartVisibility ( int  partNumber, bool  onOff  )

pure virtual

Update the part translation.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setState ( int  stateNumber, int  stateValue  )

pure virtual

Set the state on the model.

Implemented in makVrv::DtOsgArticulatedModel, and DtVrfOsgMultipleArticulatedModel.

virtual void makVrv::DtArticulatedModel::setLightpointMaxDistance ( float  distance )

pure virtual

Specify the maximum range at which lightpoints on this model will be visible. This sets ALL lightpoints to the same range.

Implemented in makVrv::DtOsgArticulatedModel, and makVrv::DtDeprecatedOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setLightPointGroup ( const std::string &  groupName )

pure virtual

Set the light point group that this model's light points belong to.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setLightPointGroupIntensity ( const std::string &  groupName, float  intensity  )

pure virtual

Set the intensity of a light point group.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setAnimationFrame ( const std::string &  animationName, int  frameIndex  )

pure virtual

Set the current frame of an animation.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setAnimationRange ( const std::string &  animationName, int  firstFrameIndex, int  lastFrameIndex  )

pure virtual

Set the animation range.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setAnimationSpeed ( const std::string &  animationName, double  framesPerSecond  )

pure virtual

Set the animation speed.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setAnimationState ( const std::string &  animationName, AnimationState  mode  )

pure virtual

Set the animation state(mode).

Implemented in makVrv::DtOsgArticulatedModel, and makVrv::DtDeprecatedOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::getParts ( PartList &  parts ) const

pure virtual

Get the part list.

Implemented in makVrv::DtOsgArticulatedModel.

virtual bool makVrv::DtArticulatedModel::hasPart ( int  partId ) const

pure virtual

Check if the articulated model has a part with the provided part id.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setUvOffset ( const std::string &  annotation, float  uOffset, float  vOffset  )

pure virtual

Groups using a texture atlas are identified using an annotation (ex. annotation label_char_1). setUvOffset is used to set the offset into the atlas texture for the group indicated by the annotation.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setDynamicSensorRegion ( const std::string &  region, bool  state  )

pure virtual

Set the state of a dynamic sensor region.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::weaponFired ( const DtUnicode &  munitionModelDefName )

pure virtual

let the model know when a weapon was fired and what the model definition for the munition is

Implemented in makVrv::DtOsgArticulatedModel.

virtual bool makVrv::DtArticulatedModel::dynamicSensorRegion ( const std::string &  region )

pure virtual

Get the state of a dynamic sensor region.

Implemented in makVrv::DtOsgArticulatedModel.

virtual void makVrv::DtArticulatedModel::setLinkageConfigPair ( const std::string &  linkageName, const std::string &  configName  )

pure virtual

Configure an entity according to a (linkageName, configName) pair. Additional entity state may be configured via a metafile referenced by the DtModelDefinition. The linkageName is the name of the linkage within the metafile, either the NodeName or the Annotation. The configName is how the linkage of the entity is to be configured using data a from the configName mappings of the FeatureData for the linkage according to the FeatureName tag.

Implemented in makVrv::DtOsgArticulatedModel.

virtual bool makVrv::DtArticulatedModel::findPartPositionAndOrientation ( int  partNumber, DtVector &  position, DtQuat &  ori  )

pure virtual

Finds the absolute position and orientation of a part. This function is more efficient than calling both the position and orientation functions.

Implemented in makVrv::DtOsgArticulatedModel.

virtual bool makVrv::DtArticulatedModel::supportsMultithreadedLoad ( )

virtual

controls if the model is loaded in the background

Reimplemented from makVrv::DtModel.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtArticulatedModel.h
