makVrv::DtModel Class Reference

A model which owns a single model instance. A DtModel is a managing container for a single DtModelInstance, providing more attributes about how the DtModelInstance should be rendered. Initialization of a DtModel starts with giving it a model-definition. Unlike the DtModelInstance which can be handed a model-definition identifying the model to load, the DtModel retrieves a model-definition which has been pre-loaded into a definition-manager. Usually DtModelDefinition objects are automatically loaded from disk to populate the definition-manager.

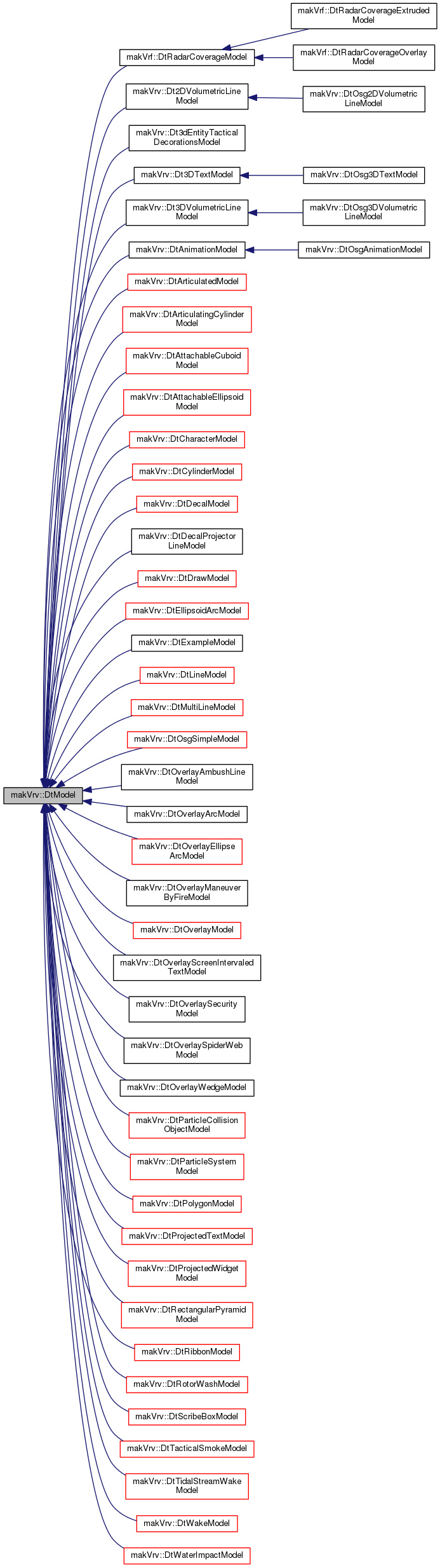

Inheritance diagram for makVrv::DtModel:

Classes
struct	ObjectTransform

Public Member Functions
	DtModel (DtDe &de, DtUniqueID id)
virtual	~DtModel ()
DtModelInstance *	createModelInstance (const std::string &modelDefName, bool realize=true)
virtual void	setModelDefinition (const std::string &str)
virtual const std::string &	modelDefinitionName ()
virtual void	saveModelToFile (const std::string &filename)
virtual const std::string &	className () const
virtual DtUniqueID	uniqueId () const
unsigned int	transformSize () const
virtual void	setPosition (int vtx, const DtVector &position)
virtual const DtVector &	position (int vtx=0) const
virtual void	removePosition (int vtx)
virtual void	setPositionOffset (const DtVector &positionOffset)
virtual const DtVector &	positionOffset () const
virtual void	setOrientation (int vtx, const DtTaitBryan &orientation)
virtual void	setPositionAndOrientation (int vtx, const DtVector &positionOffset, const DtTaitBryan &orientation)
virtual const DtTaitBryan &	orientation (int vtx=0) const
virtual void	setOrientationOffset (const DtTaitBryan &orientationOffset)
virtual const DtTaitBryan &	orientationOffset () const
virtual void	enableColorBlending (bool b)
virtual void	setBlendColor (float r, float g, float b, float a)
virtual void	getBlendColor (float &r, float &g, float &b, float &a)
virtual bool	colorBlendingEnabled () const
virtual void	setColor (float r, float g, float b, float a)
virtual void	enableLighting (bool l)
virtual DtModelSetId	modelSet () const
const DtVector &	boundingBoxExtents () const
void	getBoundingBoxExtents (double &x, double &y, double &z) const
const DtVector &	boundingBoxCenter () const
virtual void	getBoundingBoxCenter (double &x, double &y, double &z) const
virtual void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)
void	setContributesToBound (bool trueOrFalse)
bool	contributesToBound () const
DtDe &	de ()
virtual void	setModelInstance (DtModelInstance *modelInstance)
virtual void	promoteBackgroundModelInstance (const DtModelDefinition &defintion)
virtual void	setVisible (bool isVisible)
virtual bool	visible () const
DtUniqueID	sceneObjectId () const
virtual void	addedToSceneObjectAsProp (const DtUniqueID &sceneObj)
virtual void	addedToSceneObject (const DtUniqueID &sceneObj, DtModelSetId modelSet, int visualizerType)
virtual void	setElementId (DtElementID id)
virtual void	removedFromSceneObject ()
virtual void	setIsSupportModel (bool isSupport)=0
virtual void	setSolid (bool isSolid)
virtual bool	isProp ()
virtual void	updateMinLastFrameDistance (float distance)
virtual void	resetLastFrameDistance ()
virtual float	minLastFrameDistance () const
virtual DtModelInstance *	modelInstance ()
virtual const DtModelInstance *	modelInstance () const
int	visualizerType () const
abstract virtual api needs to be implemented by subclasses
virtual bool	supportsMultithreadedLoad ()
virtual void	backgroundLoad ()
virtual void	foregroundLoad ()
virtual bool	isActivelyBackgroundLoading ()
virtual DtLoaderHandle *	getLoadQueueHandle ()

Public Attributes
boost::signalslib::signal < void(DtModel *)>	signal_modelToBeDestroyed
boost::signalslib::signal < void(DtModel *)>	signal_modelChanged
boost::signalslib::signal < bool(DtModel *, bool), SlotReturnOR >	signal_visibilityChangeRequested
boost::signalslib::signal < void(DtModelInstance *, DtModel *)>	signal_modelInstanceCreated
boost::signalslib::signal < void(DtModelInstance *, DtModel *)>	signal_modelInstanceToBeDestroyed

Protected Types
typedef std::vector < ObjectTransform >	TransformList

Protected Member Functions
virtual void	addToScene (const DtUniqueID &sceneObjectId, DtModelSetId modelSet, int visualizerType)=0
virtual void	addToSceneAsProp (const DtUniqueID &sceneObjectId)
virtual void	removeFromScene ()=0
virtual void	initializeModelInstance ()
void	slot_modelInstanceChanged (DtModelInstance *instance)
virtual void	waitAndClearLoadHandle ()
virtual void	removedFromLoadQueue ()
virtual void	setDoneBackgroundLoading ()
virtual void	setActivelyBackgroundLoading ()

Protected Attributes
DtLoaderHandle *	myInLoadQueueHandle
DtDe &	myDe
const DtUniqueID	myUniqueId
DtUniqueID	myElementId
DtUniqueID	myParentSceneObjectID
bool	myColorBlendingEnabled
DtModelInstance *	myBackgroundModelInstance
float	myMinLastFrameDistance
TransformList	myTransforms
DtModelInstance *	myModelInstance
DtModelSetId	myModelSet
int	myVisualizerType
bool	myContributesToBound
bool	myIsPropFlag
float	myBlendColor [4]
bool	myVisibleFlag
DtVector	myPositionOffset
DtTaitBryan	myOrientationOffset
std::string	myModelDefinitionName
bool	myRequireModelInstance = true

Static Protected Attributes
static bool	theInittedState

Private Member Functions
void	deleteModelInstance ()

Friends
class	DtBackgroundLoader
class	DtBackgroundLoadAsyncTask

Member Typedef Documentation

typedef std::vector<ObjectTransform> makVrv::DtModel::TransformList

protected

Constructor & Destructor Documentation

makVrv::DtModel::DtModel	(	DtDe &	de,
		DtUniqueID	id
	)

CTOR.

virtual makVrv::DtModel::~DtModel ( )

virtual

DTOR.

Member Function Documentation

DtModelInstance* makVrv::DtModel::createModelInstance	(	const std::string &	modelDefName,
		bool	realize = true
	)

Set the model definition and creates an instance of the model.

virtual void makVrv::DtModel::setModelDefinition ( const std::string &  str )

virtual

Set the model definition.

Reimplemented in makVrv::DtOverlayWedgeModel, makVrv::DtOverlayArcModel, makVrv::DtOverlayManeuverByFireModel, makVrv::DtOverlayPolygonModel, makVrv::DtOsgEllipsoidArcModel, makVrv::DtOverlayAmbushLineModel, makVrv::DtOsgExtrudedEllipseModel, makVrv::DtOsgExtrudedLineModel, makVrv::DtOverlaySecurityModel, makVrv::DtOsgExtrudedPolygonModel, makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOverlayModel, makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtDiGuyCharacterModel, makVrv::DtOsg3DGreatCircleArcModel, makVrv::DtOsg3DVolumetricLineModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsgOverlayRectangleModel, makVrv::DtOsgOverlayDirectionLineModel, makVrv::DtOsgOverlayEllipseArcModel, makVrv::DtOverlaySpiderWebModel, makVrv::DtDecalProjectorLineModel, makVrv::DtOsgArticulatedModel, makVrv::DtOverlayScreenIntervaledTextModel, makVrv::DtOsg2DVolumetricLineModel, makVrv::DtOsgTacticalSmokeModel, makVrf::DtVrfOsgArticulatedModel, makVrv::DtOsgRectangularPyramidModel, makVrv::DtProjectedWidgetModel, makVrv::DtPinnableProjectedWidgetModel, makVrv::DtOsgSimpleModel, makVrv::DtArticulatedModel, makVrv::DtDeprecatedOsgSimpleModel, makVrv::DtOsg3DTextModel, makVrv::DtOsgRibbonModel, makVrv::DtRibbonModel, makVrv::DtTritonWakeModel, makVrv::DtTritonTidalStreamWakeModel, makVrv::DtOsgParticleSystemModel, makVrv::DtParticleSystemModel, makVrv::DtOsgAnimationModel, makVrv::DtTritonWaterImpactModel, makVrv::DtRotorWashModel, makVrv::DtOsgDecalModel, makVrv::DtWakeModel, DtVrfOsgArticulatedModel, makVrv::DtDecalModel, and makVrv::DtTidalStreamWakeModel.

virtual const std::string& makVrv::DtModel::modelDefinitionName ( )

inlinevirtual

returns the model definition name.

virtual void makVrv::DtModel::saveModelToFile ( const std::string &  filename )

virtual

virtual const std::string& makVrv::DtModel::className ( ) const

virtual

Get the class name of the model instance owner. This is used to control how model instances are created.

Reimplemented in makVrv::DtCharacterModel, makVrv::DtDiGuyCharacterModel, makVrv::DtDummyCharacterModel, makVrv::DtOsgArticulatedModel, makVrv::DtArticulatedModel, makVrv::DtOsgRibbonModel, makVrv::DtRibbonModel, makVrv::DtTritonWakeModel, makVrv::DtOsgEllipsoidArcModel, makVrv::DtOsgParticleSystemModel, makVrv::DtParticleSystemModel, makVrv::DtFxParticleCollisionObjectModel, makVrv::DtOsgDecalModel, makVrv::DtOsgRectangularPyramidModel, makVrv::DtOsgRotorWashModel, makVrv::DtOsgTacticalSmokeModel, makVrv::DtTacticalSmokeModel, makVrv::DtOsgAnimationModel, makVrv::DtAnimationModel, makVrv::DtRectangularPyramidModel, makVrv::DtDecalModel, and makVrv::DtRotorWashModel.

virtual DtModelInstance* makVrv::DtModel::modelInstance ( )

virtual

Get the model instance.

virtual const DtModelInstance* makVrv::DtModel::modelInstance ( ) const

virtual

Get the model instance.

virtual DtUniqueID makVrv::DtModel::uniqueId ( ) const

virtual

Get the model unique ID.

Reimplemented in makVrv::DtOsgArticulatedModel.

unsigned int makVrv::DtModel::transformSize

(

)

const

Get the number of position/orientations this model has.

virtual void makVrv::DtModel::setPosition ( int  vtx, const DtVector &  position  )

virtual

Set the position of a control vertex in the model.

Reimplemented in makVrv::DtOverlayWedgeModel, makVrv::DtOverlayArcModel, makVrv::DtDiGuyCharacterModel, makVrv::DtOverlayManeuverByFireModel, makVrv::DtOverlayAmbushLineModel, makVrv::DtOverlaySecurityModel, makVrv::DtOverlayModel, makVrv::DtOsgArticulatedModel, makVrv::DtOverlaySpiderWebModel, makVrv::DtOsg2DVolumetricLineModel, makVrv::DtOsgEllipsoidArcModel, makVrv::DtOsg3DVolumetricLineModel, makVrv::DtOsgOverlayEllipseArcModel, makVrv::Dt3dEntityTacticalDecorationsModel, makVrv::DtOsgRectangularPyramidModel, makVrv::DtOsgScribeBoxModel, makVrf::DtVrfOverlayEllipseArcModel, makVrv::DtOverlayPolygonModel, makVrf::DtRadarCoverageModel, makVrv::DtProjectedWidgetModel, makVrv::DtOsgSimpleModel, makVrv::DtPinnableProjectedWidgetModel, makVrv::DtOverlayScreenIntervaledTextModel, makVrv::DtOsgParticleSystemModel, makVrv::DtOsgRibbonModel, makVrv::DtMovablePolygonModel, makVrv::DtDecalProjectorLineModel, makVrv::DtDeprecatedOsgSimpleModel, makVrv::DtOsgAttachableCuboidModel, makVrv::DtOsgAttachableEllipsoidModel, makVrv::DtOsgDecalModel, makVrv::DtEllipsoidArcModel, makVrv::DtOsgTacticalSmokeModel, makVrv::DtOsgAnimationModel, makVrv::DtOsgArticulatingCylinderModel, makVrv::DtOsgPolygonModel, makVrv::DtTacticalSmokeModel, makVrv::DtOsgCylinderModel, makVrv::DtOsgExtrudedEllipseModel, makVrv::DtOsgExtrudedPolygonModel, makVrv::DtOsgRotorWashModel, makVrv::DtOsgOverlayDirectionLineModel, makVrv::DtOsgOverlayRectangleModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsgExtrudedLineModel, makVrv::DtOsgProjectedTextModel, makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsgDrawModel, makVrv::DtOsg3DTextModel, makVrv::DtOsg3DGreatCircleArcModel, makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtDeprecatedOsgArticulatedModel, and makVrv::DtExampleModel.

virtual const DtVector& makVrv::DtModel::position ( int  vtx = 0 ) const

virtual

Get the Position of a given point.

Exceptions

DtCorruptedState

if the vtx is not with-in the normal bounds.

virtual void makVrv::DtModel::removePosition ( int  vtx )

virtual

Remove a transform at the given position.

Reimplemented in makVrv::DtOverlayPolygonModel, makVrv::DtOsg2DVolumetricLineModel, makVrv::DtOsg3DVolumetricLineModel, makVrv::DtOsgPolygonModel, makVrv::DtOverlayScreenIntervaledTextModel, makVrv::DtDecalProjectorLineModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsgExtrudedEllipseModel, makVrv::DtOsgExtrudedPolygonModel, and makVrv::DtOsgExtrudedLineModel.

virtual void makVrv::DtModel::setPositionOffset ( const DtVector &  positionOffset )

virtual

Set the position offset of the model. This offsets the position of the entire model. N.B. Currently only used by DtCharacterModel and DtArticulatedModel.

Reimplemented in makVrv::DtDiGuyCharacterModel, makVrv::DtDummyCharacterModel, makVrv::DtOsgArticulatedModel, makVrv::DtOsgOverlayDirectionLineModel, makVrv::DtOsgSimpleModel, makVrv::DtDeprecatedOsgSimpleModel, makVrv::DtOsgDecalModel, and makVrv::DtDeprecatedOsgArticulatedModel.

virtual const DtVector& makVrv::DtModel::positionOffset ( ) const

virtual

Get the Position Offset of the model.

virtual void makVrv::DtModel::setOrientation ( int  vtx, const DtTaitBryan &  orientation  )

virtual

Set the orientation of a vertex in the model.

Reimplemented in makVrv::DtOverlayWedgeModel, makVrv::DtDiGuyCharacterModel, makVrv::DtOverlayManeuverByFireModel, makVrv::DtOverlayAmbushLineModel, makVrv::DtOverlaySecurityModel, makVrv::DtOverlayModel, makVrv::DtOsgArticulatedModel, makVrv::DtOsg2DVolumetricLineModel, makVrv::DtOsg3DVolumetricLineModel, makVrv::DtOsgEllipsoidArcModel, makVrv::DtOsgOverlayEllipseArcModel, makVrv::DtOverlayPolygonModel, makVrv::Dt3dEntityTacticalDecorationsModel, makVrv::DtOsgRectangularPyramidModel, makVrv::DtOverlayScreenIntervaledTextModel, makVrv::DtOsgScribeBoxModel, makVrf::DtVrfOverlayEllipseArcModel, makVrv::DtOsgPolygonModel, makVrv::DtOsgSimpleModel, makVrv::DtOsgExtrudedPolygonModel, makVrv::DtOsgParticleSystemModel, makVrv::DtDecalProjectorLineModel, makVrv::DtMovablePolygonModel, makVrv::DtDeprecatedOsgSimpleModel, makVrv::DtOsgAttachableCuboidModel, makVrv::DtOsgAttachableEllipsoidModel, makVrv::DtOsgRibbonModel, makVrv::DtOsgTacticalSmokeModel, makVrv::DtOsgExtrudedEllipseModel, makVrv::DtTacticalSmokeModel, makVrv::DtOsgOverlayRectangleModel, makVrv::DtOsgArticulatingCylinderModel, makVrv::DtOsgCylinderModel, makVrv::DtOsgDecalModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsgExtrudedLineModel, makVrv::DtOsgAnimationModel, makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsgProjectedTextModel, makVrv::DtOsgDrawModel, makVrv::DtOsg3DTextModel, makVrv::DtOsg3DGreatCircleArcModel, makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtDeprecatedOsgArticulatedModel, and makVrv::DtExampleModel.

virtual void makVrv::DtModel::setPositionAndOrientation ( int  vtx, const DtVector &  positionOffset, const DtTaitBryan &  orientation  )

virtual

Set the position and orientation of a vertex in the model at the same time.

Reimplemented in makVrv::DtDiGuyCharacterModel, makVrv::DtOsgArticulatedModel, and makVrv::DtDeprecatedOsgArticulatedModel.

virtual const DtTaitBryan& makVrv::DtModel::orientation ( int  vtx = 0 ) const

virtual

Get the Orientation of a given point.

Exceptions

DtCorruptedState

if the vtx is not with-in the normal bounds.

virtual void makVrv::DtModel::setOrientationOffset ( const DtTaitBryan &  orientationOffset )

virtual

Set the Orientation Offset of the model. This offsets the orientation of the entire model. N.B. Currently only used by DtCharacterModel and DtArticulatedModel.

Reimplemented in makVrv::DtDiGuyCharacterModel, makVrv::DtDummyCharacterModel, makVrv::DtOsgArticulatedModel, makVrv::DtOsgSimpleModel, makVrv::DtDeprecatedOsgSimpleModel, and makVrv::DtDeprecatedOsgArticulatedModel.

virtual const DtTaitBryan& makVrv::DtModel::orientationOffset ( ) const

virtual

Get the Orientation Offset of the model.

virtual void makVrv::DtModel::enableColorBlending ( bool  b )

virtual

Enable / disable color blending for this model.

Reimplemented in makVrv::DtOsgArticulatedModel, makVrv::DtOsgSimpleModel, makVrv::DtDeprecatedOsgSimpleModel, makVrv::DtDeprecatedOsgArticulatedModel, and makVrv::DtOsgPolygonModel.

virtual void makVrv::DtModel::setBlendColor ( float  r, float  g, float  b, float  a  )

virtual

Set color to use if color blending is enabled.

Reimplemented in makVrv::DtOsgArticulatedModel, makVrv::DtOsgSimpleModel, makVrv::DtDeprecatedOsgSimpleModel, and makVrv::DtDeprecatedOsgArticulatedModel.

virtual void makVrv::DtModel::getBlendColor ( float &  r, float &  g, float &  b, float &  a  )

virtual

Returns the blend color.

virtual bool makVrv::DtModel::colorBlendingEnabled ( ) const

virtual

Returns whether or not blending is enabled.

virtual void makVrv::DtModel::setColor ( float  r, float  g, float  b, float  a  )

virtual

set the model's color

Reimplemented in makVrv::DtOsgArticulatedModel, makVrv::DtOverlaySpiderWebModel, makVrv::DtOverlayWedgeModel, makVrv::DtOverlayArcModel, makVrv::DtOverlayManeuverByFireModel, makVrv::DtOverlayAmbushLineModel, makVrv::DtOsgRectangularPyramidModel, makVrv::DtOverlaySecurityModel, makVrv::DtOsgRibbonModel, makVrv::DtOverlayModel, makVrv::DtOsgEllipsoidArcModel, makVrv::DtDecalProjectorLineModel, makVrv::DtOsgDecalModel, makVrv::DtOsgExtrudedPolygonModel, makVrv::DtRectangularPyramidModel, makVrv::DtOsgExtrudedLineModel, makVrv::DtPolygonModel, makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsgExtrudedEllipseModel, makVrv::DtOsgOverlayDirectionLineModel, makVrv::DtDeprecatedOsgArticulatedModel, makVrv::DtOsgScribeBoxModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsg3DVolumetricLineModel, makVrf::DtVrfOverlayEllipseArcModel, makVrv::Dt3DVolumetricLineModel, makVrv::DtOverlayPolygonModel, makVrv::Dt2DVolumetricLineModel, makVrv::DtOsgAttachableCuboidModel, makVrv::DtOsgAttachableEllipsoidModel, makVrv::DtOsg2DVolumetricLineModel, makVrv::DtOsgCylinderModel, makVrv::DtOsgOverlayEllipseArcModel, makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtEllipsoidArcModel, makVrv::DtOverlayEllipseArcModel, makVrv::DtOsgArticulatingCylinderModel, makVrv::DtOsg3DGreatCircleArcModel, makVrv::DtOsg3DTextModel, makVrv::DtOsgOverlayRectangleModel, makVrv::DtOsgPolygonModel, makVrv::DtAttachableCuboidModel, makVrf::DtSensorContactLinesModel, makVrv::DtCylinderModel, makVrv::DtScribeBoxModel, makVrv::DtAttachableEllipsoidModel, makVrv::Dt3DTextModel, makVrv::DtArticulatingCylinderModel, and makVrv::DtLineModel.

virtual void makVrv::DtModel::enableLighting ( bool  l )

virtual

set whether the model is lit; this may not be an option on all models

Reimplemented in makVrv::DtOsgPolygonModel.

virtual DtModelSetId makVrv::DtModel::modelSet ( ) const

virtual

Get the model set this model is part of.

const DtVector& makVrv::DtModel::boundingBoxExtents

(

)

const

Get the bounding box extents of the model instance.

void makVrv::DtModel::getBoundingBoxExtents	(	double &	x,
		double &	y,
		double &	z
	)		const

Get the bounding box extents of the model instance.

const DtVector& makVrv::DtModel::boundingBoxCenter

(

)

const

Get the bounding box center of the model instance.

virtual void makVrv::DtModel::getBoundingBoxCenter ( double &  x, double &  y, double &  z  ) const

virtual

Get the bounding box center of the model instance.

virtual void makVrv::DtModel::getBoundingBoxComponents ( DtVector &  minimum, DtVector &  maximum  )

virtual

Get the minimum and maximum X,Y,Z components of the bounding box.

Reimplemented in makVrv::DtOsgArticulatedModel, makVrv::DtOsgSimpleModel, and makVrv::DtDeprecatedOsgArticulatedModel.

void makVrv::DtModel::setContributesToBound

(

bool

trueOrFalse

)

Set whether this model instance contributes to an object's overall bounding volume.

bool makVrv::DtModel::contributesToBound

(

)

const

Get whether this model instance contributes to an object's overall bounding volume.

int makVrv::DtModel::visualizerType

(

)

const

The visualizer type determines which channel-specific group node this model will be parented to, and consequently, which observer setting will cause it to be rendered in which channel.

DtDe& makVrv::DtModel::de ( )

inline

Get the DtDe object.

virtual void makVrv::DtModel::setModelInstance ( DtModelInstance *  modelInstance )

virtual

Internally set the model instance pointer. If an existing model instance is set, it will be deleted. To clear the current model instance only, passing a Null pointer 0 is supported.

Warning

Only public for internal use

Parameters

Input
modelInstance	pointer to a model instance.

Reimplemented in makVrv::MyParticleSystemModel, makVrv::DtOsg3DTextModel, makVrv::DtOsgRibbonModel, and makVrv::DtOsgDecalModel.

virtual void makVrv::DtModel::promoteBackgroundModelInstance ( const DtModelDefinition &  defintion )

virtual

Internally set the model instance pointer to the background one, also realizes and sends signal.

virtual void makVrv::DtModel::setVisible ( bool  isVisible )

virtual

Set the visible state of the model.

Parameters

[in]

isVisible

is the new visible state; true = visible, false = hidden.

Reimplemented in makVrv::DtTritonWakeModel, makVrv::DtDummyCharacterModel, makVrv::DtOverlayPolygonModel, makVrv::DtOverlaySpiderWebModel, makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsgArticulatedModel, makVrv::DtOverlayWedgeModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOverlayManeuverByFireModel, makVrv::DtOverlayAmbushLineModel, makVrv::DtOsg3DGreatCircleArcModel, makVrv::DtOsg3DVolumetricLineModel, makVrv::DtOsgRibbonModel, makVrv::DtOverlayArcModel, makVrv::DtOsgExtrudedPolygonModel, makVrv::DtOsgEllipsoidArcModel, makVrv::DtRotorWashModel, makVrv::DtOsg2DVolumetricLineModel, makVrv::DtTritonTidalStreamWakeModel, makVrv::DtOsgExtrudedLineModel, makVrv::DtOverlaySecurityModel, makVrv::DtOsgExtrudedEllipseModel, makVrv::DtOverlayScreenIntervaledTextModel, makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOsgParticleSystemModel, makVrv::DtOsgOverlayDirectionLineModel, makVrv::DtOverlayModel, makVrv::DtOsgDecalModel, makVrv::DtOsgPolygonModel, makVrv::DtDecalProjectorLineModel, makVrv::DtOsgAnimationModel, makVrv::DtProjectedWidgetModel, makVrv::DtPinnableProjectedWidgetModel, makVrv::DtOsgOverlayEllipseArcModel, makVrv::DtOsgScribeBoxModel, makVrv::DtOsgTacticalSmokeModel, makVrv::DtOsgSimpleModel, makVrv::DtOsgCylinderModel, makVrf::DtVrfOverlayEllipseArcModel, makVrv::DtMultiLineModel, makVrv::DtDeprecatedOsgSimpleModel, makVrv::DtOsgAttachableCuboidModel, makVrv::DtOsgAttachableEllipsoidModel, makVrv::DtMovablePolygonModel, makVrv::DtOsgProjectedTextModel, makVrv::DtDeprecatedOsgArticulatedModel, makVrv::DtOsgArticulatingCylinderModel, makVrf::DtRadarCoverageModel, makVrv::DtOsgDrawModel, makVrv::DtOsg3DTextModel, and makVrv::DtExampleModel.

virtual bool makVrv::DtModel::visible ( ) const

virtual

Get the visible state of the model.

Return values

true	if set visible.
false	otherwise.

See Also

setVisible()

DtUniqueID makVrv::DtModel::sceneObjectId

(

)

const

Parent of the model.

Referenced by makVrv::DtTemplatedTickableCreator< TickableToCreate, add >::create().

virtual void makVrv::DtModel::addedToSceneObjectAsProp ( const DtUniqueID &  sceneObj )

virtual

Called when a scene object added the model as a prop.

virtual void makVrv::DtModel::addedToSceneObject ( const DtUniqueID &  sceneObj, DtModelSetId  modelSet, int  visualizerType  )

virtual

Called when a scene object added the model with the given model set and visualizer type.

Reimplemented in makVrv::DtOverlayScreenIntervaledTextModel.

virtual void makVrv::DtModel::setElementId ( DtElementID  id )

virtual

Called when the element ID of the model's parent object is set.

Reimplemented in makVrv::DtOsgArticulatedModel, makVrv::DtOsgSimpleModel, and makVrv::DtDeprecatedOsgSimpleModel.

virtual void makVrv::DtModel::removedFromSceneObject ( )

virtual

Called when the model was removed from a scene object.

virtual void makVrv::DtModel::setIsSupportModel ( bool  isSupport )

pure virtual

Is this model part of the support group? (determines whether or not other scene objects can ground clamp to this model)

Implemented in makVrv::DtOsgArticulatedModel, makVrv::DtOverlaySpiderWebModel, makVrv::DtDiGuyCharacterModel, makVrv::DtOverlayWedgeModel, makVrv::DtTritonWakeModel, makVrv::DtOverlayManeuverByFireModel, makVrv::DtOverlayArcModel, makVrv::DtOverlaySecurityModel, makVrv::DtOsgExtrudedLineModel, makVrv::DtOverlayAmbushLineModel, makVrv::DtOsgEllipsoidArcModel, makVrv::DtOverlayModel, makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsgRectangularPyramidModel, makVrv::DtDummyCharacterModel, makVrv::DtOsgOverlayEllipseArcModel, makVrv::DtOsg3DVolumetricLineModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOverlayPolygonModel, makVrv::DtRectangularPyramidModel, makVrv::DtOsgRibbonModel, makVrv::DtOsg3DGreatCircleArcModel, makVrv::DtMultiLineModel, makVrv::DtOsg2DVolumetricLineModel, makVrv::DtTritonTidalStreamWakeModel, makVrv::DtOsgSimpleModel, makVrv::DtOsgExtrudedPolygonModel, makVrv::DtOsgParticleSystemModel, makVrf::DtRadarCoverageModel, makVrv::DtTritonWaterImpactModel, makVrv::Dt3dEntityTacticalDecorationsModel, makVrv::DtDeprecatedOsgArticulatedModel, makVrv::DtDeprecatedOsgSimpleModel, makVrv::DtOsgDecalModel, makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOsgPolygonModel, makVrv::DtRotorWashModel, makVrv::DtOverlayScreenIntervaledTextModel, makVrv::DtOsgAnimationModel, makVrv::DtOsgOverlayDirectionLineModel, makVrv::DtOsgExtrudedEllipseModel, makVrv::DtProjectedWidgetModel, makVrv::DtPinnableProjectedWidgetModel, makVrv::DtOsgOverlayRectangleModel, makVrv::DtOsgScribeBoxModel, makVrv::DtOsgTacticalSmokeModel, makVrv::DtDecalProjectorLineModel, makVrv::DtOsgAttachableCuboidModel, makVrv::DtOsgAttachableEllipsoidModel, makVrv::DtOsgCylinderModel, makVrv::DtOsgArticulatingCylinderModel, makVrv::DtFxParticleCollisionObjectModel, makVrv::DtOsg3DTextModel, makVrv::DtOsgProjectedTextModel, makVrv::DtOsgDrawModel, and makVrv::DtExampleModel.

virtual void makVrv::DtModel::setSolid ( bool  isSolid )

virtual

Set whether or not other this model is drawn filled in.

Reimplemented in makVrv::DtOverlayPolygonModel, makVrv::DtOsgExtrudedPolygonModel, makVrv::DtOsg3DVolumetricLineModel, makVrv::DtOsgExtrudedLineModel, makVrv::DtOsg2DVolumetricLineModel, makVrv::Dt3DVolumetricLineModel, makVrv::DtOsgExtrudedEllipseModel, makVrv::Dt2DVolumetricLineModel, makVrv::DtOsgOverlayRectangleModel, and makVrv::DtExampleModel.

virtual bool makVrv::DtModel::isProp ( )

virtual

Return whether or not this model was added as a prop.

virtual bool makVrv::DtModel::supportsMultithreadedLoad ( )

inlinevirtual

can be quickly overridden to disable background loading

Reimplemented in makVrv::DtArticulatedModel, makVrv::DtParticleSystemModel, and makVrv::DtAnimationModel.

virtual void makVrv::DtModel::backgroundLoad ( )

inlinevirtual

the chunk of loading that can safely happen in the background

Reimplemented in makVrv::DtOsgArticulatedModel, makVrv::DtOsgParticleSystemModel, and makVrv::DtOsgAnimationModel.

virtual void makVrv::DtModel::foregroundLoad ( )

inlinevirtual

the chunk of loading that must happen happen in the foreground, adding to scene graph etc.

Reimplemented in makVrv::DtOsgArticulatedModel, makVrv::DtOsgParticleSystemModel, and makVrv::DtOsgAnimationModel.

virtual bool makVrv::DtModel::isActivelyBackgroundLoading ( )

virtual

is this being actively loaded (it has a myInLoadQueueHandle object and it's loading)

virtual DtLoaderHandle* makVrv::DtModel::getLoadQueueHandle ( )

virtual

returns the load queue object

virtual void makVrv::DtModel::updateMinLastFrameDistance ( float  distance )

virtual

updates the closest distance to an observer over the last frame

virtual void makVrv::DtModel::resetLastFrameDistance ( )

virtual

resets the closest distance to an observer

virtual float makVrv::DtModel::minLastFrameDistance ( ) const

virtual

gets the closest distance to an observer last frame

virtual void makVrv::DtModel::addToScene ( const DtUniqueID &  sceneObjectId, DtModelSetId  modelSet, int  visualizerType  )

protectedpure virtual

Virtual Functions to be implemented, add this model to the scene.

Implemented in makVrv::DtOsgArticulatedModel, makVrv::DtOverlaySpiderWebModel, makVrv::DtOverlayWedgeModel, makVrv::DtOverlayArcModel, makVrv::DtTritonWakeModel, makVrv::DtOverlayManeuverByFireModel, makVrv::DtOsgExtrudedEllipseModel, makVrv::DtOsgExtrudedPolygonModel, makVrv::DtOverlaySecurityModel, makVrv::DtOsgExtrudedLineModel, makVrv::DtOverlayAmbushLineModel, makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOverlayPolygonModel, makVrv::DtDiGuyCharacterModel, makVrv::DtOverlayModel, makVrv::DtOsgEllipsoidArcModel, makVrv::DtOsg3DGreatCircleArcModel, makVrv::DtDeprecatedOsgArticulatedModel, makVrv::DtOsg3DVolumetricLineModel, makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsgOverlayDirectionLineModel, makVrv::DtDecalProjectorLineModel, makVrv::DtOsgOverlayEllipseArcModel, makVrv::DtOsgOverlayRectangleModel, makVrv::DtOsgPolygonModel, makVrv::DtMultiLineModel, makVrv::DtOsgParticleSystemModel, makVrv::DtOsgTacticalSmokeModel, makVrv::DtOverlayScreenIntervaledTextModel, makVrv::DtOsgScribeBoxModel, makVrv::Dt3dEntityTacticalDecorationsModel, makVrv::DtOsgAnimationModel, makVrv::DtOsg2DVolumetricLineModel, makVrv::DtTritonTidalStreamWakeModel, makVrv::DtOsgSimpleModel, makVrv::DtTritonWaterImpactModel, makVrf::DtRadarCoverageModel, makVrv::DtOsgAttachableCuboidModel, makVrv::DtOsgAttachableEllipsoidModel, makVrv::DtRotorWashModel, makVrv::DtDeprecatedOsgSimpleModel, makVrv::DtOsgCylinderModel, makVrv::DtOsgArticulatingCylinderModel, makVrv::DtOsgRibbonModel, makVrf::DtVrfOverlayEllipseArcModel, makVrv::DtOsg3DTextModel, makVrv::DtOsgDecalModel, makVrv::DtOsgProjectedTextModel, makVrv::DtFxParticleCollisionObjectModel, makVrv::DtOsgRotorWashModel, makVrv::DtExampleModel, makVrv::DtOsgRectangularPyramidModel, makVrv::DtOsgDrawModel, makVrv::DtDummyCharacterModel, makVrv::DtProjectedWidgetModel, and makVrv::DtPinnableProjectedWidgetModel.

virtual void makVrv::DtModel::addToSceneAsProp ( const DtUniqueID &  sceneObjectId )

inlineprotectedvirtual

Add this model to the scene as a prop. All models are not required to re-implement this.

Reimplemented in makVrv::DtOsgParticleSystemModel, makVrv::DtOsgScribeBoxModel, makVrv::DtOsgSimpleModel, and makVrv::DtDeprecatedOsgSimpleModel.

virtual void makVrv::DtModel::removeFromScene ( )

protectedpure virtual

Virtual Functions to be implemented, remove this model from the scene.

Implemented in makVrv::DtOsgArticulatedModel, makVrv::DtOverlaySpiderWebModel, makVrv::DtOverlayWedgeModel, makVrv::DtOverlayArcModel, makVrv::DtTritonWakeModel, makVrv::DtOverlayManeuverByFireModel, makVrv::DtOsgExtrudedEllipseModel, makVrv::DtOverlaySecurityModel, makVrv::DtOsgExtrudedPolygonModel, makVrv::DtOsgExtrudedLineModel, makVrv::DtOverlayAmbushLineModel, makVrv::DtOsgOverlayGreatCircleArcModel, makVrv::DtOverlayPolygonModel, makVrv::DtDiGuyCharacterModel, makVrv::DtOverlayModel, makVrv::DtOsgEllipsoidArcModel, makVrv::DtOsg3DGreatCircleArcModel, makVrv::DtOsg3DVolumetricLineModel, makVrv::DtDeprecatedOsgArticulatedModel, makVrv::DtOsgOverlaySegmentedLineModel, makVrv::DtOsg3DSegmentedLineModel, makVrv::DtOsgOverlayDirectionLineModel, makVrv::DtDecalProjectorLineModel, makVrv::DtOsgOverlayEllipseArcModel, makVrv::DtOsgOverlayRectangleModel, makVrv::DtOsgPolygonModel, makVrv::DtOsgParticleSystemModel, makVrv::DtMultiLineModel, makVrv::DtOsgTacticalSmokeModel, makVrv::DtOverlayScreenIntervaledTextModel, makVrv::Dt3dEntityTacticalDecorationsModel, makVrv::DtOsgAnimationModel, makVrv::DtOsgScribeBoxModel, makVrv::DtOsgSimpleModel, makVrv::DtTritonTidalStreamWakeModel, makVrv::DtOsg2DVolumetricLineModel, makVrv::DtTritonWaterImpactModel, makVrf::DtRadarCoverageModel, makVrv::DtDeprecatedOsgSimpleModel, makVrv::DtOsgAttachableCuboidModel, makVrv::DtOsgAttachableEllipsoidModel, makVrv::DtRotorWashModel, makVrv::DtOsgCylinderModel, makVrv::DtOsgArticulatingCylinderModel, DtVrfDeprecatedOsgArticulatedModel, makVrv::DtOsgRibbonModel, makVrv::DtOsgDecalModel, makVrv::DtOsg3DTextModel, makVrv::DtOsgProjectedTextModel, makVrv::DtFxParticleCollisionObjectModel, makVrv::DtOsgRotorWashModel, makVrv::DtOsgRectangularPyramidModel, makVrv::DtExampleModel, makVrv::DtOsgDrawModel, makVrv::DtDummyCharacterModel, makVrv::DtProjectedWidgetModel, makVrv::DtPinnableProjectedWidgetModel, and DtVrfOsgArticulatedModel.

virtual void makVrv::DtModel::initializeModelInstance ( )

protectedvirtual

Push any state maintained by the model to the model instance.

Reimplemented in makVrv::DtOsgRibbonModel, makVrv::DtOsgDecalModel, and makVrv::DtOsgDrawModel.

void makVrv::DtModel::slot_modelInstanceChanged ( DtModelInstance *  instance )

protected

Called when the model instance changed.

virtual void makVrv::DtModel::waitAndClearLoadHandle ( )

protectedvirtual

avoids race condition, on destruction subclasses need to wait for the model to cleanly finish loading this can happen if an object times in and out very quickly

virtual void makVrv::DtModel::removedFromLoadQueue ( )

protectedvirtual

deletes the myInLoadQueueHandle handle

virtual void makVrv::DtModel::setDoneBackgroundLoading ( )

protectedvirtual

called by async task, updates myCurrentlyLoading atomic

virtual void makVrv::DtModel::setActivelyBackgroundLoading ( )

protectedvirtual

called right before tbb task creation

void makVrv::DtModel::deleteModelInstance ( )

private

Delete the model instance (and emit signal_modelToBeDestroyed)

Friends And Related Function Documentation

friend class DtBackgroundLoader

friend

friend class DtBackgroundLoadAsyncTask

friend

Member Data Documentation

boost::signalslib::signal<void (DtModel*)> makVrv::DtModel::signal_modelToBeDestroyed

Signal emitted when the model is to be destroyed.

boost::signalslib::signal<void (DtModel*)> makVrv::DtModel::signal_modelChanged

boost::signalslib::signal<bool (DtModel*,bool ), SlotReturnOR> makVrv::DtModel::signal_visibilityChangeRequested

Signal when the visibility has been requested, if any slot returns false, it will not change.

boost::signalslib::signal<void (DtModelInstance*, DtModel*)> makVrv::DtModel::signal_modelInstanceCreated

Signal emitted when the model instance is created.

boost::signalslib::signal<void (DtModelInstance*, DtModel*)> makVrv::DtModel::signal_modelInstanceToBeDestroyed

Signal emitted when the model instance is to be destroyed.

DtLoaderHandle* makVrv::DtModel::myInLoadQueueHandle

protected

bool makVrv::DtModel::theInittedState

staticprotected

DtDe& makVrv::DtModel::myDe

protected

const DtUniqueID makVrv::DtModel::myUniqueId

protected

The unique id is constant after initialization.

DtUniqueID makVrv::DtModel::myElementId

protected

DtUniqueID makVrv::DtModel::myParentSceneObjectID

protected

bool makVrv::DtModel::myColorBlendingEnabled

protected

The color blending enabled is needed to be set by the derived class so it doesn't get down to the model instances when instancing is enabled.

DtModelInstance* makVrv::DtModel::myBackgroundModelInstance

protected

holds the model created in the background for a bit

float makVrv::DtModel::myMinLastFrameDistance

protected

last frames mimimal distance to the camera, calculated by the instancing system

TransformList makVrv::DtModel::myTransforms

protected

We keep our own copy in case we get updates before we get a model instance.

DtModelInstance* makVrv::DtModel::myModelInstance

protected

DtModelSetId makVrv::DtModel::myModelSet

protected

int makVrv::DtModel::myVisualizerType

protected

bool makVrv::DtModel::myContributesToBound

protected

bool makVrv::DtModel::myIsPropFlag

protected

float makVrv::DtModel::myBlendColor[4]

protected

bool makVrv::DtModel::myVisibleFlag

protected

DtVector makVrv::DtModel::myPositionOffset

protected

DtTaitBryan makVrv::DtModel::myOrientationOffset

protected

std::string makVrv::DtModel::myModelDefinitionName

protected

bool makVrv::DtModel::myRequireModelInstance = true

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtModel.h
