OSG implementation of distributed attachable segmented line model.

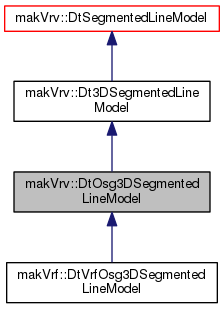

Inheritance diagram for makVrv::DtOsg3DSegmentedLineModel:

Public Member Functions
	DtOsg3DSegmentedLineModel (DtDe &de, DtUniqueID id)

virtual	~DtOsg3DSegmentedLineModel ()


virtual void	setPosition (int vtx, const DtVector &position)

virtual void	removePosition (int vtx)

virtual void	setOrientation (int vtx, const DtTaitBryan &orientation)

virtual void	setColor (float r, float g, float b, float a)

virtual void	setWidth (float width)

virtual void	setStipplePattern (unsigned int pattern, int repeatFactor)

virtual void	setStyleSegments (const std::vector< double > &segmentPercentages)

virtual void	setSegmentColor (unsigned int segmentIndex, float r, float g, float b, float a)

virtual const std::vector < DtVector > &	points () const

virtual void	setArrowSize (double)

virtual void	setArrowStyle (int)

virtual void	setSegmentLightningStyle (unsigned int segmentIndex, bool enableLightningStyle)

virtual void	setSegmentStartArrow (unsigned int segmentIndex, bool enableArrow)

virtual void	setSegmentEndArrow (unsigned int segmentIndex, bool enableArrow)

virtual void	setSegmentStipplePattern (unsigned int segmentIndex, unsigned int stipplePattern, int repeatFactor)

virtual void	setSegmentWidth (unsigned int segmentIndex, double width)

virtual void	setSegmentStartColor (unsigned int segmentIndex, float r, float g, float b, float a)

virtual void	setSegmentEndColor (unsigned int segmentIndex, float r, float g, float b, float a)

virtual void	setStopOnTerrainIntersection (bool enabled)

virtual void	setOcclusionEnabled (bool enabled)

virtual void	setPickable (bool pickable)

virtual void	setVisible (bool isVisible)

virtual void	setIsSupportModel (bool isSupport)

virtual void	setModelDefinition (const std::string &str)


virtual void	addToScene (const DtUniqueID &sceneObjectId, DtModelSetId modelSet, int visualizerType)

virtual void	removeFromScene ()

virtual void	update ()

Public Member Functions inherited from makVrv::Dt3DSegmentedLineModel
	Dt3DSegmentedLineModel (DtDe &de, DtUniqueID id)

virtual	~Dt3DSegmentedLineModel ()

Public Member Functions inherited from makVrv::DtSegmentedLineModel
	DtSegmentedLineModel (DtDe &de, DtUniqueID id)

virtual	~DtSegmentedLineModel ()

Public Member Functions inherited from makVrv::DtLineModel
	DtLineModel (DtDe &de, DtUniqueID id)

virtual	~DtLineModel ()

Public Member Functions inherited from makVrv::DtModel
	DtModel (DtDe &de, DtUniqueID id)

virtual	~DtModel ()

DtModelInstance *	createModelInstance (const std::string &modelDefName, bool realize=true)

virtual const std::string &	modelDefinitionName ()

virtual void	saveModelToFile (const std::string &filename)

virtual const std::string &	className () const

virtual DtUniqueID	uniqueId () const

unsigned int	transformSize () const

virtual const DtVector &	position (int vtx=0) const

virtual void	setPositionOffset (const DtVector &positionOffset)

virtual const DtVector &	positionOffset () const

virtual void	setPositionAndOrientation (int vtx, const DtVector &positionOffset, const DtTaitBryan &orientation)

virtual const DtTaitBryan &	orientation (int vtx=0) const

virtual void	setOrientationOffset (const DtTaitBryan &orientationOffset)

virtual const DtTaitBryan &	orientationOffset () const

virtual void	enableColorBlending (bool b)

virtual void	setBlendColor (float r, float g, float b, float a)

virtual void	getBlendColor (float &r, float &g, float &b, float &a)

virtual bool	colorBlendingEnabled () const

virtual void	enableLighting (bool l)

virtual DtModelSetId	modelSet () const

const DtVector &	boundingBoxExtents () const

void	getBoundingBoxExtents (double &x, double &y, double &z) const

const DtVector &	boundingBoxCenter () const

virtual void	getBoundingBoxCenter (double &x, double &y, double &z) const

virtual void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)

void	setContributesToBound (bool trueOrFalse)

bool	contributesToBound () const

DtDe &	de ()

virtual void	setModelInstance (DtModelInstance *modelInstance)

virtual void	promoteBackgroundModelInstance (const DtModelDefinition &defintion)

virtual bool	visible () const

DtUniqueID	sceneObjectId () const

virtual void	addedToSceneObjectAsProp (const DtUniqueID &sceneObj)

virtual void	addedToSceneObject (const DtUniqueID &sceneObj, DtModelSetId modelSet, int visualizerType)

virtual void	setElementId (DtElementID id)

virtual void	removedFromSceneObject ()

virtual void	setSolid (bool isSolid)

virtual bool	isProp ()

virtual void	updateMinLastFrameDistance (float distance)

virtual void	resetLastFrameDistance ()

virtual float	minLastFrameDistance () const

virtual DtModelInstance *	modelInstance ()

virtual const DtModelInstance *	modelInstance () const

int	visualizerType () const

virtual bool	supportsMultithreadedLoad ()

virtual void	backgroundLoad ()

virtual void	foregroundLoad ()

virtual bool	isActivelyBackgroundLoading ()

virtual DtLoaderHandle *	getLoadQueueHandle ()

Protected Member Functions
virtual void	needsUpdate ()

Protected Member Functions inherited from makVrv::DtModel
virtual void	addToSceneAsProp (const DtUniqueID &sceneObjectId)

virtual void	initializeModelInstance ()

void	slot_modelInstanceChanged (DtModelInstance *instance)

virtual void	waitAndClearLoadHandle ()

virtual void	removedFromLoadQueue ()

virtual void	setDoneBackgroundLoading ()

virtual void	setActivelyBackgroundLoading ()

Protected Attributes
DtOsgSceneConnector *	mySceneConnector

bool	myNeedsUpdate

boost::signalslib::connection	mySignalPostUpdateConnection

Protected Attributes inherited from makVrv::DtModel
DtLoaderHandle *	myInLoadQueueHandle

DtDe &	myDe

const DtUniqueID	myUniqueId

DtUniqueID	myElementId

DtUniqueID	myParentSceneObjectID

bool	myColorBlendingEnabled

DtModelInstance *	myBackgroundModelInstance

float	myMinLastFrameDistance

TransformList	myTransforms

DtModelInstance *	myModelInstance

DtModelSetId	myModelSet

int	myVisualizerType

bool	myContributesToBound

bool	myIsPropFlag

float	myBlendColor [4]

bool	myVisibleFlag

DtVector	myPositionOffset

DtTaitBryan	myOrientationOffset

std::string	myModelDefinitionName

bool	myRequireModelInstance = true

Additional Inherited Members
Public Attributes inherited from makVrv::DtModel
boost::signalslib::signal < void(DtModel *)>	signal_modelToBeDestroyed

boost::signalslib::signal < void(DtModel *)>	signal_modelChanged

boost::signalslib::signal < bool(DtModel *, bool), SlotReturnOR >	signal_visibilityChangeRequested

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceCreated

boost::signalslib::signal < void(DtModelInstance , DtModel )>	signal_modelInstanceToBeDestroyed

Protected Types inherited from makVrv::DtModel
typedef std::vector < ObjectTransform >	TransformList

Static Protected Attributes inherited from makVrv::DtModel
static bool	theInittedState

Constructor & Destructor Documentation

makVrv::DtOsg3DSegmentedLineModel::DtOsg3DSegmentedLineModel	(	DtDe &	de,
		DtUniqueID	id
	)

CTOR takes a de and an id.

virtual makVrv::DtOsg3DSegmentedLineModel::~DtOsg3DSegmentedLineModel ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtOsg3DSegmentedLineModel::setPosition	(	int	vtx,
		const DtVector &	position
	)

virtual

Set the position of (or add) one vertex.

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::removePosition ( int vtx )

virtual

Remove a vertex.

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setOrientation	(	int	vtx,
		const DtTaitBryan &	orientation
	)

virtual

No effect.

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Set the line color.

Implements makVrv::DtLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setWidth ( float width )

virtual

Set the line width.

Implements makVrv::DtLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setStipplePattern	(	unsigned int	pattern,
		int	repeatFactor
	)

virtual

Set a stipple pattern for the line.

Implements makVrv::DtLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setStyleSegments ( const std::vector< double > & segmentPercentages )

virtual

Set the style segments to percentages of the total line length The values in segmentPercentages must add up to 1.0.

Implements makVrv::DtSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setSegmentColor	(	unsigned int	segmentIndex,
		float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Set the color of a particular segment.

Implements makVrv::DtSegmentedLineModel.

virtual const std::vector<DtVector>& makVrv::DtOsg3DSegmentedLineModel::points ( ) const

virtual

Returns the points associated with this line.

Implements makVrv::DtLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setArrowSize ( double )

virtual

Sets arrow size. unimplemented.

Implements makVrv::DtSegmentedLineModel.

Reimplemented in makVrf::DtVrfOsg3DSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setArrowStyle ( int )

virtual

Set the style of the arrow. Unimplemented.

Implements makVrv::DtSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setSegmentLightningStyle	(	unsigned int	segmentIndex,
		bool	enableLightningStyle
	)

virtual

Turn on or off lightning bolt style for a particular segment.

Implements makVrv::DtSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setSegmentStartArrow	(	unsigned int	segmentIndex,
		bool	enableArrow
	)

virtual

Turn on or off the arrow at a segment's start point.

Implements makVrv::DtSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setSegmentEndArrow	(	unsigned int	segmentIndex,
		bool	enableArrow
	)

virtual

Turn on or off the arrow at a segment's end point.

Implements makVrv::DtSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setSegmentStipplePattern	(	unsigned int	segmentIndex,
		unsigned int	stipplePattern,
		int	repeatFactor
	)

virtual

Set the line stipple pattern for a segment, according to the OpenGL line stippling specification.

Implements makVrv::DtSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setSegmentWidth	(	unsigned int	segmentIndex,
		double	width
	)

virtual

Set the width of a line segment.

Implements makVrv::DtSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setSegmentStartColor	(	unsigned int	segmentIndex,
		float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Set the color of the firt vertex in a segment. This can be used for color blending between vertices.

Implements makVrv::DtSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setSegmentEndColor	(	unsigned int	segmentIndex,
		float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Set the color of the end vertex in a segment. This can be used for color blending between vertices.

Implements makVrv::DtSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setStopOnTerrainIntersection ( bool enabled )

virtual

Set whether or not the line stops at the first terrain intersection.

Implements makVrv::Dt3DSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setOcclusionEnabled ( bool enabled )

virtual

Turn on or off occlusion of the line by other objects; default is true.

Implements makVrv::Dt3DSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setPickable ( bool pickable )

virtual

Turn on or off the ability to pick the line. Off by default.

Implements makVrv::Dt3DSegmentedLineModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setVisible ( bool isVisible )

virtual

Implementation of setVisible for the line model; sets the line visible or invisible while maintaining its state.

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setIsSupportModel ( bool isSupport )

virtual

Set whether the model is part of the support group (can be clamped to)

Implements makVrv::DtModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::setModelDefinition ( const std::string & str )

virtual

Set the model definition for the line (defines default color and width)

Reimplemented from makVrv::DtModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::addToScene	(	const DtUniqueID &	sceneObjectId,
		DtModelSetId	modelSet,
		int	visualizerType
	)

virtual

Add the line to the scene.

Implements makVrv::DtModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::removeFromScene ( )

virtual

Remove the line from the scene.

Implements makVrv::DtModel.

virtual void makVrv::DtOsg3DSegmentedLineModel::update ( )

virtual

Connected to the renderer's postUpdate signal; tells the model instance to update.

virtual void makVrv::DtOsg3DSegmentedLineModel::needsUpdate ( )

protectedvirtual

Sets needs update flag such that on next update pass the object is updated.

Member Data Documentation

DtOsgSceneConnector* makVrv::DtOsg3DSegmentedLineModel::mySceneConnector

protected

bool makVrv::DtOsg3DSegmentedLineModel::myNeedsUpdate

protected

boost::signalslib::connection makVrv::DtOsg3DSegmentedLineModel::mySignalPostUpdateConnection

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvOsg/DtOsg3DSegmentedLineModel.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
