A DtAttachableUpdater updates a scene an object that can be positioned in the scene by (possibly) attaching it to one or more other scene objects. Note that this is not a DtSceneObjectUpdater; It can't be linked to other DtSceneObjectUpdaters.

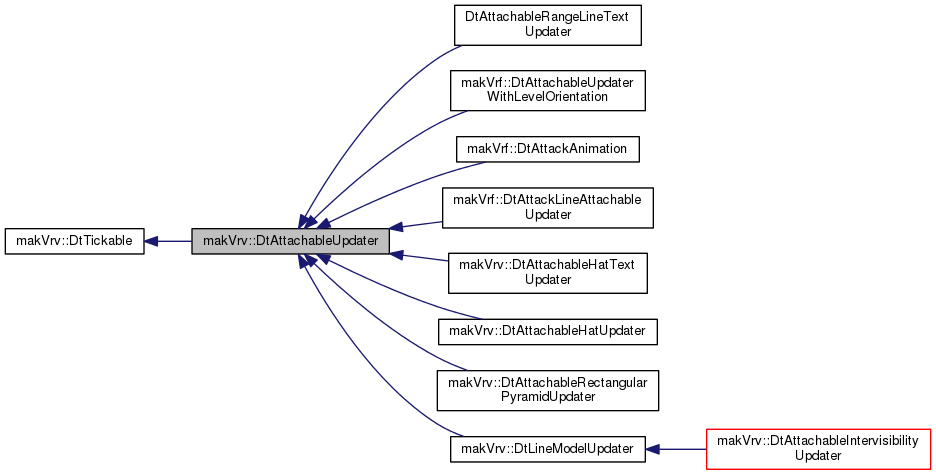

Inheritance diagram for makVrv::DtAttachableUpdater:

[legend]

Classes
class	AttachedPoint

class	LinearAttachedPoint

class	ObjectAttachedPoint

class	VertexAttachedPoint

Public Types
enum	AttachedPointType { AttachedPointTypeVertex, AttachedPointTypeObject, AttachedPointTypeProportional, AttachedPointTypeDeprecatedObject, AttachedPointTypeInvalidObject }

enum	AttachedPointMode { AttachedPointModePositionAndOrientation, AttachedPointModePositionOnly, AttachedPointModeOrientationOnly }

Public Types inherited from makVrv::DtTickable
enum	TickableListState { TickableNotOnList, TickableOnMainList, TickableOnThreadSafeList }

Public Member Functions
	DtAttachableUpdater (DtDe &de, DtUniqueID id)

virtual	~DtAttachableUpdater ()

virtual bool	needsUpdate (DtTime tNow)

virtual void	addAttachedPoint (const DtVector &position, int targetVertexIndex)

virtual void	addAttachedPoint (DtUniqueID sceneObjectId, int targetVertexIndex)

virtual void	addAttachedPoint (DtElementID elementId, DtModelSetId modelSet, int targetVertexIndex)

virtual void	addAttachedPoint (DtUniqueID sceneObjectId, int vtx1, int vtx2, double proportion, int targetVertexIndex)

virtual const AttachedPoint &	attachedPoint (int targetVertexIndex) const

virtual void	setPositionOffset (const DtVector &offset)

virtual void	setWorldPositionOffset (const DtVector &offset)

virtual void	setPositionOffset (const DtVector &offset, int vtx)

virtual void	setOrientationOffset (const DtTaitBryan &offset)

virtual void	setWorldOrientationOffset (const DtTaitBryan &offset)

virtual void	setAttachedPointMode (unsigned int mode, int vtx)

virtual void	update (DtTime tNow)

virtual void	setSceneObject (DtSceneObject *sceneObject)

virtual void	setModel (DtModel *model)

virtual void	doAttachment (DtTime tNow)

DtTime	lastUpdateTime () const

Public Member Functions inherited from makVrv::DtTickable
virtual bool	updateIfNeeded (DtTime tNow)

virtual	~DtTickable ()

virtual void	setTickableEnabled (bool enabled)

virtual void	setIsThreadSafe (bool safe)

virtual bool	isThreadSafe () const

virtual void	setTickableListState (TickableListState safeList)

virtual TickableListState	tickableListState () const

virtual void	setUpdatePeriod (unsigned int period)

virtual unsigned int	updatePeriod () const

virtual bool	adaptiveTickLodEnabled () const

Protected Types
typedef std::vector < AttachedPoint * >	AttachedPointsVector

Protected Member Functions
virtual bool	pointLocationAndOrientation (AttachedPoint *point, double simTime, DtVector &location, DtTaitBryan &orientation)

virtual void	removeAttachedPoint (int vtx, DtVector *positionOffset=0)

Slots
virtual void	slot_sceneObjectToBeDeleted (const DtUniqueID &id)

virtual void	slot_modelToBeDeleted (DtModel *model)

virtual void	slot_attachedSceneObjectToBeDeleted (const DtUniqueID &)

virtual void	slot_attachedUpdaterToBeDeleted (const DtUniqueID &id)

Protected Member Functions inherited from makVrv::DtTickable
	DtTickable (DtTickableManagerInterface *manager)

	DtTickable ()=delete

virtual void	slot_managerAboutToBeDeleted ()

Protected Attributes
DtDe &	myDe

DtUniqueID	myUniqueId

DtSceneObject *	mySceneObject

DtModel *	myModel

boost::signalslib::connection	mySceneObjectOrModelConnection

boost::signalslib::connection	mySceneObjectUpdaterConnection

AttachedPointsVector	myAttachedPoints

DtVector	myPositionOffset

DtTaitBryan	myOrientationOffset

DtVector	myWorldPositionOffset

DtTaitBryan	myWorldOrientationOffset

DtUniqueID	mySceneObjectId

Protected Attributes inherited from makVrv::DtTickable
DtTickableManagerInterface *	myManager

DtSignalConnectionManager	myConnections

unsigned int	myFrameCounter

unsigned int	myFrameToUpdate

unsigned int	myUpdatePeriod

unsigned int	myTickableIndex

DtTime	myLastUpdateTime

bool	myIsThreadSafe

TickableListState	myTickableListState

Member Typedef Documentation

typedef std::vector<AttachedPoint*> makVrv::DtAttachableUpdater::AttachedPointsVector

protected

Member Enumeration Documentation

enum makVrv::DtAttachableUpdater::AttachedPointType

Types of attachments.

Enumerator
AttachedPointTypeVertex
AttachedPointTypeObject
AttachedPointTypeProportional
AttachedPointTypeDeprecatedObject
AttachedPointTypeInvalidObject

enum makVrv::DtAttachableUpdater::AttachedPointMode

Enumerator
AttachedPointModePositionAndOrientation
AttachedPointModePositionOnly
AttachedPointModeOrientationOnly

Constructor & Destructor Documentation

makVrv::DtAttachableUpdater::DtAttachableUpdater	(	DtDe &	de,
		DtUniqueID	id
	)

CTOR.

virtual makVrv::DtAttachableUpdater::~DtAttachableUpdater ( )

virtual

DTOR.

Member Function Documentation

virtual bool makVrv::DtAttachableUpdater::needsUpdate ( DtTime tNow )

virtual

Does this updater need to update?

Reimplemented from makVrv::DtTickable.

virtual void makVrv::DtAttachableUpdater::addAttachedPoint	(	const DtVector &	position,
		int	targetVertexIndex
	)

virtual

Add a (vertex) attach point. If multiple attach points are specified each will update its corresponding vertex in the scene object being updated.

virtual void makVrv::DtAttachableUpdater::addAttachedPoint	(	DtUniqueID	sceneObjectId,
		int	targetVertexIndex
	)

virtual

Add an (object) attach point. If multiple attach points are specified each will update its corresponding vertex in the scene object being updated.

virtual void makVrv::DtAttachableUpdater::addAttachedPoint	(	DtElementID	elementId,
		DtModelSetId	modelSet,
		int	targetVertexIndex
	)

virtual

Add an (object) attach point by element ID. This function will lookup the appropiate scene object id in DtElementData based on the provided element ID and model set ID. If multiple attach points are specified each will update its corresponding vertex in the scene object being updated.

virtual void makVrv::DtAttachableUpdater::addAttachedPoint	(	DtUniqueID	sceneObjectId,
		int	vtx1,
		int	vtx2,
		double	proportion,
		int	targetVertexIndex
	)

virtual

Add a (linear) attach point. If multiple attach points are specified each will update its corresponding vertex in the scene object being updated.

virtual const AttachedPoint& makVrv::DtAttachableUpdater::attachedPoint ( int targetVertexIndex ) const

virtual

Returns the attached point at the given vertex. This method returns a copy of the current state of the attached point. If an attached point with the given index could not be found, this method returns an AttachedPoint with type AttachedPointTypeInvalidObject.

virtual void makVrv::DtAttachableUpdater::setPositionOffset ( const DtVector & offset )

virtual

positionally offset the attach points by this amount. This is in the coordinate system of the object attached to

virtual void makVrv::DtAttachableUpdater::setWorldPositionOffset ( const DtVector & offset )

virtual

positionally offset the specific attach point by this amount in world (database) coordinates. Will be used in conjunction with the overall position offset

virtual void makVrv::DtAttachableUpdater::setPositionOffset	(	const DtVector &	offset,
		int	vtx
	)

virtual

positionally offset the specific attach point by this amount. This is in the coordinate system of the object attached to. Will be used in conjunction with the overall position offset

virtual void makVrv::DtAttachableUpdater::setOrientationOffset ( const DtTaitBryan & offset )

virtual

rotationally offset the attach points by this amount. This is in the coordinate system of the object attached to

virtual void makVrv::DtAttachableUpdater::setWorldOrientationOffset ( const DtTaitBryan & offset )

virtual

rotationally offset the attach points by this amount in world (database) coordinates

virtual void makVrv::DtAttachableUpdater::setAttachedPointMode	(	unsigned int	mode,
		int	vtx
	)

virtual

Set whether an attached point updates position, orientation, or both.

virtual void makVrv::DtAttachableUpdater::update ( DtTime tNow )

virtual

Calls doAttachment()

Implements makVrv::DtTickable.

Reimplemented in makVrv::DtAttachableEntityFanUpdater, makVrv::DtLineModelUpdater, makVrv::DtAttachableIntervisibilityUpdater, and makVrf::DtVrfAttachableEntityFanUpdater.

virtual void makVrv::DtAttachableUpdater::setSceneObject ( DtSceneObject * sceneObject )

virtual

Set the scene object to be updated. A call to this will supersede any prior calls to setModel.

Parameters

[in] sceneObject is the scene object to receive updates.

Reimplemented in makVrv::DtLineModelUpdater.

virtual void makVrv::DtAttachableUpdater::setModel ( DtModel * model )

virtual

Set the model to be updated. A call to this will supersede any prior calls to setSceneObject.

Parameters

[in] model is the model to receive updates.

virtual void makVrv::DtAttachableUpdater::doAttachment ( DtTime tNow )

virtual

Find the actual position and orientation based on the attach points and offsets.

DtTime makVrv::DtAttachableUpdater::lastUpdateTime ( ) const

inline

virtual void makVrv::DtAttachableUpdater::slot_sceneObjectToBeDeleted ( const DtUniqueID & id )

protectedvirtual

Reimplemented in makVrf::DtAttackLineAttachableUpdater.

virtual void makVrv::DtAttachableUpdater::slot_modelToBeDeleted ( DtModel * model )

protectedvirtual

virtual void makVrv::DtAttachableUpdater::slot_attachedSceneObjectToBeDeleted ( const DtUniqueID & )

protectedvirtual

virtual void makVrv::DtAttachableUpdater::slot_attachedUpdaterToBeDeleted ( const DtUniqueID & id )

protectedvirtual

virtual bool makVrv::DtAttachableUpdater::pointLocationAndOrientation	(	AttachedPoint *	point,
		double	simTime,
		DtVector &	location,
		DtTaitBryan &	orientation
	)

protectedvirtual

virtual void makVrv::DtAttachableUpdater::removeAttachedPoint	(	int	vtx,
		DtVector *	positionOffset = `0`
	)

protectedvirtual

Returns current position offset in supplied pointer.

Member Data Documentation

DtDe& makVrv::DtAttachableUpdater::myDe

protected

The display engine.

DtUniqueID makVrv::DtAttachableUpdater::myUniqueId

protected

This distributed object's unique identifier.

DtSceneObject* makVrv::DtAttachableUpdater::mySceneObject

protected

A pointer to the current scene object being updated.

DtModel* makVrv::DtAttachableUpdater::myModel

protected

A pointer to the current model being updated.

boost::signalslib::connection makVrv::DtAttachableUpdater::mySceneObjectOrModelConnection

protected

boost::signalslib::connection makVrv::DtAttachableUpdater::mySceneObjectUpdaterConnection

protected

AttachedPointsVector makVrv::DtAttachableUpdater::myAttachedPoints

protected

DtVector makVrv::DtAttachableUpdater::myPositionOffset

protected

DtTaitBryan makVrv::DtAttachableUpdater::myOrientationOffset

protected

DtVector makVrv::DtAttachableUpdater::myWorldPositionOffset

protected

DtTaitBryan makVrv::DtAttachableUpdater::myWorldOrientationOffset

protected

DtUniqueID makVrv::DtAttachableUpdater::mySceneObjectId

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtAttachableUpdater.h
