Visualizer for simple particle systems. The class also serves as a base class for particle systems with more complex visualization behavior. For example, dust clouds from a vehicle driving through sandy terrain require that the entity be moving before the visualization of the particle system, i.e. dust cloud, can occur.

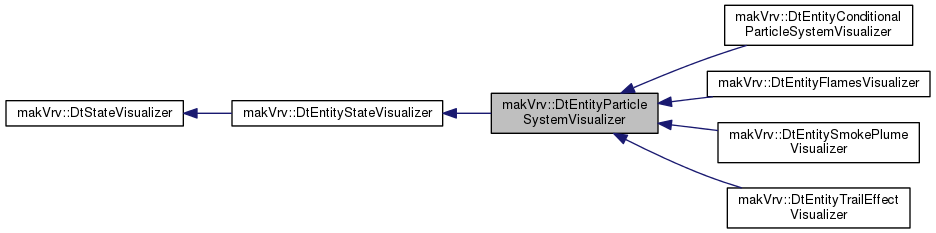

Inheritance diagram for makVrv::DtEntityParticleSystemVisualizer:

[legend]

Public Member Functions
	DtEntityParticleSystemVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, DtModelSetId modelSet)

	~DtEntityParticleSystemVisualizer ()

	DtEntityParticleSystemVisualizer ()=delete

	DtEntityParticleSystemVisualizer (const DtEntityParticleSystemVisualizer &)=delete

DtEntityParticleSystemVisualizer &	operator= (const DtEntityParticleSystemVisualizer &)=delete

virtual void	createModelAgents ()

virtual void	destroyModelAgents ()

virtual void	initialize () override

virtual void	setModelDefinitionForAgents () override

virtual void	connectToListenerSignals () override

virtual void	setInitialValuesFromVisualizerDefinition () override

virtual const DtStateVisualizer::TypeInfo &	typeInfo () const

virtual void	setOffset (const DtVector &offset)

virtual void	setArtPart (int artPart)

Public Member Functions inherited from makVrv::DtEntityStateVisualizer
	DtEntityStateVisualizer (DtBaseConnection &simulation, DtStateListener &listener, DtSceneObjectAgent *sceneObject, DtModelSetId modelSet)

virtual	~DtEntityStateVisualizer ()

virtual void	setState (int stateNumber, int stateValue)

DtEntityStateListener &	entityStateListener ()

Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, DtModelSetId modelSet)

virtual	~DtStateVisualizer ()

virtual DtModelSetId	modelSet ()

virtual void	setSceneObjectAgent (DtSceneObjectAgent *sceneObject)

void	setModelDefinition (const std::string &definition)

const std::string &	modelDefinition () const

virtual void	implementVisibility (bool visible)

virtual void	slot_setSelected (bool b)

void	setName (const std::string &)

const std::string &	name () const

virtual void	setPickable (bool)

virtual bool	pickable () const

virtual DtUniqueID	sceneObjectID () const

int	visualizerType () const

virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)

DtStateListener &	listener ()

const DtStateListener &	listener () const

DtBaseConnection &	simulation ()

void	setDistribute (bool b)

bool	distribute () const

virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Static Public Member Functions
static const DtStateVisualizer::TypeInfo &	theTypeInfo ()

Protected Member Functions
virtual void	createParticleEffect ()

virtual void	setIsFrozen (bool isFrozen)

Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	makeVisible ()

virtual bool	isVisible () const

template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
DtParticleSystemModelAgent *	myEffectAgent

DtVector	myOffset

int	myArtPart

bool	myIsFrozen

Protected Attributes inherited from makVrv::DtEntityStateVisualizer
DtEntityStateListener *	myEntityListener

Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation

DtStateListener &	myListener

bool	myDistributeFlag

DtUniqueID	mySceneObjectID

std::string	myName

std::string	myModelDefinition

DtSignalConnectionManager	myConnections

DtModelSetId	myModelSet

int	myVisualizerType

bool	myPickable

bool	myVisible

const DtVisualizerDefinition *	myVisualizerDefinition

DtSceneObjectAgent *	mySceneObjectAgent

bool	myInitialInitializeDone

ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type { AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType, AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }

Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::DtEntityParticleSystemVisualizer::DtEntityParticleSystemVisualizer	(	DtBaseConnection &	simulation,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		DtModelSetId	modelSet
	)

CTOR.

makVrv::DtEntityParticleSystemVisualizer::~DtEntityParticleSystemVisualizer ( )

not allowed - default constructor

makVrv::DtEntityParticleSystemVisualizer::DtEntityParticleSystemVisualizer ( )

delete

not allowed - default constructor

makVrv::DtEntityParticleSystemVisualizer::DtEntityParticleSystemVisualizer ( const DtEntityParticleSystemVisualizer & )

delete

not allowed - copy constructor

Member Function Documentation

DtEntityParticleSystemVisualizer& makVrv::DtEntityParticleSystemVisualizer::operator= ( const DtEntityParticleSystemVisualizer & )

delete

not allowed - equals operator

virtual void makVrv::DtEntityParticleSystemVisualizer::createModelAgents ( )

virtual

create the model agents for this visualizer

Reimplemented from makVrv::DtEntityStateVisualizer.

Reimplemented in makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntitySmokePlumeVisualizer, and makVrv::DtEntityFlamesVisualizer.

virtual void makVrv::DtEntityParticleSystemVisualizer::destroyModelAgents ( )

virtual

deletes the model agents

Reimplemented from makVrv::DtEntityStateVisualizer.

Reimplemented in makVrv::DtEntityConditionalParticleSystemVisualizer, and makVrv::DtEntityTrailEffectVisualizer.

virtual void makVrv::DtEntityParticleSystemVisualizer::initialize ( )

overridevirtual

Set default symbol decorations indices.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntityFlamesVisualizer, and makVrv::DtEntitySmokePlumeVisualizer.

virtual void makVrv::DtEntityParticleSystemVisualizer::setModelDefinitionForAgents ( )

overridevirtual

setup the model definition for the agents

Reimplemented from makVrv::DtEntityStateVisualizer.

Reimplemented in makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntitySmokePlumeVisualizer, and makVrv::DtEntityFlamesVisualizer.

virtual void makVrv::DtEntityParticleSystemVisualizer::connectToListenerSignals ( )

overridevirtual

Connect the visualizer to the listeners signals Called by DtStateVisualizer::initialize()

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntitySmokePlumeVisualizer, and makVrv::DtEntityFlamesVisualizer.

virtual void makVrv::DtEntityParticleSystemVisualizer::setInitialValuesFromVisualizerDefinition ( )

overridevirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntitySmokePlumeVisualizer, and makVrv::DtEntityFlamesVisualizer.

virtual const DtStateVisualizer::TypeInfo& makVrv::DtEntityParticleSystemVisualizer::typeInfo ( ) const

virtual

The instance's type info.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityConditionalParticleSystemVisualizer, makVrv::DtEntityTrailEffectVisualizer, makVrv::DtEntitySmokePlumeVisualizer, and makVrv::DtEntityFlamesVisualizer.

static const DtStateVisualizer::TypeInfo& makVrv::DtEntityParticleSystemVisualizer::theTypeInfo ( )

static

This class's type info.

virtual void makVrv::DtEntityParticleSystemVisualizer::setOffset ( const DtVector & offset )

virtual

offset for particle system

virtual void makVrv::DtEntityParticleSystemVisualizer::setArtPart ( int artPart )

virtual

artPart for particle system

virtual void makVrv::DtEntityParticleSystemVisualizer::createParticleEffect ( )

protectedvirtual

virtual void makVrv::DtEntityParticleSystemVisualizer::setIsFrozen ( bool isFrozen )

protectedvirtual

Whether or not the entity, that this particle system visualizer belongs to, is frozen.

Reimplemented in makVrv::DtEntityConditionalParticleSystemVisualizer, and makVrv::DtEntityTrailEffectVisualizer.

Member Data Documentation

DtParticleSystemModelAgent* makVrv::DtEntityParticleSystemVisualizer::myEffectAgent

protected

DtVector makVrv::DtEntityParticleSystemVisualizer::myOffset

protected

int makVrv::DtEntityParticleSystemVisualizer::myArtPart

protected

bool makVrv::DtEntityParticleSystemVisualizer::myIsFrozen

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtEntityParticleSystemVisualizer.h
