makVrv::DtImageSymbolVisualizer Class Reference

A visualizer for displaying a Image (Bitmap) Symbology Icon. The visualizer stores a map by integer of which image to display. If no image identifier is supplied, the first available image in the map is displayed.

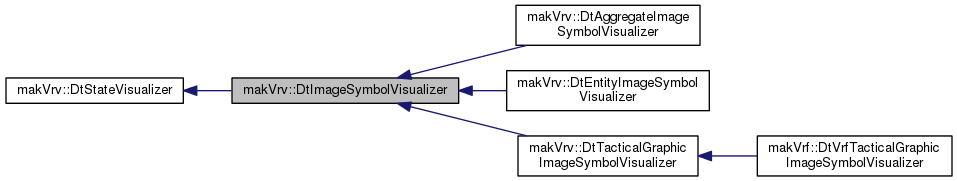

Inheritance diagram for makVrv::DtImageSymbolVisualizer:

Public Member Functions
	DtImageSymbolVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObject, DtModelSetId modelSet)
virtual	~DtImageSymbolVisualizer ()
	DtImageSymbolVisualizer ()=delete
	DtImageSymbolVisualizer (const DtImageSymbolVisualizer &)=delete
DtImageSymbolVisualizer &	operator= (const DtImageSymbolVisualizer &)=delete
virtual void	initialize () override
virtual void	setModelDefinitionForAgents ()
virtual void	slot_setSelected (bool) override
virtual void	setFixedIconScalingEnabled (bool fixedScalingEnabled)
void	setScale (float scale)
virtual void	setAltitudeSpecificConfigurations (const makArchives::DtAltitudeBasedScaleConfigurationRecordCollection &collection)
virtual void	setImageSymbol (int)
virtual int	imageSymbol () const
virtual void	setPickable (bool b)
virtual void	setImageSymbolMap (const DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap &)
const DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap &	imageSymbolMap () const
virtual void	setImageSize (int x, int y)
virtual void	setSelectionImageSize (int x, int y)
void	getImageSize (int &x, int &y)
virtual void	setDestroyed (bool)
bool	destroyed () const
virtual void	rotateSymbolToHeading (double)
virtual void	setDestroyedModel (const std::string &)
const std::string &	destroyedModel () const
virtual void	setMouseOverModel (const std::string &)
const std::string &	mouseOverModel () const
virtual void	setSelectedModel (const std::string &)
const std::string &	selectedModel () const
Public Member Functions inherited from makVrv::DtStateVisualizer
	DtStateVisualizer (DtBaseConnection &connection, DtStateListener &listener, DtSceneObjectAgent *sceneObjectAgent, DtModelSetId modelSet)
virtual	~DtStateVisualizer ()
virtual DtModelSetId	modelSet ()
virtual const TypeInfo &	typeInfo () const =0
virtual void	setSceneObjectAgent (DtSceneObjectAgent *sceneObject)
void	setModelDefinition (const std::string &definition)
const std::string &	modelDefinition () const
virtual void	implementVisibility (bool visible)
void	setName (const std::string &)
const std::string &	name () const
virtual bool	pickable () const
virtual DtUniqueID	sceneObjectID () const
int	visualizerType () const
virtual void	setVisualizerDefinition (const DtVisualizerDefinition &)
DtStateListener &	listener ()
const DtStateListener &	listener () const
DtBaseConnection &	simulation ()
void	setDistribute (bool b)
bool	distribute () const
virtual bool	setVisualizerIsVisible (bool vis, DtVisualizerShowHideContext::VisualizerShowHideContext context)

Protected Member Functions
virtual DtObjectTypeStateListener &	objectTypeStateListener ()
virtual void	setHasMouse (bool hasMouse)
virtual void	createModelAgents ()
virtual void	destroyModelAgents ()
virtual void	update ()
virtual void	updateIconScaling ()
virtual DtUnicode	imageSymbolDefinition (int) const
virtual void	connectToListenerSignals () override
virtual void	setInitialValuesFromVisualizerDefinition () override
Protected Member Functions inherited from makVrv::DtStateVisualizer
virtual void	makeVisible ()
virtual bool	isVisible () const
template<typename T , typename C >
void	connectAndUpdate (boost::signalslib::signal< void(T)> &sig, void(C::*fp)(T), T val)

Protected Attributes
DtProjectedWidgetModelAgent *	myProjectIconPosition
DtWidgetAgent *	myIcon
DtWidgetAgent *	mySelectedIcon
DtWidgetAgent *	myDestroyedIcon
float	myScale
int	myImageSymbol
DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap	myImageSymbolMap
unsigned int	myIconGroup
unsigned int	myDestroyedIconGroup
unsigned int	myHoveredGroupId
unsigned int	mySelectedGroupId
int	mySizeX
int	mySizeY
int	mySelectionSizeX
int	mySelectionSizeY
int	myOffsetX
int	myOffsetY
bool	myHasMouse
bool	myDestroyed
bool	myFixedScalingEnabled
std::string	myDestroyedModel
std::string	myMouseOverModel
std::string	mySelectedModel
makArchives::DtAltitudeBasedScaleConfigurationRecordCollection	myLabelScalesByMinimumAltitude
DtObjectTypeStateListener *	myObjectTypeStateListener
Protected Attributes inherited from makVrv::DtStateVisualizer
DtBaseConnection &	mySimulation
DtStateListener &	myListener
bool	myDistributeFlag
DtUniqueID	mySceneObjectID
std::string	myName
std::string	myModelDefinition
DtSignalConnectionManager	myConnections
DtModelSetId	myModelSet
int	myVisualizerType
bool	myPickable
bool	myVisible
const DtVisualizerDefinition *	myVisualizerDefinition
DtSceneObjectAgent *	mySceneObjectAgent
bool	myInitialInitializeDone
ShowHideContextVector	myVisualizerShowHideContexts

Additional Inherited Members
Public Types inherited from makVrv::DtStateVisualizer
enum	Type {   AllVisualizerTypes = 0, EntityVisualizerType = 1, EnvironmentalVisualizerType, InteractionVisualizerType,   AggregateVisualizerType, IntervisibilityVisualizerType, TacticalSmokeVisualizerType, UserType = 10000 }
Protected Types inherited from makVrv::DtStateVisualizer
typedef std::vector < DtVisualizerShowHideContext::VisualizerShowHideContext >	ShowHideContextVector

Constructor & Destructor Documentation

makVrv::DtImageSymbolVisualizer::DtImageSymbolVisualizer	(	DtBaseConnection &	connection,
		DtStateListener &	listener,
		DtSceneObjectAgent *	sceneObject,
		DtModelSetId	modelSet
	)

CTOR.

virtual makVrv::DtImageSymbolVisualizer::~DtImageSymbolVisualizer ( )

virtual

DTOR.

makVrv::DtImageSymbolVisualizer::DtImageSymbolVisualizer ( )

delete

not allowed - default constructor

makVrv::DtImageSymbolVisualizer::DtImageSymbolVisualizer ( const DtImageSymbolVisualizer &  )

delete

not allowed - copy constructor

Member Function Documentation

DtImageSymbolVisualizer& makVrv::DtImageSymbolVisualizer::operator= ( const DtImageSymbolVisualizer &  )

delete

not allowed = equals operator

virtual void makVrv::DtImageSymbolVisualizer::initialize ( )

overridevirtual

Initialize the visualizer.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtEntityImageSymbolVisualizer, makVrv::DtAggregateImageSymbolVisualizer, makVrv::DtTacticalGraphicImageSymbolVisualizer, and makVrf::DtVrfTacticalGraphicImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::setModelDefinitionForAgents ( )

virtual

Sets the model definition of the agents.

Implements makVrv::DtStateVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::slot_setSelected ( bool  )

overridevirtual

Sets whether or not the symbol is selected. Connected to DtStateListener's signal_objectSelectionChanged signal.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::setFixedIconScalingEnabled ( bool  fixedScalingEnabled )

virtual

Set whether or not fixed icon scaling will be used. If fixed icon scaling is NOT used, then icons will be dynamically scaled based on the altitude of the observer for the channel rendering the icon.

void makVrv::DtImageSymbolVisualizer::setScale

(

float

scale

)

Sets scale of the item relative to the default size This is only used if setFixedIconScalingEnabled(true).

virtual void makVrv::DtImageSymbolVisualizer::setAltitudeSpecificConfigurations ( const makArchives::DtAltitudeBasedScaleConfigurationRecordCollection &  collection )

virtual

Set the altitude-specific scale values to use for this visualizer.

virtual void makVrv::DtImageSymbolVisualizer::setImageSymbol ( int  )

virtual

Sets the image to display.

virtual int makVrv::DtImageSymbolVisualizer::imageSymbol ( ) const

virtual

Returns the image symbol to display.

virtual void makVrv::DtImageSymbolVisualizer::setPickable ( bool  b )

virtual

Sets whether or not the item is selectable.

Reimplemented from makVrv::DtStateVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::setImageSymbolMap ( const DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap &  )

virtual

Sets the integer to model definition map of this visualizer.

const DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap& makVrv::DtImageSymbolVisualizer::imageSymbolMap

(

)

const

Returns the map.

virtual void makVrv::DtImageSymbolVisualizer::setImageSize ( int  x, int  y  )

virtual

Sets the size of the image if scaling is 1.0.

virtual void makVrv::DtImageSymbolVisualizer::setSelectionImageSize ( int  x, int  y  )

virtual

void makVrv::DtImageSymbolVisualizer::getImageSize	(	int &	x,
		int &	y
	)

Returns the current size of the image if scale is 1.0.

virtual void makVrv::DtImageSymbolVisualizer::setDestroyed ( bool  )

virtual

Sets whether or not this item is destroyed. If it is the destroyed model definition will be displayed on top of the icon.

bool makVrv::DtImageSymbolVisualizer::destroyed ( ) const

inline

Returns whether or not this object is destroyed.

virtual void makVrv::DtImageSymbolVisualizer::setDestroyedModel ( const std::string &  )

virtual

Set/Get the model definition to display when item is destroyed.

const std::string& makVrv::DtImageSymbolVisualizer::destroyedModel

(

)

const

Set/Get the model definition to display when item is destroyed.

virtual void makVrv::DtImageSymbolVisualizer::setMouseOverModel ( const std::string &  )

virtual

Set/Get the model definition to display when item has the mouse cursor.

const std::string& makVrv::DtImageSymbolVisualizer::mouseOverModel

(

)

const

Set/Get the model definition to display when item has the mouse cursor.

virtual void makVrv::DtImageSymbolVisualizer::setSelectedModel ( const std::string &  )

virtual

Set/Get the model definition to display when item is selected.

const std::string& makVrv::DtImageSymbolVisualizer::selectedModel

(

)

const

Set/Get the model definition to display when item is selected.

virtual void makVrv::DtImageSymbolVisualizer::rotateSymbolToHeading ( double  )

virtual

Rotates the object to the given heading as indicated by the radians contents of heading.

virtual DtObjectTypeStateListener& makVrv::DtImageSymbolVisualizer::objectTypeStateListener ( )

inlineprotectedvirtual

virtual void makVrv::DtImageSymbolVisualizer::setHasMouse ( bool  hasMouse )

protectedvirtual

Sets whether or not the mouse is on this item. If so will show as "highlighted".

virtual void makVrv::DtImageSymbolVisualizer::createModelAgents ( )

protectedvirtual

Creates the agents used to display this model.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtTacticalGraphicImageSymbolVisualizer, and makVrv::DtAggregateImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::destroyModelAgents ( )

protectedvirtual

Destroys agents used to create this mode.

Implements makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtTacticalGraphicImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::update ( )

protectedvirtual

Updates the model with items to display.

virtual void makVrv::DtImageSymbolVisualizer::updateIconScaling ( )

protectedvirtual

Update the widgets icons scaling when the fixed altitude scaling changes or the scaling of altitude collections change.

virtual DtUnicode makVrv::DtImageSymbolVisualizer::imageSymbolDefinition ( int  ) const

protectedvirtual

Given an integer, return the image symbol definition for that. If it does not exist, return the first element.

Reimplemented in makVrf::DtVrfTacticalGraphicImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::connectToListenerSignals ( )

overrideprotectedvirtual

Connect the visualizer to the listeners signals Called by DtStateVisualizer::initialize()

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtTacticalGraphicImageSymbolVisualizer.

virtual void makVrv::DtImageSymbolVisualizer::setInitialValuesFromVisualizerDefinition ( )

overrideprotectedvirtual

Sets member variables from the visualizer definition if they exist Should not call this directly. Called by DtStateVisualizer::initialize.

Reimplemented from makVrv::DtStateVisualizer.

Reimplemented in makVrv::DtTacticalGraphicImageSymbolVisualizer.

Member Data Documentation

DtProjectedWidgetModelAgent* makVrv::DtImageSymbolVisualizer::myProjectIconPosition

protected

DtWidgetAgent* makVrv::DtImageSymbolVisualizer::myIcon

protected

DtWidgetAgent* makVrv::DtImageSymbolVisualizer::mySelectedIcon

protected

DtWidgetAgent* makVrv::DtImageSymbolVisualizer::myDestroyedIcon

protected

float makVrv::DtImageSymbolVisualizer::myScale

protected

int makVrv::DtImageSymbolVisualizer::myImageSymbol

protected

DtVisualAttributeForceSpecificString::ForceTypeToUnicodeMap makVrv::DtImageSymbolVisualizer::myImageSymbolMap

protected

unsigned int makVrv::DtImageSymbolVisualizer::myIconGroup

protected

unsigned int makVrv::DtImageSymbolVisualizer::myDestroyedIconGroup

protected

unsigned int makVrv::DtImageSymbolVisualizer::myHoveredGroupId

protected

unsigned int makVrv::DtImageSymbolVisualizer::mySelectedGroupId

protected

int makVrv::DtImageSymbolVisualizer::mySizeX

protected

int makVrv::DtImageSymbolVisualizer::mySizeY

protected

int makVrv::DtImageSymbolVisualizer::mySelectionSizeX

protected

int makVrv::DtImageSymbolVisualizer::mySelectionSizeY

protected

int makVrv::DtImageSymbolVisualizer::myOffsetX

protected

int makVrv::DtImageSymbolVisualizer::myOffsetY

protected

bool makVrv::DtImageSymbolVisualizer::myHasMouse

protected

bool makVrv::DtImageSymbolVisualizer::myDestroyed

protected

bool makVrv::DtImageSymbolVisualizer::myFixedScalingEnabled

protected

std::string makVrv::DtImageSymbolVisualizer::myDestroyedModel

protected

std::string makVrv::DtImageSymbolVisualizer::myMouseOverModel

protected

std::string makVrv::DtImageSymbolVisualizer::mySelectedModel

protected

makArchives::DtAltitudeBasedScaleConfigurationRecordCollection makVrv::DtImageSymbolVisualizer::myLabelScalesByMinimumAltitude

protected

DtObjectTypeStateListener* makVrv::DtImageSymbolVisualizer::myObjectTypeStateListener

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-1-branch/include/vrvCore/DtImageSymbolVisualizer.h
