exampleDisplayUnits

Table of Contents

• Overview
• Expected Result
• Example details
• Plugin Initialization
• Element Inspector Page
• Building the Example
• Running the Example
• Example Source Files
• ElementInspectorPage.h
• ElementInspectorPage.cxx
• exampleDisplayUnitsPluginInit.cxx

Overview

The purpose of this example is to show how to use the Display Unit Manager to display an object's position, with appropriate labels, using the current Display Units settings. The example creates a plugin that displays a dialog with a drop down box that allows the user to chose from any of the elements currently selected in a scene, and displays the name, type, and position of the currently chosen element.

Expected Result

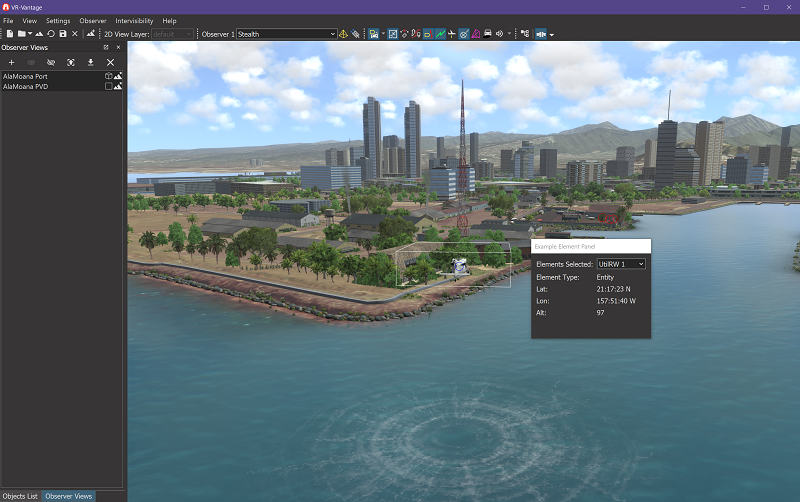

Display Unit example Result

Example details

The example also shows how to

• create and register a new dialog page
• maintain a list of the currently selected elements in the scene
• get a DtElementEntry for a selected element, from which the element's name and type can be determined
• get the position of an element that is represented by one or more scene objects (in local coordinates)
• get the display unit collection name of an element, if one is specified
• get the position of an observer
• convert a position in local coordinates into geocentric coordinates.

Plugin Initialization

When a plugin is loaded, VR-Vantage invokes its initDeModule function. This plugin simply calls its init function from initDeModule.

bool initDeModule(makVrv::DtDe* de)
{
   makVrv::vrvExampleDisplayUnitsPlugin::init(*de);
   return true;
}

The init function ensures that it will only ever be initialize once (even if its init function is called multiple times).

         DT_DE_INIT_ONCE(de);

It then makes sure the vrvCoreQt plugin is initialized, as it depends on it (and since vrvCoreQt also calls DT_DE_INIT_ONCE, this call will do nothing if that plugin has already been initialized).

         vrvCoreQt::init(de);

The plugin then registers a creator for the dialog page it will display (defined in ElementInspectorPage.cxx) with the DtQtPageAssembler.

         DtQtPageAssembler::instance(de).registerPageCreator(new ElementInspectorPageCreator(de));

Finally, it defines how that dialog should appear in the GUI by adding a path to it in the masterModePageConfiguration.

         makVrv::DtVrvApplication* igApp = makVrv::DtVrvApplication::findFromDe(de);
         if(igApp)
         {
            igApp->masterModePageConfiguration().addPageCollection(
               "ElementPanel",DtUnicode::fromAscii("Example Element Panel"),
               DtPageConfiguration::FloatRight,true,"ElementInspectorPage",
               false, true, true);

            igApp->masterModePageConfiguration().addPagePath(
               makVrv::DtPagePath::collection("ElementPanel").page("ElementInspectorPage"));
         }

Element Inspector Page

The ElementInspectorPage dialog maintains a list box that contains all the currently selected elements. For access to this information, it needs to connect to a signal from the DtSelectionManager. Because the DtSelectionManager is created by the Display Engine, it's important to ensure that the connection is done after the Display Engine is fully initialized. One way the VR-Vantage toolkit enables this is through the DtDeObserver class. By inheriting from this class and overriding its slot_activate and slot_deactivate methods, the dialog can know when it is safe to connect (and needs to disconnect) from display engine managed signals creators.

The ElementInspectorPage declaration shows this inheritance.

      class ElementInspectorPage : public DtPage, public DtDeObserver

In slot_activate, the ElementInspectorPage connects to the DtSelectionManager's selectionChanged signal.

void ElementInspectorPage::slot_activate(DtDe* de)
{
    mySignals += DtSelectionManager::instance(myDe).signal_currentSelectionChanged.connect(
      std::bind(&ElementInspectorPage::selectionChanged,this,std::placeholders::_1, std::placeholders::_2, std::placeholders::_3, std::placeholders::_4));
}

It disconnects from the signal in slot_deactivate.

void ElementInspectorPage::slot_deactivate(DtDe* de)
{
   // Display Engine is going away (so the selection manager is as well)
   // Disconnect from its signal(s)
   mySignals.disconnectSignals();
}

The ElementInspectorPage also needs to periodically update itself irrespective of any selection changes, since it displays the position of a selected element, that may be moving. However, it only needs to do this if it is actually displayed. Because it derives from DtPage, it can override DtPage's activate and deactivate methods to know when it is being displayed, and start and stop its refresh timer accordingly.

void ElementInspectorPage::activate()
{
   myRefreshTimer->start();
}

void ElementInspectorPage::deactivate()
{
   myRefreshTimer->stop();
}

Whenever a selection changes, or when the refresh timer expires, the dialog updates its information. The updateElementPosition method demonstrates the use of the DtDisplayUnitsConverter to display the element's current position in the current coordinate system and with the current unit settings.

First, updateElementPosition gets a reference to an instance of the DtDisplayUnitsSettingsManager and it uses that to get a reference to the application's DtDisplayUnitsConverter.

   const DtDisplayUnitsConverter& converter = DtDisplayUnitsSettingsManager::instance(myDe).converter();

It queries the DtDisplayUnitsConverter for the correct X, Y, and Z labels given the current display coordinate system and units, and sets the dialog's QLabel labels to those values.

   DtUnicode xLabel,yLabel,zLabel;
   converter.coordinateSystemLabels(xLabel,yLabel,zLabel);

   myXLabel->setText(xLabel.toQString<QString>() + ":" );
   myYLabel->setText(yLabel.toQString<QString>() + ":" );
   myZLabel->setText(zLabel.toQString<QString>() + ":" );

Using the DtElementEntry passed into updateElementPosition, updateElementPosition gets the element's current position using its getPosition method.

      DtVector position = getPosition(entry);

The position returned is in local (or database) coordinates; updateElementPosition coverts it to geocentric coordinates for use with the DtDisplayUnitsConverter.

      DtVector geocPosition;
      myCoordinateSystem->localToNetPos(position,geocPosition);

It then determines the display unit collection name associated with the element, if there is one. If there is not one, the example defaults to using the 'Application' display unit collection. The example makes use of the object-type specific display unit collection name to help determine the unit of measurement and the number of decimal places to use when displaying the element's altitude, e.g. "Fixed Wing" elements may use feet with 1 decimal place while "Space" elements use kilometers with 0 decimal places.

      DtUnicode objectTypeSpecificDisplayUnitCollectionName = getDisplayUnitCollectionName(entry);

The example also does a check against the current Application/Coordinate System display unit setting to determine whether to use the Application/Coordinate System display unit or the Application/Distance display unit when determining the unit of measurement and number of decimal places to use for the X/Y components of the position strings.

      DtDisplayUnitsConverter::CoordSys currentCoordinateSystem = converter.currentCoordinateDisplaySystem();
      // We want to use the 'Coordinate System' display unit for decimals
      // for X/Y if we are using a Geodetic or zone-based coordinate system
      DtUnicode displayUnitDecimalsToUseForXY = DtSharedDisplayUnitsSettings::theCoordinateSystemDisplayUnitName;
      if (currentCoordinateSystem == DtDisplayUnitsConverter::CoordSys::CoordSysDatabase
         || currentCoordinateSystem == DtDisplayUnitsConverter::CoordSys::CoordSysGeocentric)
      {
         // In the case of Database or Geocentric, we want to use 'Distance' display unit for decimals
         displayUnitDecimalsToUseForXY = DtSharedDisplayUnitsSettings::theDistanceDisplayUnitName;
      }

Finally, it queries the DtDisplayUnitsConverter with the geocentric position for properly formatted x, y, and z position strings, and sets its QLabel value fields to the returned strings.

      std::vector<DtUnicode> strings = converter.convertPositionToNotatedStringList(geocPosition,
            converter.currentDistanceUnit(DtSharedDisplayUnitsSettings::theApplicationDisplayUnitCollectionName, DtSharedDisplayUnitsSettings::theDistanceDisplayUnitName),
            converter.displayUnitDecimals(DtSharedDisplayUnitsSettings::theApplicationDisplayUnitCollectionName, displayUnitDecimalsToUseForXY),
            converter.currentDistanceUnit(objectTypeSpecificDisplayUnitCollectionName, DtSharedDisplayUnitsSettings::theAltitudeDisplayUnitName),
            converter.displayUnitDecimals(objectTypeSpecificDisplayUnitCollectionName, DtSharedDisplayUnitsSettings::theAltitudeDisplayUnitName));

      if(strings.size() > 0)
      {
         myXValue->setText(QString::fromLatin1(strings[0].toLatin1().c_str()));
      }

      if(strings.size() > 1)
      {
         myYValue->setText(QString::fromLatin1(strings[1].toLatin1().c_str()));
      }

      if(strings.size() > 2)
      {
         myZValue->setText(QString::fromLatin1(strings[2].toLatin1().c_str()));
      }

Building the Example

VR-Vantage includes pre-built versions of the example plug-in. To build it yourself, follow the instructions at Building VR-Vantage Examples, Applications, and Plug-ins.

Running the Example

This example is a plug-in. You can run it by running ./bin64/exampleDisplayUnits_stealth.bat (on Windows) or ./bin64/exampleDisplayUnits_stealth.sh (on Linux). Load the Ala Moana terrain from the Load Terrain Dialog ('Ala Moana.mtf'); from the menu "Settings->Connections...", connect to 'DIS (7) localhost'. Then start the MAK Logger for DIS (loggerDIS.exe) and load 'Raid2021-DIS.lgr' and hit play. In VR-Vantage zoom in on an entity and select it. You will see the entity information display in the popup that is created by this example.

For more information about running examples, please see Running Applications and Examples.

Example Source Files

• ElementInspectorPage.h
• ElementInspectorPage.cxx
• exampleDisplayUnitsPluginInit.cxx

---

ElementInspectorPage.h

/******************************************************************************
** Copyright (c) 2022 MAK Technologies, Inc.
** All rights reserved.
******************************************************************************/


#pragma once

#include <vrvCoreQt/DtPage.h>

#include <vrvCore/DtSelectionManager.h>
#include <vrvCore/DtSubjectObserver.h>
#include <matrix/vlVector.h>

#include <vrvUtil/DtSignalConnectionManager.h>

class QGridLayout;
class QLabel;
class QComboBox;
class QTimer;

namespace makVrv
{
   class DtElementEntry;
   class DtCoordinateSystem;

   namespace vrvExampleDisplayUnitsPlugin
   {

      class ElementInspectorPage : public DtPage, public DtDeObserver
      {
         Q_OBJECT;
      public:
         ElementInspectorPage(DtDe& de,QWidget* parent = 0, Qt::WindowFlags f = 0);

         virtual ~ElementInspectorPage();

         virtual QIcon icon();

         virtual DtQIconConfigurations qIconConfigurations() const;

         virtual QString title();

         virtual const std::string& pageClassName() const;

         static const std::string& thePageClassName();

      protected slots:

         void onCurrentElementIdChanged(int index);

         void onRefreshElementDisplay();

      protected:

         void setupGui();

         virtual void activate();

         virtual void deactivate();

         virtual void slot_activate(DtDe* de);

         virtual void slot_deactivate(DtDe* de);

         void selectionChanged(const DtSelectionManager::IdSet& selected,
            const DtSelectionManager::IdSet& deselected,
            DtSelectionManager::SelectionType newType,
            DtSelectionManager::SelectionType oldType);

         void updateElementParameters(DtElementEntry* entry);

         void updateElementPosition( DtElementEntry* entry );

         void updateElementType( DtElementEntry* entry ) ;

         DtVector getPosition( DtElementEntry* entry ) const;

         DtUnicode getDisplayUnitCollectionName( DtElementEntry* entry ) const;

         virtual void slot_coordinateSystemChanged();

      protected:

         DtSignalConnectionManager mySignals;
         QGridLayout* myMainLayout;
         QLabel* myIdLabel;
         QComboBox* myIdBox;

         QLabel* myTypeLabel;
         QLabel* myTypeValue;

         QLabel* myXLabel;
         QLabel* myYLabel;
         QLabel* myZLabel;

         QLabel* myXValue;
         QLabel* myYValue;
         QLabel* myZValue;

         QTimer* myRefreshTimer;

         DtSignalConnectionManager myConnections;

         DtCoordinateSystem* myCoordinateSystem = nullptr;
      };

      typedef DtPageCreatorTemplate<ElementInspectorPage> ElementInspectorPageCreator;
   }
}

ElementInspectorPage.cxx

/******************************************************************************
** Copyright (c) 2023 MAK Technologies, Inc.
** All rights reserved.
******************************************************************************/


#include "ElementInspectorPage.h"

#include <vrvCore/DtAgentManager.h>
#include <vrvCore/DtAgentUpdateResolverInterface.h>
#include <vrvUtil/DtCoordinateDisplay.h>
#include <vrvUtil/DtCoordinateSystem.h>
#include <vrvCore/DtDataBank.h>
#include <vrvCore/DtDe.h>
#include <vrvCore/DtDeSharedState.h>
#include <vrvCore/DtDeSharedStateSignaler.h>
#include <vrvCore/DtDisplayUnitsSettingsManager.h>
#include <vrvCore/DtDriverManager.h>
#include <vrvCore/DtElementAttributeManager.h>
#include <vrvCore/DtElementData.h>
#include <vrvCore/DtInputDriver.h>
#include <vrvCore/DtModelSetRealizationManager.h>
#include <vrvCore/DtObserver.h>
#include <vrvCore/DtSceneObject.h>
#include <vrvCore/DtSelectionManager.h>

#include <QtWidgets/QLabel>
#include <QtWidgets/QGridLayout>
#include <QtWidgets/QComboBox>
#include <QtCore/QTimer>
#include <functional>

#include <functional>


using namespace makVrv;
using namespace vrvExampleDisplayUnitsPlugin;

ElementInspectorPage::ElementInspectorPage(DtDe& de,QWidget* parent, Qt::WindowFlags f)
: DtPage(de,parent,f)
, DtDeObserver()
{
   // This sets us up to have our slot_activate() and slot_deactivate() methods
   // called when the display engine is init'ed and uninit'ed
   bind( de );

   //Create and layout the widgets.
   setupGui();

   myConnections += DtDeSharedStateSignaler::instance(myDe).signal_coordinateSystemChanged.connect(
      std::bind(&ElementInspectorPage::slot_coordinateSystemChanged, this));

   slot_coordinateSystemChanged();
}

ElementInspectorPage::~ElementInspectorPage()
{
   delete myCoordinateSystem;
}

void ElementInspectorPage::slot_coordinateSystemChanged()
{
   if( myCoordinateSystem == nullptr && myDe.sharedStatePtr() )
   {
      myCoordinateSystem = myDe.sharedState().coordinateSystem().clone();
      if( myCoordinateSystem == nullptr )
      {
         DtTHROW_NEW( DtCorruptedState, "myDe.sharedState().coordinateSystem().clone() failed." );
      }
   }
   if( myCoordinateSystem )
   {
      myCoordinateSystem->set( myDe.sharedState().coordinateSystem().type(), myDe.sharedState().coordinateSystem().parameters() );
   }
}

QIcon ElementInspectorPage::icon()
{
   return QIcon();
}

QString ElementInspectorPage::title()
{
   return tr("Element Inspector");
}

const std::string& ElementInspectorPage::pageClassName() const
{
   return thePageClassName();
}

const std::string& ElementInspectorPage::thePageClassName()
{
   static std::string theClassName("ElementInspectorPage");
   return theClassName;
}

void ElementInspectorPage::activate()
{
   myRefreshTimer->start();
}

void ElementInspectorPage::deactivate()
{
   myRefreshTimer->stop();
}

void ElementInspectorPage::slot_activate(DtDe* de)
{
    mySignals += DtSelectionManager::instance(myDe).signal_currentSelectionChanged.connect(
      std::bind(&ElementInspectorPage::selectionChanged,this,std::placeholders::_1, std::placeholders::_2, std::placeholders::_3, std::placeholders::_4));
}

void ElementInspectorPage::slot_deactivate(DtDe* de)
{
   // Display Engine is going away (so the selection manager is as well)
   // Disconnect from its signal(s)
   mySignals.disconnectSignals();
}


void ElementInspectorPage::selectionChanged(const DtSelectionManager::IdSet& selected,
   const DtSelectionManager::IdSet& deselected,
   DtSelectionManager::SelectionType newType,
   DtSelectionManager::SelectionType oldType)
{
   // For each selected id, add it to the combo box.
   DtSelectionManager::IdSet::const_iterator i = selected.begin();
   DtSelectionManager::IdSet::const_iterator e = selected.end();
   for(; i != e;++i)
   {

      QString nameQStr = tr("Unnamed");
      std::string nameStr;

      if (myDe.dataBank().elementData().attributeManager().getElementDisplayName(*i, nameStr))
      {
         nameQStr = QString::fromStdString(nameStr);
      }
      myIdBox->addItem(nameQStr, QVariant(*i) );
   }

   // For each deselected id, find in in the combo box and remove it.
   i = deselected.begin();
   e = deselected.end();
   for(; i != e;++i)
   {
      int index = myIdBox->findData( QVariant( *i ) );
      if ( index != -1 )
      {
         myIdBox->removeItem(index);
      }
   }

}

void ElementInspectorPage::setupGui()
{
   int row = 0;

   myMainLayout = new QGridLayout(this);
   myMainLayout->setAlignment(Qt::AlignTop);
   myIdLabel = new QLabel(tr("Elements Selected:"),this);
   myMainLayout->addWidget(myIdLabel,row,0);

   myIdBox = new QComboBox(this);
   QObject::connect(myIdBox,SIGNAL(currentIndexChanged(int)),SLOT(onCurrentElementIdChanged(int)));
   myMainLayout->addWidget(myIdBox,row,1);

   ++row;

   myTypeLabel = new QLabel(tr("Element Type:"),this);
   myMainLayout->addWidget(myTypeLabel,row,0);

   myTypeValue = new QLabel(tr(""),this);
   myMainLayout->addWidget(myTypeValue,row,1);

   ++row;

   myXLabel = new QLabel(this);
   myMainLayout->addWidget(myXLabel,row,0);

   myXValue = new QLabel(tr(""),this);
   myMainLayout->addWidget(myXValue,row,1);

   ++row;

   myYLabel = new QLabel(this);
   myMainLayout->addWidget(myYLabel,row,0);

   myYValue = new QLabel(tr(""),this);
   myMainLayout->addWidget(myYValue,row,1);

   ++row;

   myZLabel = new QLabel(this);
   myMainLayout->addWidget(myZLabel,row,0);

   myZValue = new QLabel(tr(""),this);
   myMainLayout->addWidget(myZValue,row,1);

   myRefreshTimer = new QTimer(this);
   QObject::connect(myRefreshTimer,SIGNAL(timeout()),SLOT(onRefreshElementDisplay()));
   myRefreshTimer->setInterval(500);
   myRefreshTimer->stop();
}

void ElementInspectorPage::onCurrentElementIdChanged(int index)
{
   if(index == -1)
   {
      updateElementParameters(0);
      return;
   }

   //Get the unique id in the combo box.
   DtUniqueID id = myIdBox->itemData(index).toULongLong();

   //Find the element.
   DtElementEntry* entry = myDe.dataBank().elementData().findElement(id);

   //Update it's parameters, supports if the entry is NULL.
   updateElementParameters(entry);
}


DtQIconConfigurations ElementInspectorPage::qIconConfigurations() const
{
   DtQIconConfigurations result;
   result.addConfiguration(DtQIconConfiguration(""));
   return result;
}

void makVrv::vrvExampleDisplayUnitsPlugin::ElementInspectorPage::onRefreshElementDisplay()
{
   int index = myIdBox->currentIndex();
   if( index == -1) return;
   if(myIdBox->currentText() == QString()) return;

   //Get the current element id.
   bool ok = false;
   DtUniqueID id = myIdBox->itemData(index).toULongLong(&ok);
   if(!ok) return;

   //Find the element.
   DtElementEntry* entry = myDe.dataBank().elementData().findElement(id);

   //Update it's parameters, supports if the entry is NULL.
   updateElementParameters(entry);
}

makVrv::DtUnicode ElementInspectorPage::getDisplayUnitCollectionName(DtElementEntry* entry) const
{
   // Get the display unit collection name if one is set in the element attribute manager.
   // If one is not set, default to theApplicationDisplayUnitCollectionName for altitude.
   DtUnicode result = DtSharedDisplayUnitsSettings::theApplicationDisplayUnitCollectionName;
   DtElementAttributeManager& mgr = myDe.dataBank().elementData().attributeManager();
   std::string foundAttributeResult;
   if (mgr.getElementDisplayUnitCollectionName(entry->elementID(), foundAttributeResult))
   {
      result = DtUnicode::fromAscii(foundAttributeResult);
   }

   return result;
}

void ElementInspectorPage::updateElementParameters(DtElementEntry* entry)
{
   updateElementType(entry);
   updateElementPosition(entry);
}


void ElementInspectorPage::updateElementPosition( DtElementEntry* entry )
{
   //Update the labels to based on the current display units settings.
   const DtDisplayUnitsConverter& converter = DtDisplayUnitsSettingsManager::instance(myDe).converter();

   DtUnicode xLabel,yLabel,zLabel;
   converter.coordinateSystemLabels(xLabel,yLabel,zLabel);

   myXLabel->setText(xLabel.toQString<QString>() + ":" );
   myYLabel->setText(yLabel.toQString<QString>() + ":" );
   myZLabel->setText(zLabel.toQString<QString>() + ":" );

   if(entry)
   {
      //Get the position of the entry.
      DtVector position = getPosition(entry);

      //Get the position in geocentric.
      DtVector geocPosition;
      myCoordinateSystem->localToNetPos(position,geocPosition);

      // The object-type specific display unit collection determines the unit of
      // measurement and decimal places to use when displaying the element's
      // altitude, e.g. Fixed Wing elements may use feet while Space elements use
      // kilometers.
      DtUnicode objectTypeSpecificDisplayUnitCollectionName = getDisplayUnitCollectionName(entry);

      DtDisplayUnitsConverter::CoordSys currentCoordinateSystem = converter.currentCoordinateDisplaySystem();
      // We want to use the 'Coordinate System' display unit for decimals
      // for X/Y if we are using a Geodetic or zone-based coordinate system
      DtUnicode displayUnitDecimalsToUseForXY = DtSharedDisplayUnitsSettings::theCoordinateSystemDisplayUnitName;
      if (currentCoordinateSystem == DtDisplayUnitsConverter::CoordSys::CoordSysDatabase
         || currentCoordinateSystem == DtDisplayUnitsConverter::CoordSys::CoordSysGeocentric)
      {
         // In the case of Database or Geocentric, we want to use 'Distance' display unit for decimals
         displayUnitDecimalsToUseForXY = DtSharedDisplayUnitsSettings::theDistanceDisplayUnitName;
      }

      // Get the position as it should be displayed with notations included.
      std::vector<DtUnicode> strings = converter.convertPositionToNotatedStringList(geocPosition,
            converter.currentDistanceUnit(DtSharedDisplayUnitsSettings::theApplicationDisplayUnitCollectionName, DtSharedDisplayUnitsSettings::theDistanceDisplayUnitName),
            converter.displayUnitDecimals(DtSharedDisplayUnitsSettings::theApplicationDisplayUnitCollectionName, displayUnitDecimalsToUseForXY),
            converter.currentDistanceUnit(objectTypeSpecificDisplayUnitCollectionName, DtSharedDisplayUnitsSettings::theAltitudeDisplayUnitName),
            converter.displayUnitDecimals(objectTypeSpecificDisplayUnitCollectionName, DtSharedDisplayUnitsSettings::theAltitudeDisplayUnitName));

      if(strings.size() > 0)
      {
         myXValue->setText(QString::fromLatin1(strings[0].toLatin1().c_str()));
      }

      if(strings.size() > 1)
      {
         myYValue->setText(QString::fromLatin1(strings[1].toLatin1().c_str()));
      }

      if(strings.size() > 2)
      {
         myZValue->setText(QString::fromLatin1(strings[2].toLatin1().c_str()));
      }
   }
   else
   {
      myXValue->clear();
      myYValue->clear();
      myZValue->clear();
   }
}

void ElementInspectorPage::updateElementType( DtElementEntry* entry )
{
   if(entry)
   {
      QString typeStr;
      switch(entry->type())
      {
      case DtElementEntry::Entity:
         typeStr = tr("Entity");
         break;
      case DtElementEntry::Aggregate:
         typeStr = tr("Aggregate");
         break;
      case DtElementEntry::Prop:
         typeStr = tr("Prop");
         break;
      case DtElementEntry::Observer:
        typeStr = tr("Observer");
        break;
      case DtElementEntry::GraphicPoint:
        typeStr = tr("Graphic Point");
        break;
      case DtElementEntry::GraphicShape:
        typeStr = tr("Graphic Shape");
        break;
      case DtElementEntry::GraphicVertex:
        typeStr = tr("Graphic Vertex");
        break;
      case DtElementEntry::RemoteGraphic:
        typeStr = tr("Remote Graphic");
        break;
      case DtElementEntry::Intervisibility:
        typeStr = tr("Intervisibility Line");
        break;
      case DtElementEntry::TerrainPatch:
        typeStr = tr("Terrain Patch");
        break;
      case DtElementEntry::Feature:
        typeStr = tr("Feature");
        break;
      default:
         typeStr = tr("Unknown");
         break;
      }
      myTypeValue->setText(typeStr);
   }
   else
   {
   }

}

DtVector ElementInspectorPage::getPosition( DtElementEntry* entry )  const
{
   if(!entry)
   {
      return DtVector::zero();
   }

   // Not everything has a scene object (and not everything has a position, such as
   // a terrain patch or an intervisibility line).  One example of something that
   // does have a position but is not a scene object is an observer.  Handle that first
   if ( entry->type() == DtElementEntry::Observer )
   {
      std::string observerName;
      if (myDe.dataBank().elementData().attributeManager().getElementDisplayName(entry->elementID(), observerName))
      {
         DtObserver* observer = myDe.driverManager().inputDriver().findObserverByName( observerName );
         {
            if ( observer )
            {
               return observer->location();
            }

            return DtVector::zero();
         }
      }

      return DtVector::zero();
   }

   //Find the first model set which is realized.
   DtModelSetId modelSet = DtModelSetId::Unspecified;
   {
      DtModelSetRealizationManager::ModelSetRealizations::const_iterator i =
         myDe.sharedState().modelSetRealizationManager().modelSetRealizations().begin();
      DtModelSetRealizationManager::ModelSetRealizations::const_iterator e =
      myDe.sharedState().modelSetRealizationManager().modelSetRealizations().end();
      for ( ; i != e;++i)
      {
         if(i->second)
         {
            modelSet = i->first;
            break;
         }
      }
   }

   //Find the scene objects for the element.
   DtElementData::SceneObjectIdList sceneObjects;
   myDe.dataBank().elementData().getSceneObjectIds(entry->elementID(),
      sceneObjects,modelSet);
   if(sceneObjects.size() == 0)
   {
      return DtVector::zero();
   }

   //Find the resolver to get the scene object.
   DtAgentUpdateResolverInterface* resolver =
      myDe.agentManager().findUpdater( sceneObjects.front() );
   if( !resolver )
   {
      return DtVector::zero();
   }

   DtSceneObject* sceneObject =
      resolver->castObjectTypeFromUpdater<DtSceneObject>( "DtSceneObject" );
   if(!sceneObject)
   {
      return DtVector::zero();
   }

   //Get the position of the scene object.
   DtVector position;
   sceneObject->getPosition(0,position);

   return position;
}

exampleDisplayUnitsPluginInit.cxx

/******************************************************************************
** Copyright (c) 2019 MAK Technologies, Inc.
** All rights reserved.
******************************************************************************/

#include "exampleDisplayUnitsPlugin.h"
#include <vrvCore/exportPlugin.h>
#include "ElementInspectorPage.h"
#include <vrvCore/DtDe.h>
#include <vrvCoreQt/DtQtPageAssembler.h>
#include <vrvCore/DtVrvApplication.h>

namespace makVrv
{
   namespace vrvExampleDisplayUnitsPlugin
   {

      void init(DtDe& de)
      {
         DT_DE_INIT_ONCE(de);

         // First make sure that the vrvCoreQt module is init'ed.
         vrvCoreQt::init(de);

         // Add the Example Page to the Example Dialog
         DtQtPageAssembler::instance(de).registerPageCreator(new ElementInspectorPageCreator(de));

         //Add example menu and example menu settings item.
         makVrv::DtVrvApplication* igApp = makVrv::DtVrvApplication::findFromDe(de);
         if(igApp)
         {
            igApp->masterModePageConfiguration().addPageCollection(
               "ElementPanel",DtUnicode::fromAscii("Example Element Panel"),
               DtPageConfiguration::FloatRight,true,"ElementInspectorPage",
               false, true, true);

            igApp->masterModePageConfiguration().addPagePath(
               makVrv::DtPagePath::collection("ElementPanel").page("ElementInspectorPage"));
         }
      }
   }
}

bool initDeModule(makVrv::DtDe* de)
{
   makVrv::vrvExampleDisplayUnitsPlugin::init(*de);
   return true;
}

[<< Examples] [Home] [Top of Page]
