This DtAggregateLocalObjectFacadeInterface class will provide API functionality for aggregate level calls. Use the isUsable method to determine if this class is usable for the given object. This will provide current and next frame access. Every routine called will check the isUsable method before usage, and, if it is not usable, will throw the DtUnimplementedMethod exception.

This class is not thread safe. It should only be used in the context of a single thread/object.

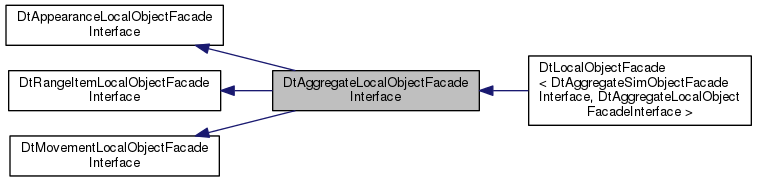

Inheritance diagram for DtAggregateLocalObjectFacadeInterface:

[legend]

Public Member Functions
	DtAggregateLocalObjectFacadeInterface ()

virtual	~DtAggregateLocalObjectFacadeInterface () override

bool	isUsable () const

void	setNextFrameDestroyed (bool)

void	nextFrameAddSubordinate (const DtUUID &, int index=-1)

bool	nextFrameRemoveSubordinate (const DtUUID &)

void	nextFrameRemoveAllSubordinates ()

bool	isNextFrameSubordinate (const DtUUID &) const

bool	nextFrameCanHaveSubordinates () const

const DtSimObjectReferenceList &	nextFrameSubordinates () const

double	nextFrameFormationHalfLength () const

virtual bool	computeExtentFromParameters (const DtString &formationName, DtExtent &extent) const

bool	nextFrameAggregatedExtent (DtExtent &extent) const

int	nextFrameNumSubordinates () const

DtFormationState *	formationState ()

const DtFormationState *	formationState () const

DtSubordinateManager *	nextFrameSubordinateManager ()

void	setNextFrameActivity (const DtString &)

DtString	nextFrameActivity () const

bool	needsDesignatorReorder () const


enum DtAggregateState	nextFrameAggregateState () const

void	setNextFrameAggregateState (enum DtAggregateState)

DtString	nextFrameFormationName () const

void	setNextFrameFormationName (const DtString &)

DtAggregateFormation	nextFrameFormation () const

void	setNextFrameFormation (DtAggregateFormation)

Public Member Functions inherited from DtAppearanceLocalObjectFacadeInterface
	DtAppearanceLocalObjectFacadeInterface ()

virtual	~DtAppearanceLocalObjectFacadeInterface ()

void	setNextFrameAppearance (const DtAppearance &)

void	setNextFrameAppearanceBits (unsigned int)

DtAppearance	nextFrameAppearance () const

bool	nextFrameMobilityKilled () const

void	setNextFrameMobilityKilled (const bool mobilityKilled)

void	setNextFrameFirePowerKilled (bool)

int	nextFrameFirepowerKilled () const

void	setNextFrameDamageState (int)

DtDamageState	nextFrameDamageState () const

void	setNextFrameHealthPct (DtReal pct)

void	setNextFrameCapabilities (int)

int	nextFrameCapabilities () const

void	setNextFramePrimaryWeaponState (int s)

int	nextFramePrimaryWeaponState () const

void	setNextFrameConcealed (bool)

bool	nextFrameConcealed () const

void	setNextFrameComplianceState (int)

int	nextFrameComplianceState () const

void	setNextFrameDestroyed (bool)

bool	nextFrameDestroyed () const

Public Member Functions inherited from DtRangeItemLocalObjectFacadeInterface
	DtRangeItemLocalObjectFacadeInterface ()

virtual	~DtRangeItemLocalObjectFacadeInterface ()

bool	isUsable () const

bool	hasRangeRings () const

void	addNextFrameRangeItem (const DtRangeItem &)

void	removeNextFrameRangeItem (int index)

void	setNextFrameRangeItems (const DtRangeItems &)

DtRangeItems &	nextFrameRangeItems ()

void	clearNextFrameRangeItems ()

void	updateMaximumSensorRangeRing ()

void	disableRangeRingPublishing (bool)

void	setRangeRingsParametersPublisherTickRate (double d)

Public Member Functions inherited from DtMovementLocalObjectFacadeInterface
	DtMovementLocalObjectFacadeInterface ()

virtual	~DtMovementLocalObjectFacadeInterface ()

bool	isUsable () const

DtDeadReckonTypes	nextFrameDeadReckoningAlgorithm () const

void	setNextFrameDeadReckoningAlgorithm (DtDeadReckonTypes)

void	setNextFrameLocalVelocity (const DtVector &)

const DtVector &	nextFrameLocalVelocity () const

void	setNextFrameRelativeVelocity (const DtVector &)

void	setNextFrameWorldVelocity (const DtVector &)

const DtVector &	nextFrameWorldVelocity () const

const DtVector &	nextFrameRelativeVelocity () const

void	setNextFrameRotationalVelocity (const DtVector &)

const DtVector &	nextFrameRotationalVelocity () const

void	setNextFrameParentStationName (DtStationName)

DtStationName	nextFrameParentStationName () const

void	setNextFrameParentVelocity (const DtVector &)

const DtVector &	nextFrameParentVelocity () const

void	setNextFrameLocalSpeed (double)

void	setNextFrameLocalAcceleration (const DtVector &)

const DtVector &	nextFrameLocalAcceleration () const

const DtVector &	nextFrameRelativeAcceleration () const

void	setNextFrameRelativeAcceleration (const DtVector &)

void	setNextFrameParentAcceleration (const DtVector &)

const DtVector &	nextFrameParentAcceleration () const

void	setNextFrameWorldAcceleration (const DtVector &)

const DtVector &	nextFrameWorldAcceleration () const

void	setNextFrameIsFrozen (bool)

bool	nextFrameIsFrozen () const

bool	nextFrameIsSpatiallyFrozen () const

void	nextFrameFreezeSpatial ()

void	nextFrameThawSpatial ()

DtThresholder &	nextFrameThresholder ()

DtThresholder	nextFrameThresholder () const

Protected Member Functions
virtual DtLocalObject *	localObject () const override=0

virtual void	setupDecorator () override

Protected Member Functions inherited from DtMovementLocalObjectFacadeInterface
void	setupDecorator ()

Protected Attributes
DtString	myExtentCachedForFormation

DtExtent	myCachedExtent

DtAggregateLocalObjectDecorator *	myAggregateLocalObjectDecorator

Protected Attributes inherited from DtAppearanceLocalObjectFacadeInterface
makVrf::DtSimulatedObjectStateComponent *	myNextFrameSimulatedObjectStateComponent

Protected Attributes inherited from DtRangeItemLocalObjectFacadeInterface
DtRangeItemLocalObjectDecorator *	myRangeItemLocalDecorator

Constructor & Destructor Documentation

DtAggregateLocalObjectFacadeInterface::DtAggregateLocalObjectFacadeInterface ( )

CTOR.

virtual DtAggregateLocalObjectFacadeInterface::~DtAggregateLocalObjectFacadeInterface ( )

overridevirtual

DTOR.
