DtEvalSimulationObject Class Reference

class DtEvalSimulationObject:

Base class that provides some variables and methods that an evaluator that checks and returns a simulation object result can use. Will provide routines to do variable substitution, if needed

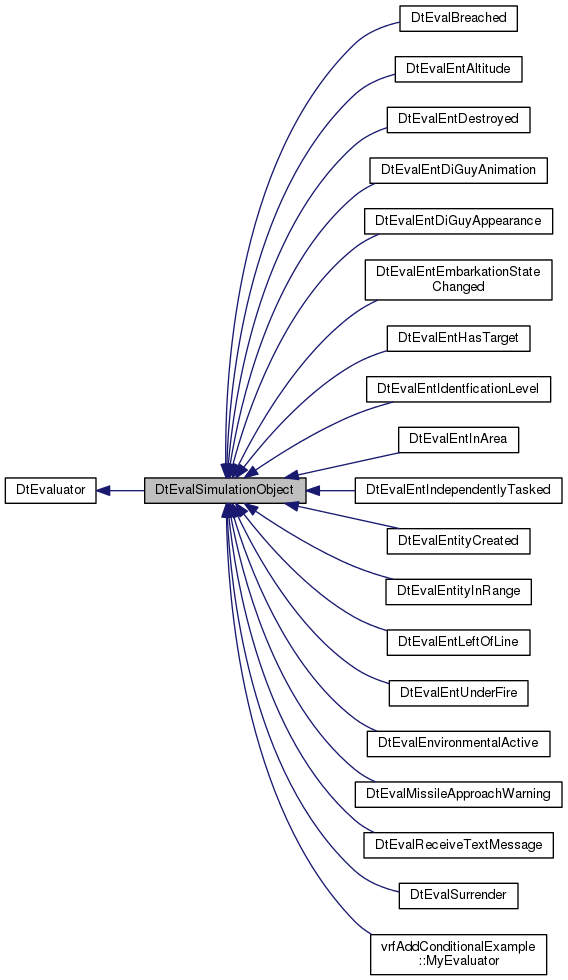

Inheritance diagram for DtEvalSimulationObject:

Public Member Functions
	DtEvalSimulationObject ()
virtual	~DtEvalSimulationObject () override
	DtEvalSimulationObject (const DtEvalSimulationObject &orig)
DtEvalSimulationObject &	operator= (const DtEvalSimulationObject &orig)
virtual const DtUUID &	simulationObject (const DtSimCondExpr *condExpr) const override
Public Member Functions inherited from DtEvaluator
	DtEvaluator ()
virtual	~DtEvaluator ()
virtual bool	evaluate (DtSimCondExpr *condExpr, DtLocalObject *entity, const DtSimulationServices *simManager, const DtPlan *plan=0) const =0
	DtEvaluator (const DtEvaluator &orig)
DtEvaluator &	operator= (const DtEvaluator &orig)
virtual DtEvaluator *	clone ()=0

Protected Member Functions
virtual const DtUUID &	initializeObjectToCheck (const DtSimCondExpr *condExpr, const DtUUID &baseUUID, const DtPlan *plan) const

Protected Attributes
DtUUID	mySimulationObject
DtUUID	myObjectToCheck

Additional Inherited Members
Static Public Member Functions inherited from DtEvaluator
static void	setFactory (DtEvaluatorFactory *factory)
static DtEvaluatorFactory *	factory ()
static void	addEvaluatorCreatorFcn (const int intType, DtEvaluatorCreatorFcn fcn)
Static Protected Attributes inherited from DtEvaluator
static DtEvaluatorFactory *	theFactory

Constructor & Destructor Documentation

DtEvalSimulationObject::DtEvalSimulationObject

(

)

constructor

virtual DtEvalSimulationObject::~DtEvalSimulationObject ( )

overridevirtual

destructor

DtEvalSimulationObject::DtEvalSimulationObject

(

const DtEvalSimulationObject &

orig

)

copy constructor

Member Function Documentation

DtEvalSimulationObject& DtEvalSimulationObject::operator=

(

const DtEvalSimulationObject &

orig

)

assignment operator

virtual const DtUUID& DtEvalSimulationObject::simulationObject ( const DtSimCondExpr *  condExpr ) const

overridevirtual

If there is a simulation object that satisfied the evaluation of this condition then it is returned here. Default returns DtUUID::nullUUID()

Reimplemented from DtEvaluator.

virtual const DtUUID& DtEvalSimulationObject::initializeObjectToCheck ( const DtSimCondExpr *  condExpr, const DtUUID &  baseUUID, const DtPlan *  plan  ) const

protectedvirtual

Given the UUID that is the object to check, replace with a plan variable if needed. Result is that myObjectToCheck will be filled in with the supplied UUID or the replaced. This is used for performance purposes to set this variable up once. Returns myObjectToCheck.

Member Data Documentation

DtUUID DtEvalSimulationObject::mySimulationObject

mutableprotected

DtUUID DtEvalSimulationObject::myObjectToCheck

mutableprotected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfplanmgr/evalSimulationObject.h
