DtJoystickControllerInterface Class Reference

Will manage basic functionality of a joystick controller. Implement pure virtual functions to responsd to joystick controls.

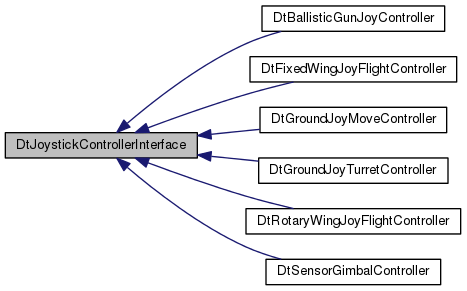

Inheritance diagram for DtJoystickControllerInterface:

Public Member Functions
	DtJoystickControllerInterface (DtLocalObject *owner, DtSimulationServices *simManager, DtComponentDescriptor *desc)
virtual	~DtJoystickControllerInterface ()
virtual bool	joystickEnabled () const

Protected Member Functions
virtual void	processJoyDeviceRequest (DtSimMessage *msg)
virtual void	processJoystickControlMessage (DtSimMessage *msg)
virtual void	calcAndSetPortValues (const DtString &functionGroup, const DtString &function, double value, bool repeat)=0
virtual void	joystickConnected ()=0
virtual void	joystickDisconnected ()=0

Static Protected Member Functions
static void	joyDeviceRequestCallback (DtSimMessage *msg, void *usr)
static void	joystickControlMessageCallback (DtSimMessage *msg, void *usr)

Protected Attributes
const DtJoyDeviceControllerDescriptorInterface *	myJoyDeviceControllerDescriptor
bool	myJoystickEnabled
int	myRequestCount
DtSimulationServices *	myJoystickSimManager
DtLocalObject *	myJoystickOwner

Private Member Functions
	DtJoystickControllerInterface ()
	DtJoystickControllerInterface (const DtJoystickControllerInterface &orig)
DtJoystickControllerInterface &	operator= (const DtJoystickControllerInterface &orig)

Constructor & Destructor Documentation

DtJoystickControllerInterface::DtJoystickControllerInterface	(	DtLocalObject *	owner,
		DtSimulationServices *	simManager,
		DtComponentDescriptor *	desc
	)

CTOR.

virtual DtJoystickControllerInterface::~DtJoystickControllerInterface ( )

virtual

destructor

DtJoystickControllerInterface::DtJoystickControllerInterface ( )

private

default constructor; not implemented.

DtJoystickControllerInterface::DtJoystickControllerInterface ( const DtJoystickControllerInterface &  orig )

private

copy constructor; not implemented.

Member Function Documentation

virtual bool DtJoystickControllerInterface::joystickEnabled ( ) const

virtual

virtual void DtJoystickControllerInterface::processJoyDeviceRequest ( DtSimMessage *  msg )

protectedvirtual

static void DtJoystickControllerInterface::joyDeviceRequestCallback ( DtSimMessage *  msg, void *  usr  )

staticprotected

virtual void DtJoystickControllerInterface::processJoystickControlMessage ( DtSimMessage *  msg )

protectedvirtual

static void DtJoystickControllerInterface::joystickControlMessageCallback ( DtSimMessage *  msg, void *  usr  )

staticprotected

virtual void DtJoystickControllerInterface::calcAndSetPortValues ( const DtString &  functionGroup, const DtString &  function, double  value, bool  repeat  )

protectedpure virtual

Override to set.

Implemented in DtSensorGimbalController, DtGroundJoyMoveController, DtBallisticGunJoyController, DtFixedWingJoyFlightController, DtRotaryWingJoyFlightController, and DtGroundJoyTurretController.

virtual void DtJoystickControllerInterface::joystickConnected ( )

protectedpure virtual

Called when joystick is connected for this controller.

Implemented in DtSensorGimbalController, DtGroundJoyMoveController, DtBallisticGunJoyController, DtFixedWingJoyFlightController, DtRotaryWingJoyFlightController, and DtGroundJoyTurretController.

virtual void DtJoystickControllerInterface::joystickDisconnected ( )

protectedpure virtual

Called when joystick is disconnected for this controller.

Implemented in DtSensorGimbalController, DtGroundJoyMoveController, DtBallisticGunJoyController, DtFixedWingJoyFlightController, DtRotaryWingJoyFlightController, and DtGroundJoyTurretController.

DtJoystickControllerInterface& DtJoystickControllerInterface::operator= ( const DtJoystickControllerInterface &  orig )

private

assignment operator; not implemented.

Member Data Documentation

const DtJoyDeviceControllerDescriptorInterface* DtJoystickControllerInterface::myJoyDeviceControllerDescriptor

protected

bool DtJoystickControllerInterface::myJoystickEnabled

protected

int DtJoystickControllerInterface::myRequestCount

protected

DtSimulationServices* DtJoystickControllerInterface::myJoystickSimManager

protected

DtLocalObject* DtJoystickControllerInterface::myJoystickOwner

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfmodel/joystickControllerInterface.h
