DtPortData Class Reference

This is an abstract base class for all data elements that are passed through ports. Derived types will be such things as DtAnalogPortData which manage a double, or more complex data types such as a target list. Derived types must provide a type() method with a unique type string and a clone() method for copying the data.

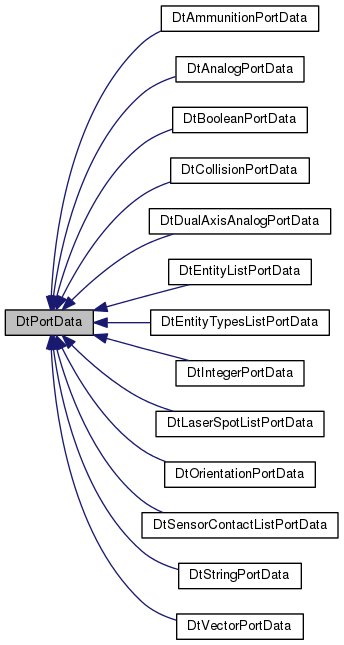

Inheritance diagram for DtPortData:

Public Member Functions
	DtPortData ()
virtual	~DtPortData ()
	DtPortData (const DtPortData &orig)
DtPortData &	operator= (const DtPortData &orig)
virtual const DtString	type () const =0
virtual DtPortData *	clone () const =0
virtual void	updateImgui ()=0

Constructor & Destructor Documentation

DtPortData::DtPortData

(

)

default constructor

virtual DtPortData::~DtPortData ( )

virtual

destructor

DtPortData::DtPortData

(

const DtPortData &

orig

)

Copy Constructor.

Member Function Documentation

DtPortData& DtPortData::operator=

(

const DtPortData &

orig

)

Assignment operator.

virtual const DtString DtPortData::type ( ) const

pure virtual

Returns a string type value for this class. Provide a unique string for each DtPortData class.

Implemented in DtSensorContactListPortData, DtEntityListPortData, DtStringPortData, DtVectorPortData, DtOrientationPortData, DtEntityTypesListPortData, DtAmmunitionPortData, DtDualAxisAnalogPortData, DtCollisionPortData, DtAnalogPortData, DtBooleanPortData, DtIntegerPortData, and DtLaserSpotListPortData.

virtual DtPortData* DtPortData::clone ( ) const

pure virtual

Provides a copy of this port data.

Implemented in DtSensorContactListPortData, DtEntityListPortData, DtAmmunitionPortData, DtStringPortData, DtVectorPortData, DtOrientationPortData, DtDualAxisAnalogPortData, DtEntityTypesListPortData, DtCollisionPortData, DtAnalogPortData, DtBooleanPortData, DtIntegerPortData, and DtLaserSpotListPortData.

virtual void DtPortData::updateImgui ( )

pure virtual

Outputs the current data value to ImGui.

Implemented in DtSensorContactListPortData, DtEntityListPortData, DtAmmunitionPortData, DtStringPortData, DtVectorPortData, DtOrientationPortData, DtDualAxisAnalogPortData, DtEntityTypesListPortData, DtCollisionPortData, DtAnalogPortData, DtBooleanPortData, DtIntegerPortData, and DtLaserSpotListPortData.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfobjcore/portData.h
