DtScriptedTaskVariableConverter Class Reference

A class that is used for converting to/from scripted task variables and reader/writer variables to be used in lua tasks.

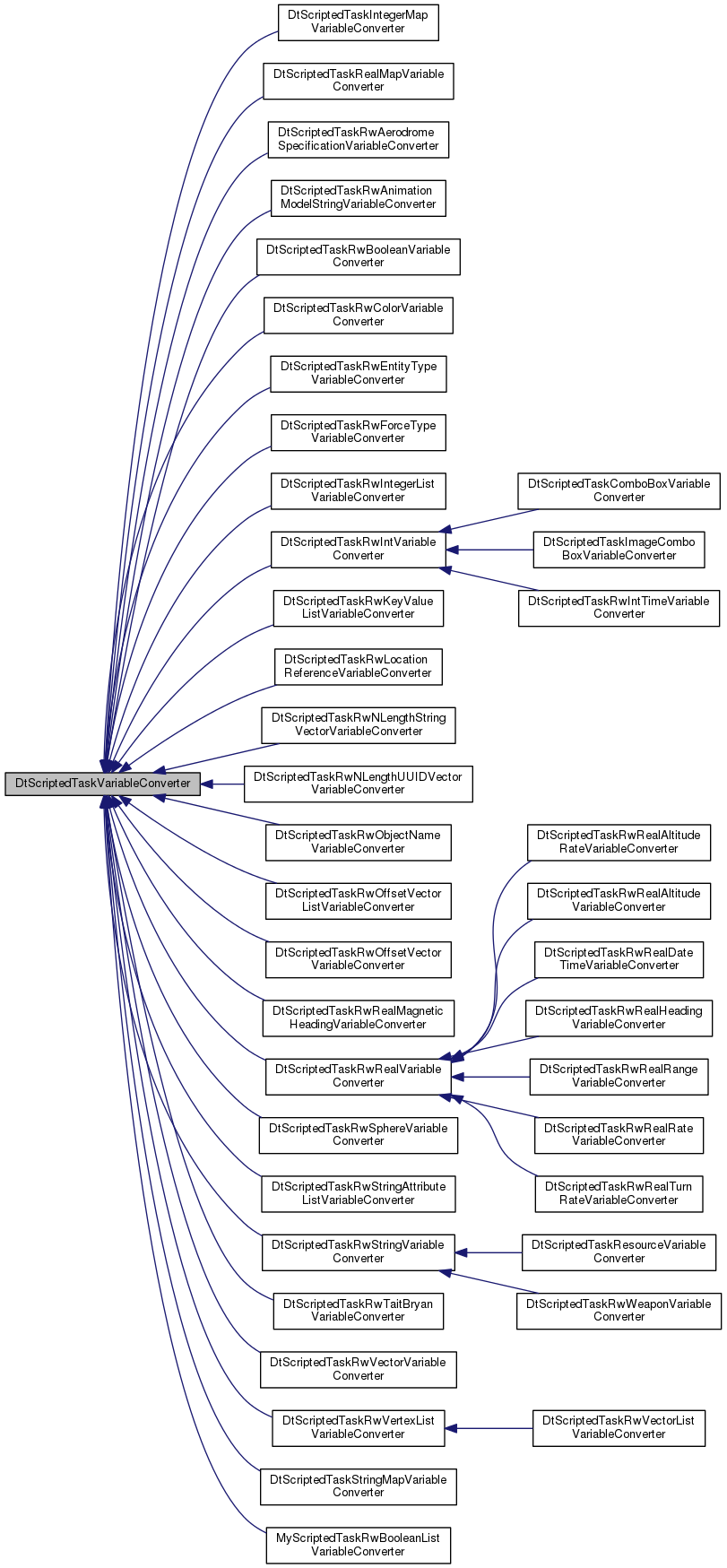

Inheritance diagram for DtScriptedTaskVariableConverter:

Public Types
typedef DtString(*	ResourceFormatterFcn )(const DtEntityType &)

Public Member Functions
virtual DtReaderWriter *	toRwPtr (const DtScriptedTaskVariable &) const =0
virtual std::string	fromRwPtr (const DtReaderWriter *) const =0
virtual DtString	stringRep (const DtReaderWriter *) const =0
virtual bool	upgradeFromVariable (DtReaderWriter *toUpgradeTo, const DtReaderWriter *originalValue) const
virtual void	upgradeVariable (DtReaderWriter *) const

Static Public Member Functions
static DtString	formatOffset (const DtVector &loc)
static DtString	formatTime (int time)
static DtString	formatDateTime (time_t time)
static DtString	formatLocation (const DtVector &loc)
static DtString	formatSphere (const DtSphere &loc)
static DtString	formatDistance (double d)
static DtString	formatHeading (double d)
static DtString	formatRate (double d)
static DtString	formatAltitudeRate (double d)
static DtString	formatTurnRate (double d)
static DtString	formatAltitude (double d)
static ResourceFormatterFcn	SetResourceFormatterFcn (ResourceFormatterFcn)
static DtString	formatResource (const DtEntityType &)
static DtString	formatResource (const std::string &)

Member Typedef Documentation

typedef DtString(* DtScriptedTaskVariableConverter::ResourceFormatterFcn)(const DtEntityType &)

Member Function Documentation

virtual DtReaderWriter* DtScriptedTaskVariableConverter::toRwPtr ( const DtScriptedTaskVariable &  ) const

pure virtual

Converts from the given scripted task variable to a DtReaderWriter variable that represents it.

Implemented in DtScriptedTaskRwRealMagneticHeadingVariableConverter, DtScriptedTaskRealMapVariableConverter, DtScriptedTaskStringMapVariableConverter, DtScriptedTaskIntegerMapVariableConverter, DtScriptedTaskRwKeyValueListVariableConverter, DtScriptedTaskRwAerodromeSpecificationVariableConverter, DtScriptedTaskRwStringAttributeListVariableConverter, DtScriptedTaskRwNLengthStringVectorVariableConverter, DtScriptedTaskRwNLengthUUIDVectorVariableConverter, DtScriptedTaskRwObjectNameVariableConverter, DtScriptedTaskRwTaitBryanVariableConverter, DtScriptedTaskRwAnimationModelStringVariableConverter, DtScriptedTaskRwOffsetVectorVariableConverter, DtScriptedTaskRwOffsetVectorListVariableConverter, DtScriptedTaskRwVectorListVariableConverter, DtScriptedTaskRwVertexListVariableConverter, DtScriptedTaskRwLocationReferenceVariableConverter, DtScriptedTaskRwSphereVariableConverter, DtScriptedTaskRwVectorVariableConverter, DtScriptedTaskRwEntityTypeVariableConverter, DtScriptedTaskRwForceTypeVariableConverter, DtScriptedTaskRwBooleanVariableConverter, DtScriptedTaskResourceVariableConverter, DtScriptedTaskRwStringVariableConverter, DtScriptedTaskRwRealVariableConverter, DtScriptedTaskRwColorVariableConverter, DtScriptedTaskImageComboBoxVariableConverter, DtScriptedTaskComboBoxVariableConverter, DtScriptedTaskRwIntTimeVariableConverter, DtScriptedTaskRwIntegerListVariableConverter, DtScriptedTaskRwIntVariableConverter, and MyScriptedTaskRwBooleanListVariableConverter.

virtual std::string DtScriptedTaskVariableConverter::fromRwPtr ( const DtReaderWriter *  ) const

pure virtual

Converts from the reader/writer variable to a std::string that will be used as the default value for converting scripted task variable.

Implemented in DtScriptedTaskRwRealMagneticHeadingVariableConverter, DtScriptedTaskRealMapVariableConverter, DtScriptedTaskStringMapVariableConverter, DtScriptedTaskIntegerMapVariableConverter, DtScriptedTaskRwKeyValueListVariableConverter, DtScriptedTaskRwAerodromeSpecificationVariableConverter, DtScriptedTaskRwStringAttributeListVariableConverter, DtScriptedTaskRwNLengthStringVectorVariableConverter, DtScriptedTaskRwNLengthUUIDVectorVariableConverter, DtScriptedTaskRwObjectNameVariableConverter, DtScriptedTaskRwTaitBryanVariableConverter, DtScriptedTaskRwAnimationModelStringVariableConverter, DtScriptedTaskRwOffsetVectorVariableConverter, DtScriptedTaskRwOffsetVectorListVariableConverter, DtScriptedTaskRwVertexListVariableConverter, DtScriptedTaskRwLocationReferenceVariableConverter, DtScriptedTaskRwSphereVariableConverter, DtScriptedTaskRwVectorVariableConverter, DtScriptedTaskRwEntityTypeVariableConverter, DtScriptedTaskRwForceTypeVariableConverter, DtScriptedTaskRwBooleanVariableConverter, DtScriptedTaskResourceVariableConverter, DtScriptedTaskRwStringVariableConverter, DtScriptedTaskRwRealVariableConverter, DtScriptedTaskRwColorVariableConverter, DtScriptedTaskRwIntegerListVariableConverter, DtScriptedTaskRwIntVariableConverter, and MyScriptedTaskRwBooleanListVariableConverter.

virtual DtString DtScriptedTaskVariableConverter::stringRep ( const DtReaderWriter *  ) const

pure virtual

Returns string representation.

Implemented in DtScriptedTaskRwRealMagneticHeadingVariableConverter, DtScriptedTaskRealMapVariableConverter, DtScriptedTaskStringMapVariableConverter, DtScriptedTaskIntegerMapVariableConverter, DtScriptedTaskRwKeyValueListVariableConverter, DtScriptedTaskRwAerodromeSpecificationVariableConverter, DtScriptedTaskRwStringAttributeListVariableConverter, DtScriptedTaskRwNLengthStringVectorVariableConverter, DtScriptedTaskRwNLengthUUIDVectorVariableConverter, DtScriptedTaskRwObjectNameVariableConverter, DtScriptedTaskRwTaitBryanVariableConverter, DtScriptedTaskRwAnimationModelStringVariableConverter, DtScriptedTaskRwOffsetVectorVariableConverter, DtScriptedTaskRwOffsetVectorListVariableConverter, DtScriptedTaskRwVectorListVariableConverter, DtScriptedTaskRwVertexListVariableConverter, DtScriptedTaskRwLocationReferenceVariableConverter, DtScriptedTaskRwSphereVariableConverter, DtScriptedTaskRwVectorVariableConverter, DtScriptedTaskRwEntityTypeVariableConverter, DtScriptedTaskRwForceTypeVariableConverter, DtScriptedTaskRwBooleanVariableConverter, DtScriptedTaskResourceVariableConverter, DtScriptedTaskRwWeaponVariableConverter, DtScriptedTaskRwStringVariableConverter, DtScriptedTaskRwRealDateTimeVariableConverter, DtScriptedTaskRwRealRangeVariableConverter, DtScriptedTaskRwRealTurnRateVariableConverter, DtScriptedTaskRwRealAltitudeRateVariableConverter, DtScriptedTaskRwRealAltitudeVariableConverter, DtScriptedTaskRwRealRateVariableConverter, DtScriptedTaskRwRealHeadingVariableConverter, DtScriptedTaskRwRealVariableConverter, DtScriptedTaskRwColorVariableConverter, DtScriptedTaskRwIntTimeVariableConverter, DtScriptedTaskRwIntegerListVariableConverter, DtScriptedTaskRwIntVariableConverter, and MyScriptedTaskRwBooleanListVariableConverter.

virtual bool DtScriptedTaskVariableConverter::upgradeFromVariable ( DtReaderWriter *  toUpgradeTo, const DtReaderWriter *  originalValue  ) const

inlinevirtual

Return true from this call if he toUpgradeTo variable should replace the original value.

Reimplemented in DtScriptedTaskRwLocationReferenceVariableConverter.

virtual void DtScriptedTaskVariableConverter::upgradeVariable ( DtReaderWriter *  ) const

inlinevirtual

Upgrade RW to new format, if need be.

Reimplemented in DtScriptedTaskResourceVariableConverter, and DtScriptedTaskRwWeaponVariableConverter.

static DtString DtScriptedTaskVariableConverter::formatOffset ( const DtVector &  loc )

static

Common formatting routines.

static DtString DtScriptedTaskVariableConverter::formatTime ( int  time )

static

static DtString DtScriptedTaskVariableConverter::formatDateTime ( time_t  time )

static

static DtString DtScriptedTaskVariableConverter::formatLocation ( const DtVector &  loc )

static

static DtString DtScriptedTaskVariableConverter::formatSphere ( const DtSphere &  loc )

static

static DtString DtScriptedTaskVariableConverter::formatDistance ( double  d )

static

static DtString DtScriptedTaskVariableConverter::formatHeading ( double  d )

static

static DtString DtScriptedTaskVariableConverter::formatRate ( double  d )

static

static DtString DtScriptedTaskVariableConverter::formatAltitudeRate ( double  d )

static

static DtString DtScriptedTaskVariableConverter::formatTurnRate ( double  d )

static

static DtString DtScriptedTaskVariableConverter::formatAltitude ( double  d )

static

static ResourceFormatterFcn DtScriptedTaskVariableConverter::SetResourceFormatterFcn ( ResourceFormatterFcn  )

static

static DtString DtScriptedTaskVariableConverter::formatResource ( const DtEntityType &  )

static

static DtString DtScriptedTaskVariableConverter::formatResource ( const std::string &  )

static

If supplied string is not a well formatted entity type (at least 6 colons) will return the string.

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfutil/scriptedTaskVariableConverters.h
