DtSensorFieldOfViewStateRepository Class Reference

Instances of DtSensorFieldOfViewStateRepository are used to store state data for HLAobjectRoot.SensorFieldOfView objects.

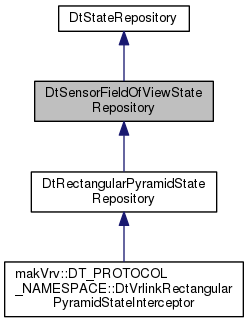

Inheritance diagram for DtSensorFieldOfViewStateRepository:

Public Member Functions
	DtSensorFieldOfViewStateRepository ()
virtual	~DtSensorFieldOfViewStateRepository () override
	DtSensorFieldOfViewStateRepository (const DtSensorFieldOfViewStateRepository &orig)
DtSensorFieldOfViewStateRepository &	operator= (const DtSensorFieldOfViewStateRepository &orig)
virtual DtStateRepository *	clone (bool copy) const override
virtual void	printData () const override
virtual void	printDataToStream (std::ostream &stream) const override
virtual void	setHost (const DtGlobalObjectDesignator &val)
virtual const DtGlobalObjectDesignator &	host () const
virtual void	setId (const DtString &val)
virtual DtString	id () const
virtual void	setRelativeLocation (const DtVector &val)
virtual const DtVector &	relativeLocation () const
virtual void	setRadius (DtFloat64 val)
virtual DtFloat64	radius () const
virtual void	setTrackingMode (DtSensorTrackingMode val)
virtual DtSensorTrackingMode	trackingMode () const
virtual void	setRelativeOrientation (const DtTaitBryan &val)
virtual const DtTaitBryan &	relativeOrientation () const
virtual void	setTargetedEntity (const DtGlobalObjectDesignator &val)
virtual const DtGlobalObjectDesignator &	targetedEntity () const
virtual void	setTargetedLocation (const DtVector &val)
virtual const DtVector &	targetedLocation () const
virtual void	setMinimumAzimuthAngle (DtFloat64 val)
virtual DtFloat64	minimumAzimuthAngle () const
virtual void	setMaximumAzimuthAngle (DtFloat64 val)
virtual DtFloat64	maximumAzimuthAngle () const
virtual void	setMinimumElevationAngle (DtFloat64 val)
virtual DtFloat64	minimumElevationAngle () const
virtual void	setMaximumElevationAngle (DtFloat64 val)
virtual DtFloat64	maximumElevationAngle () const
virtual void	setMaximumZoomLevel (DtFloat64 val)
virtual DtFloat64	maximumZoomLevel () const
virtual void	setZoomLevel (DtFloat64 val)
virtual DtFloat64	zoomLevel () const
virtual void	setColor (DtU32 val)
virtual DtU32	color () const

Static Public Member Functions
static DtSensorFieldOfViewStateRepository *	create ()

Protected Attributes
DtGlobalObjectDesignator	myHost
DtString	myId
DtVector	myRelativeLocation
DtFloat64	myRadius
DtSensorTrackingMode	myTrackingMode
DtTaitBryan	myRelativeOrientation
DtFloat64	myMinimumAzimuthAngle
DtFloat64	myMaximumAzimuthAngle
DtFloat64	myMinimumElevationAngle
DtFloat64	myMaximumElevationAngle
DtGlobalObjectDesignator	myTargetedEntity
DtVector	myTargetedLocation
DtFloat64	myMaximumZoomLevel
DtFloat64	myZoomLevel
DtU32	myColor

Constructor & Destructor Documentation

DtSensorFieldOfViewStateRepository::DtSensorFieldOfViewStateRepository

(

)

Constructor.

virtual DtSensorFieldOfViewStateRepository::~DtSensorFieldOfViewStateRepository ( )

overridevirtual

Destructor.

DtSensorFieldOfViewStateRepository::DtSensorFieldOfViewStateRepository

(

const DtSensorFieldOfViewStateRepository &

orig

)

Copy Constructor.

Member Function Documentation

DtSensorFieldOfViewStateRepository& DtSensorFieldOfViewStateRepository::operator=

(

const DtSensorFieldOfViewStateRepository &

orig

)

Assignment Operator.

virtual DtStateRepository* DtSensorFieldOfViewStateRepository::clone ( bool  copy ) const

overridevirtual

Return a copy/empty object of the same type as this.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor, and DtRectangularPyramidStateRepository.

static DtSensorFieldOfViewStateRepository* DtSensorFieldOfViewStateRepository::create ( )

static

Create a DtSensorFieldOfViewStateRepository.

virtual void DtSensorFieldOfViewStateRepository::printData ( ) const

overridevirtual

Print data to the DtInfo stream.

Reimplemented in DtRectangularPyramidStateRepository.

virtual void DtSensorFieldOfViewStateRepository::printDataToStream ( std::ostream &  stream ) const

overridevirtual

Print data to the specified stream.

Reimplemented in DtRectangularPyramidStateRepository.

virtual void DtSensorFieldOfViewStateRepository::setHost ( const DtGlobalObjectDesignator &  val )

virtual

Set the Host.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor.

virtual const DtGlobalObjectDesignator& DtSensorFieldOfViewStateRepository::host ( ) const

virtual

Get the Host.

virtual void DtSensorFieldOfViewStateRepository::setId ( const DtString &  val )

virtual

Set the Id.

virtual DtString DtSensorFieldOfViewStateRepository::id ( ) const

virtual

Get the Id.

virtual void DtSensorFieldOfViewStateRepository::setRelativeLocation ( const DtVector &  val )

virtual

Set the RelativeLocation.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor.

virtual const DtVector& DtSensorFieldOfViewStateRepository::relativeLocation ( ) const

virtual

Get the RelativeLocation.

virtual void DtSensorFieldOfViewStateRepository::setRadius ( DtFloat64  val )

virtual

Set the Radius.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor.

virtual DtFloat64 DtSensorFieldOfViewStateRepository::radius ( ) const

virtual

Get the Radius.

virtual void DtSensorFieldOfViewStateRepository::setTrackingMode ( DtSensorTrackingMode  val )

virtual

Set the TrackingMode.

virtual DtSensorTrackingMode DtSensorFieldOfViewStateRepository::trackingMode ( ) const

virtual

Get the TrackingMode.

virtual void DtSensorFieldOfViewStateRepository::setRelativeOrientation ( const DtTaitBryan &  val )

virtual

Set the RelativeOrientation.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor.

virtual const DtTaitBryan& DtSensorFieldOfViewStateRepository::relativeOrientation ( ) const

virtual

Get the RelativeOrientation.

virtual void DtSensorFieldOfViewStateRepository::setTargetedEntity ( const DtGlobalObjectDesignator &  val )

virtual

Set the TargetedEntity.

virtual const DtGlobalObjectDesignator& DtSensorFieldOfViewStateRepository::targetedEntity ( ) const

virtual

Get the TargetedEntity.

virtual void DtSensorFieldOfViewStateRepository::setTargetedLocation ( const DtVector &  val )

virtual

Set the TargetedLocation.

virtual const DtVector& DtSensorFieldOfViewStateRepository::targetedLocation ( ) const

virtual

Get the TargetedLocation.

virtual void DtSensorFieldOfViewStateRepository::setMinimumAzimuthAngle ( DtFloat64  val )

virtual

Set the MinimumAzimuthAngle.

virtual DtFloat64 DtSensorFieldOfViewStateRepository::minimumAzimuthAngle ( ) const

virtual

Get the MinimumAzimuthAngle.

virtual void DtSensorFieldOfViewStateRepository::setMaximumAzimuthAngle ( DtFloat64  val )

virtual

Set the MaximumAzimuthAngle.

virtual DtFloat64 DtSensorFieldOfViewStateRepository::maximumAzimuthAngle ( ) const

virtual

Get the MaximumAzimuthAngle.

virtual void DtSensorFieldOfViewStateRepository::setMinimumElevationAngle ( DtFloat64  val )

virtual

Set the MinimumElevationAngle.

virtual DtFloat64 DtSensorFieldOfViewStateRepository::minimumElevationAngle ( ) const

virtual

Get the MinimumElevationAngle.

virtual void DtSensorFieldOfViewStateRepository::setMaximumElevationAngle ( DtFloat64  val )

virtual

Set the MaximumElevationAngle.

virtual DtFloat64 DtSensorFieldOfViewStateRepository::maximumElevationAngle ( ) const

virtual

Get the MaximumElevationAngle.

virtual void DtSensorFieldOfViewStateRepository::setMaximumZoomLevel ( DtFloat64  val )

virtual

Set the MaximumZoomLevel.

virtual DtFloat64 DtSensorFieldOfViewStateRepository::maximumZoomLevel ( ) const

virtual

Get the MaximumZoomLevel.

virtual void DtSensorFieldOfViewStateRepository::setZoomLevel ( DtFloat64  val )

virtual

Set the ZoomLevel.

virtual DtFloat64 DtSensorFieldOfViewStateRepository::zoomLevel ( ) const

virtual

Get the ZoomLevel.

virtual void DtSensorFieldOfViewStateRepository::setColor ( DtU32  val )

virtual

Set the Color.

Reimplemented in makVrv::DT_PROTOCOL_NAMESPACE::DtVrlinkRectangularPyramidStateInterceptor.

virtual DtU32 DtSensorFieldOfViewStateRepository::color ( ) const

virtual

Get the Color.

Member Data Documentation

DtGlobalObjectDesignator DtSensorFieldOfViewStateRepository::myHost

protected

DtString DtSensorFieldOfViewStateRepository::myId

protected

DtVector DtSensorFieldOfViewStateRepository::myRelativeLocation

protected

DtFloat64 DtSensorFieldOfViewStateRepository::myRadius

protected

DtSensorTrackingMode DtSensorFieldOfViewStateRepository::myTrackingMode

protected

DtTaitBryan DtSensorFieldOfViewStateRepository::myRelativeOrientation

protected

DtFloat64 DtSensorFieldOfViewStateRepository::myMinimumAzimuthAngle

protected

DtFloat64 DtSensorFieldOfViewStateRepository::myMaximumAzimuthAngle

protected

DtFloat64 DtSensorFieldOfViewStateRepository::myMinimumElevationAngle

protected

DtFloat64 DtSensorFieldOfViewStateRepository::myMaximumElevationAngle

protected

DtGlobalObjectDesignator DtSensorFieldOfViewStateRepository::myTargetedEntity

protected

DtVector DtSensorFieldOfViewStateRepository::myTargetedLocation

protected

DtFloat64 DtSensorFieldOfViewStateRepository::myMaximumZoomLevel

protected

DtFloat64 DtSensorFieldOfViewStateRepository::myZoomLevel

protected

DtU32 DtSensorFieldOfViewStateRepository::myColor

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfExtObjects/sensorFieldOfViewStateRepository.h
