DtTaskInter Class Reference

Instances of DtTaskInter are used to store state data for ETR_Root.ETR_Task interactions.

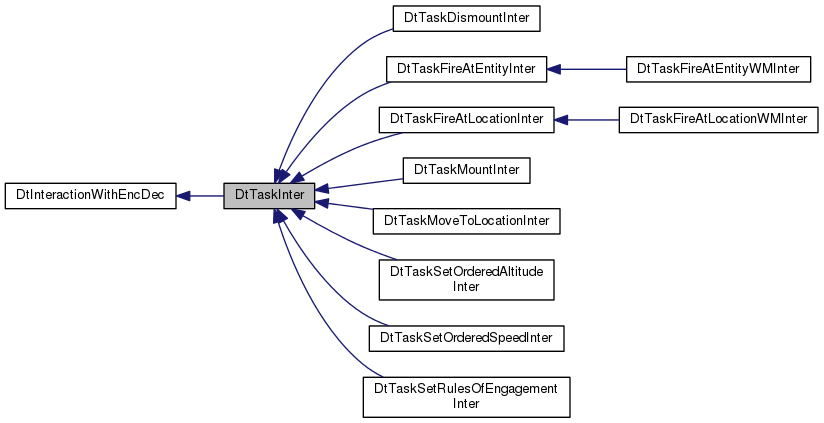

Inheritance diagram for DtTaskInter:

Public Member Functions
	DtTaskInter ()
virtual	~DtTaskInter () override
	DtTaskInter (const DtTaskInter &orig)
DtTaskInter &	operator= (const DtTaskInter &orig)
virtual void	printData () const override
virtual void	printDataToStream (std::ostream &stream) const override
virtual void	setTaskId (unsigned val)
virtual unsigned	taskId () const
virtual void	setTaskee (const DtVrlUuid &val)
virtual const DtVrlUuid &	taskee () const
virtual void	setTasker (const std::wstring &val)
virtual const std::wstring &	tasker () const
virtual void	setStartWhen (const std::wstring &val)
virtual const std::wstring &	startWhen () const
virtual void	setWhy (const std::wstring &val)
virtual const std::wstring &	why () const
virtual void	setTaskMode (DtTaskModeEnum8 val)
virtual DtTaskModeEnum8	taskMode () const
virtual const char *	name () const override

Static Public Member Functions
static DtInteraction *	create ()
static void	addCallback (DtExerciseConn *conn, DtTaskInterCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
static void	removeCallback (DtExerciseConn *conn, DtTaskInterCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

Protected Member Functions
virtual const char *	interactionClassToUse (DtExerciseConn *exConn) const override
virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const override
virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const override

Protected Attributes
unsigned	myTaskId
DtVrlUuid	myTaskee
std::wstring	myTasker
std::wstring	myStartWhen
std::wstring	myWhy
DtTaskModeEnum8	myTaskMode

Constructor & Destructor Documentation

DtTaskInter::DtTaskInter

(

)

Constructor.

virtual DtTaskInter::~DtTaskInter ( )

overridevirtual

Destructor.

DtTaskInter::DtTaskInter

(

const DtTaskInter &

orig

)

Copy constructor.

Member Function Documentation

DtTaskInter& DtTaskInter::operator=

(

const DtTaskInter &

orig

)

Assignment operator.

virtual void DtTaskInter::printData ( ) const

overridevirtual

Print the interaction's data.

Reimplemented in DtTaskDismountInter, DtTaskFireAtEntityInter, DtTaskFireAtLocationInter, DtTaskMountInter, DtTaskMoveToLocationInter, DtTaskSetOrderedAltitudeInter, DtTaskSetOrderedSpeedInter, DtTaskSetRulesOfEngagementInter, DtTaskFireAtEntityWMInter, and DtTaskFireAtLocationWMInter.

virtual void DtTaskInter::printDataToStream ( std::ostream &  stream ) const

overridevirtual

Print the interaction's data to the specified stream.

Reimplemented in DtTaskDismountInter, DtTaskFireAtEntityInter, DtTaskFireAtLocationInter, DtTaskMountInter, DtTaskMoveToLocationInter, DtTaskSetOrderedAltitudeInter, DtTaskSetOrderedSpeedInter, DtTaskSetRulesOfEngagementInter, DtTaskFireAtEntityWMInter, and DtTaskFireAtLocationWMInter.

virtual void DtTaskInter::setTaskId ( unsigned  val )

virtual

TaskId mutator.

virtual unsigned DtTaskInter::taskId ( ) const

virtual

TaskId accessor.

virtual void DtTaskInter::setTaskee ( const DtVrlUuid &  val )

virtual

Taskee mutator.

virtual const DtVrlUuid& DtTaskInter::taskee ( ) const

virtual

Taskee accessor.

virtual void DtTaskInter::setTasker ( const std::wstring &  val )

virtual

Tasker mutator.

virtual const std::wstring& DtTaskInter::tasker ( ) const

virtual

Tasker accessor.

virtual void DtTaskInter::setStartWhen ( const std::wstring &  val )

virtual

StartWhen mutator.

virtual const std::wstring& DtTaskInter::startWhen ( ) const

virtual

StartWhen accessor.

virtual void DtTaskInter::setWhy ( const std::wstring &  val )

virtual

Why mutator.

virtual const std::wstring& DtTaskInter::why ( ) const

virtual

Why accessor.

virtual void DtTaskInter::setTaskMode ( DtTaskModeEnum8  val )

virtual

TaskMode mutator.

virtual DtTaskModeEnum8 DtTaskInter::taskMode ( ) const

virtual

TaskMode accessor.

virtual const char* DtTaskInter::name ( void  ) const

inlineoverridevirtual

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Reimplemented in DtTaskMoveToLocationInter, DtTaskFireAtLocationInter, DtTaskFireAtLocationWMInter, DtTaskFireAtEntityWMInter, DtTaskSetOrderedAltitudeInter, DtTaskFireAtEntityInter, DtTaskMountInter, DtTaskSetOrderedSpeedInter, DtTaskSetRulesOfEngagementInter, and DtTaskDismountInter.

static DtInteraction* DtTaskInter::create ( )

static

Create a DtTaskInter. Caller is responsible for deletion.

static void DtTaskInter::addCallback ( DtExerciseConn *  conn, DtTaskInterCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

Add (register)/Remove (de-register) function to be called when interaction occurs.

static void DtTaskInter::removeCallback ( DtExerciseConn *  conn, DtTaskInterCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

virtual const char* DtTaskInter::interactionClassToUse ( DtExerciseConn *  exConn ) const

overrideprotectedvirtual

Reimplemented in DtTaskMoveToLocationInter, DtTaskFireAtLocationInter, DtTaskFireAtLocationWMInter, DtTaskSetOrderedAltitudeInter, DtTaskFireAtEntityWMInter, DtTaskMountInter, DtTaskSetOrderedSpeedInter, DtTaskSetRulesOfEngagementInter, DtTaskFireAtEntityInter, and DtTaskDismountInter.

virtual DtInteractionDecoder* DtTaskInter::createDecoder ( DtExerciseConn *  exConn ) const

overrideprotectedvirtual

Reimplemented in DtTaskMoveToLocationInter, DtTaskFireAtLocationInter, DtTaskSetOrderedAltitudeInter, DtTaskFireAtLocationWMInter, DtTaskFireAtEntityWMInter, DtTaskMountInter, DtTaskSetOrderedSpeedInter, DtTaskSetRulesOfEngagementInter, DtTaskFireAtEntityInter, and DtTaskDismountInter.

virtual DtInteractionEncoder* DtTaskInter::createEncoder ( DtExerciseConn *  exConn ) const

overrideprotectedvirtual

Reimplemented in DtTaskMoveToLocationInter, DtTaskFireAtLocationInter, DtTaskSetOrderedAltitudeInter, DtTaskFireAtLocationWMInter, DtTaskFireAtEntityWMInter, DtTaskMountInter, DtTaskSetOrderedSpeedInter, DtTaskSetRulesOfEngagementInter, DtTaskFireAtEntityInter, and DtTaskDismountInter.

Member Data Documentation

unsigned DtTaskInter::myTaskId

protected

DtVrlUuid DtTaskInter::myTaskee

protected

std::wstring DtTaskInter::myTasker

protected

std::wstring DtTaskInter::myStartWhen

protected

std::wstring DtTaskInter::myWhy

protected

DtTaskModeEnum8 DtTaskInter::myTaskMode

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/vrfExtObjects/taskInterHLA.h
