DtTerrainMetafileRecord Class Reference

This is the abstract base class for all terrain records in a metafile.

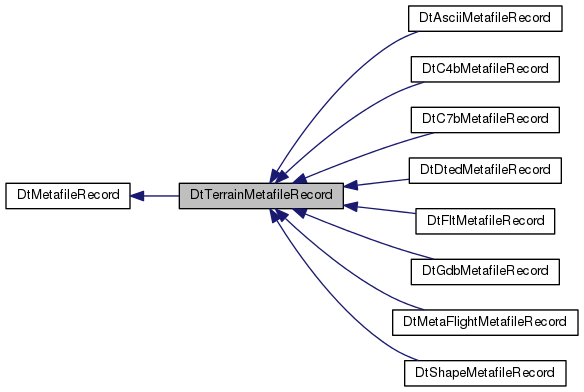

Inheritance diagram for DtTerrainMetafileRecord:

Public Member Functions
	DtTerrainMetafileRecord ()
virtual	~DtTerrainMetafileRecord () override
	DtTerrainMetafileRecord (const DtTerrainMetafileRecord &orig)
DtTerrainMetafileRecord &	operator= (const DtTerrainMetafileRecord &orig)
virtual const DtFilename &	filename () const
virtual void	setFilename (const DtFilename &name)
virtual DtConfigCategoryType	recordCategory () const override
virtual const unsigned int	terrainType () const
virtual void	resetFileLists () override
virtual bool	get (std::istream &stream) override
virtual bool	processToken (std::istream &stream, DtString &token) override
Public Member Functions inherited from DtMetafileRecord
	DtMetafileRecord ()
virtual	~DtMetafileRecord ()
	DtMetafileRecord (const DtMetafileRecord &orig)
DtMetafileRecord &	operator= (const DtMetafileRecord &orig)
virtual bool	init ()
virtual DtString	recordTypeName () const =0
virtual bool	canImport ()
virtual bool	put (std::ostream &stream) const
virtual bool	getAttribute (const DtString attrName, DtString &value, DtString &type, unsigned index=0)
virtual bool	setAttribute (DtString attrName, DtString value)
virtual const DtTerrainInitializer *	initializer () const
virtual DtTerrainInitializer *	initializer ()
virtual void	setInitializer (DtTerrainInitializer *init)
virtual const int	recordKey ()
virtual void	setRecordKey (const int key)
virtual const DtPropertyNamesMap	properties () const
virtual const DtString &	recordString () const
virtual void	setPath (const DtFilename &)
virtual const DtFilename &	path () const
bool	isInt (const DtString &valueIn)
bool	isDouble (const DtString &valueIn)
bool	isColor (const DtString &valueIn)
bool	isPoint (const DtString &valueIn)
bool	isBool (const DtString &valueIn)
bool	toInt (const DtString &valueIn, int &valueOut)
bool	toDouble (const DtString &valueIn, double &valueOut)
bool	toColor (const DtString &valueIn, DtColor &valueOut)
bool	toPoint (const DtString &valueIn, DtPoint &valueOut)
bool	toBool (const DtString &valueIn, bool &valueOut)

Protected Member Functions
virtual bool	writeAttributes (std::ostream &stream) const override
virtual bool	getAttribute (const DtString attrName, DtString &value, unsigned index=0) override
virtual bool	setToken (const DtString &token, const DtString value) override

Protected Attributes
long	myZone
DtPoint	myDatabaseOrigin
bool	myOriginSet
DtFilename	myFile
unsigned int	myTerrainType
Protected Attributes inherited from DtMetafileRecord
DtTerrainInitializer *	mypInitializer
DtString	myRecordString
int	myRecordKey
DtPropertyNamesMap	myAttributeNames
bool	myCanImport
DtFilename	myPath

Static Protected Attributes
static const DtString	theZone
static const DtString	theOrigin
static const DtString	theNumVertices
static const DtString	theNumSurfaces
static const DtString	theIsLargeTerrain
Static Protected Attributes inherited from DtMetafileRecord
static const DtString	theImport

Constructor & Destructor Documentation

DtTerrainMetafileRecord::DtTerrainMetafileRecord

(

)

default constructor.

virtual DtTerrainMetafileRecord::~DtTerrainMetafileRecord ( )

overridevirtual

destructor

DtTerrainMetafileRecord::DtTerrainMetafileRecord

(

const DtTerrainMetafileRecord &

orig

)

copy constructor

Member Function Documentation

DtTerrainMetafileRecord& DtTerrainMetafileRecord::operator=

(

const DtTerrainMetafileRecord &

orig

)

assignment operator

virtual const DtFilename& DtTerrainMetafileRecord::filename ( ) const

virtual

Returns filename of database.

virtual void DtTerrainMetafileRecord::setFilename ( const DtFilename &  name )

virtual

Reimplemented in DtC7bMetafileRecord.

virtual DtConfigCategoryType DtTerrainMetafileRecord::recordCategory ( ) const

overridevirtual

Returns DtConfigTerrainType;.

Implements DtMetafileRecord.

virtual const unsigned int DtTerrainMetafileRecord::terrainType ( ) const

virtual

Specfic kind of terrain source.

virtual void DtTerrainMetafileRecord::resetFileLists ( )

overridevirtual

Clears the terrain file initializer list.

Reimplemented from DtMetafileRecord.

Reimplemented in DtShapeMetafileRecord.

virtual bool DtTerrainMetafileRecord::get ( std::istream &  stream )

overridevirtual

Read self from stream.

Reimplemented from DtMetafileRecord.

Reimplemented in DtShapeMetafileRecord, DtFltMetafileRecord, DtC4bMetafileRecord, DtAsciiMetafileRecord, DtC7bMetafileRecord, DtDtedMetafileRecord, DtMetaFlightMetafileRecord, and DtGdbMetafileRecord.

virtual bool DtTerrainMetafileRecord::processToken ( std::istream &  stream, DtString &  token  )

overridevirtual

Identifies a token or passes it to the parent class.

Reimplemented from DtMetafileRecord.

Reimplemented in DtShapeMetafileRecord, DtFltMetafileRecord, DtAsciiMetafileRecord, DtC4bMetafileRecord, DtC7bMetafileRecord, DtDtedMetafileRecord, DtMetaFlightMetafileRecord, and DtGdbMetafileRecord.

virtual bool DtTerrainMetafileRecord::writeAttributes ( std::ostream &  stream ) const

overrideprotectedvirtual

Write attributes to stream. This is called by put(stream)

Reimplemented from DtMetafileRecord.

Reimplemented in DtShapeMetafileRecord, DtFltMetafileRecord, DtAsciiMetafileRecord, DtC7bMetafileRecord, DtC4bMetafileRecord, DtDtedMetafileRecord, DtGdbMetafileRecord, and DtMetaFlightMetafileRecord.

virtual bool DtTerrainMetafileRecord::getAttribute ( const DtString  attrName, DtString &  value, unsigned  index = 0  )

overrideprotectedvirtual

Given the name of a record's attribute, returns its value in the 'value' parameter. Returns True if successful; false otherwise.

Reimplemented from DtMetafileRecord.

Reimplemented in DtShapeMetafileRecord, DtFltMetafileRecord, DtAsciiMetafileRecord, DtC4bMetafileRecord, DtC7bMetafileRecord, DtDtedMetafileRecord, DtGdbMetafileRecord, and DtMetaFlightMetafileRecord.

virtual bool DtTerrainMetafileRecord::setToken ( const DtString &  token, const DtString  value  )

overrideprotectedvirtual

identifies a token and returns true if the value can be set to it, false otherwise

Reimplemented from DtMetafileRecord.

Reimplemented in DtShapeMetafileRecord, DtC4bMetafileRecord, DtFltMetafileRecord, DtAsciiMetafileRecord, DtC7bMetafileRecord, DtDtedMetafileRecord, DtGdbMetafileRecord, and DtMetaFlightMetafileRecord.

Member Data Documentation

const DtString DtTerrainMetafileRecord::theZone

staticprotected

These variables will be used to override any latitude/longitude or zone information found in header files.

const DtString DtTerrainMetafileRecord::theOrigin

staticprotected

Note that latitude and longitude origin will be defined as latitude, longitude, 0.0 (the z value must be 0.0)

const DtString DtTerrainMetafileRecord::theNumVertices

staticprotected

const DtString DtTerrainMetafileRecord::theNumSurfaces

staticprotected

const DtString DtTerrainMetafileRecord::theIsLargeTerrain

staticprotected

long DtTerrainMetafileRecord::myZone

protected

DtPoint DtTerrainMetafileRecord::myDatabaseOrigin

protected

bool DtTerrainMetafileRecord::myOriginSet

protected

DtFilename DtTerrainMetafileRecord::myFile

protected

unsigned int DtTerrainMetafileRecord::myTerrainType

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf5-2-branch/include/terrainDbFactory/terrainMetafileRecord.h
